SPARK
LUMI INDOOR

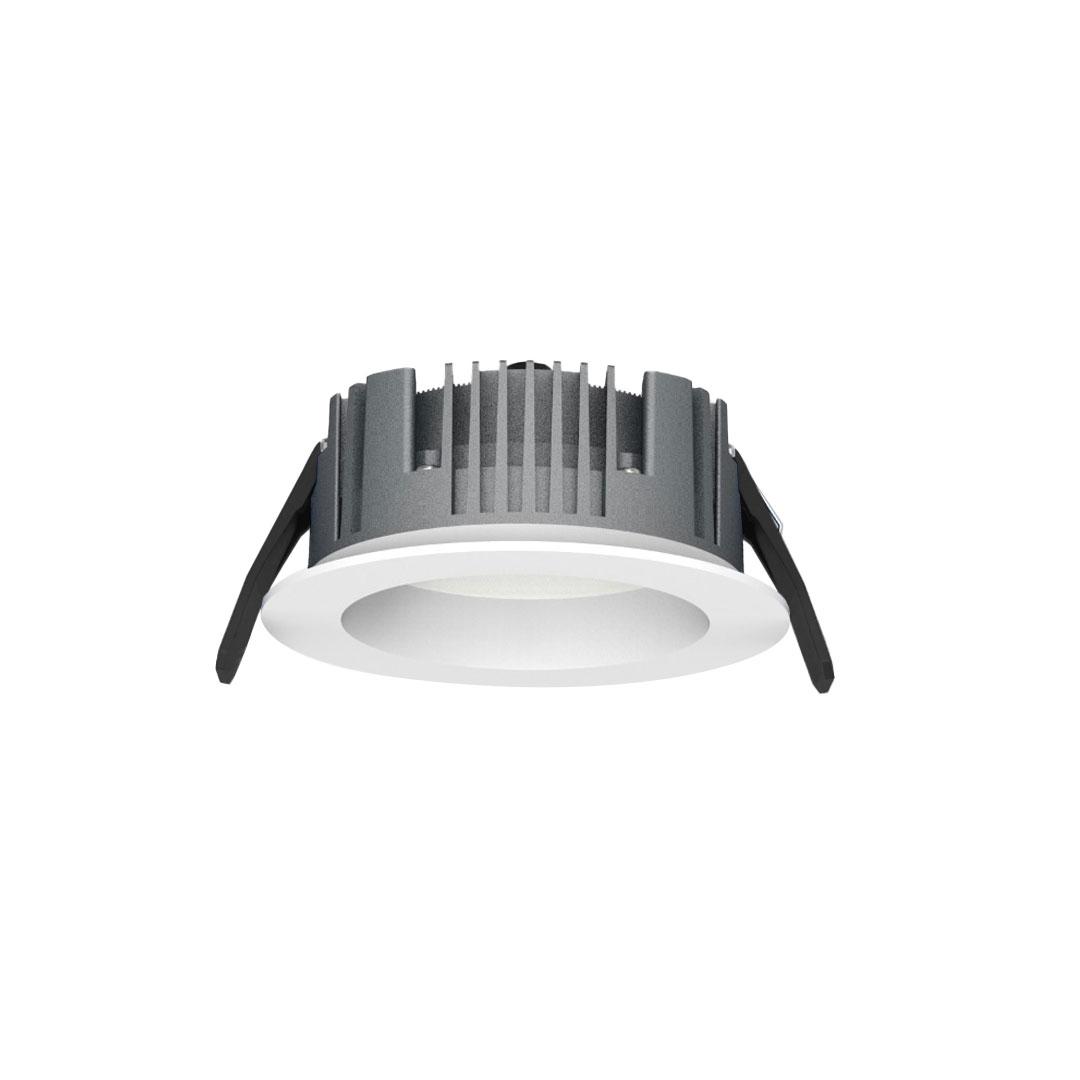

LB3326 Down Light
BASE: LB3326LUMIBRIGHT SPARK SERIES 15W Ø106X43MM 80RA 2700-6000K(TUNABLE) WHITE FINISH 90° IP65 DOWN LIGHT WITH DALI DRIVER
Specifications at a Glance
15W
Power
90-100lm/W
Lumen Output
2700K3000K4000K6000K
Available Colour Temperatures
CRI 80CRI 90
Colour Rendering Index
IP65
Protection Rating
UGR<19
UGR / Optics
220-240VAC(WITH DRIVER)
Input
Ø90mm
Cutout Size
Ø106x43mm
Body Dimensions
BlackWhite
Available Finishes
Non-DimmableDALITriac0/1-10V
Dimming Options
SAMSUNG SMD
LED Chip
50,000Hrs
LED Life Time
Aluminium
Material
-20°C~+40°C
Operating Temperature
INDOOR
Usage
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusNo structured orderable configuration is published for this model. Contact the technical team to confirm the complete configuration.
No standard configurations available.
Please contact us for custom options.
Product Information
- Category:
- DOWN LIGHT
- Family:
- SPARK
- Dimension:
- Ø106x43mm
- Input Voltage:
- 220-240VAC(WITH DRIVER)
- Light Source:
- SAMSUNG SMD
- Material:
- Aluminium
- Life Time:
- 50,000Hrs
- Operating Temp:
- -20°C~+40°C
- Usage:
- INDOOR
- Cut-Out:
- Ø90mm
Applications
Outdoor
Jewellery Display
