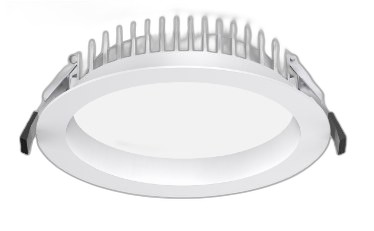

L01091 Ceiling Light
BASE: L01091SPIGA lighting solution with professional specifications
Specifications at a Glance
15W
Power
1200- 1300LM
Lumen Output
Switch
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP54
Protection Rating
90°
Beam Angle
DIFFUSER
UGR / Optics
220-240VAC
Input
120-130mm
Cutout Size
Ø145*53
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
SMD
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
2 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01091.8CCTS.03.90.DR
CCT:
Switch
Power:15W
Lumen:1200- 1300LM
Beam:
90°
Finish:
CRI 80IP54Black
L01091.8CCTS.01.90.DR
CCT:
Switch
Power:15W
Lumen:1200- 1300LM
Beam:
90°
Finish:
CRI 80IP54White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- SPIGA
- Family:
- SPIGA
- Dimension:
- Ø145*53
- Input Voltage:
- 220-240VAC
- Light Source:
- SMD
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- 120-130mm
Catalogue Specification
- Light Source:
- SMD
- Power:
- 15W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 3000K/4000K/5700K
- Lumen Output:
- 1200- 1300LM
- Beam Angle:
- 90°
- CRI:
- 80
- IP Rating:
- IP54
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø145*53
- Cut-Out:
- 120-130mm
- Optics:
- DIFFUSER
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
Applications
Jewellery Display
Office
Configure your product
L01091
Order code
Listed configurationL01091.8CCTS.03.90.DR
2 listed configurations · availability requires confirmation
