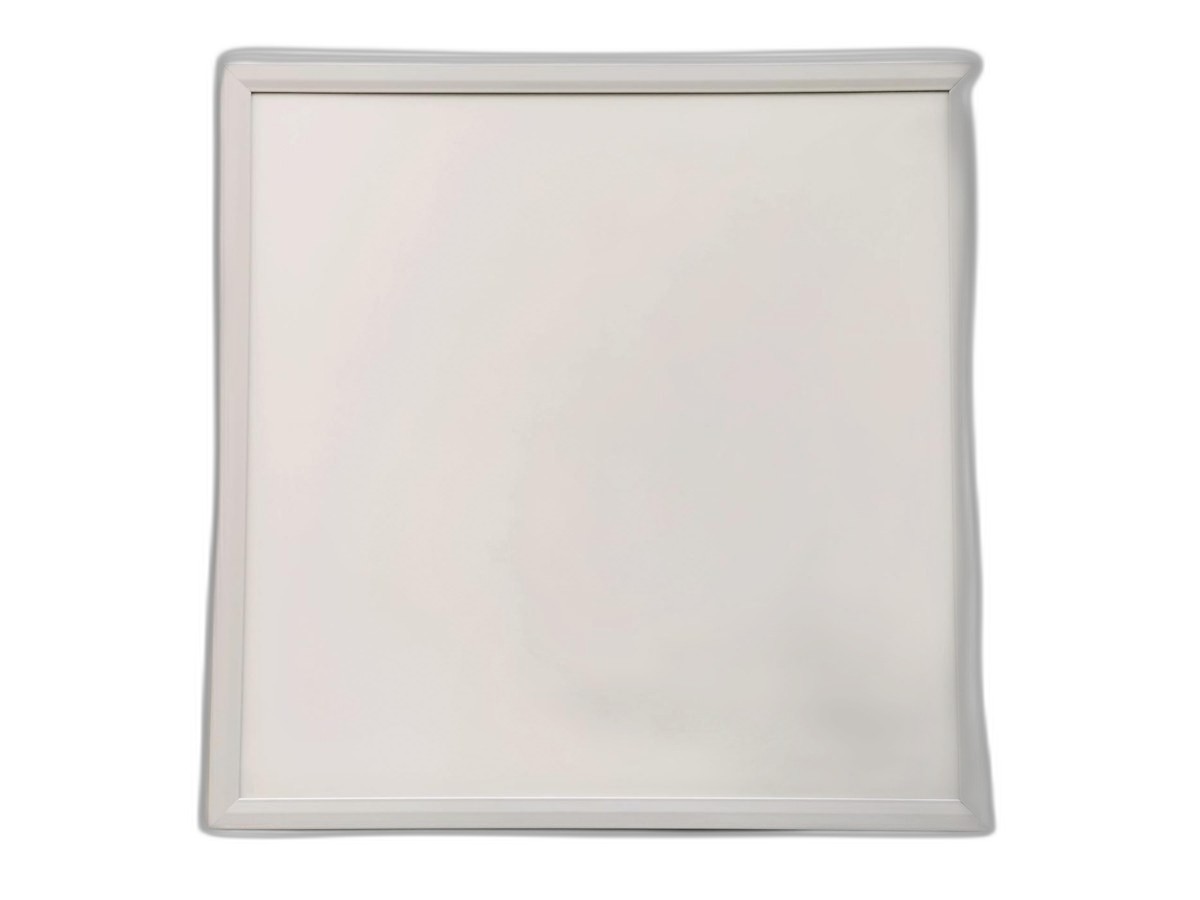

LBP5301 Panel Light

LBP5301: specifications and applications

LBP5301 is the SQUARE LBP5301 - PANEL LIGHT lighting model in the lumi indoor catalogue, listed under PANEL LIGHT. This page keeps the specifications, configuration choices and project notes for LBP5301 together, so it can be compared with other SQUARE models without substituting the dimensions or options of a neighbouring article.

The LBP5301 catalogue record lists power: 32W. Coordinate this load with the circuit schedule and the selected control gear.

The LBP5301 catalogue record lists body dimensions: 595x595x8mm. Check the housing against the architectural detail and the space reserved for installation.

The LBP5301 catalogue record lists colour temperature: 3000K, 4000K, 6500K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LBP5301 catalogue record lists colour rendering: >80. Include this catalogue value in the material and display-lighting comparison for the project.

The LBP5301 catalogue record lists optical distribution: 110°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LBP5301 catalogue record lists enclosure rating: IP40. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LBP5301 catalogue record lists electrical requirement: AC220-240V,50/60Hz. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LBP5301 catalogue record lists finish or material: White. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LBP5301 catalogue record lists mounting: ceiling-recessed. Check the fixing arrangement and access for installation before finalising the detail.

Hotel circulation, villa interiors and workplace settings need the ceiling arrangement to support the task and the architecture together. Compare the model dimensions, any stated cut-out and the intended distribution before setting out the fittings. Coordinate spacing with the room geometry and use the appropriate optical information for the final calculation rather than treating a nominal wattage as a coverage guarantee.

The current record for LBP5301 does not supply a complete list of order-code combinations. Use this base reference when requesting the model schedule, and confirm the exact finish, optical selection, electrical arrangement and included components before an order is specified. Missing options are not presented as available configurations.

For a LBP5301 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another SQUARE article.

Main model page: LBP5301

Model specifications

Dimensions595x595x8mm
Power32W
Lumen Output3840lm
Light Intensity300mcd
Input VoltageAC220-240V,50/60Hz
Output Voltage27-40VDC
Input Current700mA
Beam Angle110°
Power Factor>0.95
DriverLIFUD
MaterialAluminum
Diffuser / OpticPS(POLYSTYRENE)
Body FinishWhite
CRI>80
Colour Temperature3000K/4000K/6500K
Light SourceSMD 3014
UGR<19
IP RatingIP40
Operating Temperature-25°C~+53°C
LED Life Time50,000Hrs
Safety ClassIII
WarrantyWritten eligibility and policy confirmation required
