LUMIBRIGHT
STELLO
LUMI INDOOR
ceiling-recessed
IP65

L01253 Spot Light

BASE: L01253

STELLO lighting solution with professional specifications

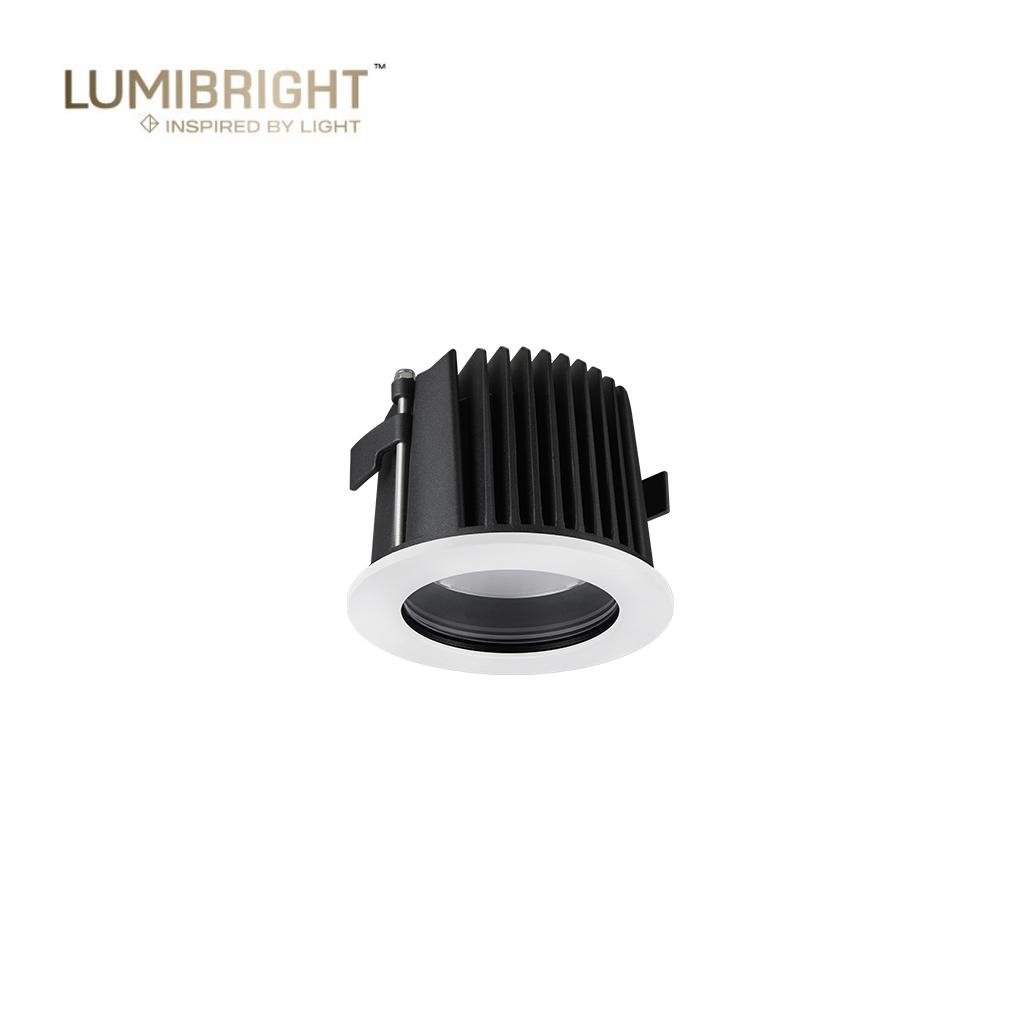

STELLO L01253 - SPOT LIGHT
Specifications at a Glance
15W
Power
1120lm
Lumen Output
3000K4000K6000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP65
Protection Rating
15° / 24° / 38° / 45° / 60°
Beam Angle
220-240VAC
Input
Ø80mm
Cutout Size
Ø92xH78mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
CREE
LED Chip
ALUMINUM
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

30 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L01253.960.03.60.DR
CCT:
6000K
Power:15W
Lumen:1120lm
Beam:
60°
Finish:
Black
CRI 90IP65
L01253.960.03.45.DR
CCT:
6000K
Power:15W
Lumen:1120lm
Beam:
45°
Finish:
Black
CRI 90IP65
L01253.960.03.38.DR
CCT:
6000K
Power:15W
Lumen:1120lm
Beam:
38°
Finish:
Black
CRI 90IP65
L01253.960.03.24.DR
CCT:
6000K
Power:15W
Lumen:1120lm
Beam:
24°
Finish:
Black
CRI 90IP65
L01253.960.03.15.DR
CCT:
6000K
Power:15W
Lumen:1120lm
Beam:
15°
Finish:
Black
CRI 90IP65
L01253.960.01.60.DR
CCT:
6000K
Power:15W
Lumen:1120lm
Beam:
60°
Finish:
White
CRI 90IP65

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
SPOT LIGHT
Series:
STELLO
Family:
STELLO
Dimension:
Ø92xH78mm
Input Voltage:
220-240VAC
Light Source:
CREE
Material:
ALUMINUM
Cut-Out:
Ø80mm

Catalogue Specification

Light Source:
CREE
Power:
15W
Input Voltage:
220-240VAC
Colour Temperature:
2700K/3000K/4000K/6000K/6500K
Lumen Output:
1120lm
Beam Angle:
15°/24°/38°/45°/60°
CRI:
90
IP Rating:
IP65
Body Finish:
WHITE/BLACK
Dimensions:
Ø92xH78mm
Cut-Out:
Ø80mm
Material:
ALUMINUM

Applications

Jewellery Display
Retail
