LUMIBRIGHT
STURZ
LUMI INDOOR
ceiling-recessed
IP40

LB2852 Spot Light

BASE: LB2852

STURZ lighting solution with professional specifications

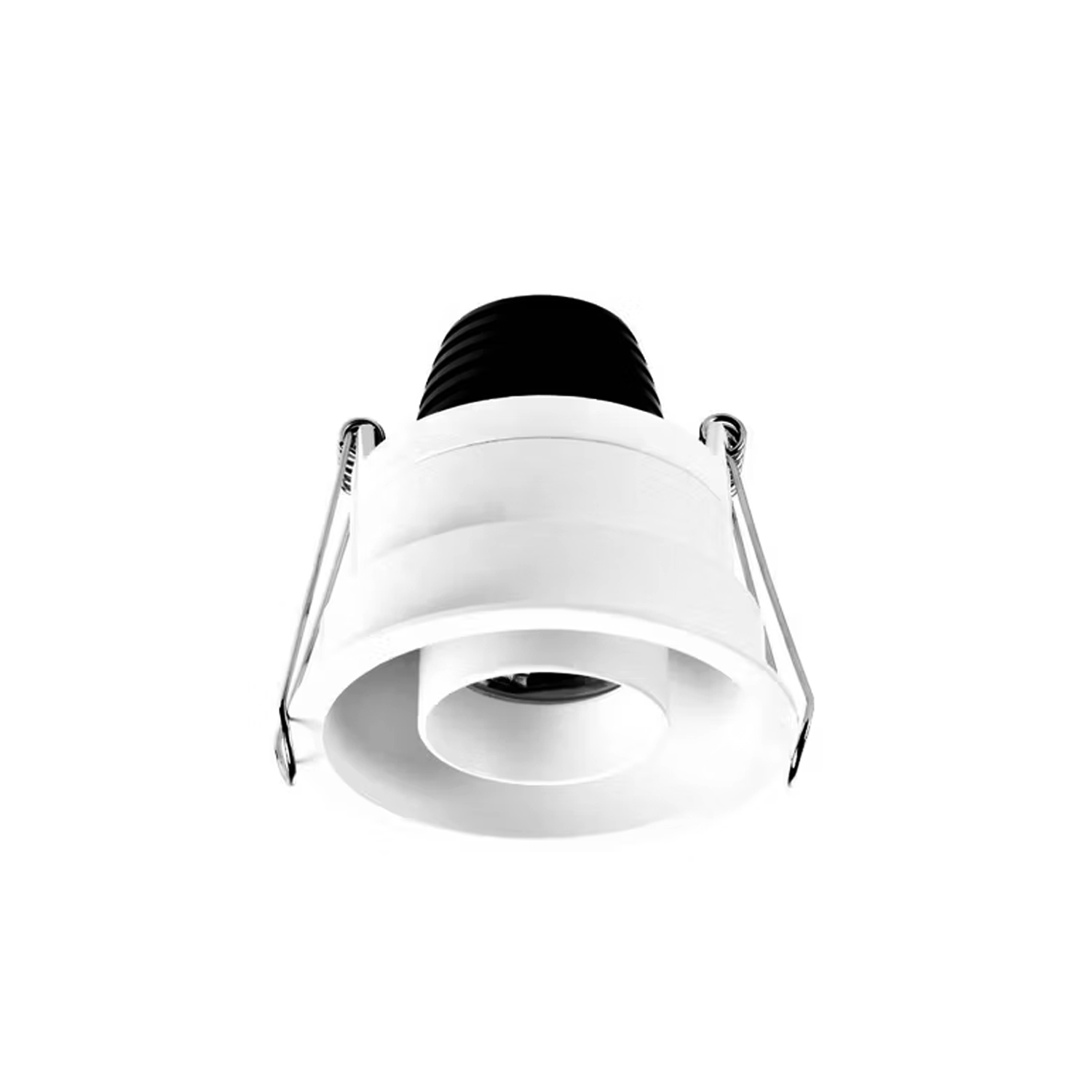

STURZ LB2852 - SPOT LIGHT
Specifications at a Glance
6W
Power
480lm / 4000K
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
CRI 80+/90+,95
Colour Rendering Index
IP40
Protection Rating
13° / 15° / 24° / 36°
Beam Angle
150mA / 36VDC(CC)
Input
Ø75mm
Cutout Size
Ø82x75mm
Body Dimensions
Black With SandWhite With Sand
Available Finishes
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB
LED Chip
50,000 Hrs
LED Life Time
Aluminum+PC
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

AVAILABLE CONFIGURATIONS

83 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

LB2852.C.850.PAB.36.DR
CCT:
5000K
Power:6W
Lumen:480lm / 4000K
Beam:
36°
Finish:
Black
CRI 80+/90+,95IP40
LB2852.W.827.PAB.13.DR
CCT:
2700K
Power:6W
Lumen:480lm / 4000K
Beam:
13°
Finish:
Black
CRI 80+/90+,95IP40
LB2852.W.830.PAB.13.DR
CCT:
3000K
Power:6W
Lumen:480lm / 4000K
Beam:
13°
Finish:
Black
CRI 80+/90+,95IP40
LB2852.W.827.PAW.13.DR
CCT:
2700K
Power:6W
Lumen:480lm / 4000K
Beam:
13°
Finish:
White
CRI 80+/90+,95IP40
LB2852.W.830.PAW.13.DR
CCT:
3000K
Power:6W
Lumen:480lm / 4000K
Beam:
13°
Finish:
White
CRI 80+/90+,95IP40
LB2852.W.927.PAB.13.DR
CCT:
2700K
Power:6W
Lumen:480lm / 4000K
Beam:
13°
Finish:
Black
CRI 80+/90+,95IP40

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories
1 items

Recommended accessories for optimal installation and performance

Accessories

Additional components

1

Product Information

Category:
SPOT LIGHT
Series:
STURZ
Family:
STURZ
Dimension:
Ø82x75mm
Input Voltage:
150mA / 36VDC(CC)
Light Source:
Bridgelux COB
Material:
Aluminum+PC
Life Time:
50,000 Hrs
Cut-Out:
Ø75mm

Catalogue Specification

Light Source:
Bridgelux COB
Power:
6W
Input Voltage:
150mA / 36VDC(CC)
Lumen Output:
480lm / 4000K
CRI:
80+/90+,95
Power Factor:
>0.9
Colour Temperature:
2700K/3000K/4000K/5000K/6000K
Beam Angle:
13°,15°/24°/36°
Tilt / Rotation:
30°/350°
IP Rating:
IP40
LED Life Time:
50,000 Hrs
Dimensions:
Ø82x75mm
Cut-Out:
Ø75mm
Body Finish:
White/Black
Material:
Aluminum+PC
Warranty:
Written eligibility and policy confirmation required

Applications

Jewellery Display
Retail
