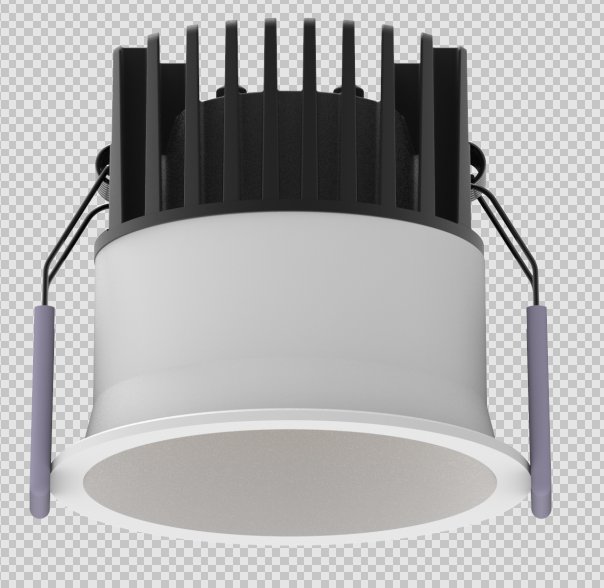

L01237 Down Light
BASE: L01237TIEF lighting solution with professional specifications
Specifications at a Glance
12W
Power
100LM
Lumen Output
3000K
Available Colour Temperatures
CRI 90
Colour Rendering Index
IP65
Protection Rating
38°
Beam Angle
REFLECTOR
UGR / Optics
AC220-240V
Input
Ø55mm
Cutout Size
Φ78x72mm
Body Dimensions
White
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01237.930.01.38.DR
CCT:
3000K
Power:12W
Lumen:100LM
Beam:
38°
Finish:
CRI 90IP65White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- TIEF
- Family:
- TIEF
- Dimension:
- Φ78x72mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM
- Cut-Out:
- Ø55mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 12W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Beam Angle:
- 38°
- CRI:
- 90
- IP Rating:
- IP65
- Body Finish:
- SAND WHITE
- Dimensions:
- Φ78x72mm
- Cut-Out:
- Ø55mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR GLASS
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
