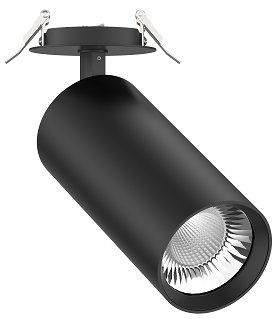

L01109 Ceiling Light
BASE: L01109TOLEDO lighting solution with professional specifications
Specifications at a Glance
WATTAGE SWITCHABLE/10W/12W/15W
Power
740-1750lm
Lumen Output
2700K3000K4000K5000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
24° / 36° / 60°
Beam Angle
REFLECTOR
UGR / Optics
200-240VAC
Input
90-95mm
Cutout Size
φ65*235
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
Bridgelux
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
24 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01109.827.01.24.DR
CCT:
2700K
Power:WATTAGE SWITCHABLE/10W/12W/15W
Lumen:740-1750lm
Beam:
24°
Finish:
CRI 80IP20White
L01109.827.01.36.DR
CCT:
2700K
Power:WATTAGE SWITCHABLE/10W/12W/15W
Lumen:740-1750lm
Beam:
36°
Finish:
CRI 80IP20White
L01109.827.01.60.DR
CCT:
2700K
Power:WATTAGE SWITCHABLE/10W/12W/15W
Lumen:740-1750lm
Beam:
60°
Finish:
CRI 80IP20White
L01109.830.01.24.DR
CCT:
3000K
Power:WATTAGE SWITCHABLE/10W/12W/15W
Lumen:740-1750lm
Beam:
24°
Finish:
CRI 80IP20White
L01109.830.01.36.DR
CCT:
3000K
Power:WATTAGE SWITCHABLE/10W/12W/15W
Lumen:740-1750lm
Beam:
36°
Finish:
CRI 80IP20White
L01109.830.01.60.DR
CCT:
3000K
Power:WATTAGE SWITCHABLE/10W/12W/15W
Lumen:740-1750lm
Beam:
60°
Finish:
CRI 80IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- TOLEDO
- Family:
- TOLEDO
- Dimension:
- φ65*235
- Input Voltage:
- 200-240VAC
- Light Source:
- Bridgelux
- Material:
- ALUMINUM
- Cut-Out:
- 90-95mm
Catalogue Specification
- Light Source:
- Bridgelux
- Power:
- WATTAGE SWITCHABLE/10W/12W/15W
- Input Voltage:
- 200-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 740-1750lm
- Beam Angle:
- 24°/36°/60°
- CRI:
- 80
- IP Rating:
- IP20
- Body Finish:
- WHITE/BLACK
- Dimensions:
- φ65*235
- Cut-Out:
- 90-95mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR GLASS
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
Configure your product
L01109
Order code
Listed configurationL01109.827.01.24.DR
24 listed configurations · availability requires confirmation
