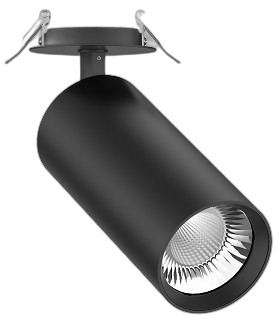

L01110 Ceiling Light
BASE: L01110TOLEDO lighting solution with professional specifications
Specifications at a Glance
WATTAGE SWITCHABLE/15W/20W/25W
Power
1300-3200lm
Lumen Output
Switch
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
REFLECTOR
UGR / Optics
200-240VAC
Input
90-95mm
Cutout Size
φ85*274
Body Dimensions
Black
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
Bridgelux
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01110.9CCTS.03.24.DR
CCT:
Switch
Power:WATTAGE SWITCHABLE/15W/20W/25W
Lumen:1300-3200lm
Beam:
24°
Finish:
CRI 80IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- TOLEDO
- Family:
- TOLEDO
- Dimension:
- φ85*274
- Input Voltage:
- 200-240VAC
- Light Source:
- Bridgelux
- Material:
- ALUMINUM
- Cut-Out:
- 90-95mm
Catalogue Specification
- Light Source:
- Bridgelux
- Power:
- WATTAGE SWITCHABLE/15W/20W/25W
- Input Voltage:
- 200-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 1300-3200lm
- Beam Angle:
- 24°/36°/60°
- CRI:
- 80
- IP Rating:
- IP20
- Body Finish:
- WHITE/BLACK
- Dimensions:
- φ85*274
- Cut-Out:
- 90-95mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR GLASS
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
Configure your product
L01110
Order code
Listed configurationL01110.9CCTS.03.24.DR
1 listed configurations · availability requires confirmation
