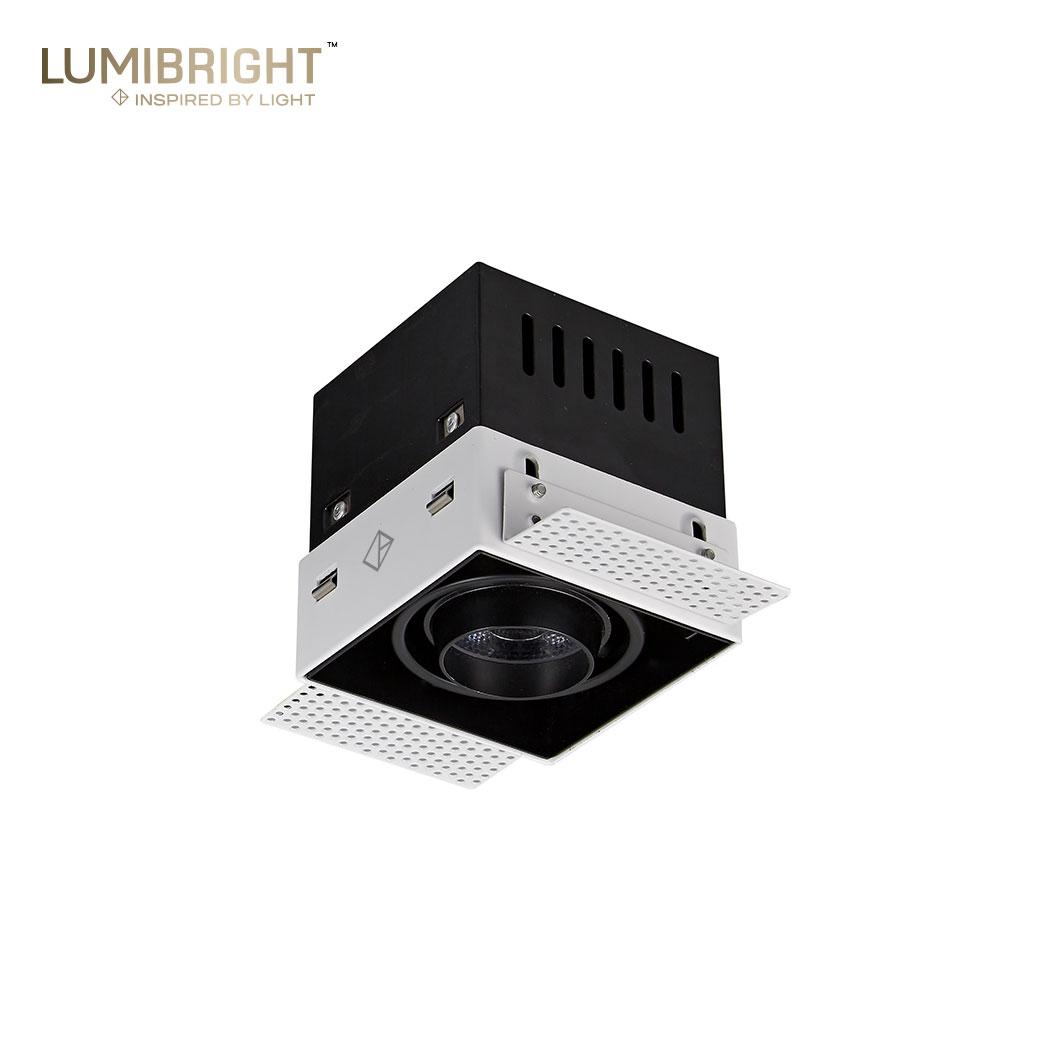

LBE2057 Spot Light
BASE: LBE2057TRESCO lighting solution with professional specifications
Specifications at a Glance
1x12W
Power
960lm
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
24° / 36°
Beam Angle
300mA/36VDC
Input
100x100mm
Cutout Size
95x95x100mm
Body Dimensions
Matt White+Black
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
-20-40°
Operating Temperature
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
10 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2057.N.940.PWH+WBK.24
CCT:
4000K
Power:1x12W
Lumen:960lm
Beam:
24°
Finish:
CRI >90IP20Matt White+Black
LBE2057.W.930.PWH+WBK.24
CCT:
3000K
Power:1x12W
Lumen:960lm
Beam:
24°
Finish:
CRI >90IP20Matt White+Black
LBE2057.W.930.PWH+WBK.36
CCT:
3000K
Power:1x12W
Lumen:960lm
Beam:
36°
Finish:
CRI >90IP20Matt White+Black
LBE2057.W.927.PWH+WBK.36
CCT:
2700K
Power:1x12W
Lumen:960lm
Beam:
36°
Finish:
CRI >90IP20Matt White+Black
LBE2057.W.927.PWH+WBK.24
CCT:
2700K
Power:1x12W
Lumen:960lm
Beam:
24°
Finish:
CRI >90IP20Matt White+Black
LBE2057.N.940.PWH+WBK.36
CCT:
4000K
Power:1x12W
Lumen:960lm
Beam:
36°
Finish:
CRI >90IP20Matt White+Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- TRESCO
- Family:
- TRESCO
- Dimension:
- 95x95x100mm
- Input Voltage:
- 300mA/36VDC
- Light Source:
- Bridgelux COB
- Material:
- Aluminum
- Life Time:
- 50,000Hrs
- Operating Temp:
- -20-40°
- Cut-Out:
- 100x100mm
Catalogue Specification
- Light Source:
- Bridgelux COB
- Power:
- 1x12W
- Input Voltage:
- 300mA/36VDC
- Lumen Output:
- 960lm
- CRI:
- >90
- Colour Temperature:
- 2700K/3000K/4000K/6000K
- Beam Angle:
- 24°/36°
- Tilt / Rotation:
- 30°/30°
- Power Factor:
- 0.5
- Material:
- Aluminum
- Body Finish:
- Matt White+Black
- IP Rating:
- IP20
- Dimensions:
- 95x95x100mm
- Cut-Out:
- 100x100mm
- Operating Temperature:
- -20-40°
- LED Life Time:
- 50,000Hrs
- Warranty:
- Written eligibility and policy confirmation required
Dimension Drawing
Applications
Jewellery Display
Retail
