LUMIBRIGHT
TUBE-DA
LUMI INDOOR
track-spot
IP20

LBP1016 Track Light

BASE: LBP1016

TRACK lighting solution with professional specifications

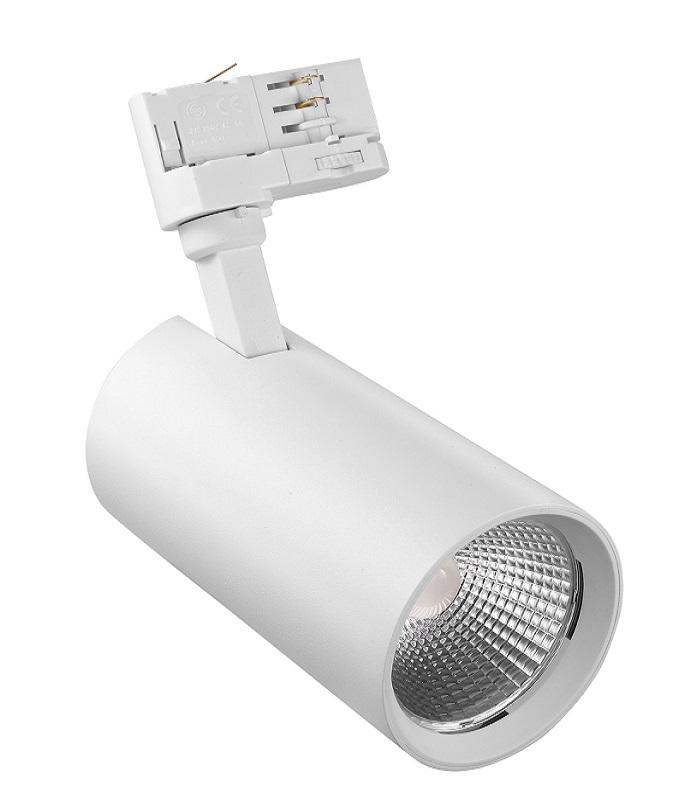

TRACK LBP1016 - SPOT LIGHT
Specifications at a Glance
20W
Power
1800lm
Lumen Output
2700K3000K
Available Colour Temperatures
CRI 80+
Colour Rendering Index
IP20
Protection Rating
24°
Beam Angle
19
UGR / Optics
220-240VAC
Input
Ø80x155mm
Body Dimensions
BlackWhite
Available Finishes
track-spot
Mounting Type
Citizen COB
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

Listed configuration

LBP1016.W.830.WWH.24.DDIM

AVAILABLE CONFIGURATIONS

3 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

LBP1016.W.830.WWH.24.DDIM
CCT:
3000K
Power:20W
Lumen:1800lm
Beam:
24°
Finish:
White
CRI 80+IP20
LBP1016.W.830.WWH.24.TDIM
CCT:
3000K
Power:20W
Lumen:1800lm
Beam:
24°
Finish:
White
CRI 80+IP20
LBP1016.W.827.WBK.24.DDIM
CCT:
2700K
Power:20W
Lumen:1800lm
Beam:
24°
Finish:
Black
CRI 80+IP20

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.
Compatible Accessories

Product Information

Category:
TRACK LIGHT
Family:
TUBE-DA
Dimension:
Ø80x155mm
Input Voltage:
220-240VAC
Light Source:
Citizen COB
Material:
Aluminum
Life Time:
50,000Hrs

Catalogue Specification

Light Source:
Citizen COB
Power:
20W
Input Voltage:
220-240VAC
Driver:
DALI dimmable driver
Lumen Output:
1800lm
CRI:
80+
UGR:
19
Power Factor:
>0.95
THD:
<15
Colour Temperature:
2700K/3000K/4000K/5000K/6000K
Beam Angle:
24°/38°/60°
IP Rating:
IP 20
LED Life Time:
50,000Hrs
Dimensions:
Ø80x155mm
Body Finish:
Black/White
Material:
Aluminum
Track Adaptor:
6 wires 3phase Track adaptor
Warranty:
Written eligibility and policy confirmation required
Catalogue conformity claim (evidence not verified):
TUV/SAA/CE/CB/ENEC/RoHS

Applications

Jewellery Display
Museum Gallery
Retail
