LBE2062 Spot Light
BASE: LBE2062UNIQUE lighting solution with professional specifications
Specifications at a Glance
2x12W
Power
1920LM
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
CRI >90
Colour Rendering Index
IP20
Protection Rating
24° / 36°
Beam Angle
220-240VAC
Input
1x12
Cutout Size
205x105x100mm
Body Dimensions
Matt BlackMatt White
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed, track-mounted
Mounting Type
Bridgelux COB
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
-20-40°
Operating Temperature
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
20 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE2062.N.940.PBK.36
CCT:
4000K
Power:2x12W
Lumen:1920LM
Beam:
36°
Finish:
CRI >90IP20Black
LBE2062.W.930.PBK.36
CCT:
3000K
Power:2x12W
Lumen:1920LM
Beam:
36°
Finish:
CRI >90IP20Black
LBE2062.W.930.PWH.36
CCT:
3000K
Power:2x12W
Lumen:1920LM
Beam:
36°
Finish:
CRI >90IP20White
LBE2062.W.930.PWH.24
CCT:
3000K
Power:2x12W
Lumen:1920LM
Beam:
24°
Finish:
CRI >90IP20White
LBE2062.W.930.PBK.24
CCT:
3000K
Power:2x12W
Lumen:1920LM
Beam:
24°
Finish:
CRI >90IP20Black
LBE2062.W.927.PWH.36
CCT:
2700K
Power:2x12W
Lumen:1920LM
Beam:
36°
Finish:
CRI >90IP20White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- SPOT LIGHT
- Series:
- UNIQUE
- Family:
- UNIQUE
- Dimension:
- 205x105x100mm
- Input Voltage:
- 220-240VAC
- Light Source:
- Bridgelux COB
- Material:
- Aluminum
- Life Time:
- 50,000Hrs
- Operating Temp:
- -20-40°
- Cut-Out:
- 1x12
Catalogue Specification
- Light Source:
- Bridgelux COB
- Power:
- 2x12W
- Input Voltage:
- 220-240VAC
- CRI:
- >90
- Colour Temperature:
- 2700K/3000K/4000K/6000K
- Beam Angle:
- 24°/36°
- Tilt / Rotation:
- 30°/350°
- Power Factor:
- 0.5
- Material:
- Aluminum
- Body Finish:
- Matt White, Matt Black
- IP Rating:
- IP20
- Dimensions:
- 205x105x100mm
- Operating Temperature:
- -20-40°
- LED Life Time:
- 50,000Hrs
- Warranty:
- Written eligibility and policy confirmation required

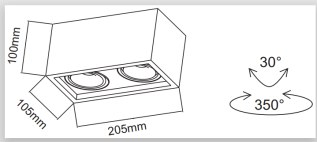

Dimension Drawing
Applications
Jewellery Display
Retail
