LUMIBRIGHT
VASTE
LUMI INDOOR
surface-mounted
IP20

L02017 Spot Light

BASE: L02017

VASTE lighting solution with professional specifications

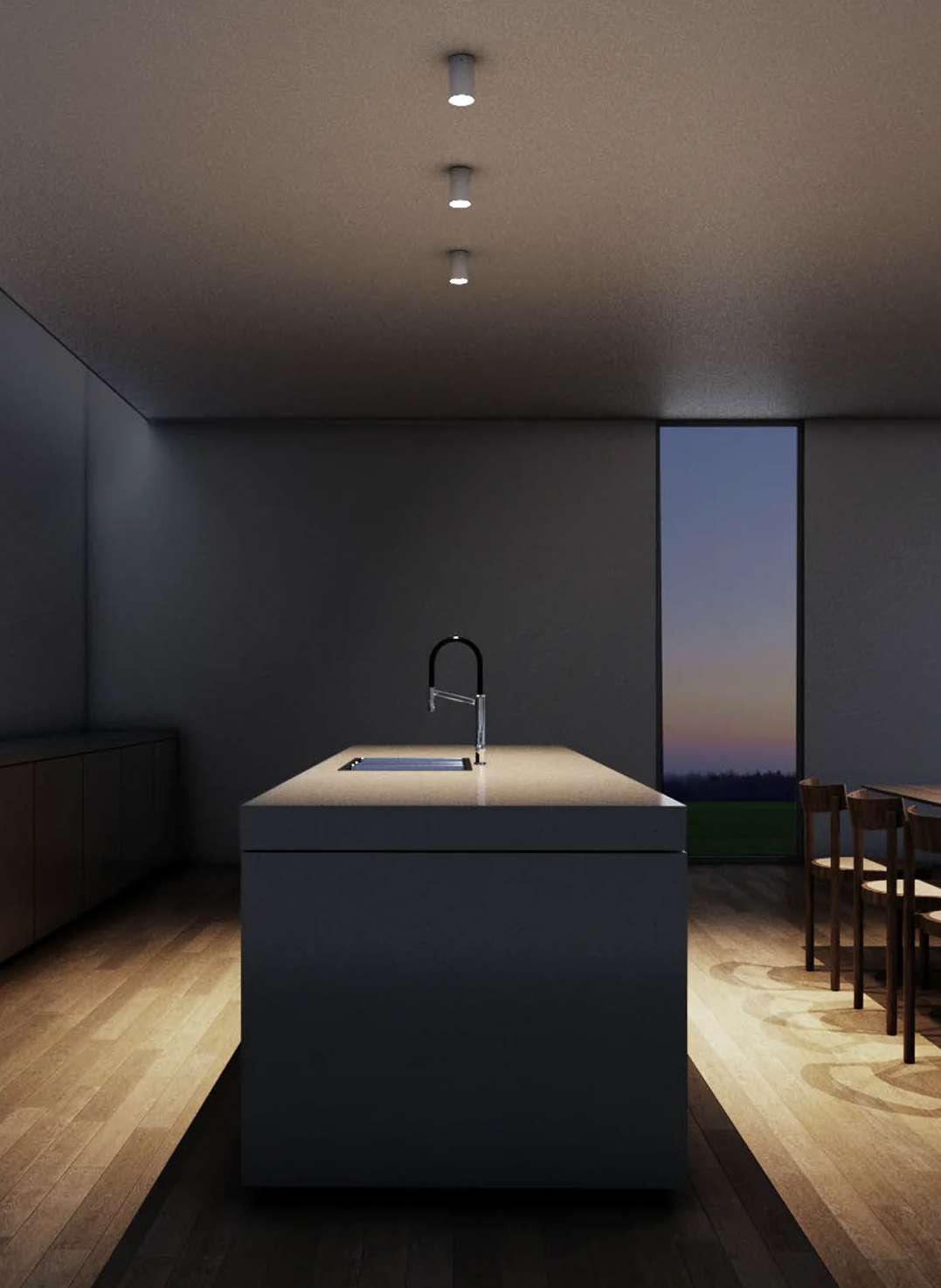

VASTE L02017 - CEILING SURFACE LIGHT
Specifications at a Glance
18W
Power
1400-1660LM
Lumen Output
2700K3000K4000K5000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
15° / 24° / 36°
Beam Angle
REFLECTOR
UGR / Optics
AC100-240V
Input
Ø100mm
Cutout Size
Ø80*160mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
surface-mounted
Mounting Type
COB
LED Chip
ALUMINUM
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

Listed configuration

L02017.850.03.36

AVAILABLE CONFIGURATIONS

24 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L02017.850.03.36
CCT:
5000K
Power:18W
Lumen:1400-1660LM
Beam:
36°
Finish:
Black
CRI 80IP20
L02017.850.03.24
CCT:
5000K
Power:18W
Lumen:1400-1660LM
Beam:
24°
Finish:
Black
CRI 80IP20
L02017.850.03.15
CCT:
5000K
Power:18W
Lumen:1400-1660LM
Beam:
15°
Finish:
Black
CRI 80IP20
L02017.850.01.36
CCT:
5000K
Power:18W
Lumen:1400-1660LM
Beam:
36°
Finish:
White
CRI 80IP20
L02017.850.01.24
CCT:
5000K
Power:18W
Lumen:1400-1660LM
Beam:
24°
Finish:
White
CRI 80IP20
L02017.850.01.15
CCT:
5000K
Power:18W
Lumen:1400-1660LM
Beam:
15°
Finish:
White
CRI 80IP20

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.

Product Information

Category:
CEILING SURFACE LIGHT
Series:
VASTE
Family:
VASTE
Dimension:
Ø80*160mm
Input Voltage:
AC100-240V
Light Source:
COB
Material:
ALUMINUM
Cut-Out:
Ø100mm

Catalogue Specification

Light Source:
COB
Power:
18W
Input Voltage:
AC100-240V
Colour Temperature:
2700K/3000K/4000K/5000K
Lumen Output:
1400-1660LM
Beam Angle:
15°/24°/36°
CRI:
80
IP Rating:
IP20
Body Finish:
WHITE/BLACK
Dimensions:
Ø80*160mm
Optics:
REFLECTOR
Cover / Lens:
CLEAR GLASS
Material:
ALUMINUM

Applications

Hotel Hospitality
Jewellery Display
Office
Residential
Retail Commercial
