LUMIBRIGHT
VASTE
LUMI INDOOR
surface-mounted
IP65

L02026 Spot Light

BASE: L02026

VASTE lighting solution with professional specifications

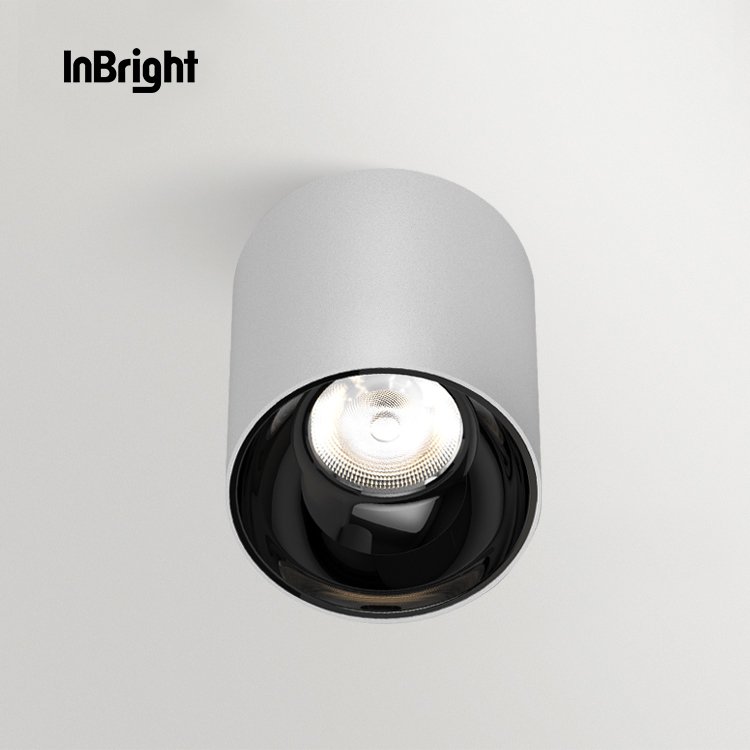

VASTE L02026 - CEILING SURFACE LIGHT
Specifications at a Glance
15W
Power
1570LM
Lumen Output
2700K3000K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP65
Protection Rating
20° / 40°
Beam Angle
LENS
UGR / Optics
AC220-240V
Input
Ø100mm
Cutout Size
Ø75×H.152mm
Body Dimensions
BlackMatt BlackMatt WhiteWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
surface-mounted
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty

Supporting model-specific declarations/test reports require verification

Evidence requirementsWarranty status

Listed configuration

L02026.930.04.06.40

AVAILABLE CONFIGURATIONS

52 listed configurations · availability requires confirmation

Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.

L02026.930.04.06.40
CCT:
3000K
Power:15W
Lumen:1570LM
Beam:
40°
Finish:
Black
CRI 80/90IP65
L02026.930.02.40
CCT:
3000K
Power:15W
Lumen:1570LM
Beam:
40°
Finish:
White
CRI 80/90IP65
L02026.930.02.03.40
CCT:
3000K
Power:15W
Lumen:1570LM
Beam:
40°
Finish:
White
CRI 80/90IP65
L02026.930.01.02.40
CCT:
3000K
Power:15W
Lumen:1570LM
Beam:
40°
Finish:
White
CRI 80/90IP65
L02026.930.03.40
CCT:
3000K
Power:15W
Lumen:1570LM
Beam:
40°
Finish:
Black
CRI 80/90IP65
L02026.940.04.06.40
CCT:
4000K
Power:15W
Lumen:1570LM
Beam:
40°
Finish:
Black
CRI 80/90IP65

Need Custom Options?

Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.

Questions about configurations? Contact our sales team for technical assistance.

Product Information

Category:
CEILING SURFACE LIGHT
Series:
VASTE
Family:
VASTE
Dimension:
Ø75×H.152mm
Input Voltage:
AC220-240V
Light Source:
BRIDGELUX
Material:
ALUMINUM DIE-CAST
Cut-Out:
Ø100mm

Catalogue Specification

Light Source:
BRIDGELUX
Power:
15W
Input Voltage:
AC220-240V
Colour Temperature:
2700K/3000K/4000K/5000K/5700K/6500K
Lumen Output:
1570LM
Beam Angle:
20°/40°
CRI:
80/90
IP Rating:
IP65
Body Finish:
WHITE/BLACK
Dimensions:
Ø75×H.152mm
Optics:
LENS
Cover / Lens:
PC
Material:
ALUMINUM DIE-CAST
Reflector:
Matt White/Matt Black/Mirror White/Mirror Black/Chrome

Applications

Hotel Hospitality
Jewellery Display
Office
Residential
Retail Commercial
