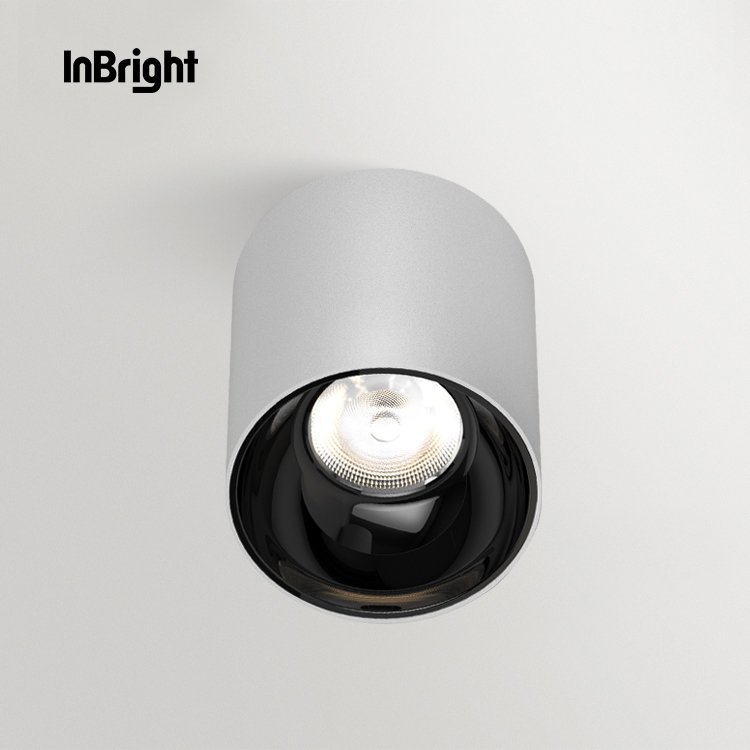

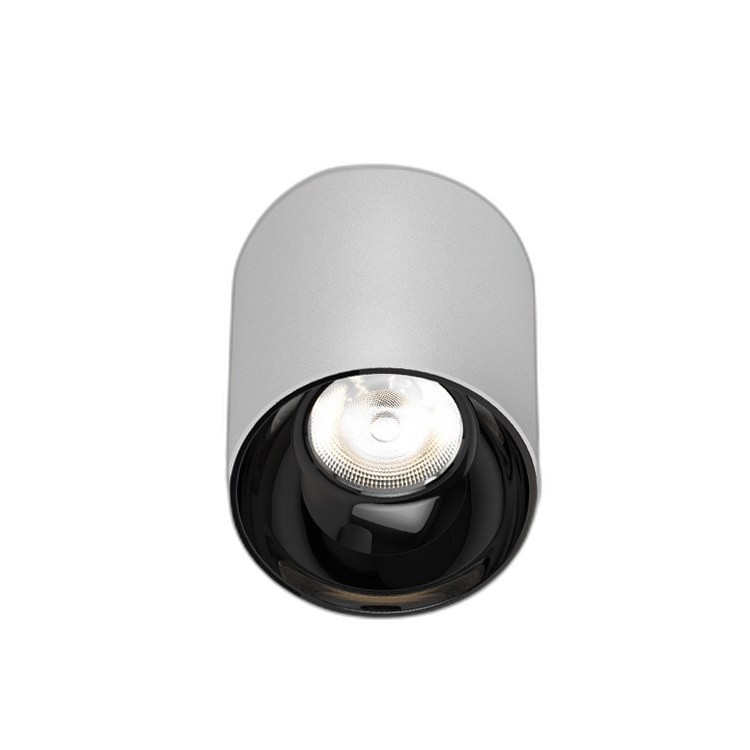

L02028 Spot Light
BASE: L02028VASTE lighting solution with professional specifications
Specifications at a Glance
20W
Power
2100LM
Lumen Output
2700K3000K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP65
Protection Rating
20° / 40°
Beam Angle
LENS
UGR / Optics
AC220-240V
Input
Ø115mm
Cutout Size
Ø95×H.152mm
Body Dimensions
BlackMatt BlackMatt White
Available Finishes
DALINon-DimmableTriac
Dimming Options
surface-mounted
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
49 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L02028.940.04.06.40
CCT:
4000K
Power:20W
Lumen:2100LM
Beam:
40°
Finish:
CRI 80/90IP65Black
L02028.965.03.40
CCT:
6500K
Power:20W
Lumen:2100LM
Beam:
40°
Finish:
CRI 80/90IP65Black
L02028.965.03.20
CCT:
6500K
Power:20W
Lumen:2100LM
Beam:
20°
Finish:
CRI 80/90IP65Black
L02028.957.03.40
CCT:
5700K
Power:20W
Lumen:2100LM
Beam:
40°
Finish:
CRI 80/90IP65Black
L02028.957.03.20
CCT:
5700K
Power:20W
Lumen:2100LM
Beam:
20°
Finish:
CRI 80/90IP65Black
L02028.950.03.40
CCT:
5000K
Power:20W
Lumen:2100LM
Beam:
40°
Finish:
CRI 80/90IP65Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING SURFACE LIGHT
- Series:
- VASTE
- Family:
- VASTE
- Dimension:
- Ø95×H.152mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø115mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 20W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/5000K/5700K/6500K
- Lumen Output:
- 2100LM
- Beam Angle:
- 20°/40°
- CRI:
- 80/90
- IP Rating:
- IP65
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø95×H.152mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Matt White/Matt Black/Mirror White/Mirror Black/Chrome
Applications
Hospitality
Jewellery Display
Office
Residential
Retail
