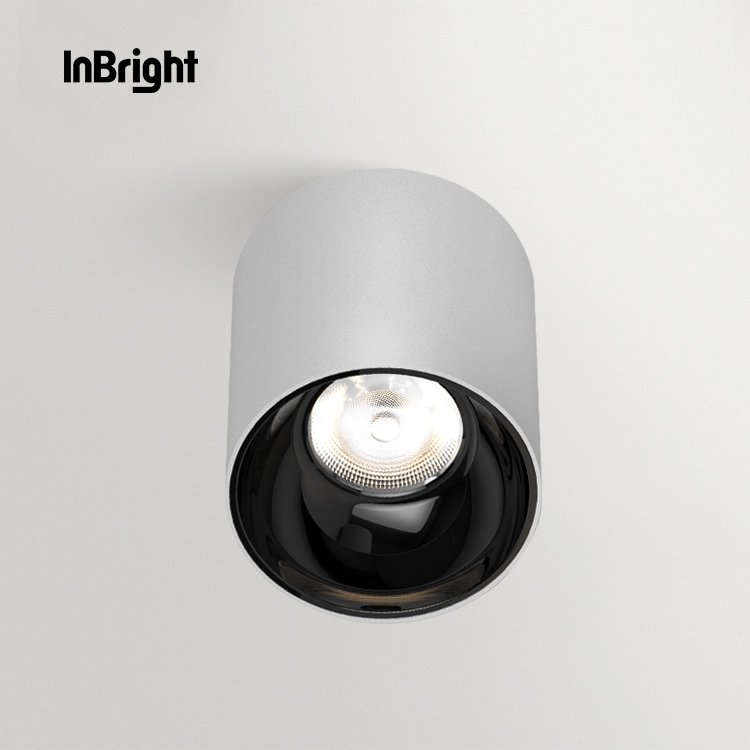

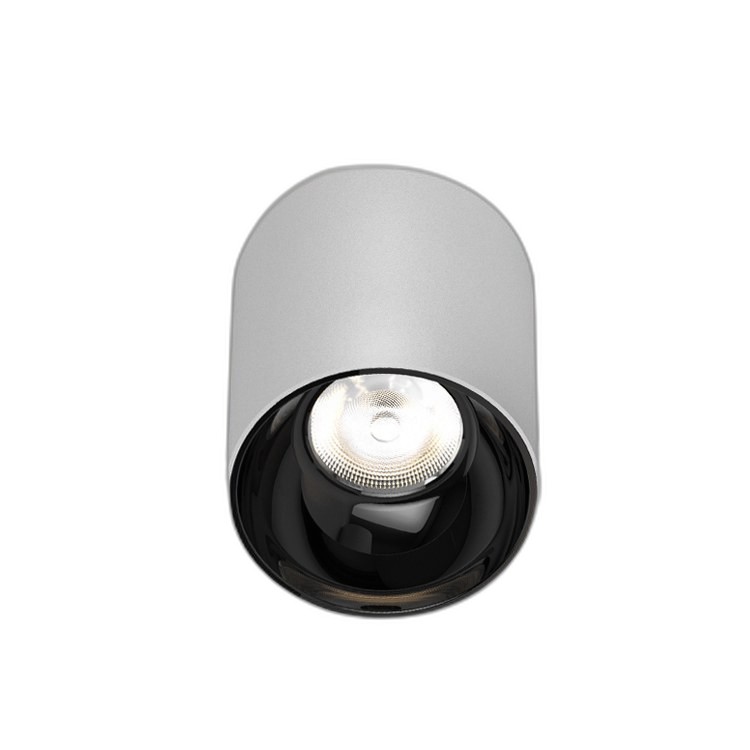

VASTE L02029 - CEILING SURFACE LIGHT
BASE: L02029VASTE lighting solution with professional specifications
Specifications at a Glance
30W
Power
3150LM
Lumen Output
2700K3000K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP65
Protection Rating
20° / 40°
Beam Angle
LENS
UGR / Optics
AC220-240V
Input
Ø140mm
Cutout Size
Ø115×H.152mm
Body Dimensions
BlackMatt BlackMatt WhiteRAL 9003WhiteWhite With SandWhite With Sand+Mirror SilverWhite+Matt White
Available Finishes
DALINon-DimmableTriac
Dimming Options
surface-mounted
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Certifications & Compliance
CE
RoHS
IP65
5 Year Warranty
CONFIGURE YOUR PRODUCT
Select your preferred specifications to generate the exact order code.
CRI 80
Generated Order Code
L02029.827.03
Total Available Configurations: 49
Your Configuration
Color Temperature
2700K
Beam Angle
20°
Body Finish
Black
Cri
CRI 80
Dimming
⚡
DALINeed help configuring? Contact our sales team for assistance.
AVAILABLE CONFIGURATIONS
49 standard configurations ready for immediate order
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L02029.940.03.06.40
CCT:
4000K
Power:30W
Lumen:3150LM
Beam:
CRI 80/90IP6540°
L02029.827.03.20
CCT:
2700K
Power:30W
Lumen:3150LM
Beam:
CRI 80/90IP6520°
L02029.927.03.20
CCT:
2700K
Power:30W
Lumen:3150LM
Beam:
CRI 80/90IP6520°
L02029.830.03.20
CCT:
3000K
Power:30W
Lumen:3150LM
Beam:
CRI 80/90IP6520°
L02029.930.03.20
CCT:
3000K
Power:30W
Lumen:3150LM
Beam:
CRI 80/90IP6520°
L02029.840.03.20
CCT:
4000K
Power:30W
Lumen:3150LM
Beam:
CRI 80/90IP6520°
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING SURFACE LIGHT
- Series:
- VASTE
- Family:
- VASTE
- Dimension:
- Ø115×H.152mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø140mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 30W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/5000K/5700K/6500K
- Lumen Output:
- 3150LM
- Beam Angle:
- 20°/40°
- CRI:
- 80/90
- IP Rating:
- IP65
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø115×H.152mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Matt White/Matt Black/Mirror White/Mirror Black/Chrome
Applications
Hotel Hospitality
Jewellery Display
Office
Residential
Retail Commercial
