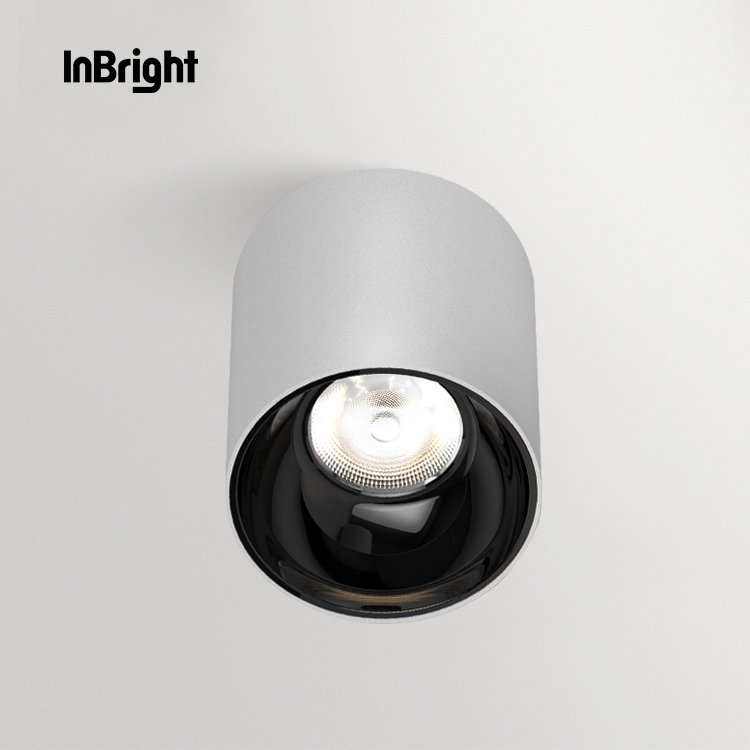

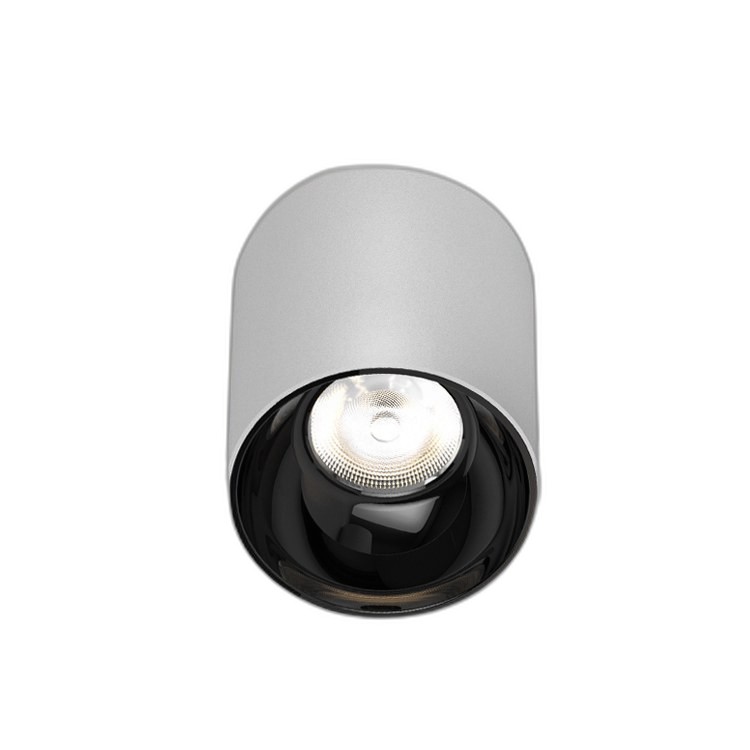

L02031 Spot Light
BASE: L02031VASTE lighting solution with professional specifications

Specifications at a Glance
50W
Power
5250LM
Lumen Output
2700K3000K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80/90
Colour Rendering Index
IP65
Protection Rating
20° / 40°
Beam Angle
LENS
UGR / Optics
AC220-240V
Input
Ø170mm
Cutout Size
Ø170×H.182mm
Body Dimensions
BlackMatt White
Available Finishes
DALINon-DimmableTriac
Dimming Options
surface-mounted
Mounting Type
BRIDGELUX
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusListed configuration
L02031.965.03.40
AVAILABLE CONFIGURATIONS
48 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L02031.965.03.40
CCT:
6500K
Power:50W
Lumen:5250LM
Beam:
40°
Finish:
CRI 80/90IP65Black
L02031.965.03.20
CCT:
6500K
Power:50W
Lumen:5250LM
Beam:
20°
Finish:
CRI 80/90IP65Black
L02031.965.02.40
CCT:
6500K
Power:50W
Lumen:5250LM
Beam:
40°
Finish:
CRI 80/90IP65White
L02031.965.02.20
CCT:
6500K
Power:50W
Lumen:5250LM
Beam:
20°
Finish:
CRI 80/90IP65White
L02031.865.03.40
CCT:
6500K
Power:50W
Lumen:5250LM
Beam:
40°
Finish:
CRI 80/90IP65Black
L02031.865.03.20
CCT:
6500K
Power:50W
Lumen:5250LM
Beam:
20°
Finish:
CRI 80/90IP65Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING SURFACE LIGHT
- Series:
- VASTE
- Family:
- VASTE
- Dimension:
- Ø170×H.182mm
- Input Voltage:
- AC220-240V
- Light Source:
- BRIDGELUX
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- Ø170mm
Catalogue Specification
- Light Source:
- BRIDGELUX
- Power:
- 50W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/5000K/5700K/6500K
- Lumen Output:
- 5250LM
- Beam Angle:
- 20°/40°
- CRI:
- 80/90
- IP Rating:
- IP65
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø170×H.182mm
- Optics:
- LENS
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
- Reflector:
- Matt White/Matt Black/Mirror White/Mirror Black/Chrome
Applications
Hotel Hospitality
Jewellery Display
Office
Residential
Retail Commercial
