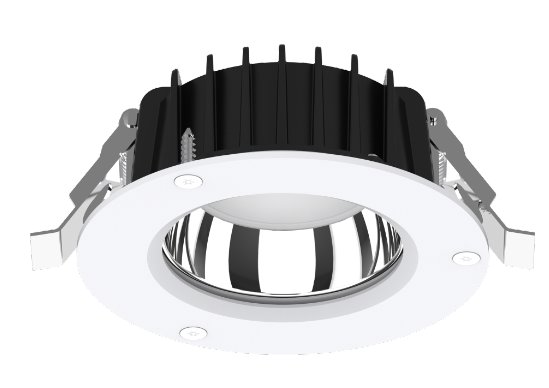

VOLSCI L01115 - CEILING RECESSED LIGHT
BASE: L01115VOLSCI lighting solution with professional specifications
Specifications at a Glance
13W
Power
810-1300lm
Lumen Output
2700K3000K4000K6000K6500K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP65
Protection Rating
75°
Beam Angle
REFLECTOR
UGR / Optics
220-240VAC
Input
90-95mm
Cutout Size
Ø110x51mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
recessed-downlight, surface-mounted
Mounting Type
2835 SMD
LED Chip
ALUMINUM DIE-CAST
Material
Certifications & Compliance
CE
RoHS
IP65
5 Year Warranty
CONFIGURE YOUR PRODUCT
Select your preferred specifications to generate the exact order code.
CRI 80
75°
Generated Order Code
L01115.827.03
Total Available Configurations: 2
Your Configuration
Body Finish
Black
Color Temperature
2700K
Cri
CRI 80
Dimming
⚡
DALIBeam Angle
75°
Need help configuring? Contact our sales team for assistance.
AVAILABLE CONFIGURATIONS
2 standard configurations ready for immediate order
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01115.8CCTS.03.75.DR
CCT:
Switch
Power:13W
Lumen:810-1300lm
Beam:
75°
Finish:
CRI 80IP65Black
L01115.8CCTS.01.75.DR
CCT:
Switch
Power:13W
Lumen:810-1300lm
Beam:
75°
Finish:
CRI 80IP65White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- VOLSCI
- Family:
- VOLSCI
- Dimension:
- Ø110x51mm
- Input Voltage:
- 220-240VAC
- Light Source:
- 2835 SMD
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- 90-95mm
Catalogue Specification
- Light Source:
- 2835 SMD
- Power:
- 13W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 810-1300lm
- Beam Angle:
- 75°
- CRI:
- 80
- IP Rating:
- IP65
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø110x51mm
- Cut-Out:
- 90-95mm
- Optics:
- REFLECTOR
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
Applications
Office
Jewellery Display
