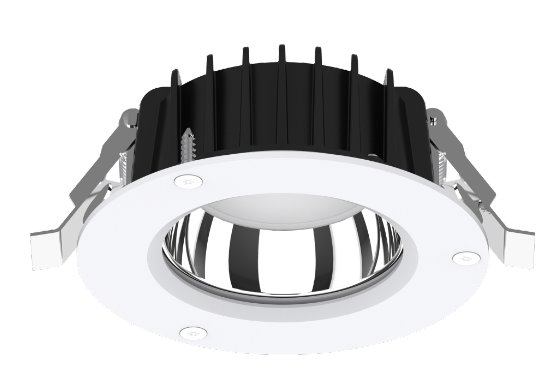

L01116 Ceiling Light
BASE: L01116VOLSCI lighting solution with professional specifications
Specifications at a Glance
18W
Power
1500-1950lm
Lumen Output
Switch
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP65
Protection Rating
90°
Beam Angle
REFLECTOR
UGR / Optics
220-240VAC
Input
125-140mm
Cutout Size
Ø150x64mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
2835 SMD
LED Chip
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
2 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01116.8CCTS.03.90.DR
CCT:
Switch
Power:18W
Lumen:1500-1950lm
Beam:
90°
Finish:
CRI 80IP65Black
L01116.8CCTS.01.90.DR
CCT:
Switch
Power:18W
Lumen:1500-1950lm
Beam:
90°
Finish:
CRI 80IP65White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- VOLSCI
- Family:
- VOLSCI
- Dimension:
- Ø150x64mm
- Input Voltage:
- 220-240VAC
- Light Source:
- 2835 SMD
- Material:
- ALUMINUM DIE-CAST
- Cut-Out:
- 125-140mm
Catalogue Specification
- Light Source:
- 2835 SMD
- Power:
- 18W
- Input Voltage:
- 220-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 1500-1950lm
- Beam Angle:
- 90°
- CRI:
- 80
- IP Rating:
- IP65
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø150x64mm
- Cut-Out:
- 125-140mm
- Optics:
- REFLECTOR
- Cover / Lens:
- PC
- Material:
- ALUMINUM DIE-CAST
Applications
Jewellery Display
Office
