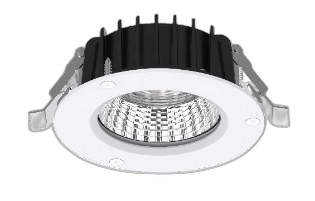

L01120 Ceiling Light
BASE: L01120VOLSCI lighting solution with professional specifications
Specifications at a Glance
10W
Power
800-950lm
Lumen Output
Switch
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP65
Protection Rating
24° / 36° / 60° / 75°
Beam Angle
REFLECTOR
UGR / Optics
200-240VAC
Input
90-95mm
Cutout Size
Ø110x51mm
Body Dimensions
BlackWhite
Available Finishes
DALINon-DimmableTriac
Dimming Options
ceiling-recessed
Mounting Type
CITIZEN COB
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
7 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L01120.8CCTS.03.60.DR
CCT:
Switch
Power:10W
Lumen:800-950lm
Beam:
60°
Finish:
CRI 80IP65Black
L01120.8CCTS.03.36.DR
CCT:
Switch
Power:10W
Lumen:800-950lm
Beam:
36°
Finish:
CRI 80IP65Black
L01120.8CCTS.03.24.DR
CCT:
Switch
Power:10W
Lumen:800-950lm
Beam:
24°
Finish:
CRI 80IP65Black
L01120.8CCTS.01.60.DR
CCT:
Switch
Power:10W
Lumen:800-950lm
Beam:
60°
Finish:
CRI 80IP65White
L01120.8CCTS.01.36.DR
CCT:
Switch
Power:10W
Lumen:800-950lm
Beam:
36°
Finish:
CRI 80IP65White
L01120.8CCTS.01.24.DR
CCT:
Switch
Power:10W
Lumen:800-950lm
Beam:
24°
Finish:
CRI 80IP65White
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING RECESSED LIGHT
- Series:
- VOLSCI
- Family:
- VOLSCI
- Dimension:
- Ø110x51mm
- Input Voltage:
- 200-240VAC
- Light Source:
- CITIZEN COB
- Material:
- ALUMINUM
- Cut-Out:
- 90-95mm
Catalogue Specification
- Light Source:
- CITIZEN COB
- Power:
- 10W
- Input Voltage:
- 200-240VAC
- Colour Temperature:
- 2700K/3000K/4000K/6000K/6500K
- Lumen Output:
- 800-950lm
- Beam Angle:
- 24°/36°/60°
- CRI:
- 80
- IP Rating:
- IP65
- Body Finish:
- WHITE/BLACK
- Dimensions:
- Ø110x51mm
- Cut-Out:
- 90-95mm
- Optics:
- REFLECTOR
- Cover / Lens:
- CLEAR GLASS
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
Configure your product
L01120
Order code
Listed configurationL01120.8CCTS.03.60.DR
7 listed configurations · availability requires confirmation
