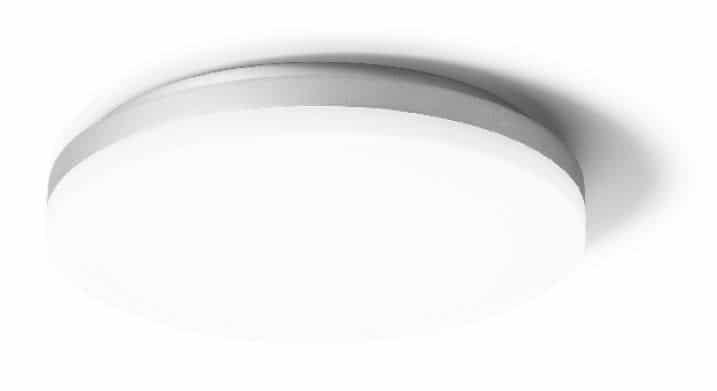

L02035 Ceiling Light
BASE: L02035WILTSHIRE-R lighting solution with professional specifications
Specifications at a Glance
18W
Power
2100LM
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP20
Protection Rating
120°
Beam Angle
DIFFUSER
UGR / Optics
AC220-240V
Input
φ270*44mm
Body Dimensions
BlackWhite
Available Finishes
Non-DimmableDALITriac
Dimming Options
surface-mounted
Mounting Type
SANAN
LED Chip
ALUMINUM
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
10 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L02035.860.01.120
CCT:
6000K
Power:18W
Lumen:2100LM
Beam:
120°
Finish:
CRI 80IP20White
L02035.850.01.120
CCT:
5000K
Power:18W
Lumen:2100LM
Beam:
120°
Finish:
CRI 80IP20White
L02035.840.01.120
CCT:
4000K
Power:18W
Lumen:2100LM
Beam:
120°
Finish:
CRI 80IP20White
L02035.830.01.120
CCT:
3000K
Power:18W
Lumen:2100LM
Beam:
120°
Finish:
CRI 80IP20White
L02035.827.01.120
CCT:
2700K
Power:18W
Lumen:2100LM
Beam:
120°
Finish:
CRI 80IP20White
L02035.860.03.120
CCT:
6000K
Power:18W
Lumen:2100LM
Beam:
120°
Finish:
CRI 80IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- CEILING SURFACE LIGHT
- Series:
- WILTSHIRE-R
- Family:
- WILTSHIRE-R
- Dimension:
- φ270*44mm
- Input Voltage:
- AC220-240V
- Light Source:
- SANAN
- Material:
- ALUMINUM
Catalogue Specification
- Light Source:
- SANAN
- Power:
- 18W
- Input Voltage:
- AC220-240V
- Colour Temperature:
- 2700K/3000K/4000K/5000K/6000K
- Lumen Output:
- 2100LM
- Beam Angle:
- 120°
- CRI:
- 80
- IP Rating:
- IP20
- Body Finish:
- WHITE/SILVER/BLACK
- Dimensions:
- φ270*44mm
- Optics:
- DIFFUSER
- Cover / Lens:
- PC
- Material:
- ALUMINUM
Applications
Jewellery Display
Office
Configure your product
L02035
Order code
Listed configurationL02035.860.01.120
10 listed configurations · availability requires confirmation
