Lumi Indoor
ZEAL
Application inspiration · not a project reference
ZEAL is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Track Light
ZEAL
Technical Data
Full Specification
| Dimensions | Ø120x210x267mm · 176x176x214mm · 321x176x214mm · 461x176x214mm +1 more |
|---|---|
| Cut-out | 168x168mm · 318x168mm · 458x168mm |
| Power | 30W · 10W |
| Lumen output | 1200-1500lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 18° · 28° · 36° · 45° +3 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90 · 80 · >90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 40VDC |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | black · White · black-sand · white-sand +1 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing

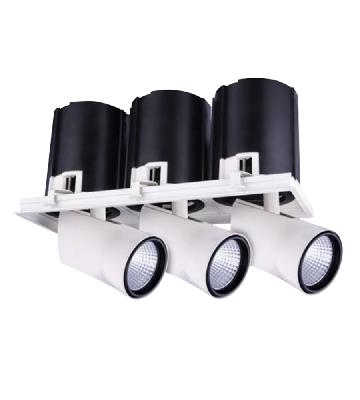

Drawing and sizes shown for model LB2366. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2366
461x176x214mm
Cut-Out
458x168mm
Specifications
At a Glance
10–90W
Power Range
7 options
Beam: 18°, 24°, 28°, 30°, 36°, 38°, 45°
6 CCT
2700K, 3000K, 4000K, 5000K, 5700K, 6000K
CRI 80/90
Colour Rendering
IP20
Protection Rating
5 finishes
Body Finish Options
5 sizes
176x176x214mm, 321x176x214mm, 461x176x214mm, Ø120x210x267mm, Ø65xH115mm
3 cut-outs
168x168mm, 318x168mm, 458x168mm
Configure your product

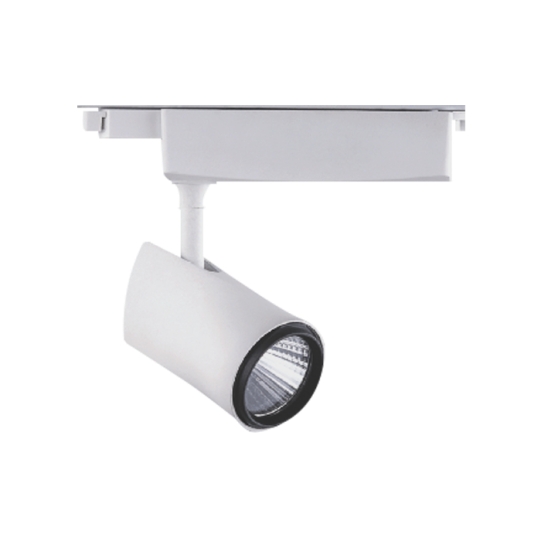

LB1067
Order code
Listed configurationLB1067.C.850.WBK.18
86 listed configurations · availability requires confirmation
