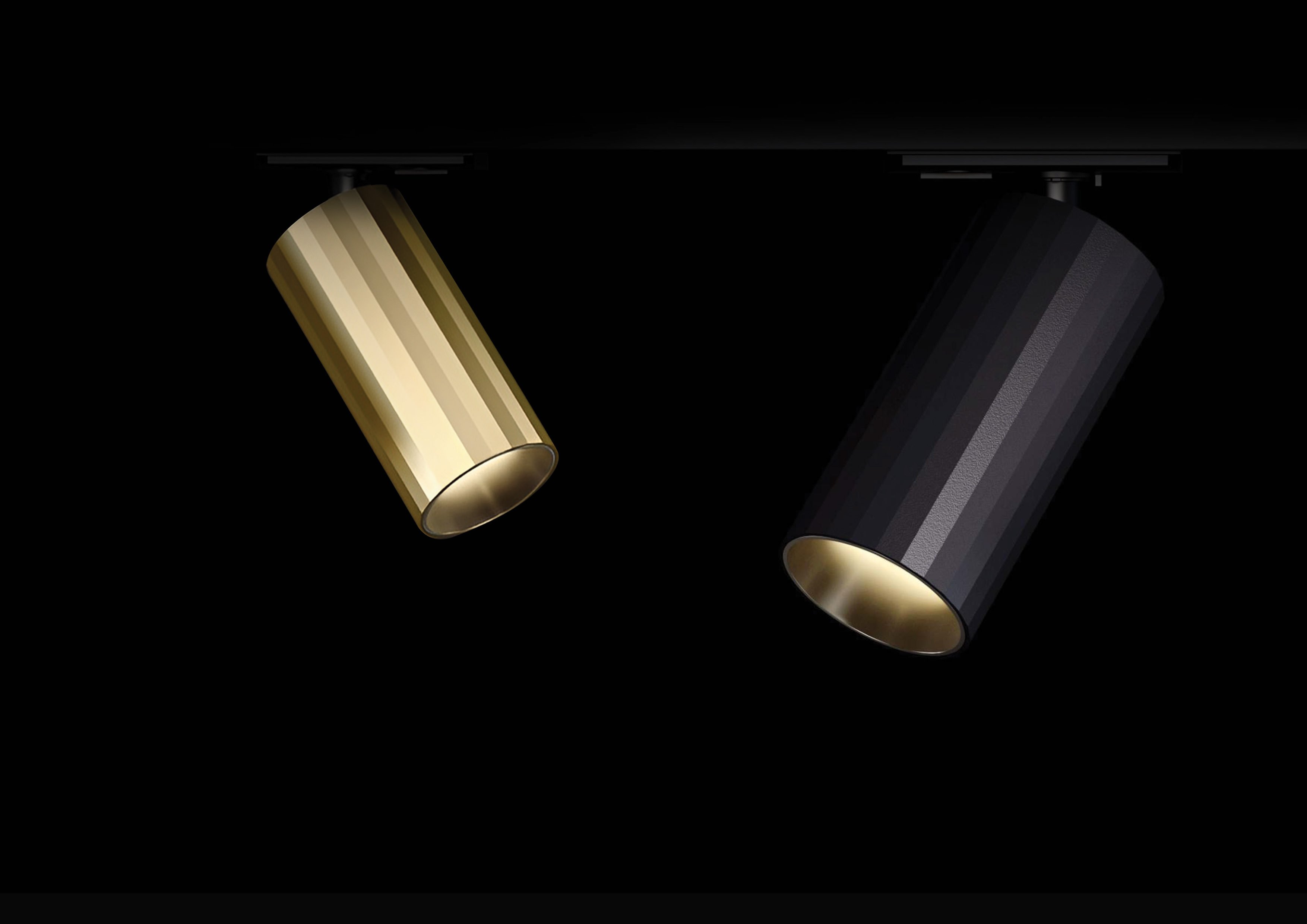

LB1046 Track Light
BASE: LB1046LUMIBRIGHT ZEAL LUMIINDOOR 45W TRACK LIGHT IP20
Specifications at a Glance
45W
Power
4700lm
Lumen Output
4000
Available Colour Temperatures
IP20
Protection Rating
18° / 28° / 36° / 45°
Beam Angle
100-240VAC
Input
Ø120x210x267mm
Body Dimensions
Black With SandWhite With Sand
Available Finishes
track-mounted
Mounting Type
CITIZEN LED
LED Chip
50,000Hrs
LED Life Time
Aluminum
Material
-20°C~+40°C
Operating Temperature
INDOOR
Usage
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
33 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB1046.N.840.PAB.36
Power:45W
Lumen:4700lm
Beam:
36°
Finish:
IP20Black
LB1046.N.840.PAW.36
Power:45W
Lumen:4700lm
Beam:
36°
Finish:
IP20White
LB1046.W.830.PAW.45
Power:45W
Lumen:4700lm
Beam:
45°
Finish:
IP20White
LB1046.W.830.PAW.28
Power:45W
Lumen:4700lm
Beam:
28°
Finish:
IP20White
LB1046.W.830.PAW.18
Power:45W
Lumen:4700lm
Beam:
18°
Finish:
IP20White
LB1046.W.830.PAB.45
Power:45W
Lumen:4700lm
Beam:
45°
Finish:
IP20Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- TRACK LIGHT
- Family:
- ZEAL
- Dimension:
- Ø120x210x267mm
- Input Voltage:
- 100-240VAC
- Light Source:
- CITIZEN LED
- Material:
- Aluminum
- Life Time:
- 50,000Hrs
- Operating Temp:
- -20°C~+40°C
- Usage:
- INDOOR
Applications
Hospitality
Jewellery Display
Museum Gallery
Restaurant Dining
Retail
Configure your product
LB1046
Order code
Listed configurationLB1046.N.840.PAB.36
33 listed configurations · availability requires confirmation
