Lumi Outdoor
CAMELON
Application inspiration · not a project reference
CAMELON is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Projector Light
CAMELON
CAMELON is a projector light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 8 models, including L07131, L07132, L07133, with model-specific specifications and configuration choices. L07131 specifications include power: 18W; colour temperature: 6000K, 5000K, 3000K, 6500K, 2700K, 4000K; IP rating: IP66; dimensions: Ø140x136x188mm. Compare the CAMELON range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L07131 | Wattage18W | CCT6000K, 5000K, 3000K, 6500K, 2700K, 4000K | IPIP66 | DimensionsØ140x136x188mm | Cut-outNot published |

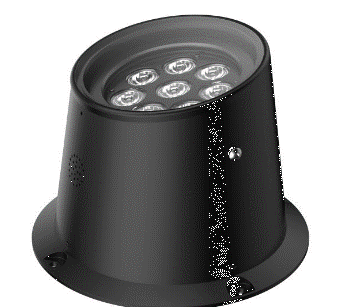

| L07132 | Wattage18W | CCTRGB+WARM WHITE | IPIP66 | DimensionsØ140x136x188mm | Cut-outNot published |
| L07133 | Wattage18W | CCT6000K, 5000K, 3000K, 6500K, 2700K, 4000K | IPIP66 | DimensionsØ140x136x188mm | Cut-outNot published |

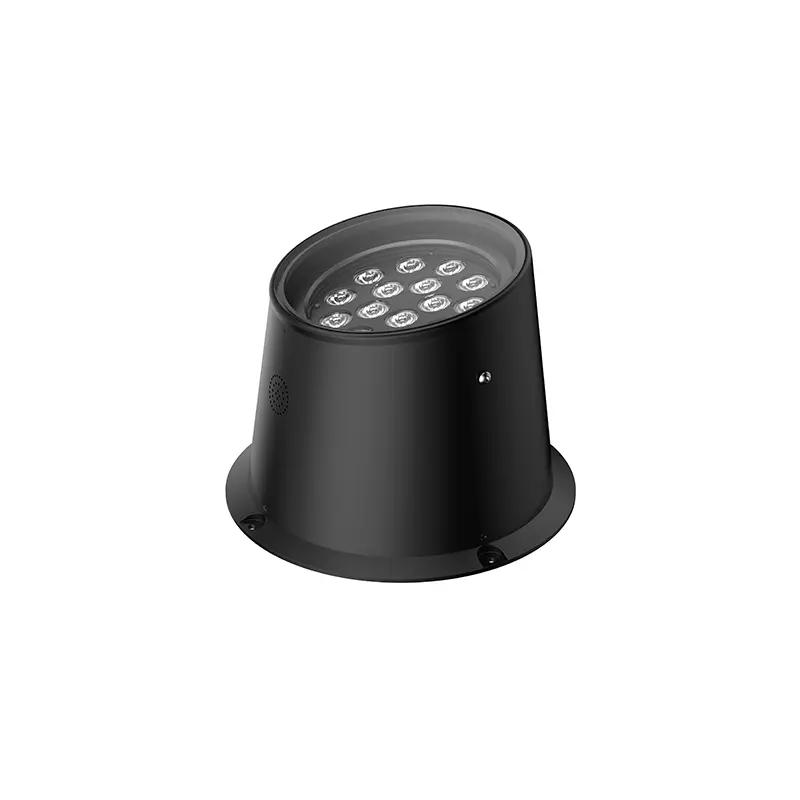

| L07134 | Wattage18W | CCT2700K, 3000K, 4000K, 5000K, 6000K, 6500K | IPIP66 | DimensionsØ270x300x350mm | Cut-outNot published |
| L07137 | Wattage30W | CCT6000K, 5000K, 3000K, 6500K, 2700K, 4000K | IPIP66 | DimensionsØ200x215x270mm | Cut-outNot published |

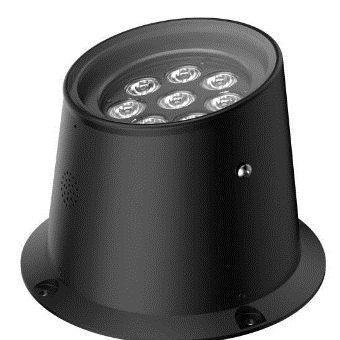

| L07138 | Wattage30W | CCTRGB+WARM WHITE | IPIP66 | DimensionsØ200x215x270mm | Cut-outNot published |
| L07139 | Wattage80W | CCT6000K, 5000K, 3000K, 6500K, 2700K, 4000K | IPIP66 | DimensionsØ270x300x350mm | Cut-outNot published |
| L07140 | Wattage80W | CCTRGB+WARM WHITE | IPIP66 | DimensionsØ270x300x350mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø140x136x188mm · Ø270x300x350mm · Ø200x215x270mm |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 18W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 20° · 60° · 45° · 30° +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 80 · No CRI |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Not published — technical review required |
| Finish | Grey · Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
7 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
8 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L07131. This family has 8 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L07131
Ø140x136x188mm
Specifications
At a Glance
18W
Power Range
1 options
Beam: 20°
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
RGB+WARM WHITE
Colour Options
CRI 80
Colour Rendering
IP66
Protection Rating
2 finishes
Body Finish Options
3 sizes
Ø140x136x188mm, Ø200x215x270mm, Ø270x300x350mm
Configure your product
L07131
Order code
Listed configurationL07131.865.09.60
24 listed configurations · availability requires confirmation
