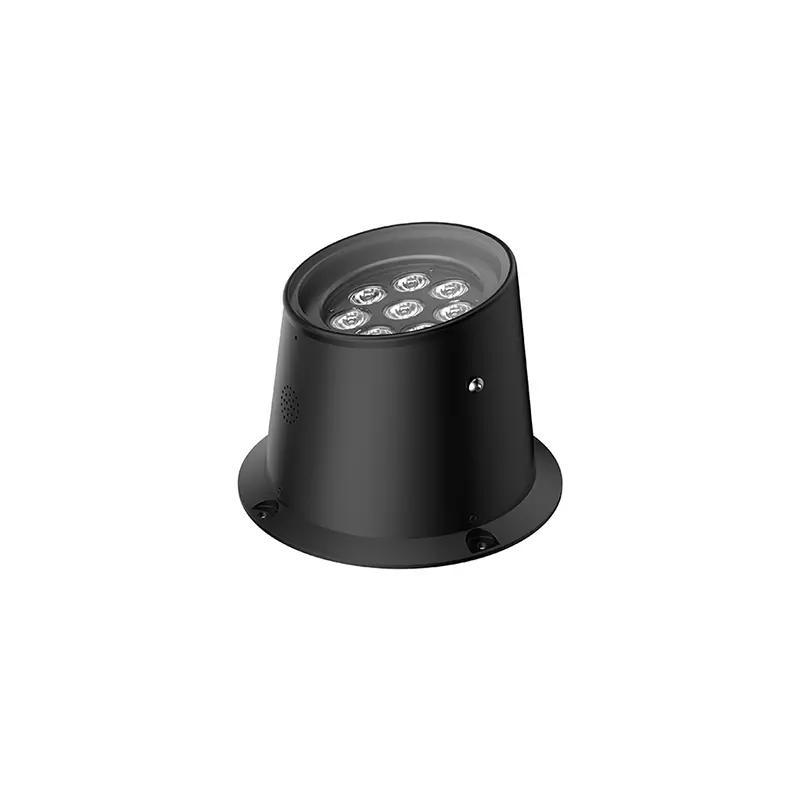

L07133 Projector Light
BASE: L07133CAMELON lighting solution with professional specifications
Specifications at a Glance
18W
Power
85LM/W
Lumen Output
2700K3000K4000K5000K6000K6500K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP66
Protection Rating
20° / 30° / 45° / 60°
Beam Angle
AC85-265V
Input
Ø140x136x188mm
Body Dimensions
Grey
Available Finishes
On/OffDALI1-10V0-10VPhase
Dimming Options
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
24 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L07133.865.09.60
CCT:
6500K
Power:18W
Lumen:85LM/W
Beam:
60°
Finish:
CRI 80IP66Grey
L07133.865.09.45
CCT:
6500K
Power:18W
Lumen:85LM/W
Beam:
45°
Finish:
CRI 80IP66Grey
L07133.865.09.30
CCT:
6500K
Power:18W
Lumen:85LM/W
Beam:
30°
Finish:
CRI 80IP66Grey
L07133.865.09.20
CCT:
6500K
Power:18W
Lumen:85LM/W
Beam:
20°
Finish:
CRI 80IP66Grey
L07133.860.09.60
CCT:
6000K
Power:18W
Lumen:85LM/W
Beam:
60°
Finish:
CRI 80IP66Grey
L07133.860.09.45
CCT:
6000K
Power:18W
Lumen:85LM/W
Beam:
45°
Finish:
CRI 80IP66Grey
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- PROJECTOR LIGHT
- Series:
- CAMELON
- Family:
- CAMELON
- Dimension:
- Ø140x136x188mm
- Input Voltage:
- AC85-265V
- Material:
- ALUMINUM DIE-CAST
Applications
Outdoor
Configure your product
L07133
Order code
Listed configurationL07133.865.09.60
24 listed configurations · availability requires confirmation
