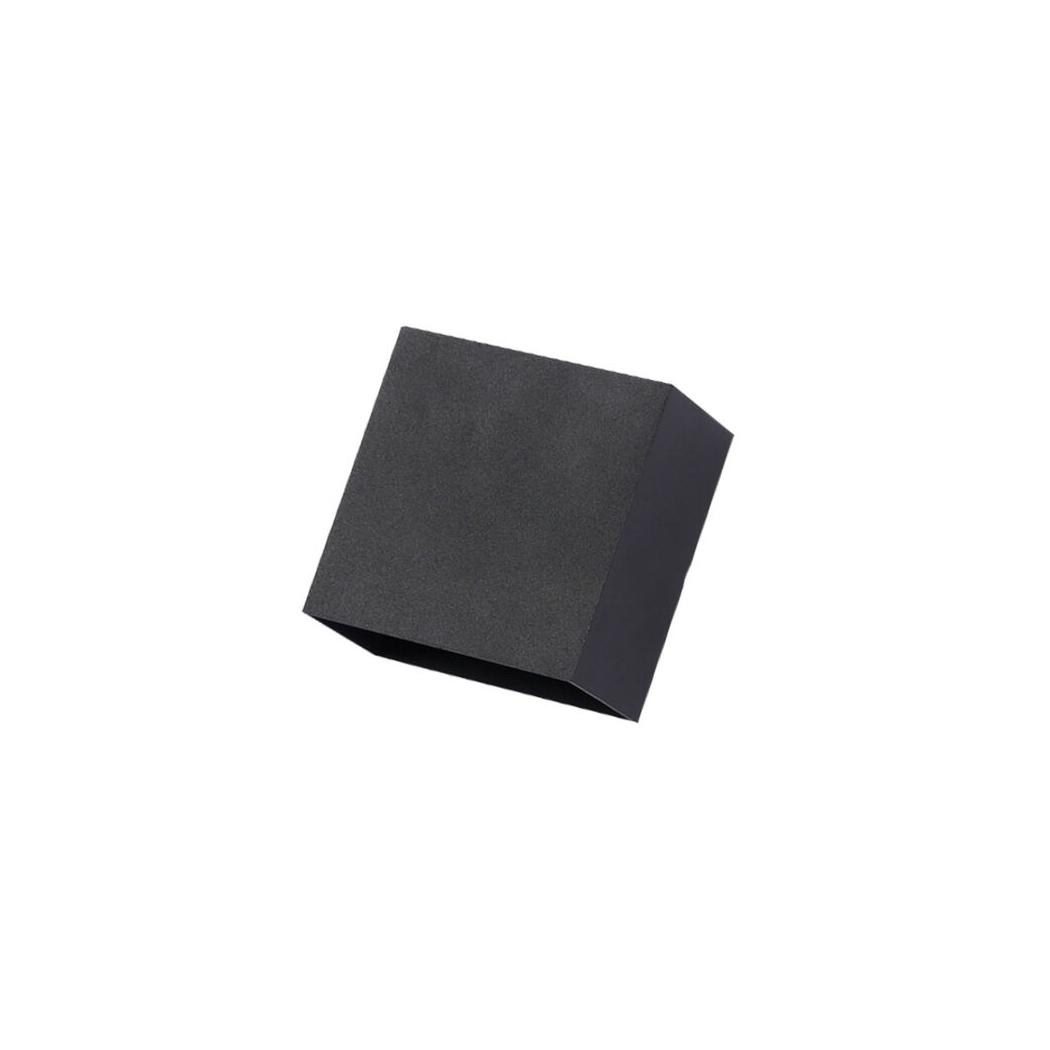

LBE40234 Wall Light
BASE: LBE40234IMEX lighting solution with professional specifications
Specifications at a Glance
2x3W
Power
480LM
Lumen Output
2700K3000K4000K5000K6000K
Available Colour Temperatures
CRI >80
Colour Rendering Index
IP65
Protection Rating
60°
Beam Angle
100-240VAC 50/60Hz
Input
100x100x50mm
Body Dimensions
BlackMatt Dark Grey
Available Finishes
wall-mounted
Mounting Type
CREE
LED Chip
50,000Hrs
LED Life Time
Die-cast aluminum
Material
-20℃~50℃
Operating Temperature
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
9 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LBE40234.W.827.PGY.60
CCT:
2700K
Power:2x3W
Lumen:480LM
Beam:
60°
Finish:
CRI >80IP65Matt Dark
LBE40234.N.840.PGY.60
CCT:
4000K
Power:2x3W
Lumen:480LM
Beam:
60°
Finish:
CRI >80IP65Matt Dark
LBE40234.C.850.PGY.60
CCT:
5000K
Power:2x3W
Lumen:480LM
Beam:
60°
Finish:
CRI >80IP65Matt Dark
LBE40234.C.860.PGY.60
CCT:
6000K
Power:2x3W
Lumen:480LM
Beam:
60°
Finish:
CRI >80IP65Matt Dark
LBE40234.W.830.PGY.60
CCT:
3000K
Power:2x3W
Lumen:480LM
Beam:
60°
Finish:
CRI >80IP65Matt Dark
LBE40234.C.860.WBK.60
CCT:
6000K
Power:2x3W
Lumen:480LM
Beam:
60°
Finish:
CRI >80IP65Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- WALL LIGHT
- Series:
- IMEX
- Family:
- IMEX
- Dimension:
- 100x100x50mm
- Input Voltage:
- 100-240VAC 50/60Hz
- Light Source:
- CREE
- Material:
- Die-cast aluminum
- Life Time:
- 50,000Hrs
- Operating Temp:
- -20℃~50℃
Catalogue Specification
- Light Source:
- CREE
- Power:
- 2x3W
- Input Voltage:
- 100-240VAC 50/60Hz
- Lumen Output:
- 480LM
- Colour Temperature:
- 3000K/4000K/5700K
- CRI:
- >80
- Beam Angle:
- 60°
- Body Finish:
- Dark grey RAL7019
- IP Rating:
- IP65
- Material:
- Die-cast aluminum
- Warranty:
- Written eligibility and policy confirmation required
- Operating Temperature:
- -20℃~50℃
- LED Life Time:
- 50,000Hrs
- Dimensions:
- 100x100x50mm
Applications
Outdoor
Configure your product
LBE40234
Order code
Listed configurationLBE40234.W.827.PGY.60
9 listed configurations · availability requires confirmation
