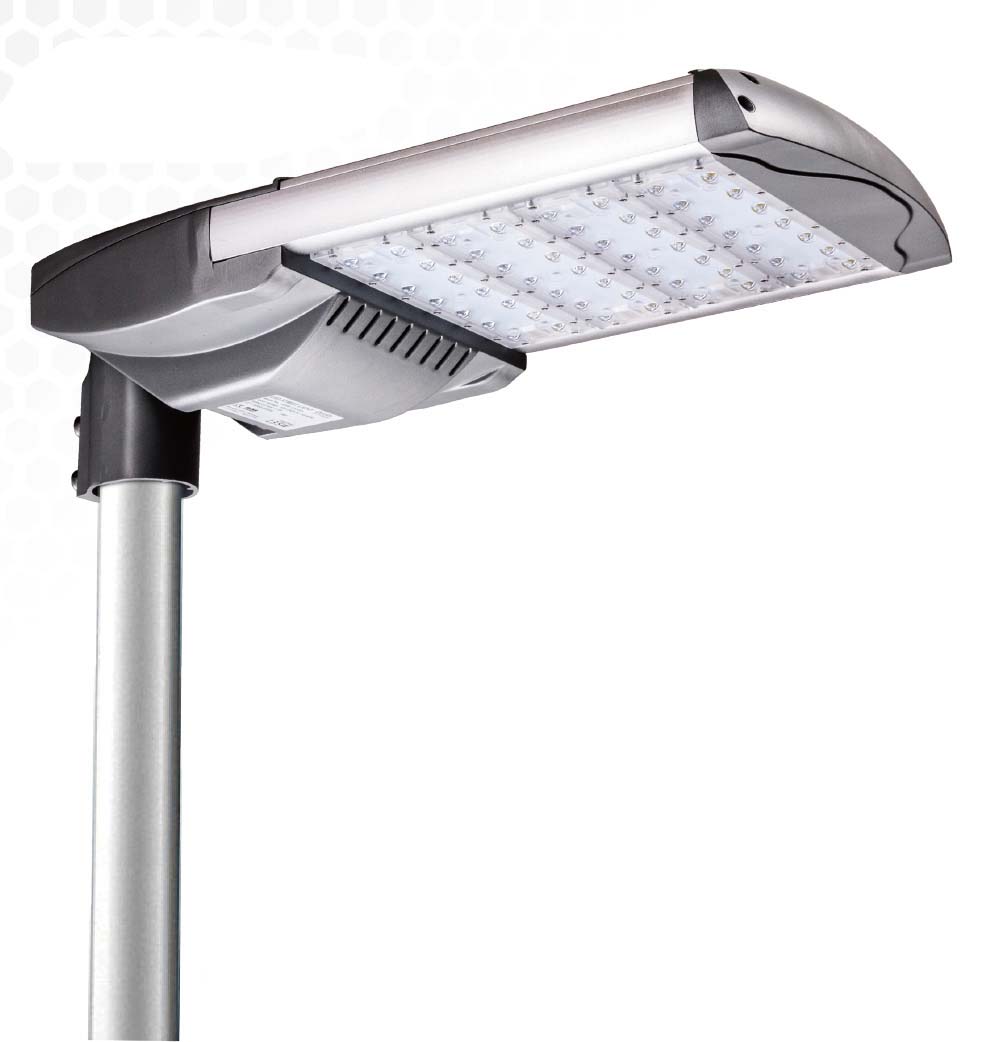

LB9486 Street Light
BASE: LB9486OLIVIA lighting solution with professional specifications
Specifications at a Glance
160W
Power
17600lm
Lumen Output
5700K
Available Colour Temperatures
IP66
Protection Rating
100-240 VAC, 50/60Hz
Input
650x316x136mm
Body Dimensions
Black
Available Finishes
pole-mounted
Mounting Type
LUMILED LED
LED Chip
50,000Hrs
LED Life Time
Die cast aluminum
Material
8.2Kg
Weight
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB9486.C.757.WBK.3M
CCT:
5700K
Power:160W
Lumen:17600lm
Finish:
IP66Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- STREET LIGHT
- Series:
- OLIVIA
- Family:
- OLIVIA
- Dimension:
- 650x316x136mm
- Input Voltage:
- 100-240 VAC, 50/60Hz
- Light Source:
- LUMILED LED
- Material:
- Die cast aluminum
- Life Time:
- 50,000Hrs
- Weight:
- 8.2Kg
Applications
Outdoor
Configure your product
LB9486
Order code
Listed configurationLB9486.C.757.WBK.3M
1 listed configurations · availability requires confirmation
