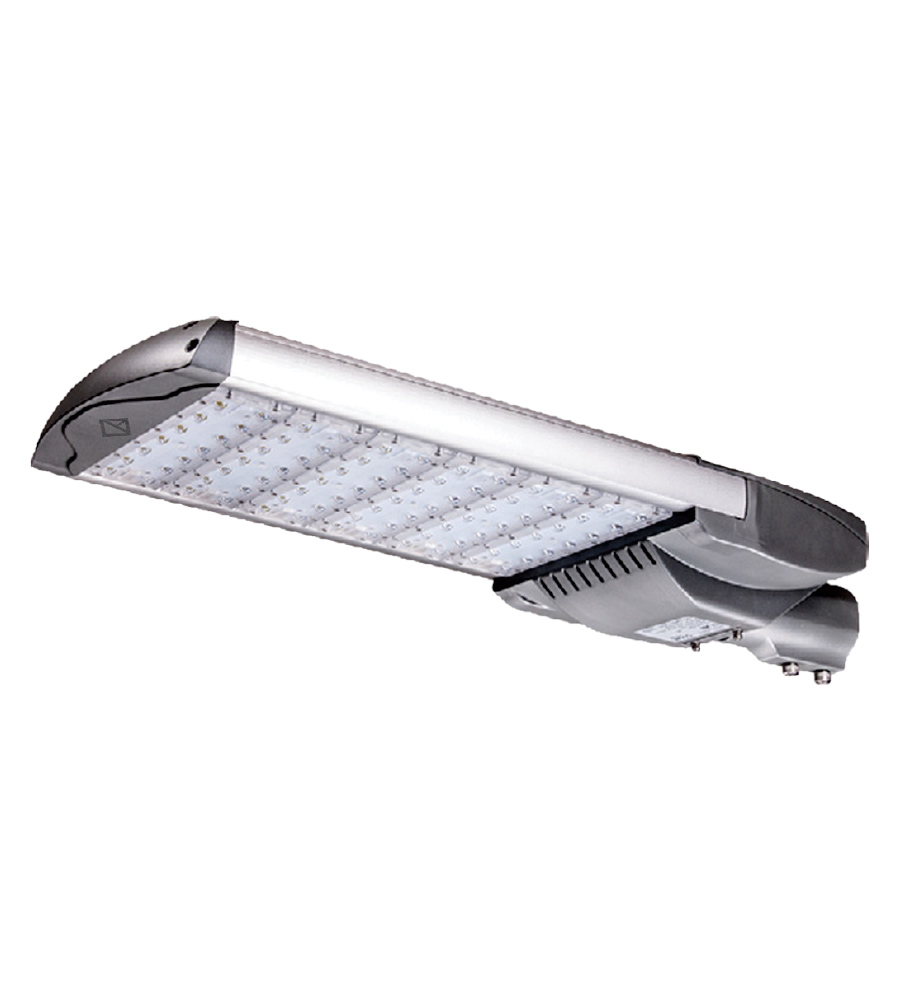

LB9488 Street Light
BASE: LB9488OLIVIA lighting solution with professional specifications
Specifications at a Glance
240W
Power
31200lm
Lumen Output
5700K
Available Colour Temperatures
IP66
Protection Rating
100-240 VAC, 50/60Hz
Input
723 x316 x136 mm
Body Dimensions
Anodized In Grey Sand
Available Finishes
pole-mounted
Mounting Type
LUMILED LED
LED Chip
50,000Hrs
LED Life Time
Die cast aluminum
Material
9.0Kg
Weight
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
1 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
LB9488.C.757.AGS.3M
CCT:
5700K
Power:240W
Lumen:31200lm
Finish:
IP66Sand
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- STREET LIGHT
- Series:
- OLIVIA
- Family:
- OLIVIA
- Dimension:
- 723 x316 x136 mm
- Input Voltage:
- 100-240 VAC, 50/60Hz
- Light Source:
- LUMILED LED
- Material:
- Die cast aluminum
- Life Time:
- 50,000Hrs
- Weight:
- 9.0Kg
Applications
Outdoor
Configure your product
LB9488
Order code
Listed configurationLB9488.C.757.AGS.3M
1 listed configurations · availability requires confirmation
