LVL6024 Lighting

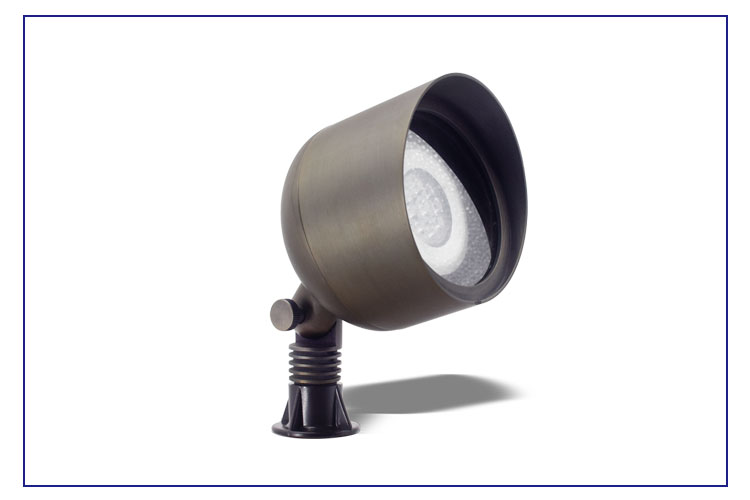

BASE: LVL6024BIG PAR series outdoor luminaire for landscape and architectural lighting.
Specifications at a Glance
7.0-17.0W
Power
590-1300lm
Lumen Output
2700K3000K
Available Colour Temperatures
CRI 80
Colour Rendering Index
IP65
Protection Rating
9-17V AC/DC
Input
Ø117x210mm
Body Dimensions
AluminiumBronze
Available Finishes
spike-mounted
Mounting Type
Replaceable PAR36 Lamp
LED Chip
Aluminium
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusCompatible Lamps (PAR36)
LVB1008PISCINA - PAR36
10W800lm
LVB1009PISCINA- PAR36
17W1300lm
LVB1011PISCINA - PAR36
7W590lm
LVB1010PISCINA- PAR36
13W1130lm
+2 more options
No standard configurations available.
Please contact us for custom options.
Product Information
- Family:
- BIG PAR
- Input Voltage:
- 9-17V AC/DC
- Light Source:
- Replaceable PAR36 Lamp
- Material:
- Aluminium
Applications
No specific applications tagged for this product.
Configure your product
LVL6024
Ip Rating
IP65
Body finish
Aluminium · Bronze
Material
Aluminium · Die-cast bronze
Compatible Lamp
LVB1008 - PISCINA - PAR36 10W (800lm) · LVB1009 - PISCINA- PAR36 17W (1300lm) · LVB1011 - PISCINA - PAR36 7W (590lm) · LVB1010 - PISCINA- PAR36 13W (1130lm) · LVB1007 - PISCINA- PAR36 17W (1000lm) · LVB1012 - PISCINA - PAR36 17W (1000lm)
Colour temperature
2700K · 3000K
The published options are not mapped to a confirmed order code. Technical review is required before issuing a configuration-specific specification sheet.
