LVU9873 Bollard Light

LVU9873: specifications and applications

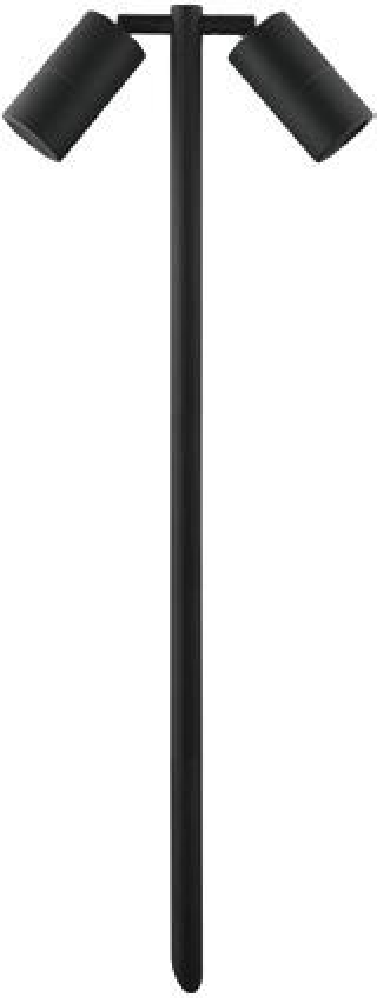

LVU9873 is the LVU9873.W.827.PBK.38 lighting model in the lumi ville catalogue, listed under BOLLARD LIGHT. This page keeps the specifications, configuration choices and project notes for LVU9873 together, so it can be compared with other REGOLO models without substituting the dimensions or options of a neighbouring article.

The LVU9873 catalogue record lists power: 2x5W. Coordinate this load with the circuit schedule and the selected control gear.

The LVU9873 catalogue record lists body dimensions: 60x340x1000mm. Check the housing against the architectural detail and the space reserved for installation.

The LVU9873 catalogue record lists colour temperature: 2700K. Compare the listed colour choices with finishes, surrounding light and the intended atmosphere.

The LVU9873 catalogue record lists colour rendering: >80. Include this catalogue value in the material and display-lighting comparison for the project.

The LVU9873 catalogue record lists optical distribution: 38°. Compare the listed option with target distance, spacing and the surface being illuminated.

The LVU9873 catalogue record lists enclosure rating: IP65. Coordinate this rating with the actual exposure, cleaning regime and installation conditions.

The LVU9873 catalogue record lists electrical requirement: 27VDC 300mA. Keep the stated unit alongside the driver and control specification; a current rating must not be treated as a mains voltage.

The LVU9873 catalogue record lists finish or material: Matt Black. Review the stated construction alongside adjoining architectural materials and sample approvals.

The LVU9873 catalogue record lists mounting: floor-mounted. Check the fixing arrangement and access for installation before finalising the detail.

For façade, landscape and external circulation studies, compare the mounting position with the surface geometry, viewing direction and surrounding context. The lighting layout should address coverage, unwanted spill and maintenance access. Match the selected model and configuration to the actual environmental exposure; the final scheme also needs the relevant optical data, electrical coordination and site-specific installation details.

LVU9873 has 1 listed order-code configuration. The listed code is LVU9873.W.827.PBK.38. Use the exact listed combination when selecting finishes, colour temperature or optical options; an option appearing elsewhere in the family is not automatically an orderable combination for this article.

For a LVU9873 project submission, retain this model reference with the drawings and the selected configuration. Include the relevant dimensions, optical information and installation requirements in the coordination review. Where a document or value is not available on the page, request the model-specific information from the specification team rather than copying a value from another REGOLO article.

Main model page: LVU9873
