ECHO PANEL S

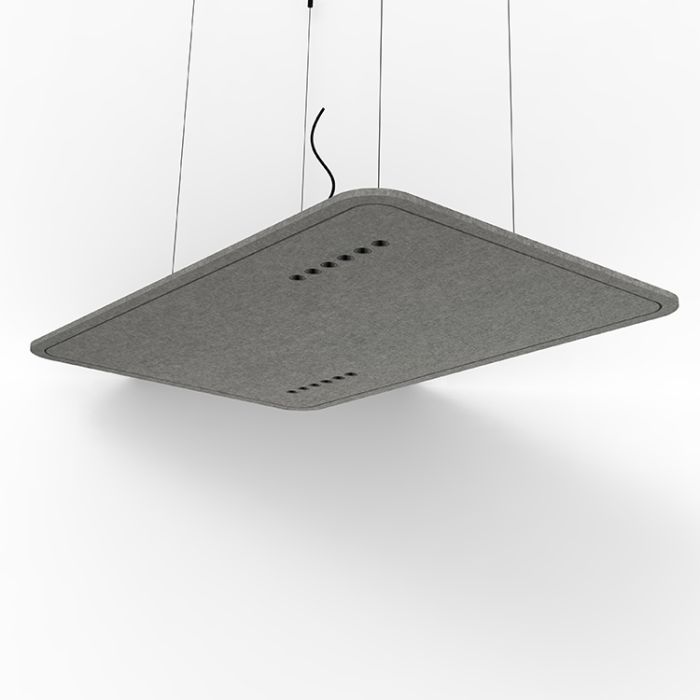

ECHO PANEL S SERIES 24W IP20 L1200×W800×H30MM PENDANT ACOUSTIC LED LIGHT LAC0003
Technical Data +
Range: INDOOR
Safety Class: I
Lumen Output: 2040-2160lm
Mounting: Pendant
IP Rate: IP20
Power Factor: ≥0.95
Working Temp: -20°C~+55°C
Life Time: 50,000Hrs
Light Source: SMD 5050
Power: 24W
Input: 200-240VAC
Dimension: L1200×W800×H30mm
Operating Frequency: 50/60Hz
Material: Aluminum+Pmma+Pet
Suspended Length: 1500mm
Warranty Type : Replace
Warranty : 5 Years
Remarks: UGR<16 Optic: Lens Efficiency: 85-90 lm/W Distribute: 100% Direct Electrical Control: DALI-2 Acoustic Panel Description Thickness: 12MM NRC Max: 0.95 Density: 2400g/m2 Material: polyester, up to 60% recycled plastic Fire rating: EN 13501 Class(B-s1,d0)
Product Characteristics +
| cct |
4000K |
| beam_angle |
50 |
| cri |
90 |
| datasheet_application_icon |
Pendant |
| acoustic_pattern_colors |
AC52 Pink, AC51 Yellow, AC54 Ochre Yellow, AC17 Burgundy Red, AC32 Orange, AC10 Light Gray, AC46 Olive Green |
