Lumi Flex
COB STRIP
Application inspiration · not a project reference
COB STRIP is part of Lumi Flex. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Strip Light
COB STRIP
COB STRIP is a strip light family within the LUMIBRIGHT Lumi Flex collection. Explore 30 models, including LF-COBSTRIP-10W-IP20, LF-COBSTRIP-2W-IP20, LF-COBSTRIP-5W-IP20, with model-specific specifications and configuration choices. LF-COBSTRIP-10W-IP20 specifications include power: 10.0W; colour temperature: 2700K, 3000K, 4000K, 6500K; IP rating: IP67. Compare the COB STRIP range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LF-COBSTRIP-10W-IP20 | Wattage10.0W | CCT2700K, 3000K, 4000K, 6500K | IPIP67 | DimensionsNot published | Cut-outNot published |
| LF-COBSTRIP-2W-IP20 | Wattage2.5W | CCT2700K, 3000K, 4000K, 5000K, 6000K, 6500K | IPIP20 | DimensionsNot published | Cut-outNot published |
| LF-COBSTRIP-5W-IP20 | Wattage5.0W | CCT2700K, 3000K, 4000K, 5000K, 6000K, 6500K | IPIP65 | DimensionsNot published | Cut-outNot published |
| LF1097 | Wattage25W | CCT2700K, 3000K, 4000K, 6500K | IPIP20 | Dimensions10x5000mm | Cut-outNot published |
| LF1098 | Wattage50W | CCT2700K, 3000K, 4000K, 6500K | IPIP20 | Dimensions10x5000mm | Cut-outNot published |

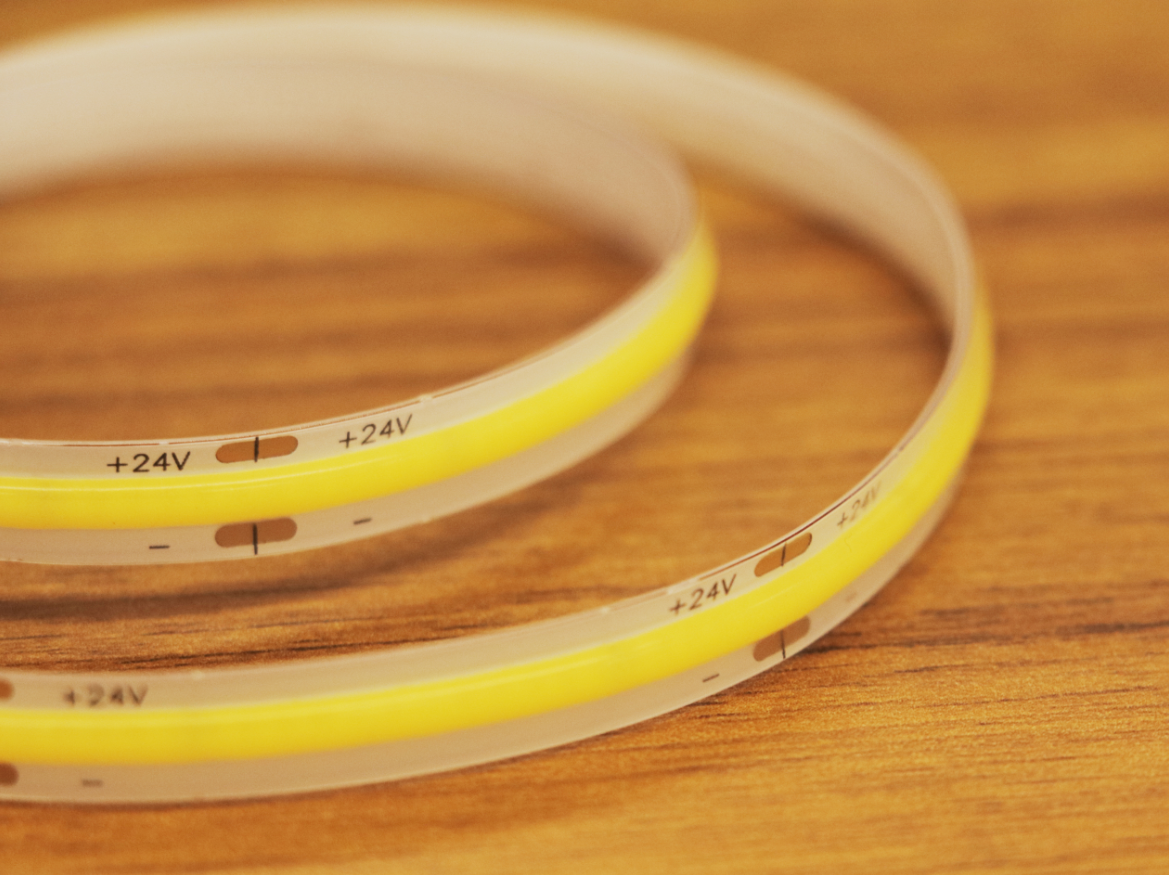

| LF1099 | Wattage75W | CCT2700K, 3000K, 4000K, 6500K | IPIP20 | Dimensions10x5000mm | Cut-outNot published |

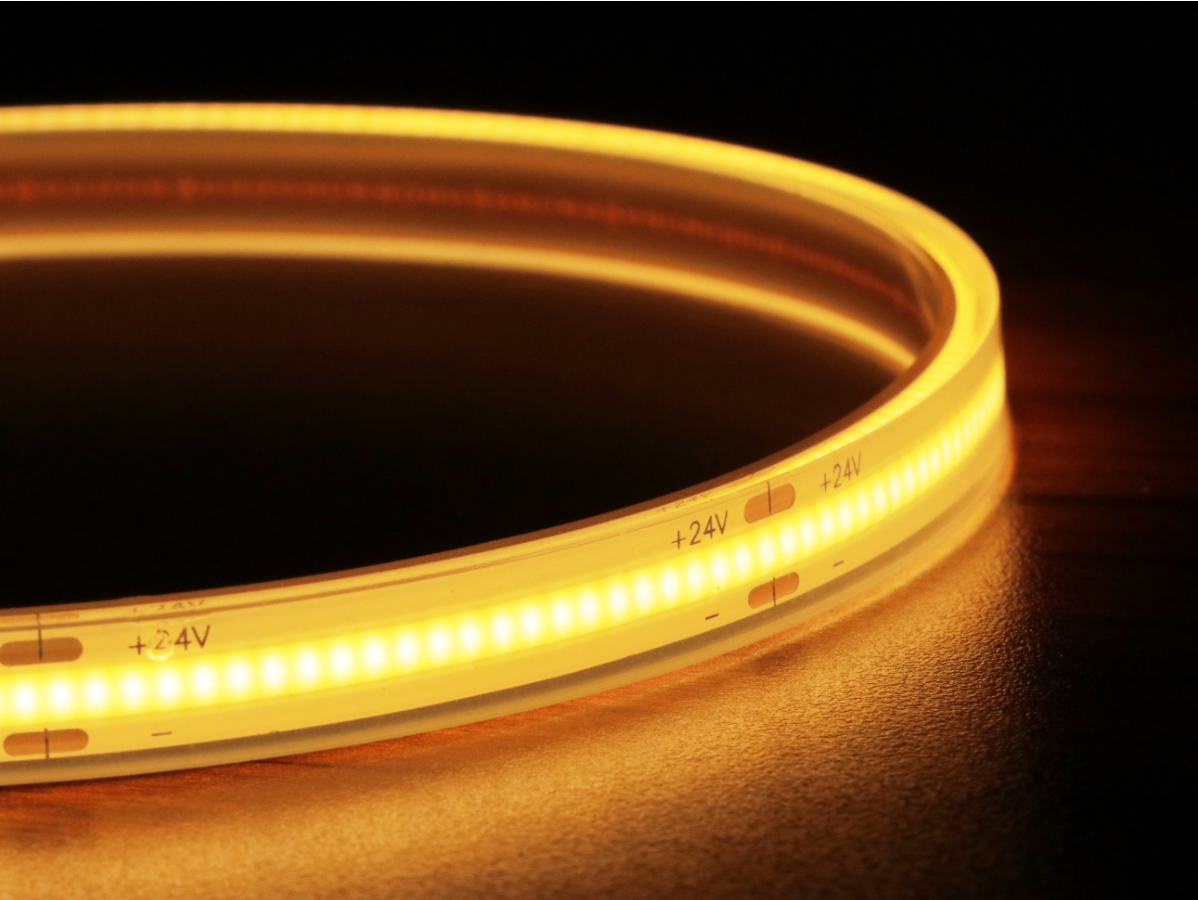

| LF1100 | Wattage25W | CCT2700K, 3000K, 4000K, 6500K | IPIP67 | Dimensions10x5000mm | Cut-outNot published |
| LF1101 | Wattage50W | CCT2700K, 3000K, 4000K, 6500K | IPIP67 | Dimensions10x5000mmm | Cut-outNot published |
| LF1102 | Wattage75W | CCT2700K, 3000K, 4000K, 6500K | IPIP67 | Dimensions10x5000mm | Cut-outNot published |
| LF1103 | Wattage25W | CCT2700K, 3000K, 4000K, 6500K | IPIP65 | Dimensions10x5000mm | Cut-outNot published |
| LF1104 | Wattage50W | CCT2700K, 3000K, 4000K, 6500K | IPIP65 | Dimensions10x5000mm | Cut-outNot published |

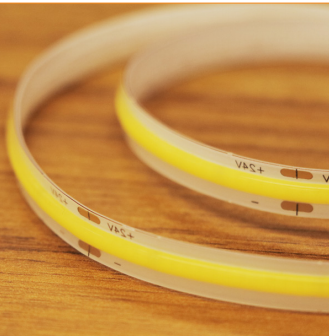

| LF1105 | Wattage75W | CCT2700K, 3000K, 4000K, 6500K | IPIP65 | Dimensions10x5000mm | Cut-outNot published |
| LF1106 | Wattage25W | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |

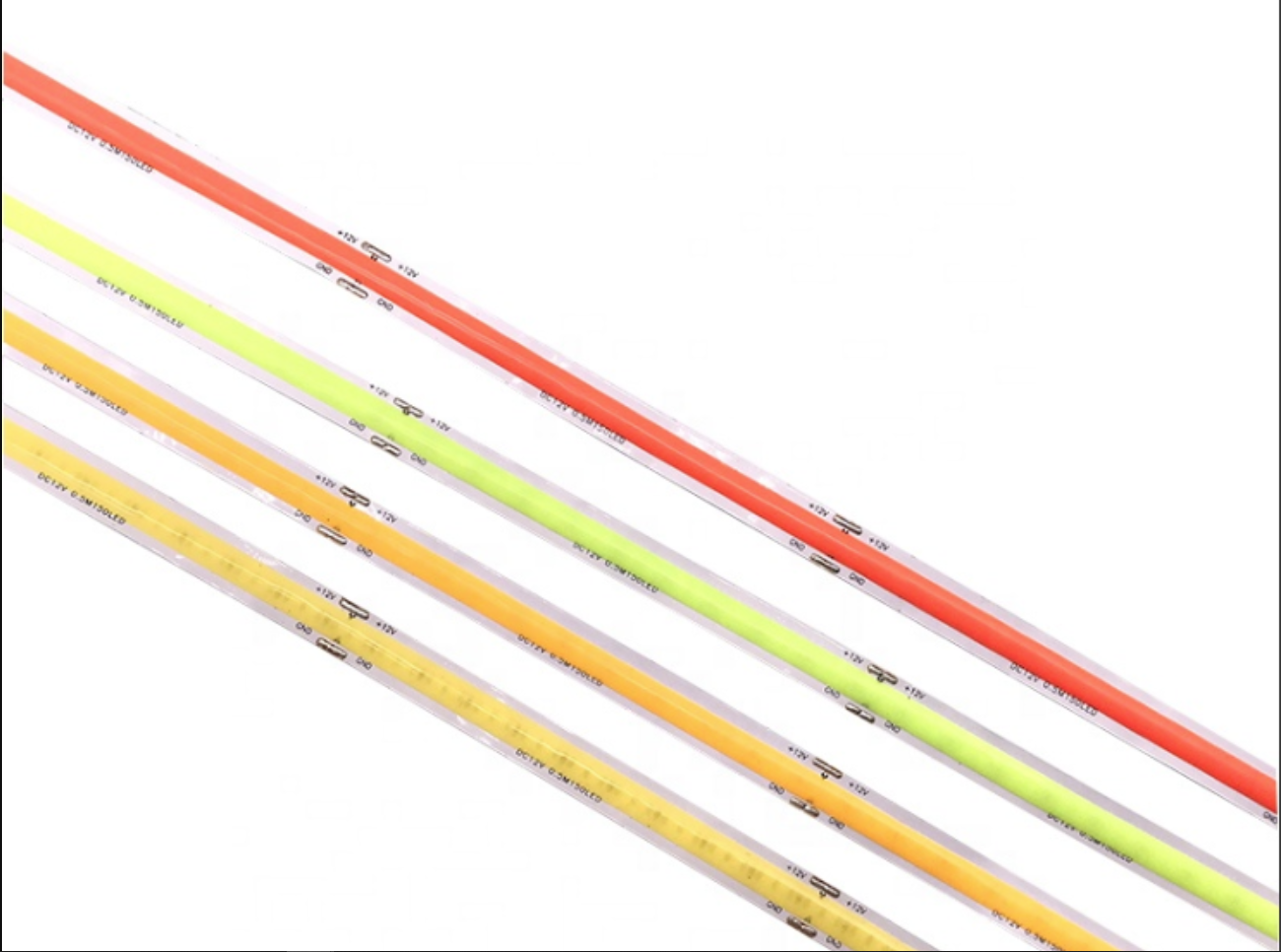

| LF1107 | Wattage50W | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
| LF1108 | Wattage75W | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
| LF1109 | Wattage25W | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |
| LF1110 | Wattage50W | CCTNot published | IPNot published | DimensionsNot published | Cut-outNot published |

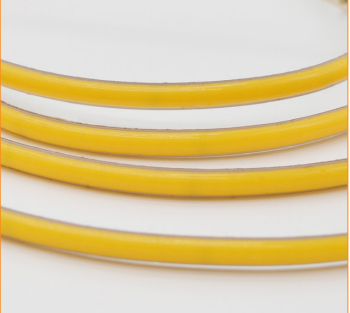

| LF1116 | Wattage25W | CCT3000K, 4000K | IPIP20 | Dimensions5000x04mm | Cut-outNot published |
| LF1134 | Wattage25W | CCT2700K, 3000K, 4000K, 6500K | IPIP20 | Dimensions10x5000mm | Cut-outNot published |
| LF1135 | Wattage50W | CCT2700K, 3000K, 4000K, 5000K, 6500K | IPIP20 | Dimensions10x5000mm | Cut-outNot published |
| LF1136 | Wattage75.0W | CCT2700K, 3000K, 4000K, 6500K | IPIP67 | Dimensions10x5000mm | Cut-outNot published |
| LF1137 | Wattage25.0W | CCT2700K, 3000K, 4000K, 6000K, 6500K | IPIP20 | Dimensions10x5000mm | Cut-outNot published |
| LF1138 | Wattage50.0W | CCT2700K, 3000K, 4000K, 5000K, 6500K | IPIP67 | Dimensions10x5000mm | Cut-outNot published |
| LF1139 | Wattage75W | CCT2700K, 3000K, 3500K, 4000K, 6500K | IPIP67(silicone tube) | Dimensions10x5000mm | Cut-outNot published |

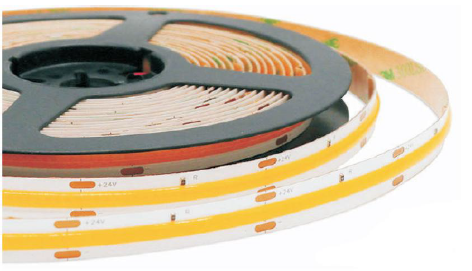

| LF1141 | Wattage25W | CCT2700K | IPIP20 | Dimensions04x5000mm | Cut-outNot published |
| LF1142 | Wattage25W | CCT2700K, 3000K | IPIP65 | Dimensions10x5000mm | Cut-outNot published |
| LF1146 | Wattage12.5W | CCT2700K | IPIP20 | Dimensions10x5000mm | Cut-outNot published |
| LF1159 | Wattage110W | CCTCCT TUNABLE | IPIP20 | Dimensions10x5000mm | Cut-outNot published |
| LF1175 | Wattage15.0W | CCT3000K, RGBW(3000K) | IPIP20 | Dimensions12x5000mm | Cut-outNot published |
| LF1176 | Wattage15W/m | CCT3000K, RGBW(3000K) | IPIP67 | Dimensions12x5000mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 10x5000mm · 10x5000mmm · 5000x04mm · 04x5000mm +1 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 12.5W · 15W · 25W · 50W +2 more |
| Lumen output | 1107lm · 952lm · 1091lm · 997lm +38 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 120° · 180° |
| Colour temperature | 2700K · 3000K · 3500K · 4000K +5 more |
| CRI Ra | 90 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP65 · IP67 · IP67(silicone tube) |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 24VDC |
| Light source | COB LED |
| Material | Not published — technical review required |
| Finish | white |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
29 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LF1136. This family has 29 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LF1136
10x5000mm
Specifications
At a Glance
2.5–110W
Power Range
2 options
Beam: 120°, 180°
7 CCT
2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K
CCT TUNABLE / RGBW(3000K)
Colour Options
CRI 90
Colour Rendering
IP20 / IP65 / IP67
Protection Rating
2 finishes
Body Finish Options
5 sizes
04x5000mm, 10x5000mm, 10x5000mmm, 12x5000mm, 5000x04mm
Configure your product
LF1136
Order code
Listed configurationLF1136.N.940.75.NWP
4 listed configurations · availability requires confirmation
