Lumi Indoor
AIKEN
Application inspiration · not a project reference
AIKEN is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Ceiling Light
AIKEN
AIKEN is a ceiling light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 9 article codes under this family, including L01121, L01122, L01123. For L01121, published values include power: 25W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP20; dimensions: 151x105mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the AIKEN articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L01121 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions151x105mm | Cut-out174x78mm |
| L01122 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions151x105mm | Cut-out174x78mm |
| L01123 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions151x105mm | Cut-out174x78mm |
| L01124 | Wattage33W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions151x135mm | Cut-out174x78mm |
| L01125 | Wattage33W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions151x135mm | Cut-out174x78mm |
| L01126 | Wattage33W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions151x135mm | Cut-out174x78mm |

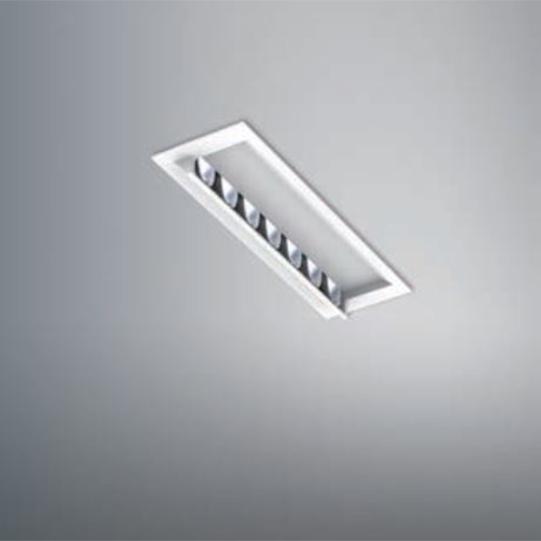

| L01127 | Wattage8W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions164x66mm | Cut-out152x40mm |

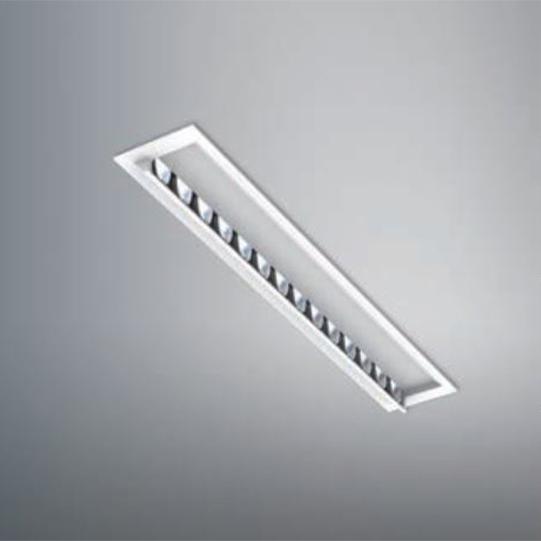

| L01128 | Wattage15W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions304x66mm | Cut-out292x40mm |

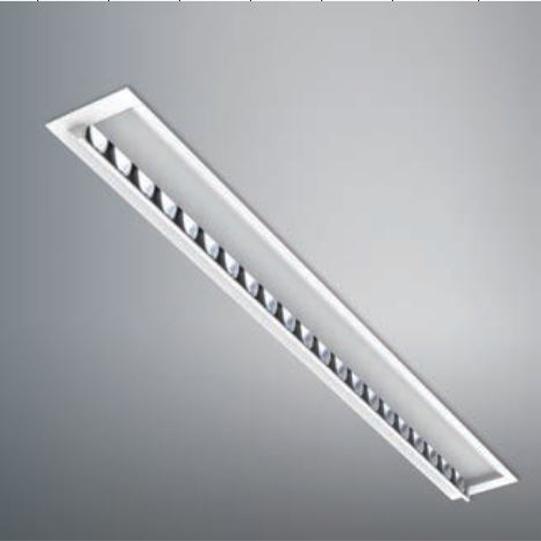

| L01129 | Wattage22W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensions444x66mm | Cut-out432x40mm |
Technical Data
Full Specification
| Dimensions | 151x105mm · 151x135mm · 164x66mm · 304x66mm +1 more |
|---|---|
| Cut-out | 174x78mm · 152x40mm · 292x40mm · 432x40mm |
| Power | 8W · 15W · 22W · 25W +1 more |
| Lumen output | 2149LM · 2010LM · 2690LM · 2816LM +4 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White · Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
9 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L01121. This family has 9 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L01121
151x105mm
Cut-Out
174x78mm
Specifications
At a Glance
8–33W
Power Range
1 options
Beam: 24°
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 90
Colour Rendering
IP20
Protection Rating
1 finishes
Body Finish Options
5 sizes
151x105mm, 151x135mm, 164x66mm, 304x66mm, 444x66mm
4 cut-outs
152x40mm, 174x78mm, 292x40mm, 432x40mm
Configure your product
L01121
Order code
Listed configurationL01121.927.03.W
8 listed configurations · availability requires confirmation
