Lumi Indoor
DEEP
DEEP is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
DEEP
DEEP is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 12 models, including LB2924, LB2925, LBE2029, with model-specific specifications and configuration choices. LB2924 specifications include power: 7W; colour temperature: 3000K; IP rating: IP20. Compare the DEEP range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

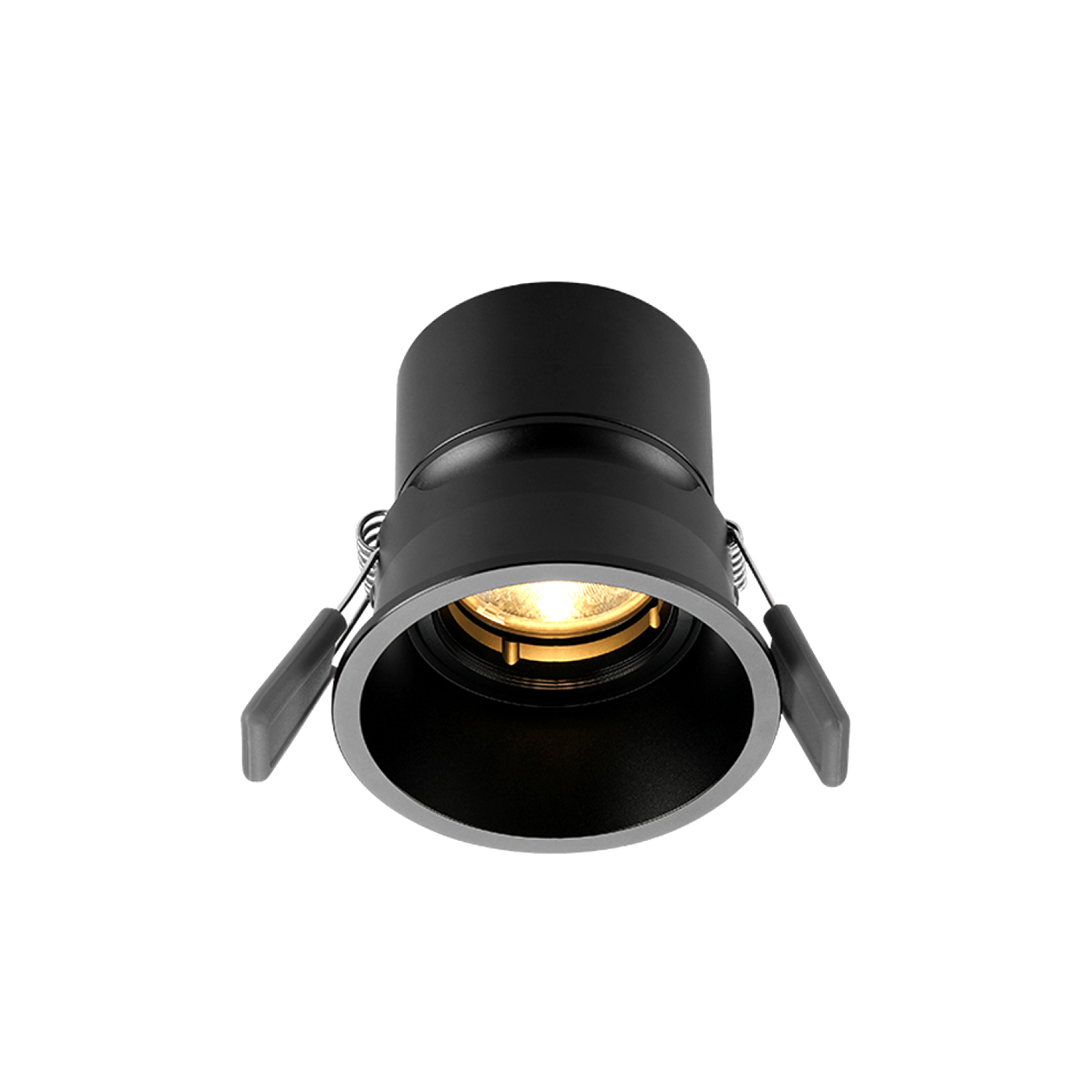

| LB2924 | Wattage7W | CCT3000K | IPIP20 | DimensionsNot published | Cut-outØ75mm |

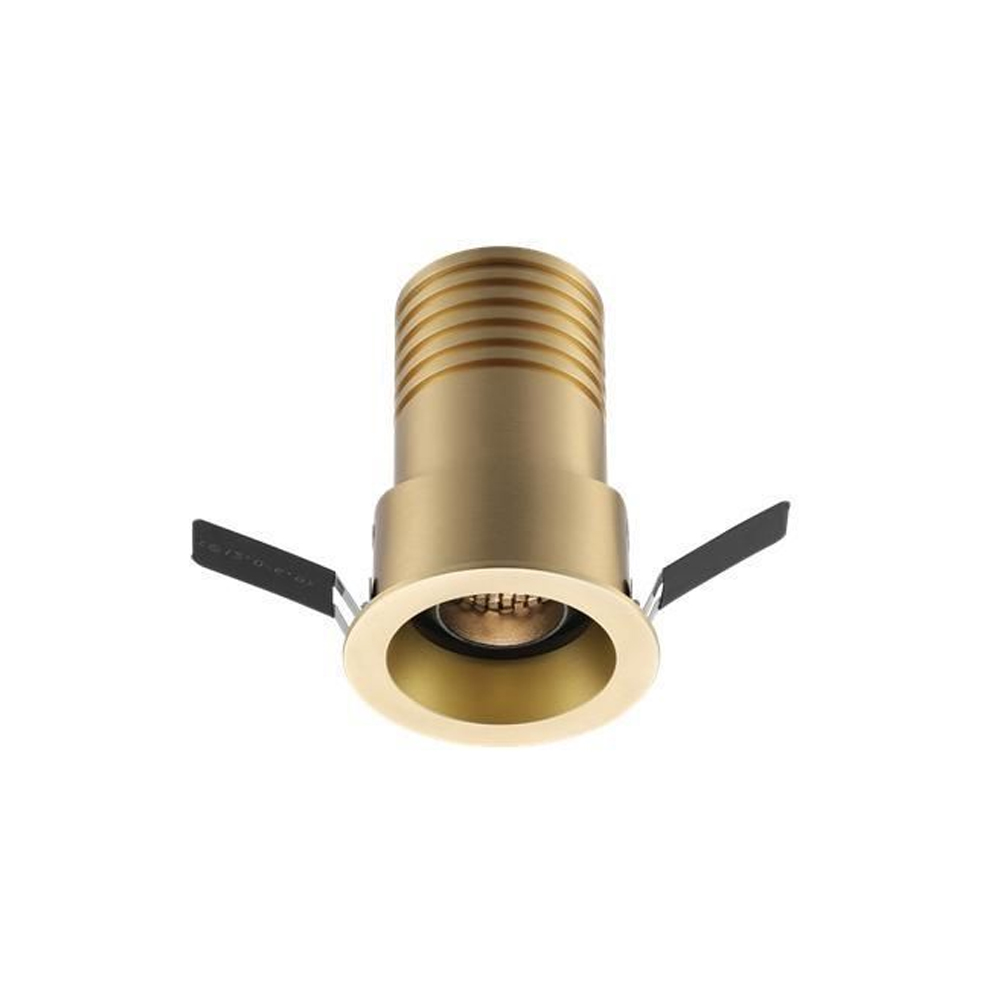

| LB2925 | Wattage8W | CCT3000K | IPIP20 | DimensionsNot published | Cut-outØ55mm |

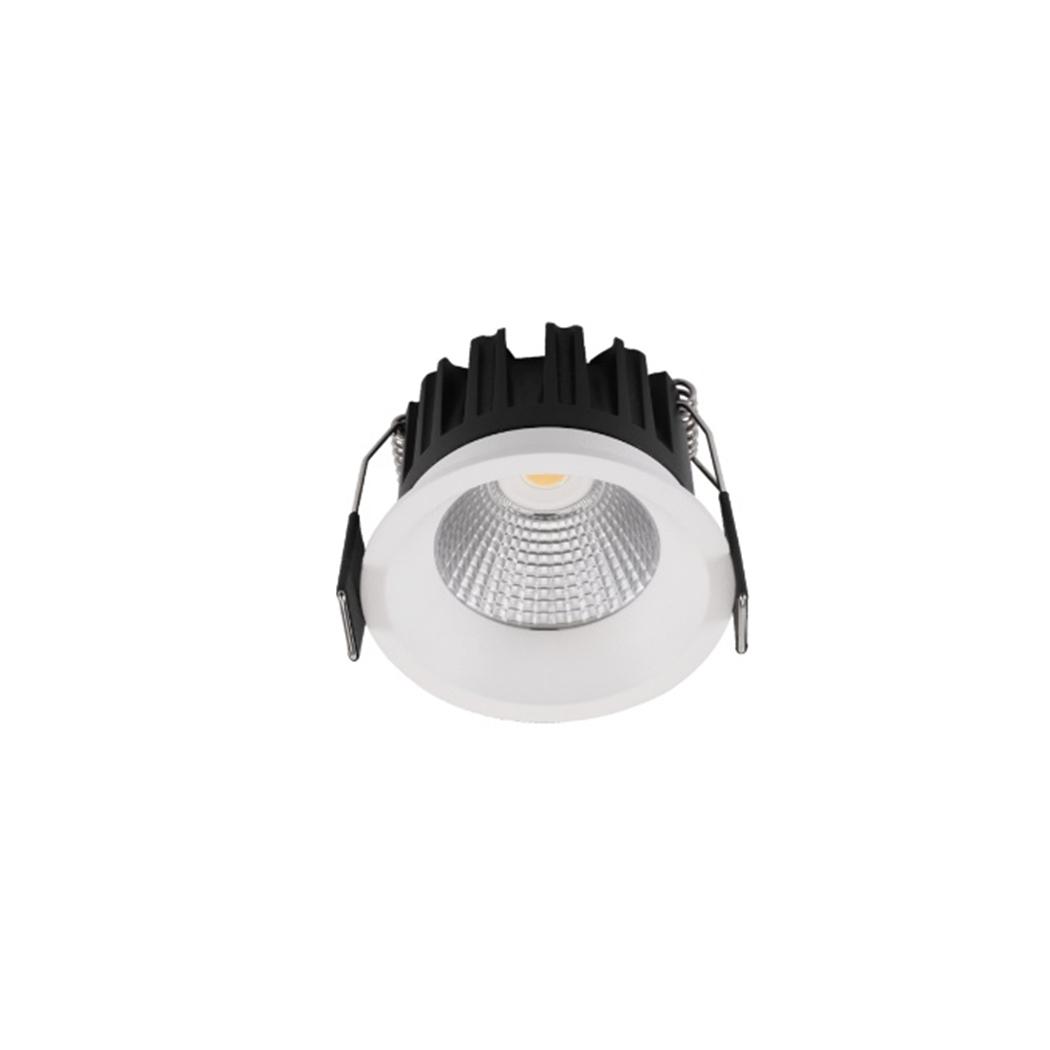

| LBE2029 | Wattage12W | CCT4000K | IPIP20 | DimensionsØ72xH54mm | Cut-outØ65mm |

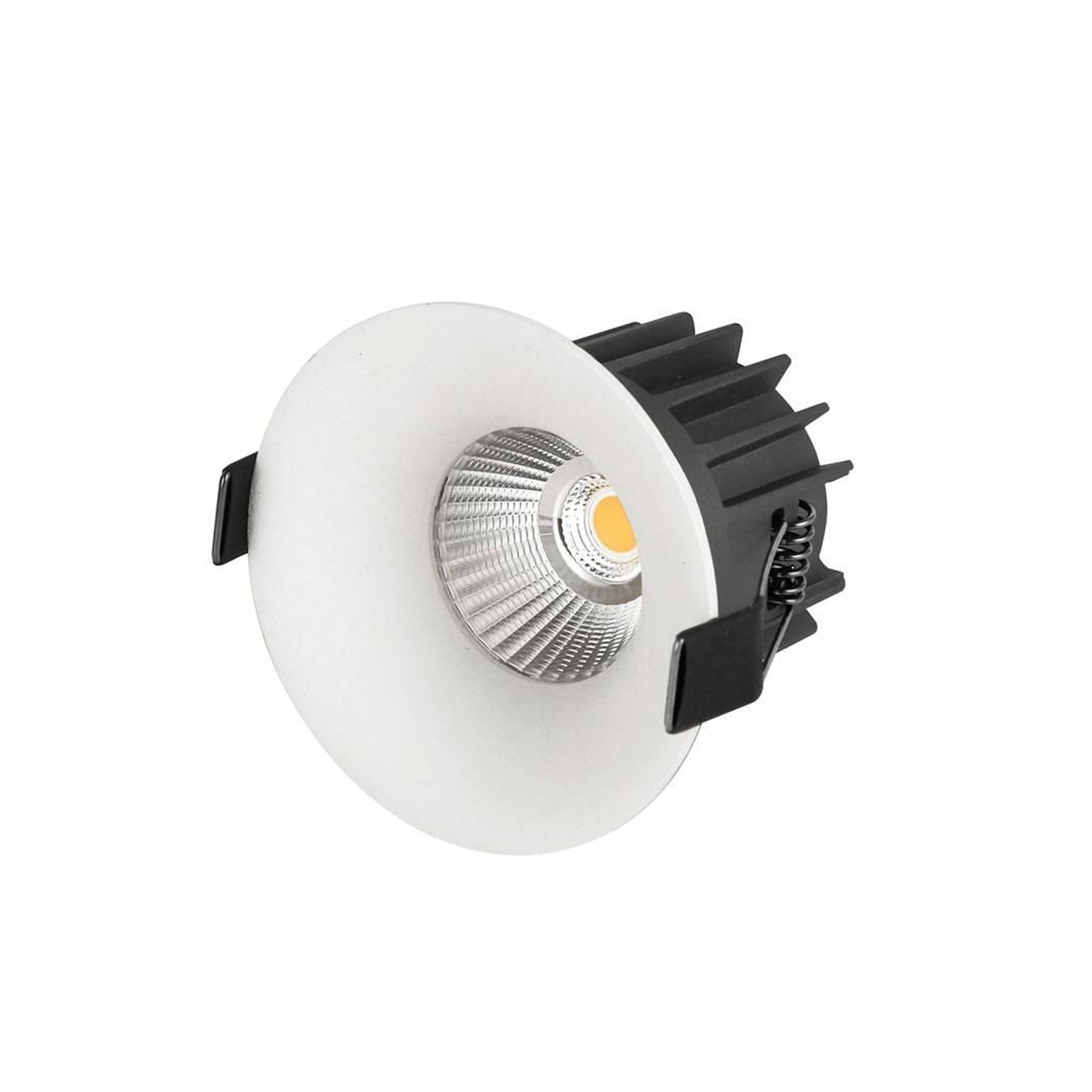

| LBE2080 | Wattage7W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ70*H57mm | Cut-outØ65mm |
| LBE2081 | Wattage12W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ85*H64.5mm | Cut-outØ75mm |

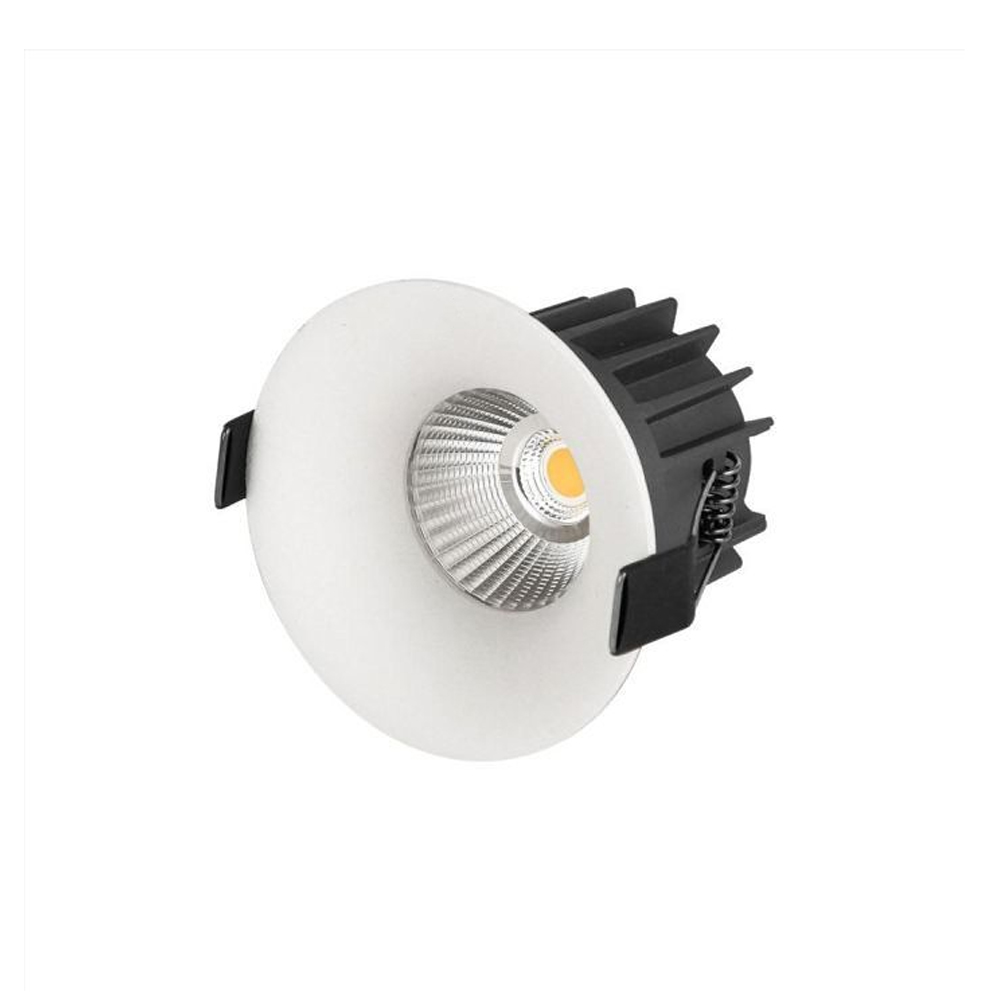

| LBE2082 | Wattage18W | CCT2700K/3000K/4000K/6000K | IPIP20 | DimensionsØ95*H79mm | Cut-outØ90mm |

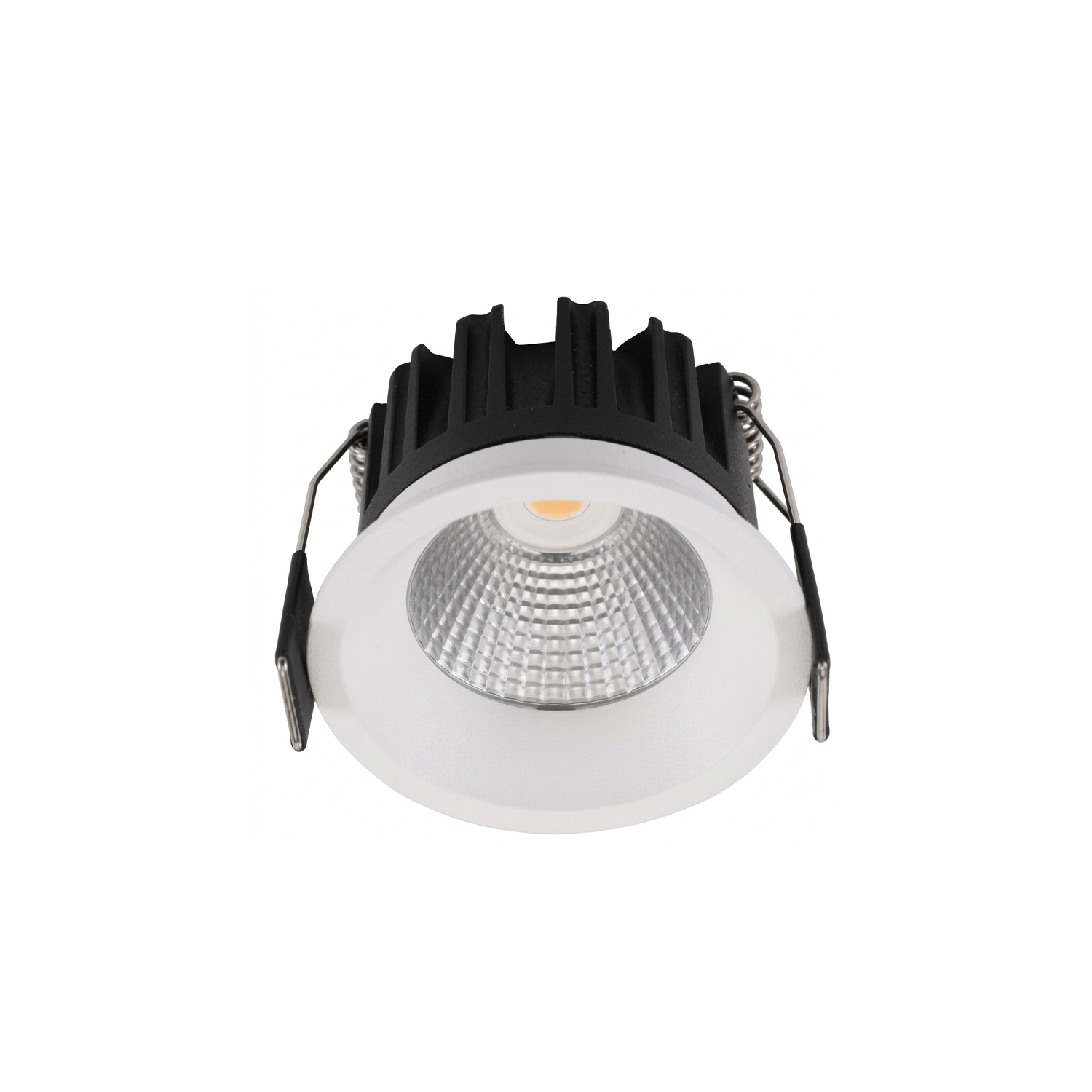

| LBE3006 | Wattage20W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsØ118xH81mm | Cut-outØ108mm |
| LBE3007 | Wattage30W | CCT2700K | IPIP20 | DimensionsØ127x88mm | Cut-outØ118mm |

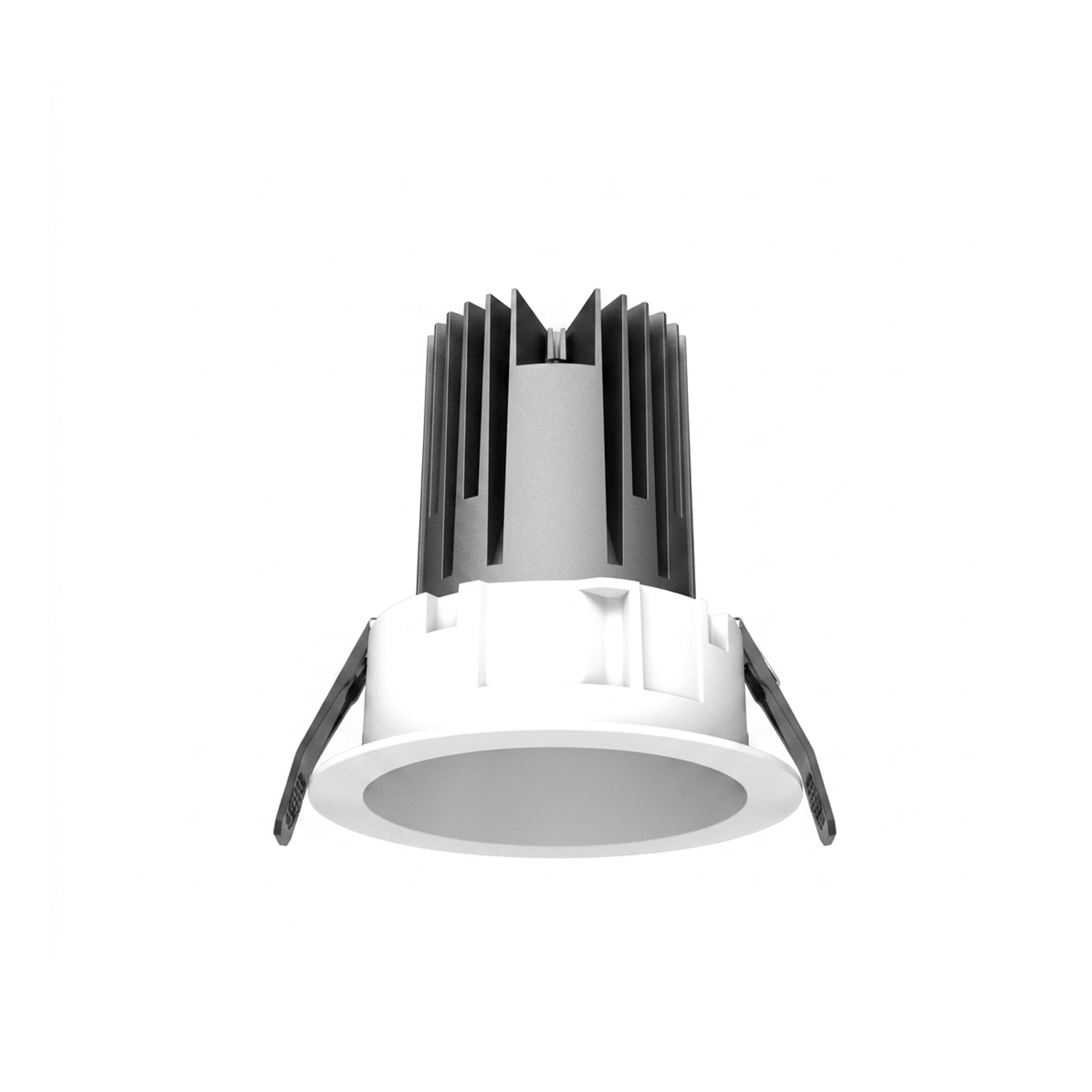

| LBP2002 | Wattage7W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ90*H76mm | Cut-outØ75-80mm |
| LBP2003 | Wattage15W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ126xH133mm | Cut-outØ105-110mm |
| LBT2093 | Wattage10W | CCT2700K | IPIP20 | DimensionsØ85xH64.5mm | Cut-outØ75mm |
| LBT3009 | Wattage25W | CCT2700K/3000K/4000K/5000K | IPIP54 | DimensionsØ145x65mm | Cut-outØ120-Ø130mm |
Technical Data
Full Specification
| Dimensions | Ø85*H64.5mm · Ø72xH54mm · Ø70*H57mm · Ø95*H79mm +6 more |
|---|---|
| Cut-out | Ø75mm · Ø55mm · Ø65mm · Ø90mm +5 more |
| Power | 12W · 7W · 8W · 18W +2 more |
| Lumen output | 420lm · 560lm · 2733lm |
| Efficacy | 80-85LM/W |
| Optics / beam angle | 15° · 24° · 36° · 38° +3 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 90 · >90 · CRI 80 · 80+/90+ +2 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 100-240VAC · 36VDC |
| Light source | Not published — technical review required |
| Material | Aluminium · Aluminium+PC |
| Finish | white-sand · White · black-sand · Black +7 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
12 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
12 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP2003. This family has 12 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBP2003
Ø126xH133mm
Cut-Out
Ø105-110mm
Specifications
At a Glance
7–30W
Power Range
7 options
Beam: 15°, 24°, 25°, 36°, 38°, 50°, 60°
6 CCT
2700K, 3000K, 4000K, 5000K, 5500K, 6000K
CRI 80/90
Colour Rendering
IP20 / IP54
Protection Rating
8 finishes
Body Finish Options
10 sizes
Ø118xH81mm, Ø126xH133mm, Ø127x88mm, Ø145x65mm, Ø70*H57mm, Ø72xH54mm, Ø85*H64.5mm, Ø85xH64.5mm, Ø90*H76mm, Ø95*H79mm
9 cut-outs
Ø105-110mm, Ø108mm, Ø118mm, Ø120-Ø130mm, Ø55mm, Ø65mm, Ø75-80mm, Ø75mm, Ø90mm
Configure your product
LBE2081
Order code
Listed configurationLBE2081.N.940.PAW.36.DR
36 listed configurations · availability requires confirmation
