Lumi Indoor
ESPEJO
Application inspiration · not a project reference
ESPEJO is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
ESPEJO
ESPEJO is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 10 article codes under this family, including LB2816, LB3298, LB3299. For LB2816, published values include power: 12W; colour temperature: 3000K/4000K/5000K/6500K; IP rating: IP20; dimensions: Ø86x55mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ESPEJO articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

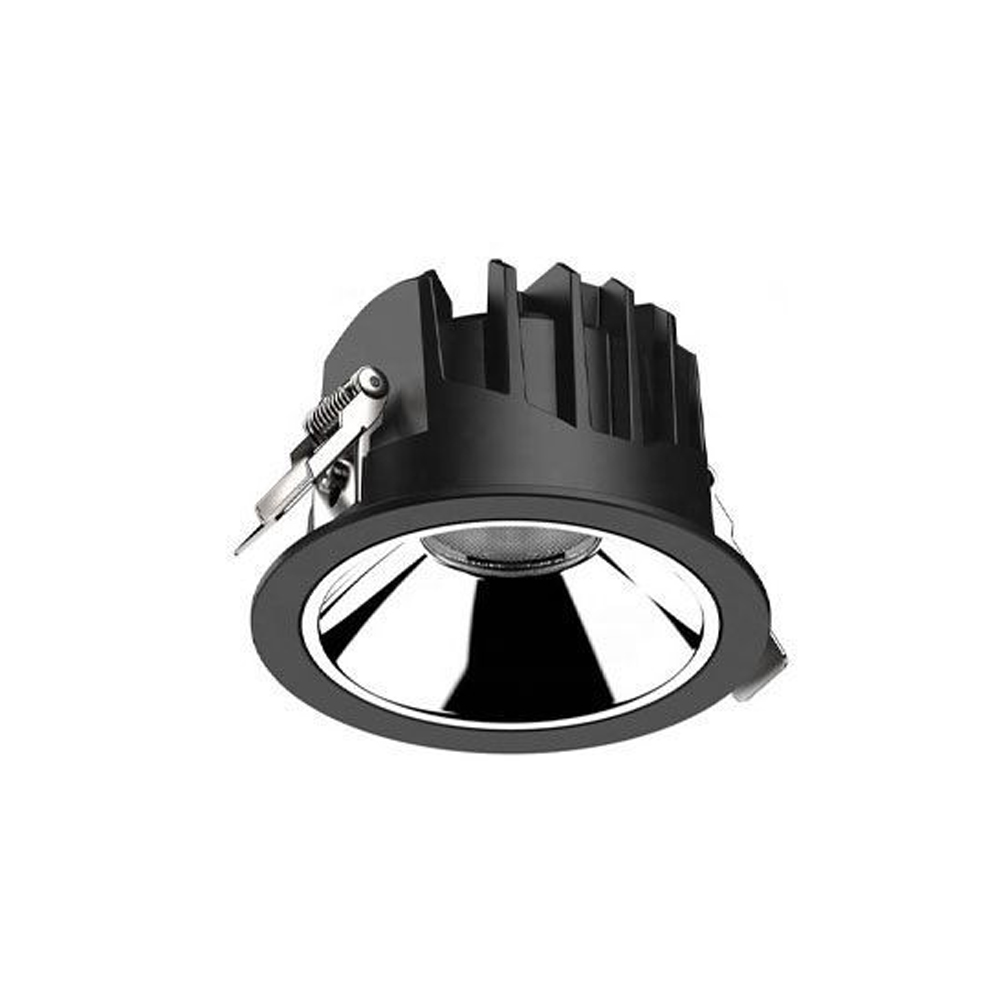

| LB2816 | Wattage12W | CCT3000K/4000K/5000K/6500K | IPIP20 | DimensionsØ86x55mm | Cut-outØ70mm |
| LB3298 | Wattage22W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ101x60mm | Cut-outØ90mm |

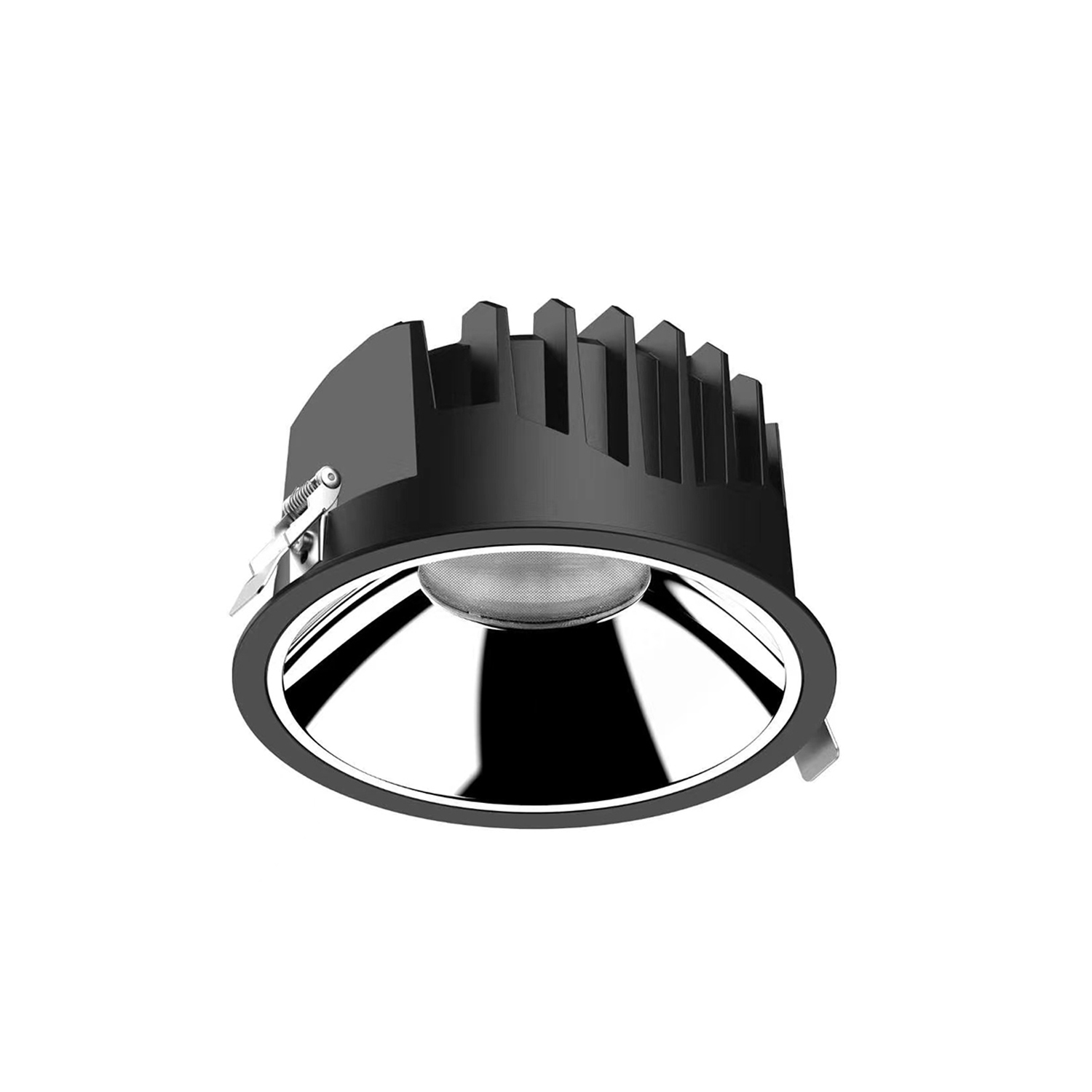

| LB3299 | Wattage30W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ140x73mm | Cut-outØ125mm |
| LB3300 | Wattage36W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ180x94mm | Cut-outØ165mm |
| LB3301 | Wattage50W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ214x110mm | Cut-outØ200mm |
| LB3305 | Wattage18W | CCT3000K/4000K/5000K/6500K | IPIP20 | DimensionsØ101x60mm | Cut-outØ85mm |
| LB3334 | Wattage30W | CCT3000K | IPIP65 | DimensionsØ150x80mm | Cut-outØ135 |

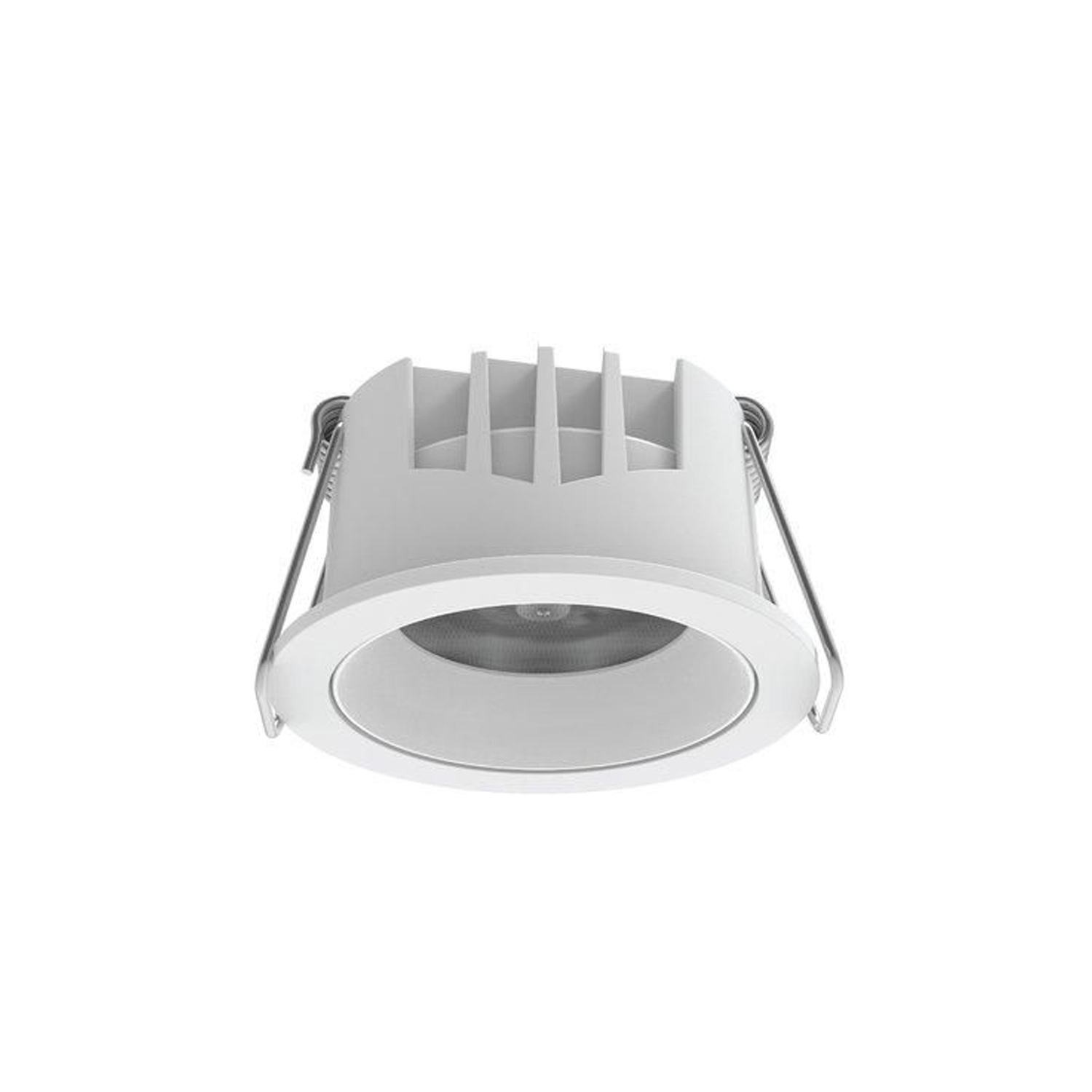

| LBE2188 | Wattage7W | CCT3000K/4000K/6000K | IPIP20 | DimensionsΦ58.5*H31mm | Cut-outФ50mm |
| LBE2189 | Wattage12W | CCT3000K/4000K/6000K | IPIP20 | DimensionsΦ82.5*H37mm | Cut-outФ75mm |

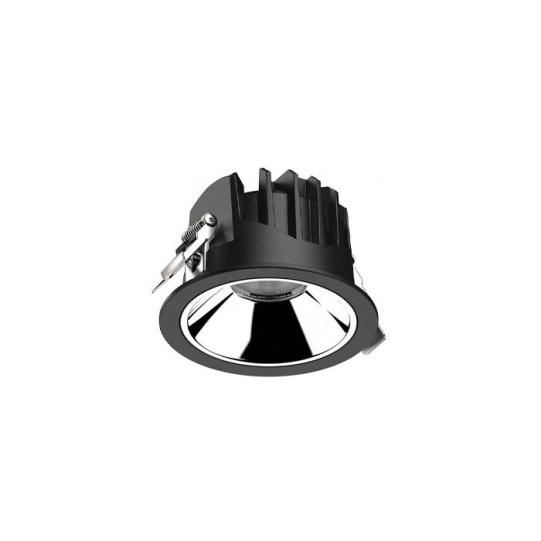

| LBT2092 | Wattage10W | CCT2700K | IPIP20 | DimensionsØ86x55mm | Cut-outØ70mm |
Product View
Configuration
Select Specification
Select attributes to narrow down variants
All Variants (5)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LB3305 | 18W | 3000K, 4000K, 5000K, 6500K | 24° | — | White | Ø101x60mm | |
| LB3305 | 18W | 3000K, 4000K, 5000K, 6500K | 24° | 90 | black-with-sand+mirror-silver | Ø101x60mm | |
| LB3305 | 18W | 3000K, 4000K, 5000K, 6500K | 24° | 90 | black-with-sand+mirror-silver | Ø101x60mm | |
| LB3305 | 18W | 3000K, 4000K, 5000K, 6500K | 24° | 90 | black-with-sand+mirror-silver | Ø101x60mm | |
| LB3305 | 18W | 3000K, 4000K, 5000K, 6500K | 24° | 90 | White | Ø101x60mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3305.
Size — model LB3305
Ø101x60mm
Cut-Out
Ø85mm
Technical Data
Full Specification
| Dimensions | Ø101x60mm |
|---|---|
| Cut-out | Ø85mm |
| Power | 18W |
| Lumen output | Not published — technical review required |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 60° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Die Casting Aluminium |
| Finish | black-with-sand+mirror-silver · White · Black With Sand+Mirror Silver |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
18W
Power
24°
Beam Angle
4 CCT
3000K, 4000K, 5000K, 6500K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
Ø101x60mm
Dimensions
Ø85mm
Cut-Out
Configure your product

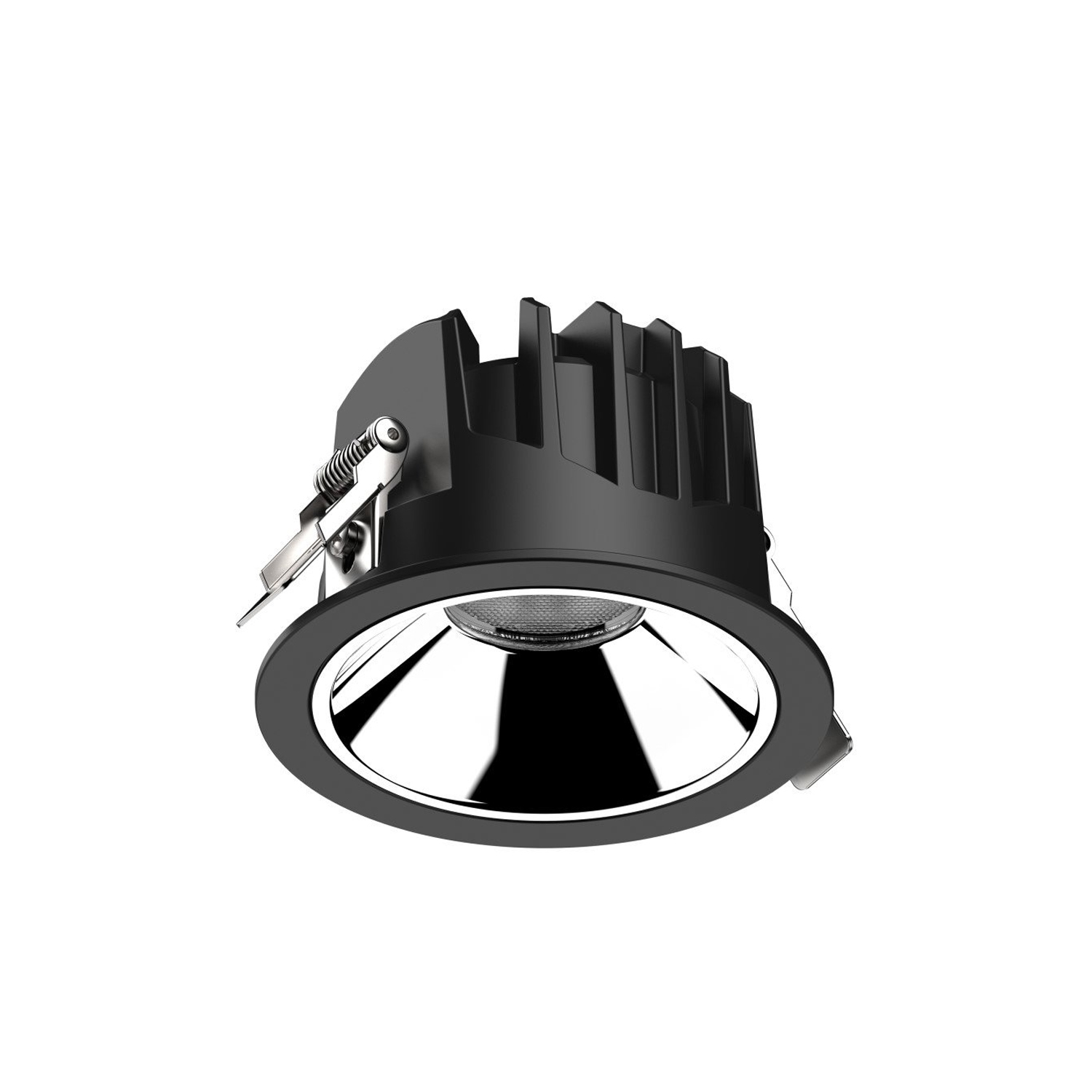

LB3305
Order code
Listed configurationLB3305.N.940.PAB+MSR.24.DR
3 listed configurations · availability requires confirmation
