Lumi Indoor
FILLY
Application inspiration · not a project reference
FILLY is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
FILLY
FILLY is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 15 models, including LB2034, LB2034C, LB2035, with model-specific specifications and configuration choices. LB2034 specifications include power: 12W; colour temperature: 4000K; IP rating: IP20; dimensions: 90x90x80mm. Compare the FILLY range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

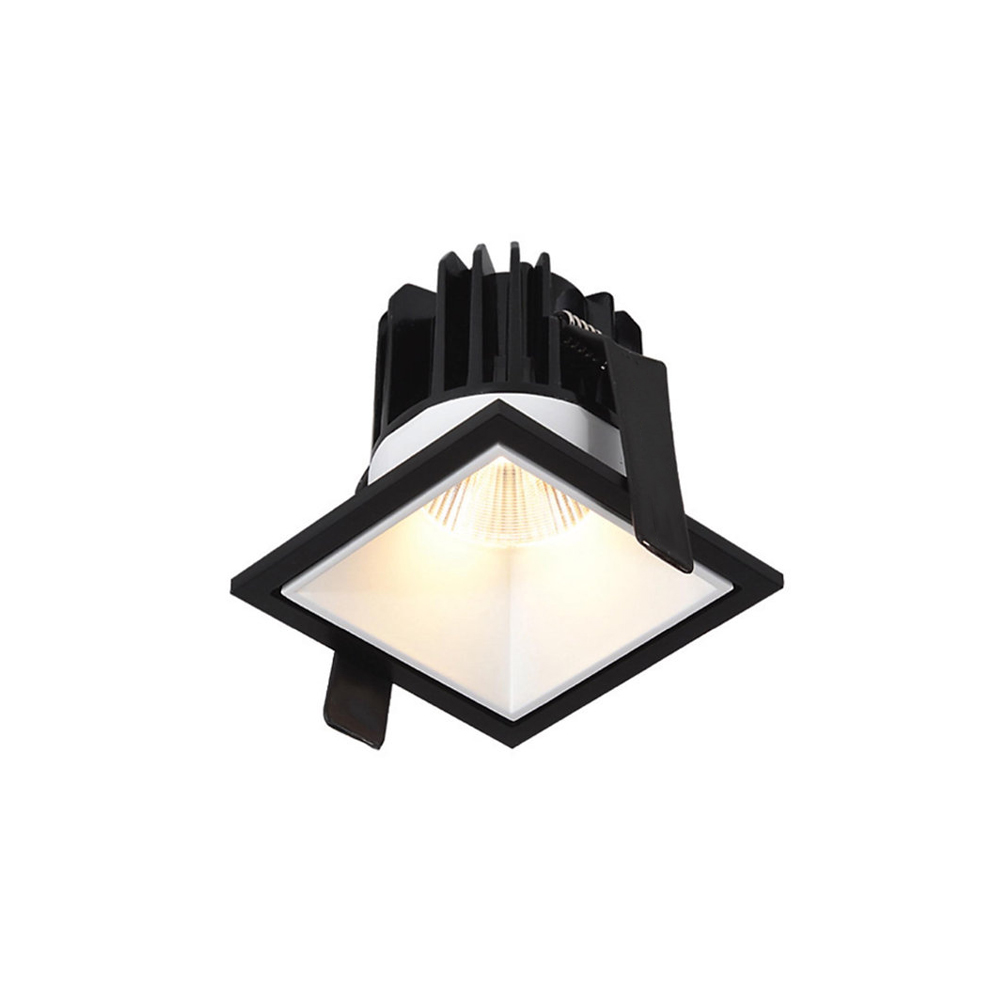

| LB2034 | Wattage12W | CCT4000K | IPIP20 | Dimensions90x90x80mm | Cut-out70x70mm |
| LB2034C | Wattage12W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | Dimensions90x90x80mm | Cut-outNot published |
| LB2035 | Wattage12W | CCT3000K | IPIP20 | Dimensions90x173x82mm | Cut-out155x70mm |

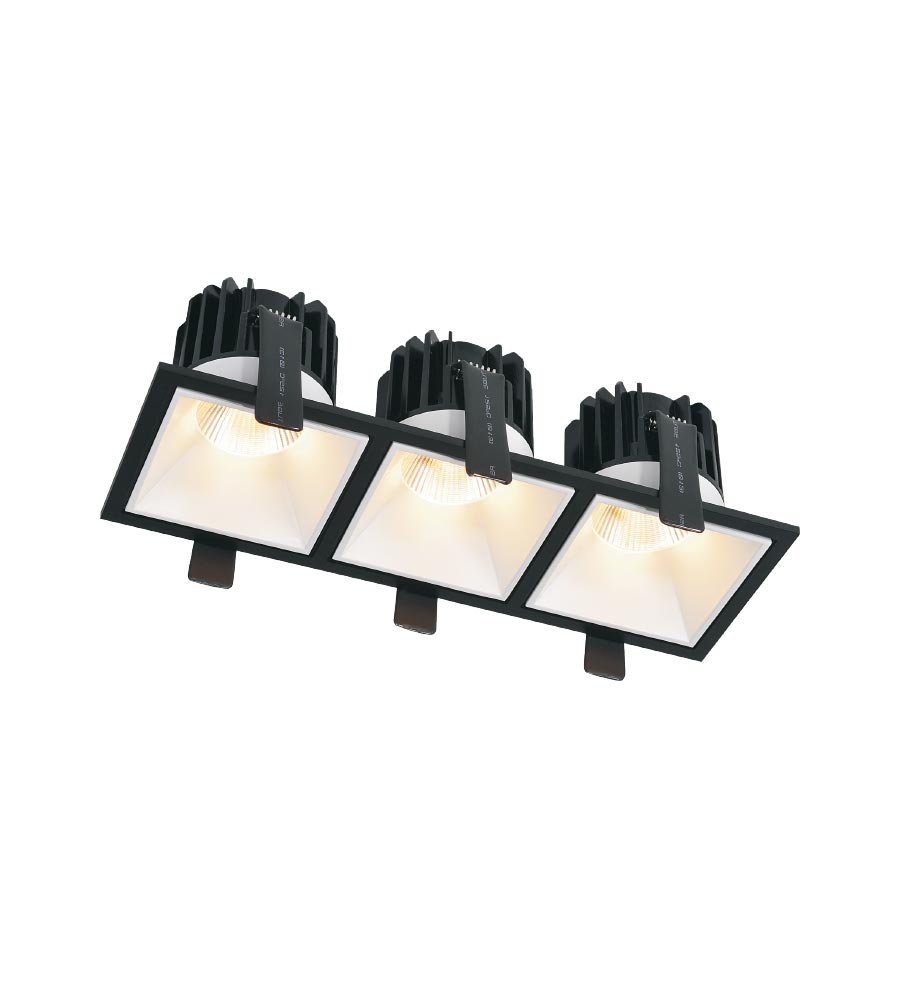

| LB2036 | Wattage12W | CCT3000K | IPIP20 | Dimensions90x255x82mm | Cut-out235x70mm |

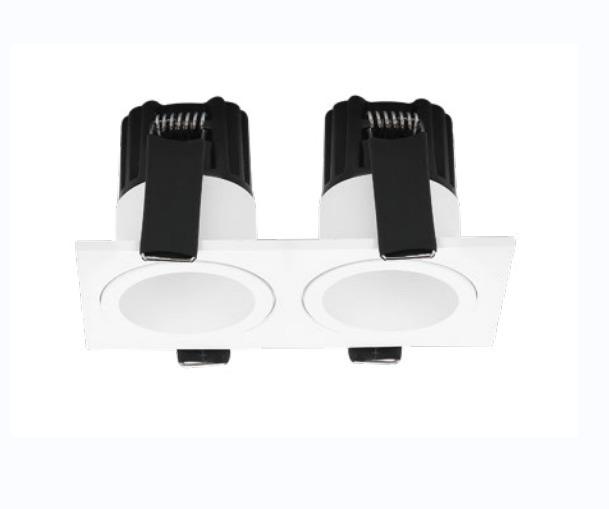

| LB2858 | Wattage12W | CCT6500K | IPIP20 | Dimensions135x70x68mm | Cut-out120x50mm |

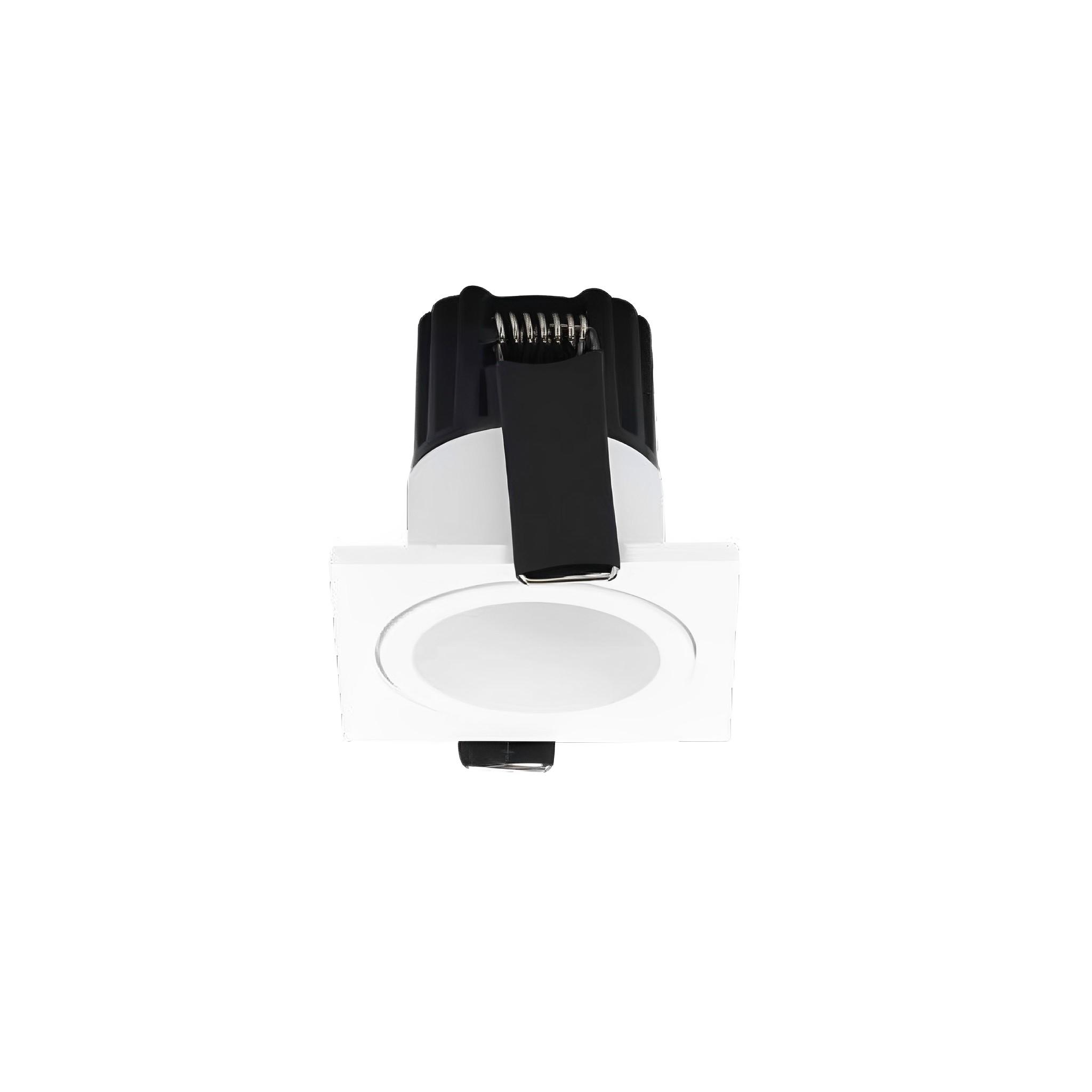

| LB2859 | Wattage12W | CCT3000K | IPIP20 | Dimensions70x70xH68mm | Cut-outØ50mm |
| LB2861 | Wattage12W | CCT5000K | IPIP20 | Dimensions70x70x68mm | Cut-out50x50mm |

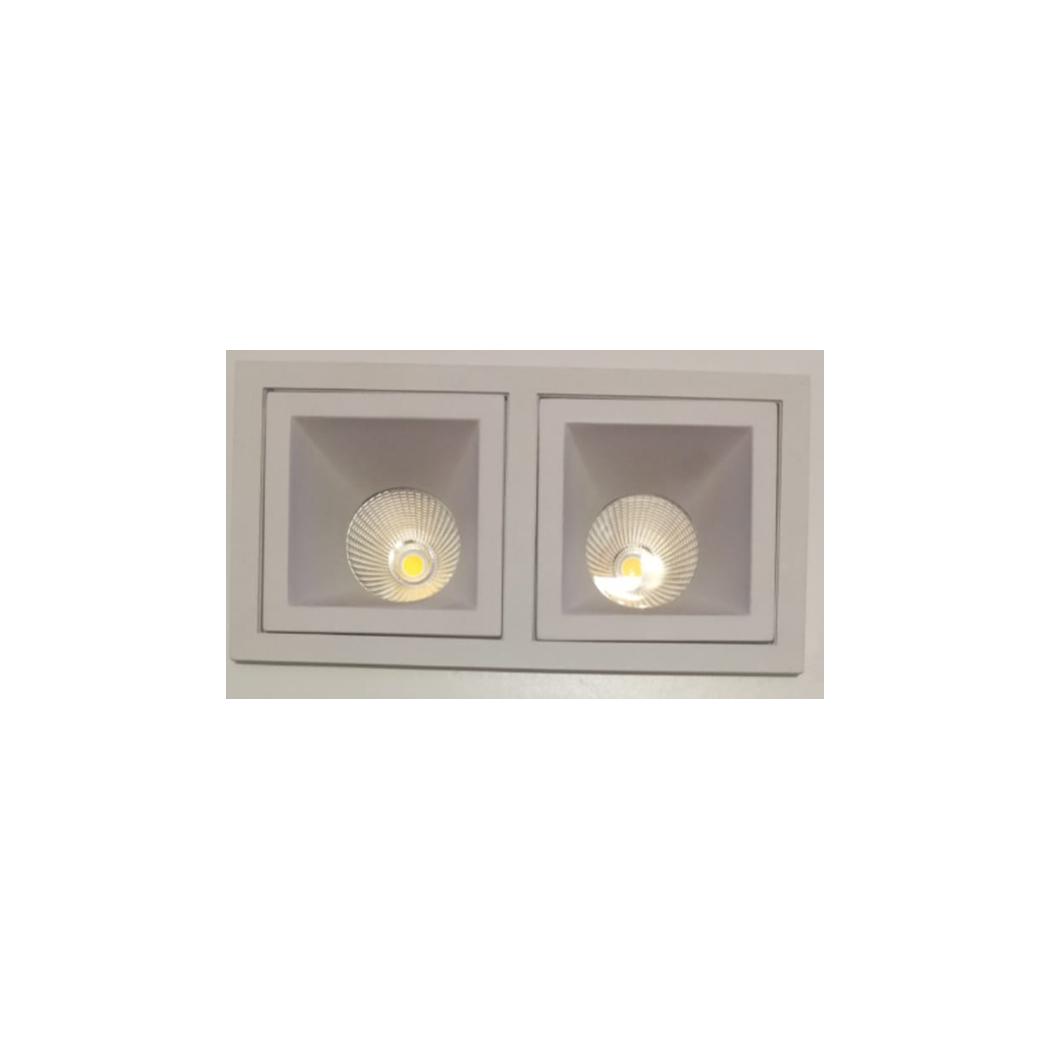

| LB2863 | Wattage12W | CCT5000K | IPIP20 | Dimensions135x70x68mm | Cut-out120x50mm |

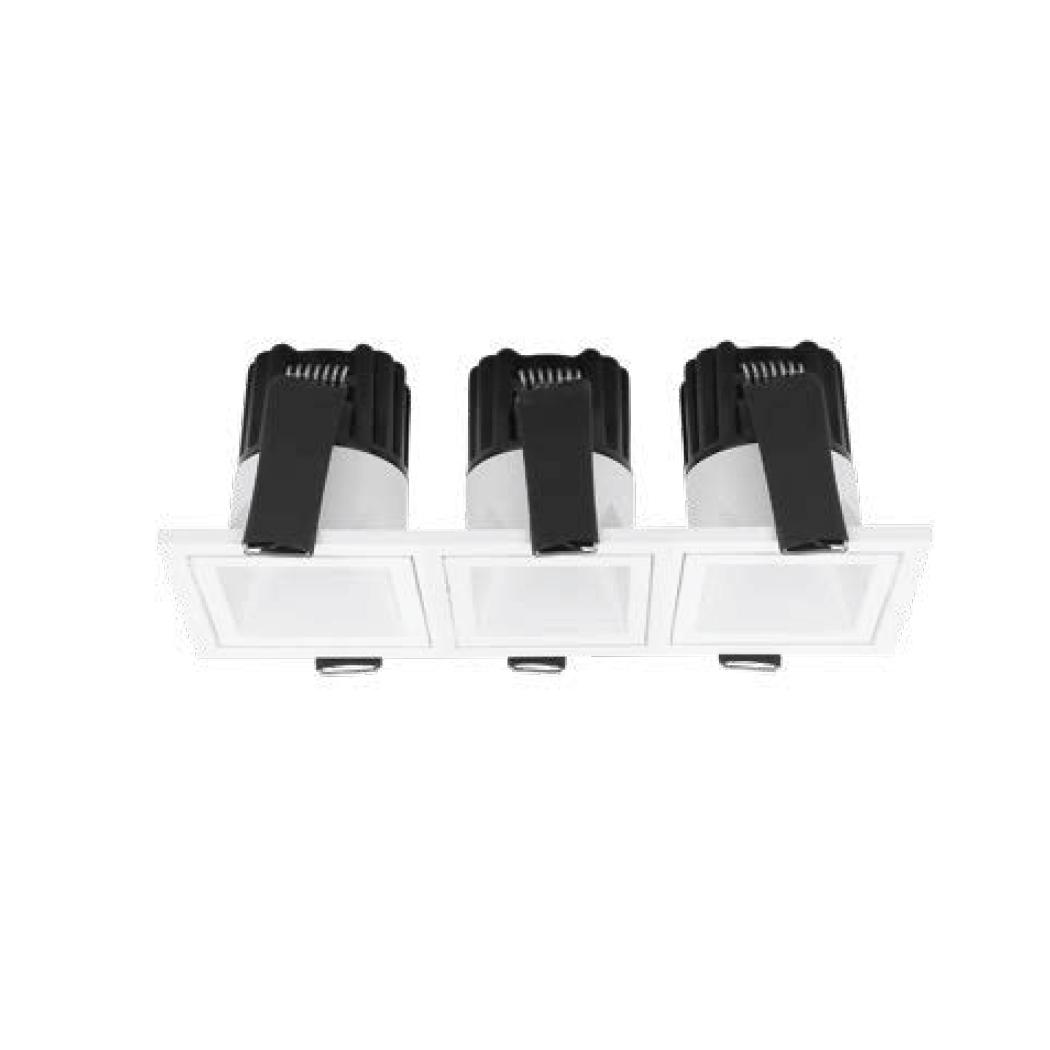

| LB2898 | Wattage12W | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | Dimensions200x70x68mm | Cut-out185x50mm |
| LB2960 | Wattage2x9W | CCT3000K | IPIP20 | Dimensions85x170xH46mm | Cut-outNot published |
| LBE2046 | Wattage9W | CCT4000K | IPIP20 | Dimensions70x70x72mm | Cut-out60x66mm |

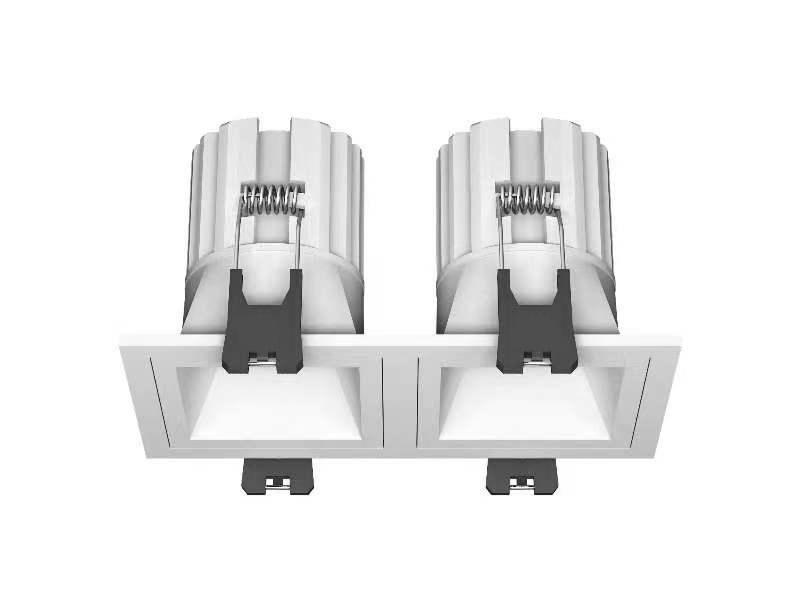

| LBE2047 | Wattage2x9W | CCT4000K | IPIP20 | Dimensions135x70x72mm | Cut-out125x66mm |

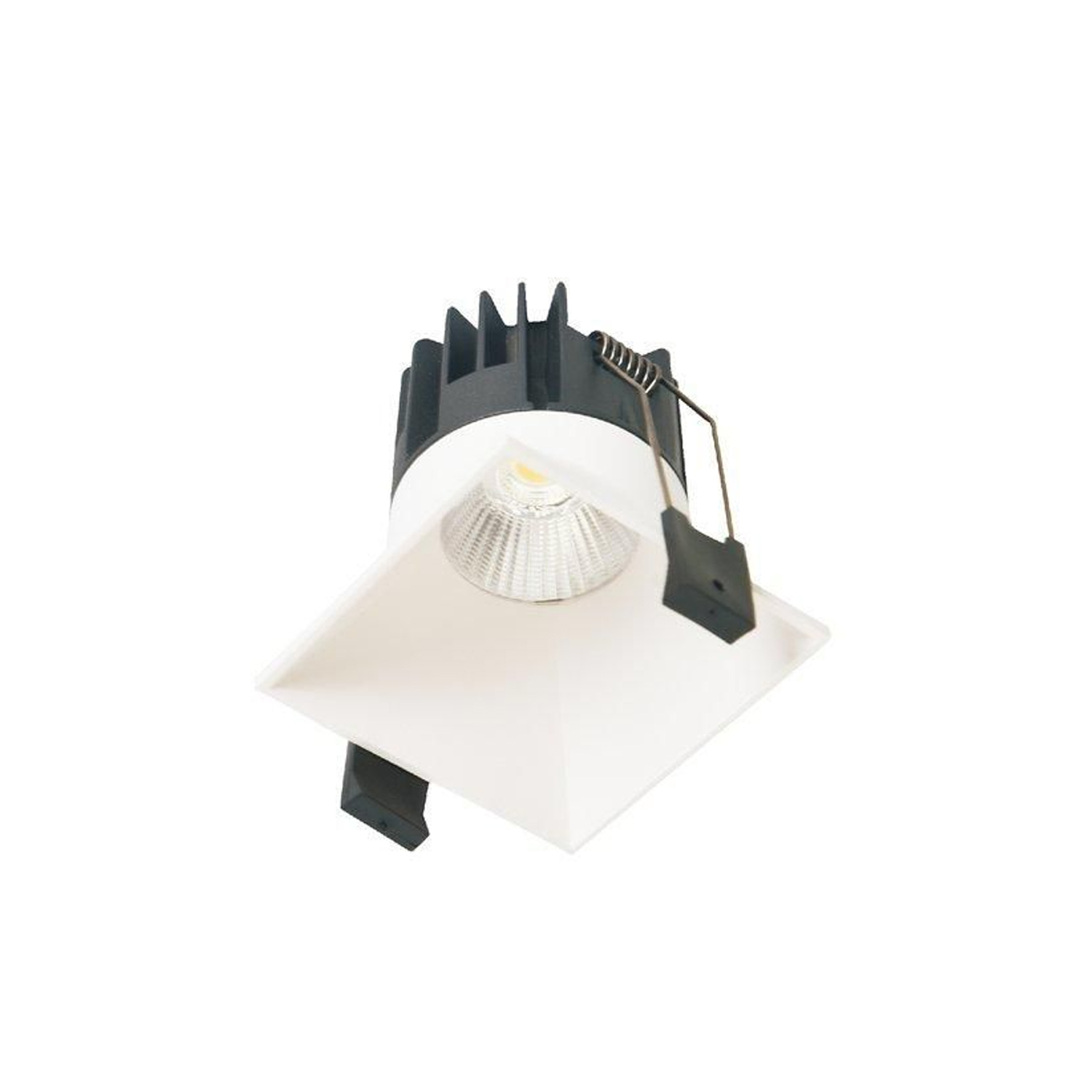

| LBE2131 | Wattage7W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions65X53H | Cut-out58MM |

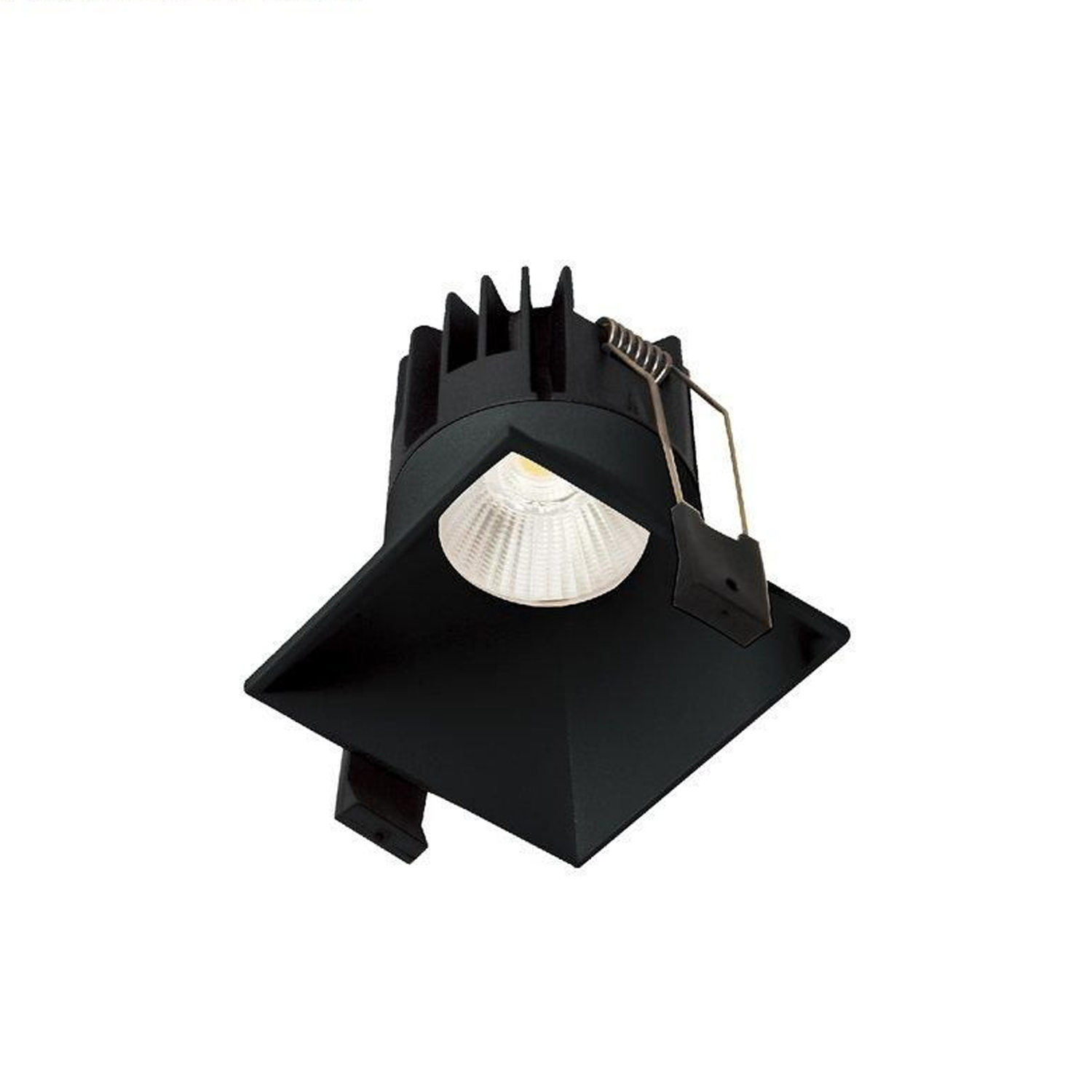

| LBE2132 | Wattage12W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions80X75H | Cut-out75MM |

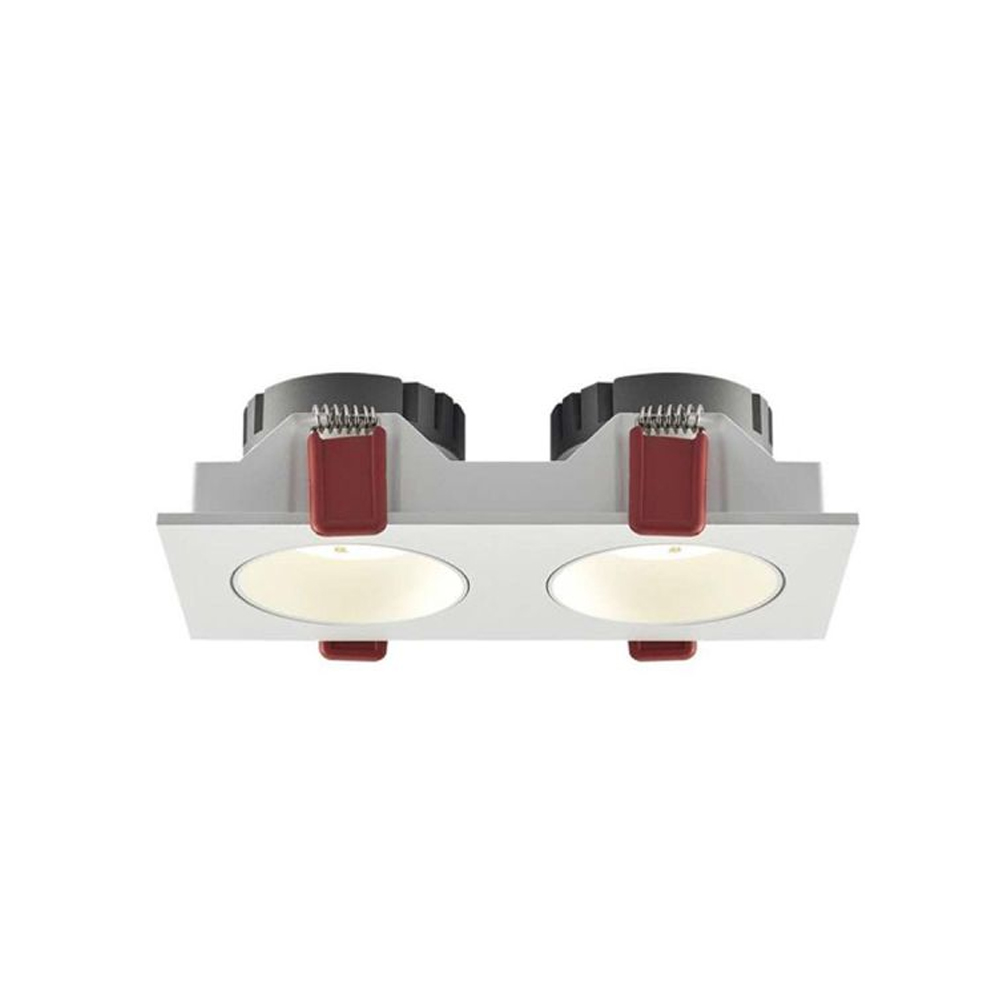

| LBT2074 | Wattage12W | CCT3000K | IPIP20 | DimensionsL170xW85xH46mm | Cut-outL160xW75mm |
Technical Data
Full Specification
| Dimensions | 90x90x80mm · Ø85x64mm · 90x173x82mm · 90x255x82mm +10 more |
|---|---|
| Cut-out | 70x70mm · 155x70mm · 235x70mm · 120x50mm +8 more |
| Power | 11W · 12W · 7W · 2x9W +1 more |
| Lumen output | 1000LM · 391lm · 1620LM · 500LM |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 22° · 24° · 32° · 45° +5 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 90 · 80 · ≥70 · CRI 80 +2 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP54 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current · 220-240VAC · 18VDC · 36VDC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white · black · painted-in-black+painted-in-golden · white+black +11 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years |
| Lead time | Not published — technical review required |
12 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
15 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2035. This family has 15 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2035
90x173x82mm
Cut-Out
155x70mm
Specifications
At a Glance
6.2–18W
Power Range
9 options
Beam: 15°, 22°, 24°, 32°, 36°, 38°, 45°, 50°, 60°
7 CCT
2700K, 3000K, 4000K, 5000K, 5600K, 6000K, 6500K
CRI 80/90
Colour Rendering
IP20 / IP54
Protection Rating
11 finishes
Body Finish Options
13 sizes
135x70x68mm, 135x70x72mm, 200x70x68mm, 65X53H, 70x70x68mm, 70x70x72mm, 70x70xH68mm, 80X75H, 85x170xH46mm, 90x173x82mm, 90x255x82mm, 90x90x80mm, L170xW85xH46mm
12 cut-outs
120x50mm, 125x66mm, 155x70mm, 185x50mm, 235x70mm, 50x50mm, 58MM, 60x66mm, 70x70mm, 75MM, L160xW75mm, Ø50mm
Configure your product
LB2035
Order code
Listed configurationLB2035.W.930.WWH.32
74 listed configurations · availability requires confirmation
