FUSION is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
FUSION
FUSION is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 23 article codes under this family, including LBE2105, LBE2106, LBE2107. For LBE2105, published values include power: 2W; colour temperature: 2700K/3000K/4000K/5000K; IP rating: IP20; dimensions: 34x34x57 mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the FUSION articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

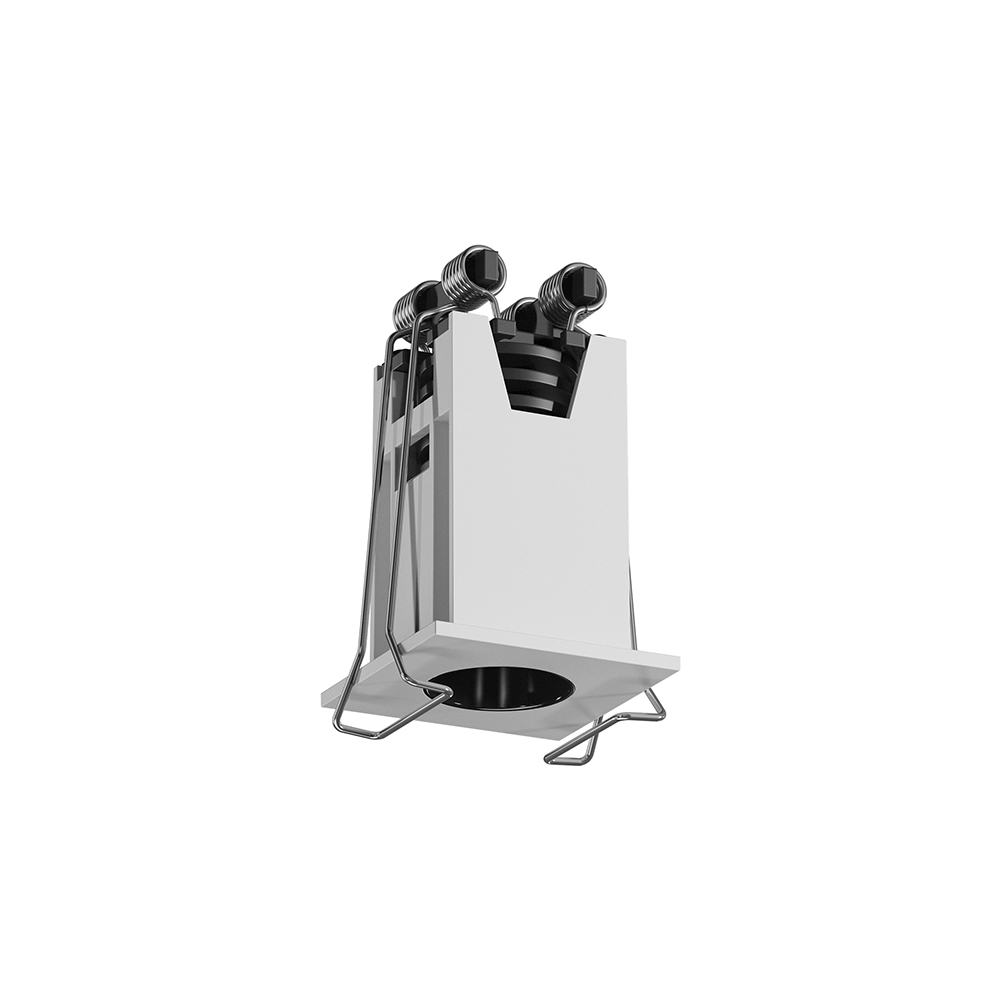

| LBE2105 | Wattage2W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions34x34x57 mm | Cut-out25x25 mm |

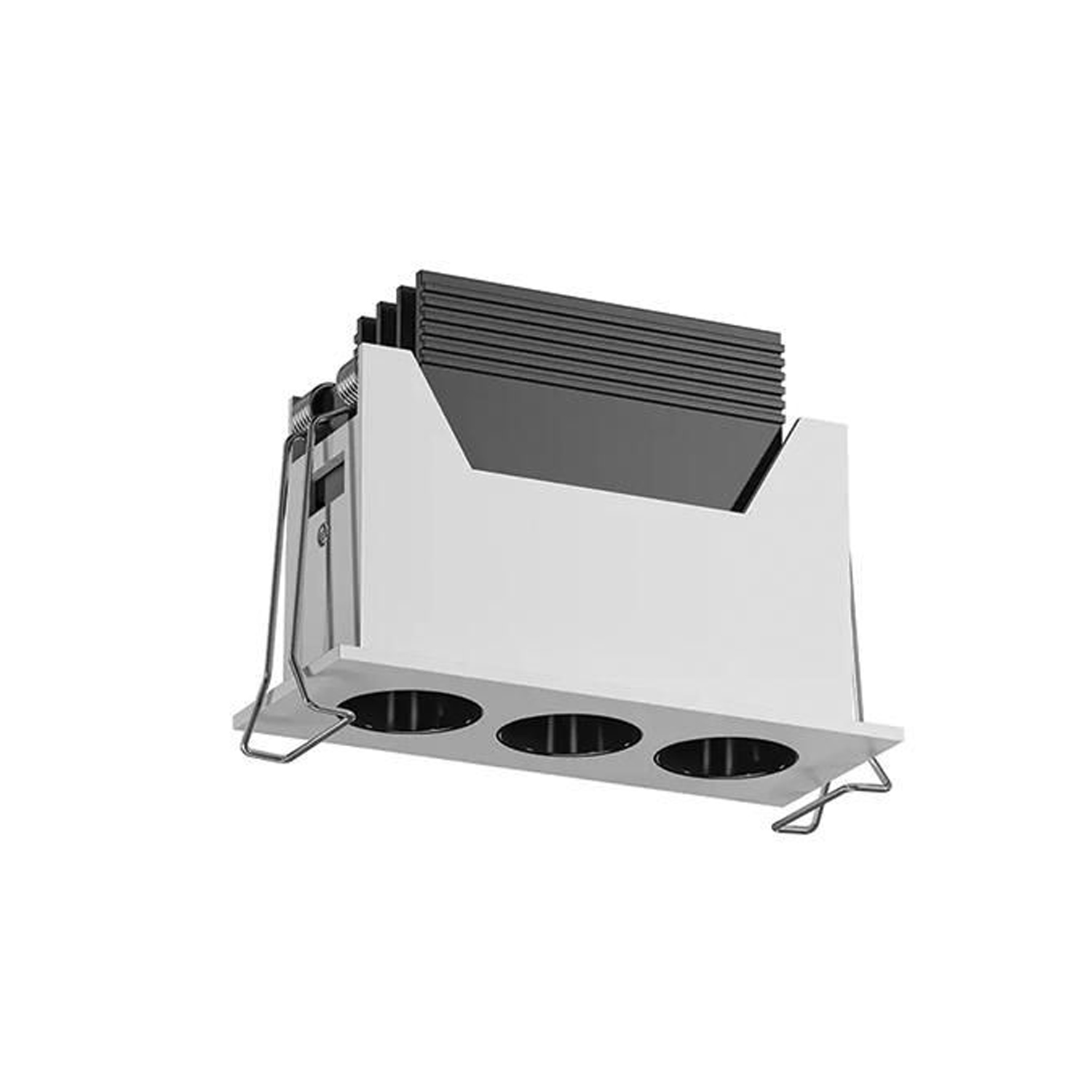

| LBE2106 | Wattage6W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions81x34x57mm | Cut-out73x25mm |

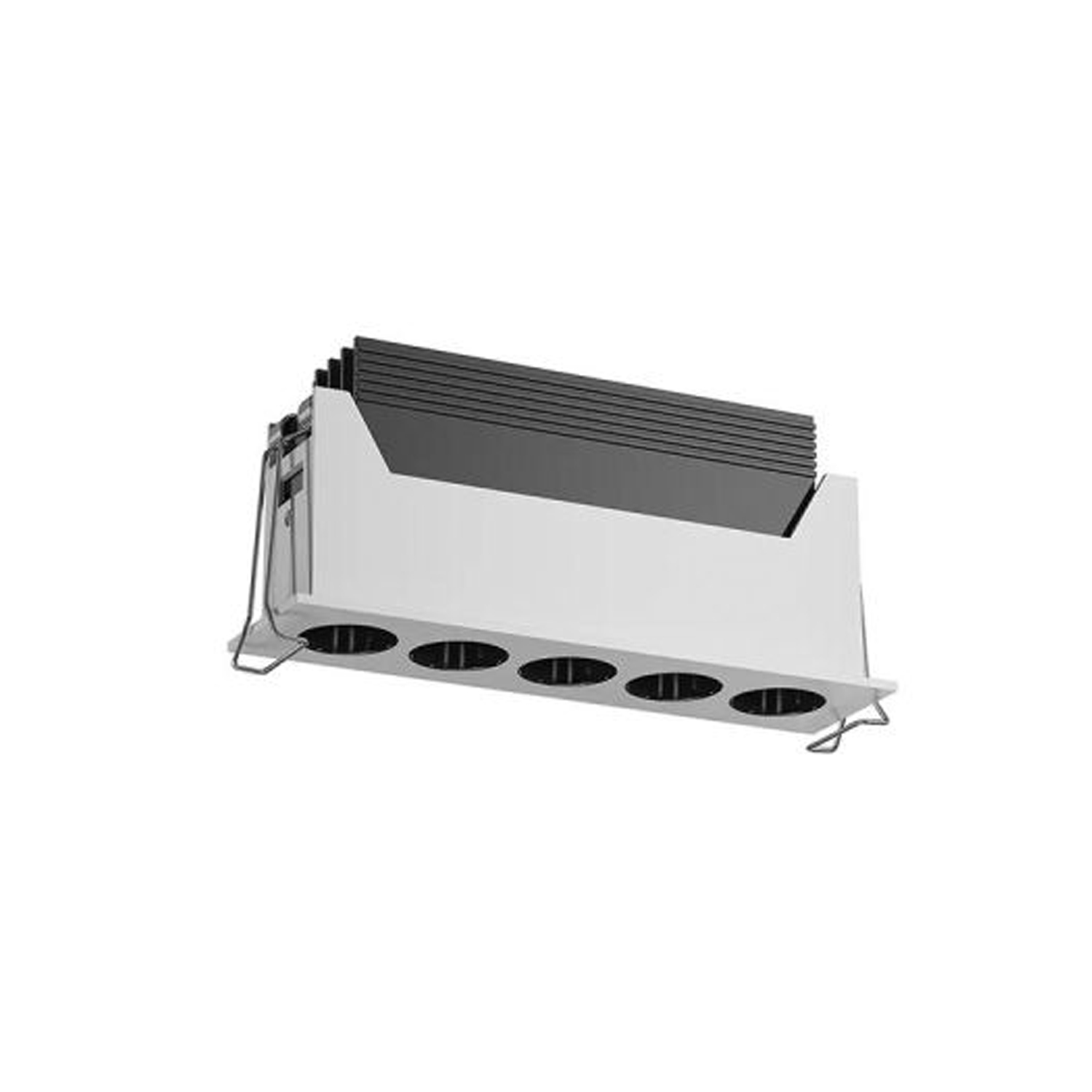

| LBE2107 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions127x34x57mm | Cut-out119x25mm |
| LBE2108 | Wattage20W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions242x34x57mm | Cut-out234x25mm |

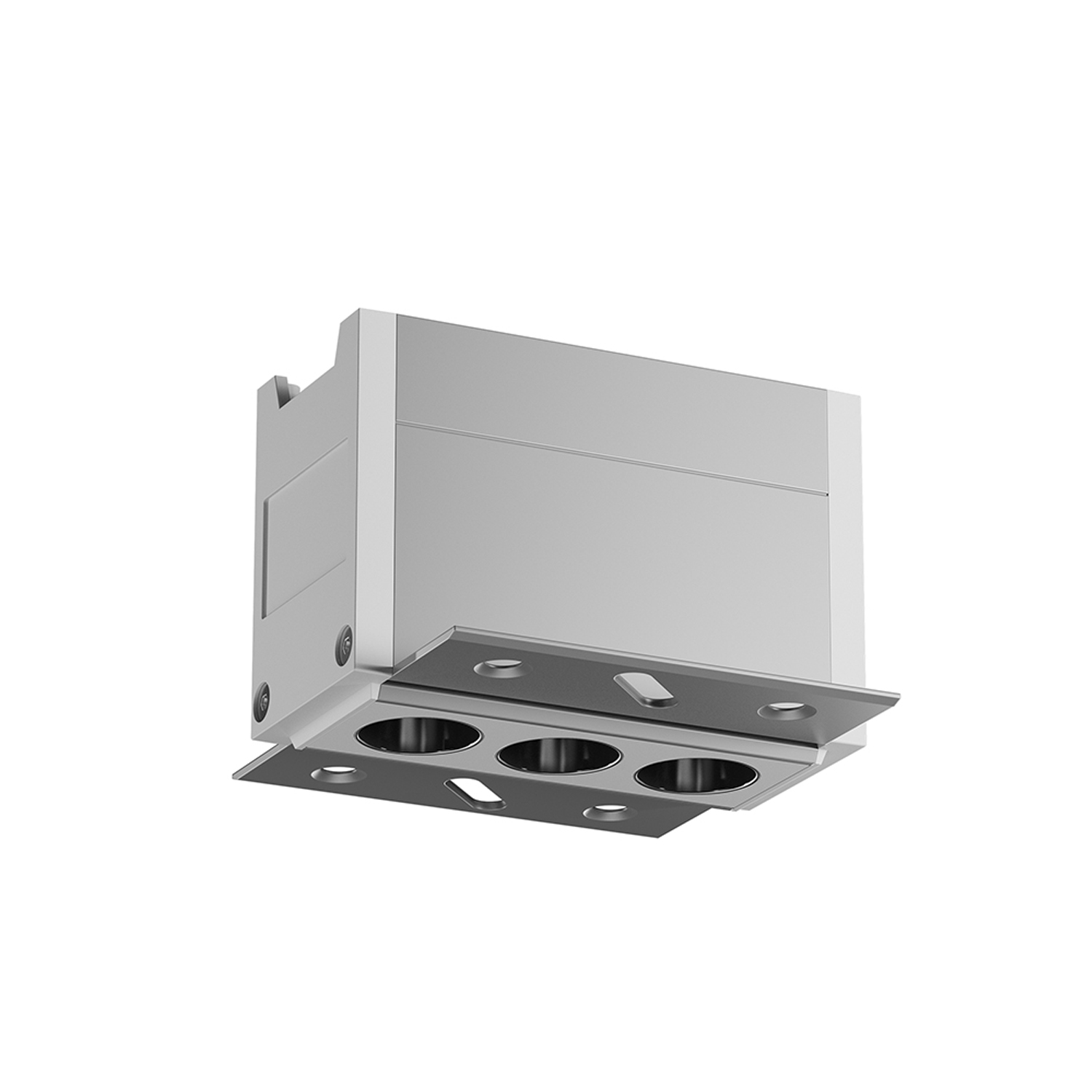

| LBE2110 | Wattage6W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions84x80x58mm | Cut-out86x40mm |

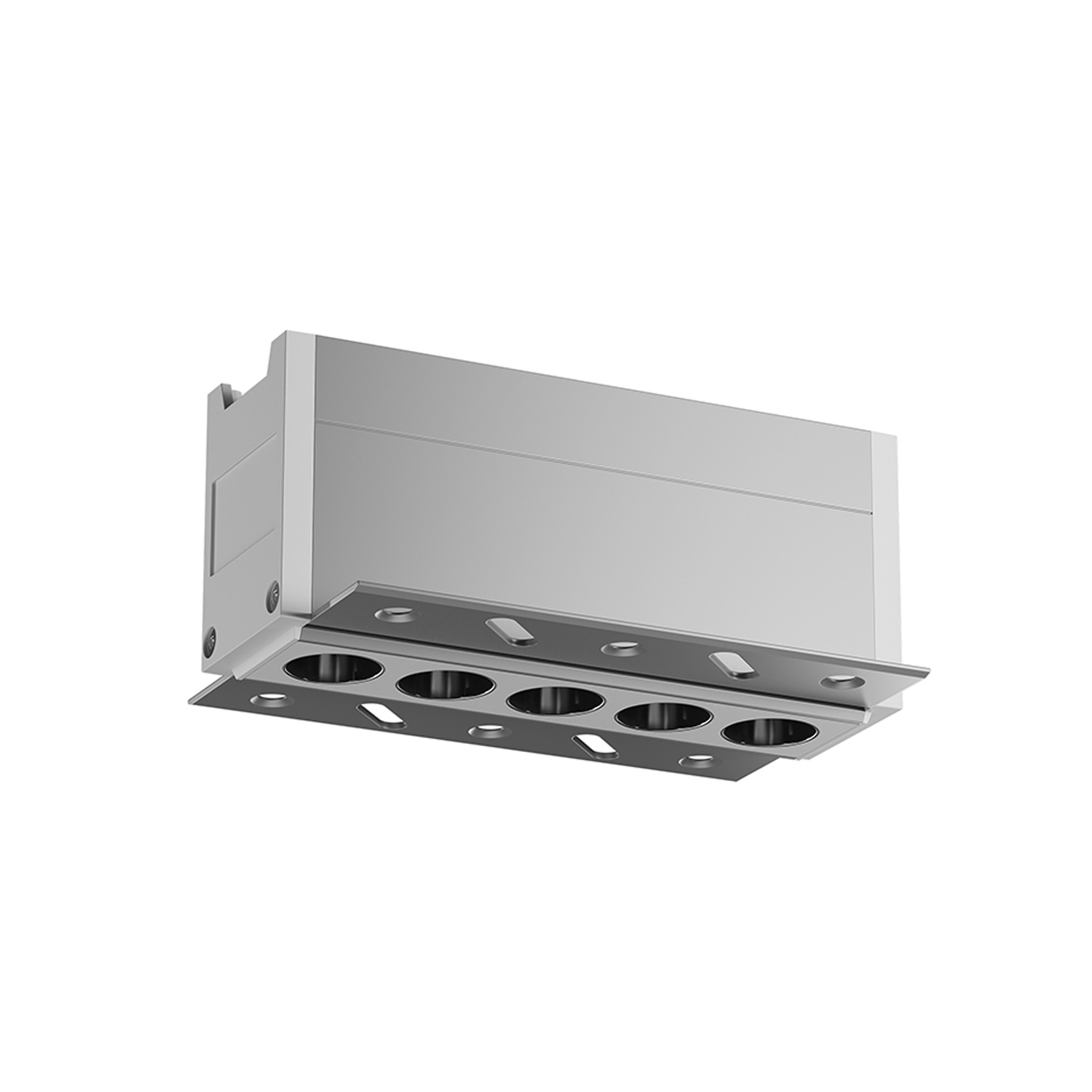

| LBE2111 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions130x80x58mm | Cut-out132x40mm |

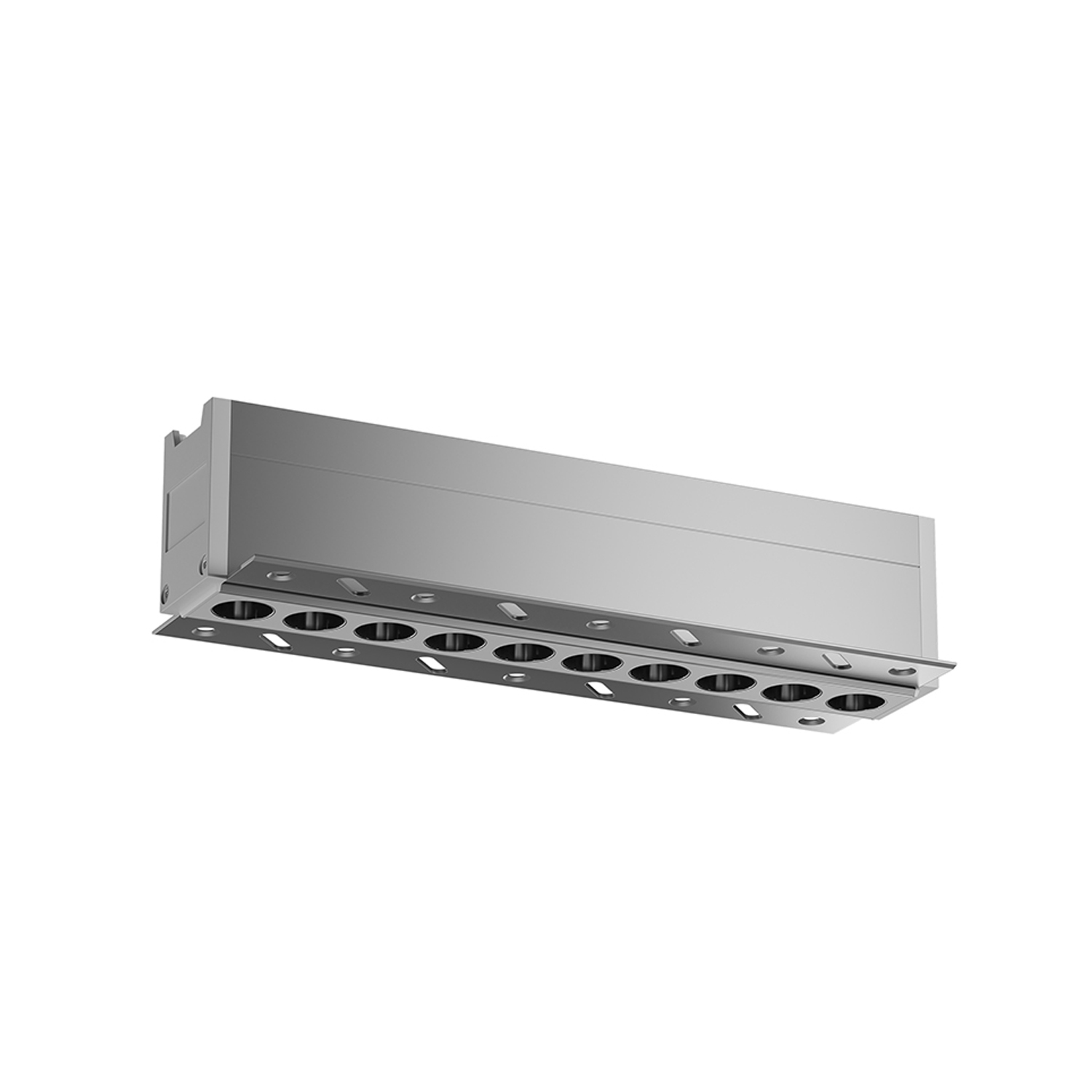

| LBE2112 | Wattage20W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions245x80x58mm | Cut-out247x40mm |
| LBE2113 | Wattage6W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions89x51x50mm | Cut-out82x44mm |

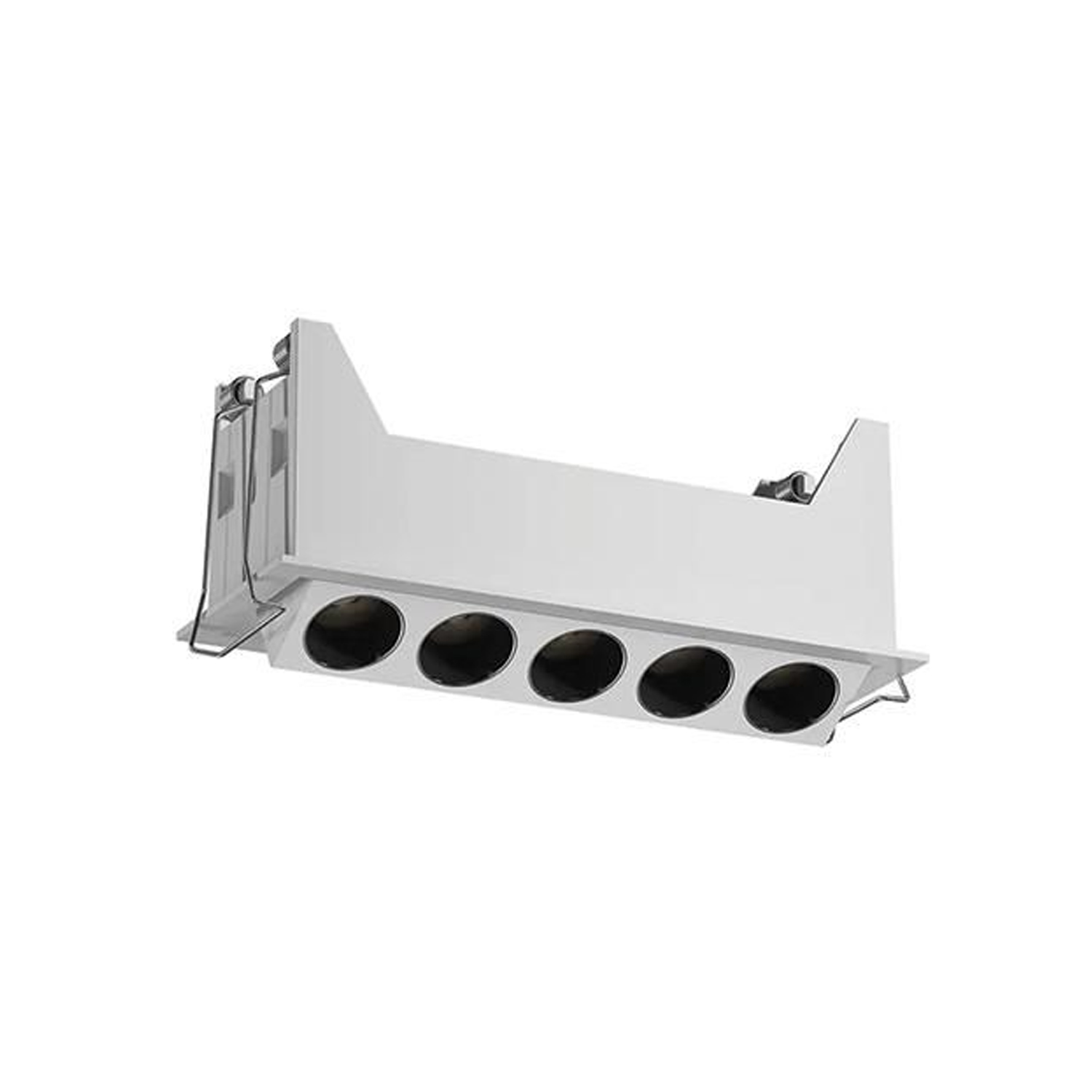

| LBE2114 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions135x51x50mm | Cut-out128x44mm |

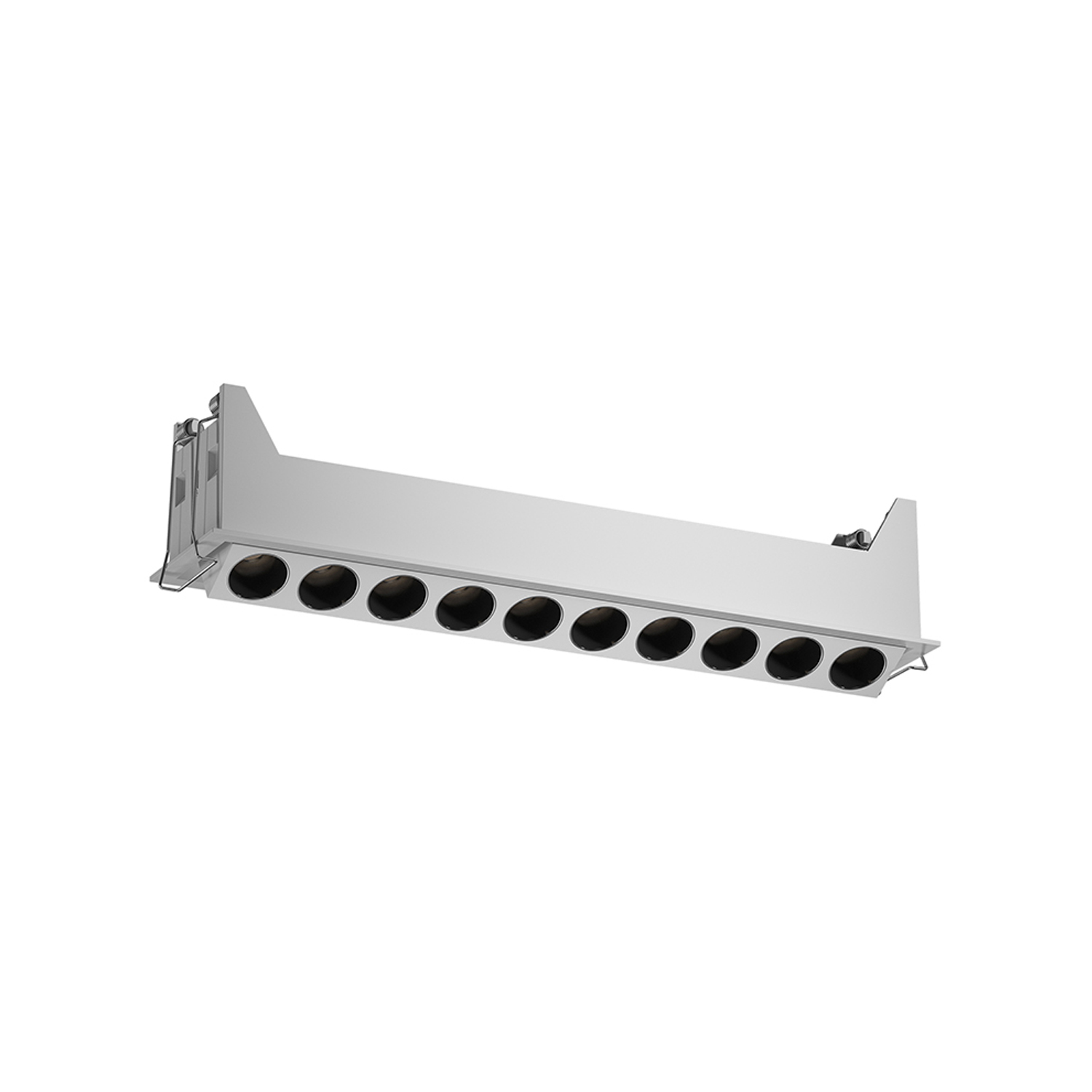

| LBE2115 | Wattage20W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions250x51x50mm | Cut-out243x44mm |

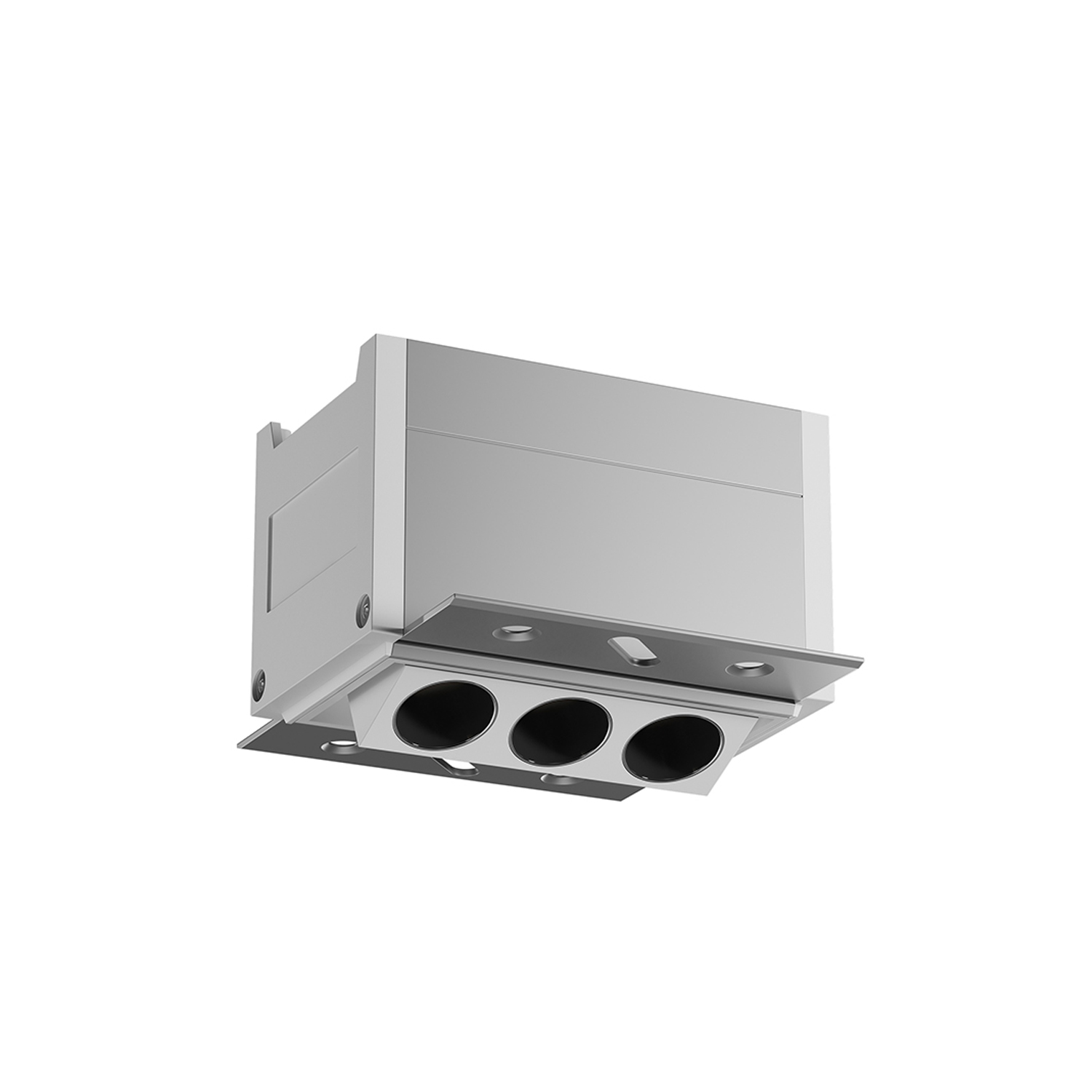

| LBE2116 | Wattage6W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions92x97x58mm | Cut-out94x57mm |

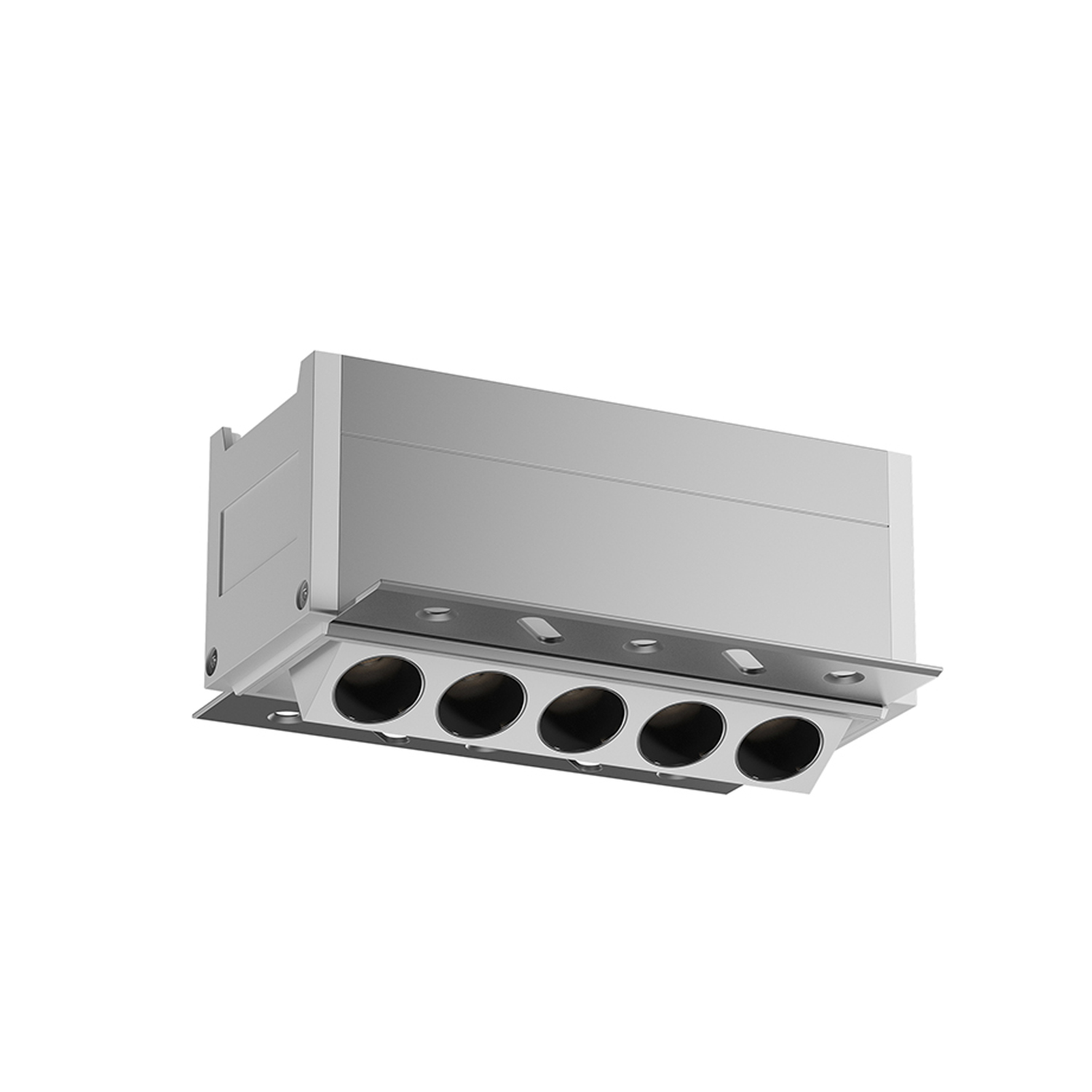

| LBE2117 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions138x97x58mm | Cut-out140x57mm |

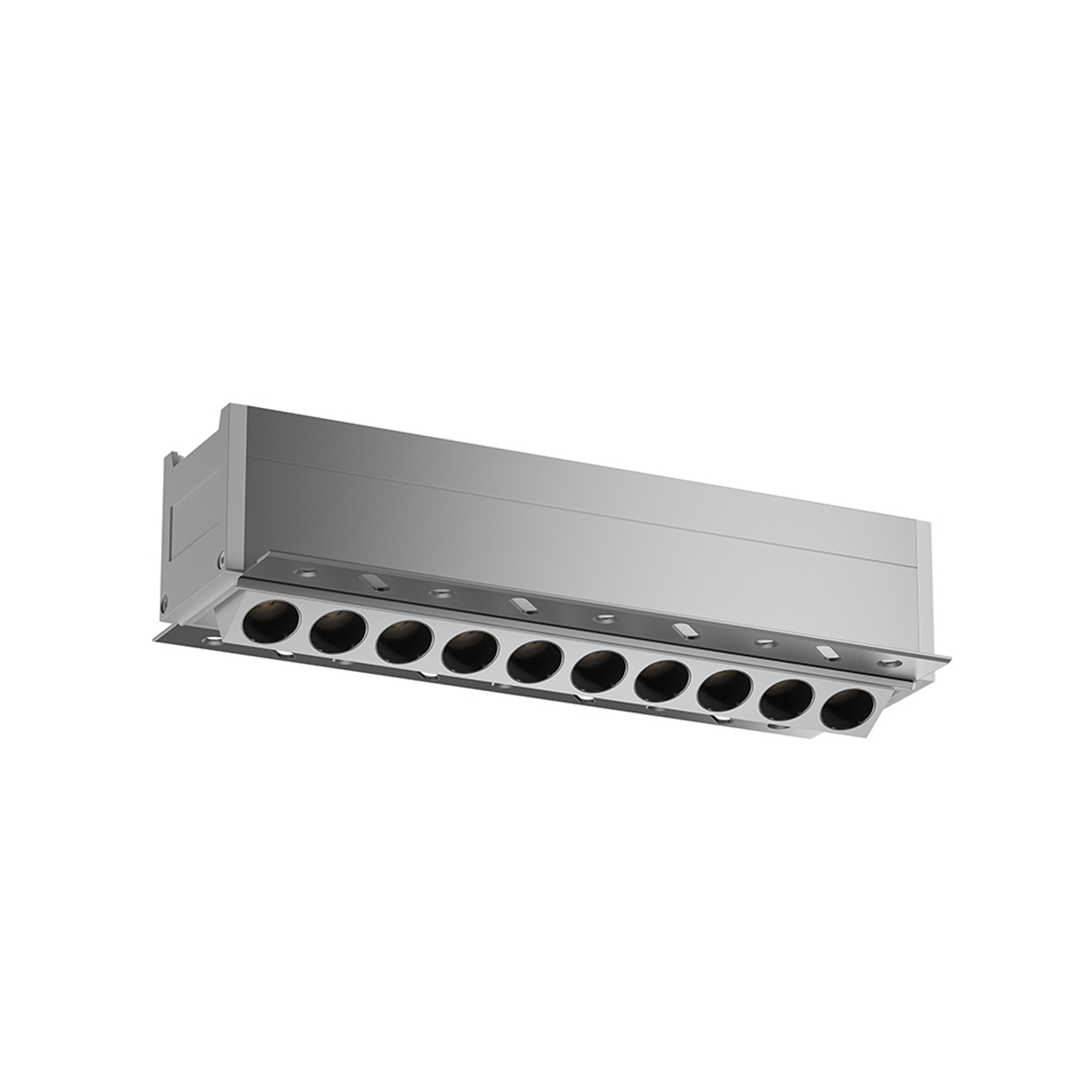

| LBE2118 | Wattage20W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions253x97x58mm | Cut-out255x57mm |

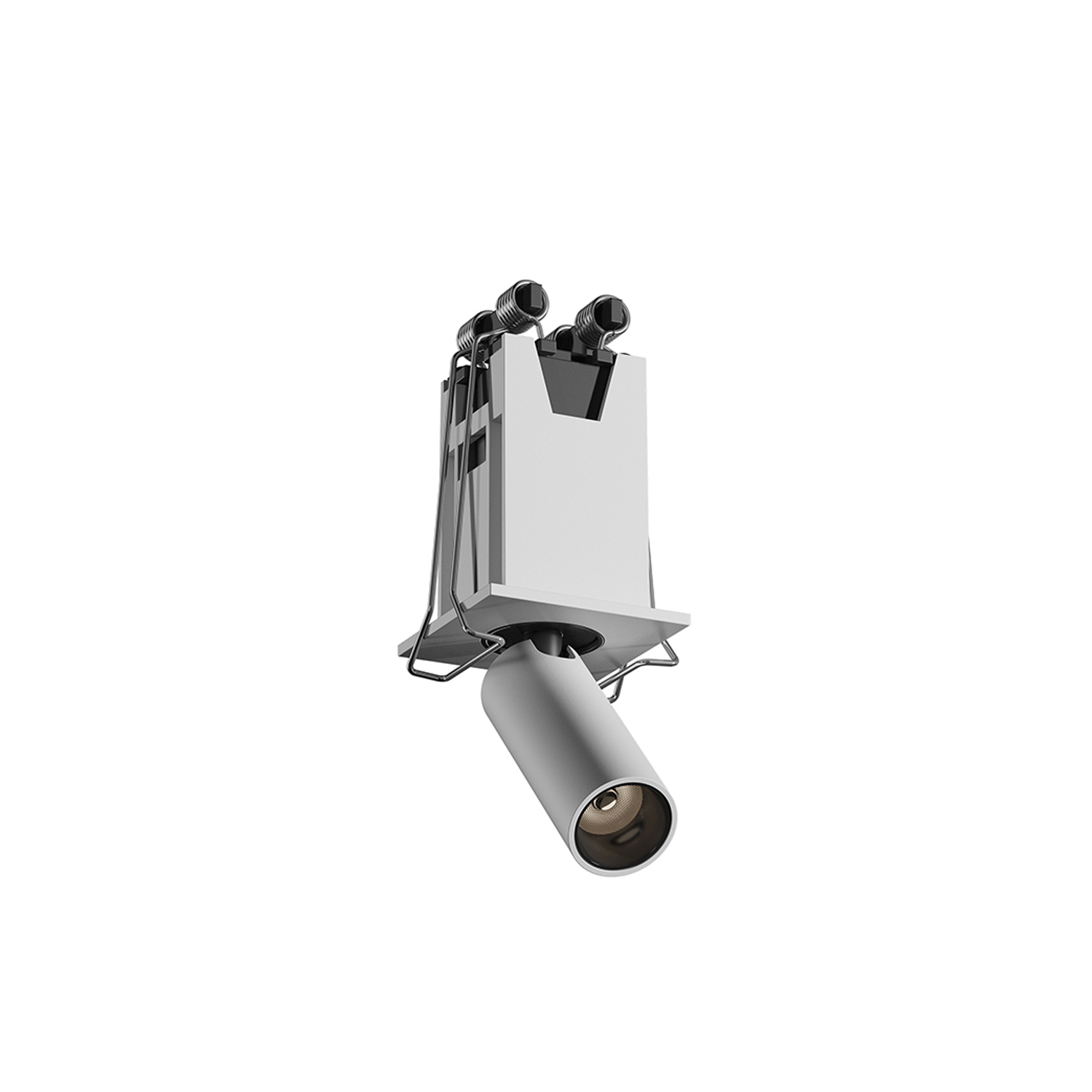

| LBE2119 | Wattage2W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions34x34x65mm | Cut-out25x25mm |

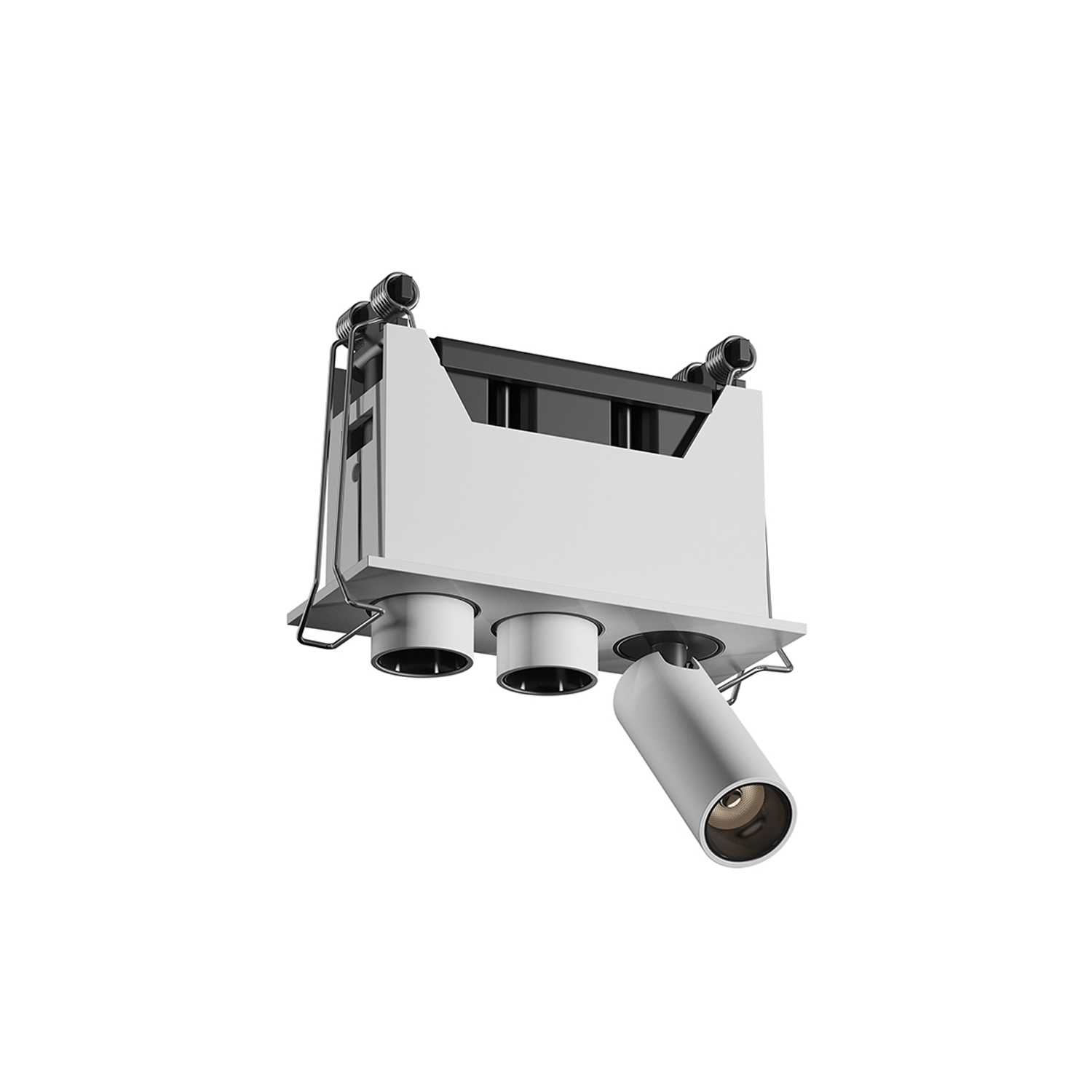

| LBE2120 | Wattage6W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions81x34x65mm | Cut-out73x25mm |

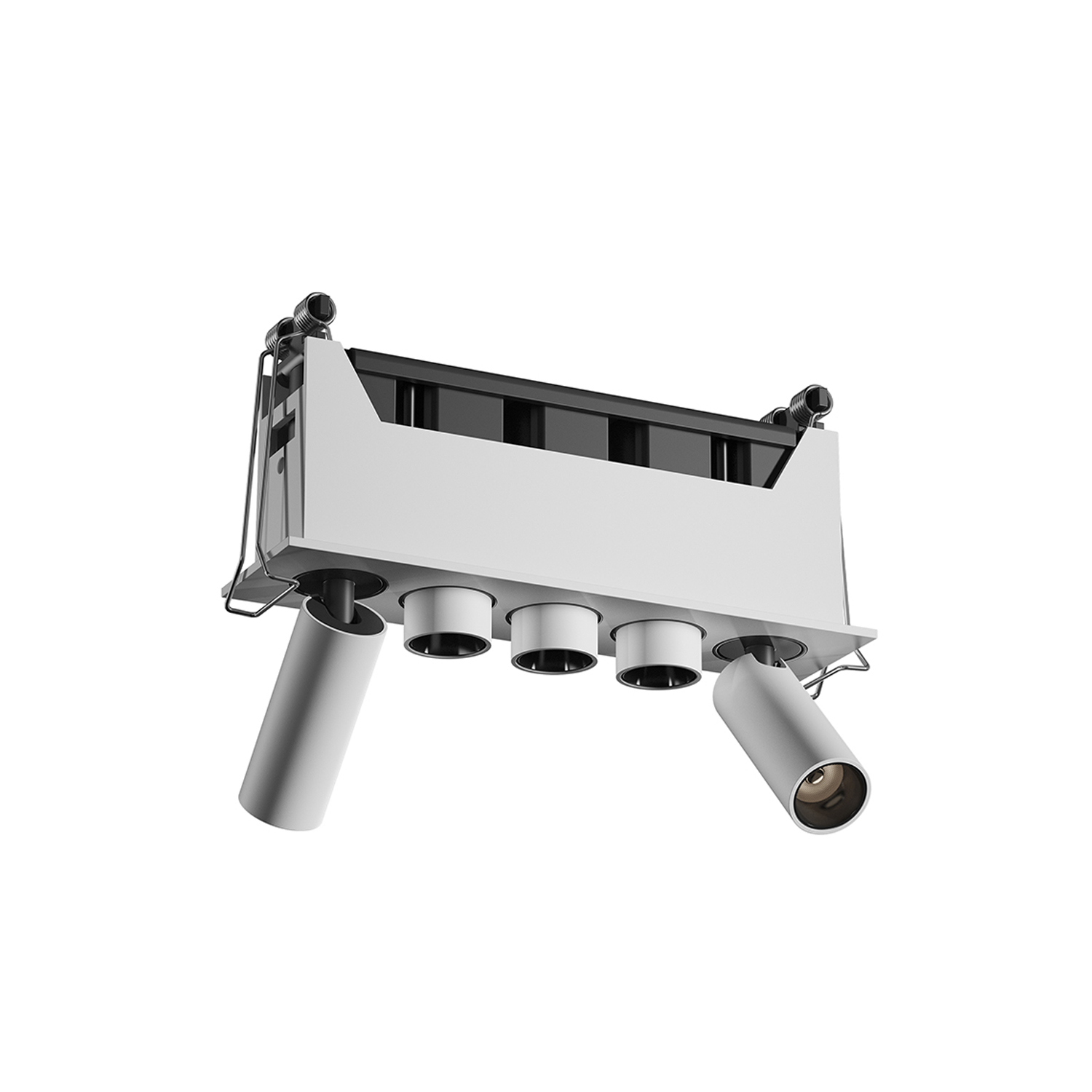

| LBE2121 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensions127x34x65mm | Cut-out119x25mm |

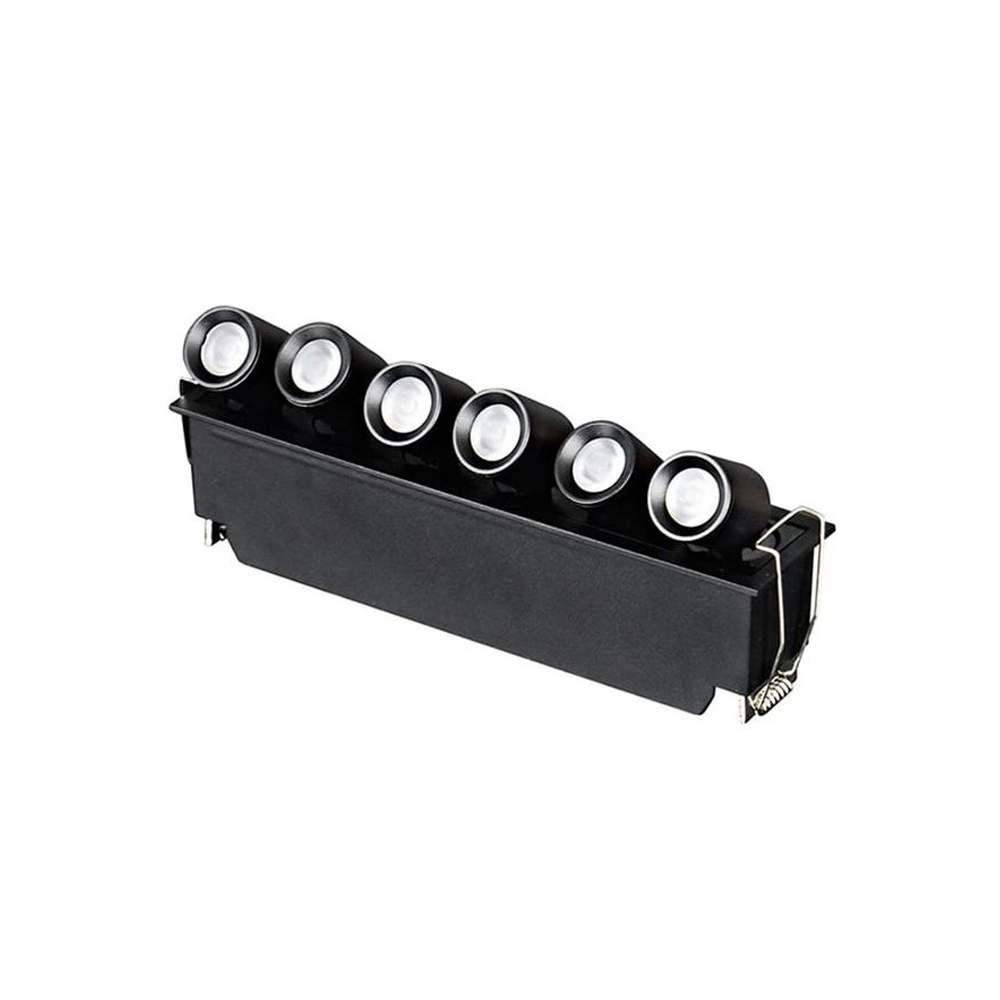

| LBP2009 | Wattage10W | CCT2700K/6500K (Tunable) | IPIP20 | Dimensions225x50mm | Cut-out215x40mm |

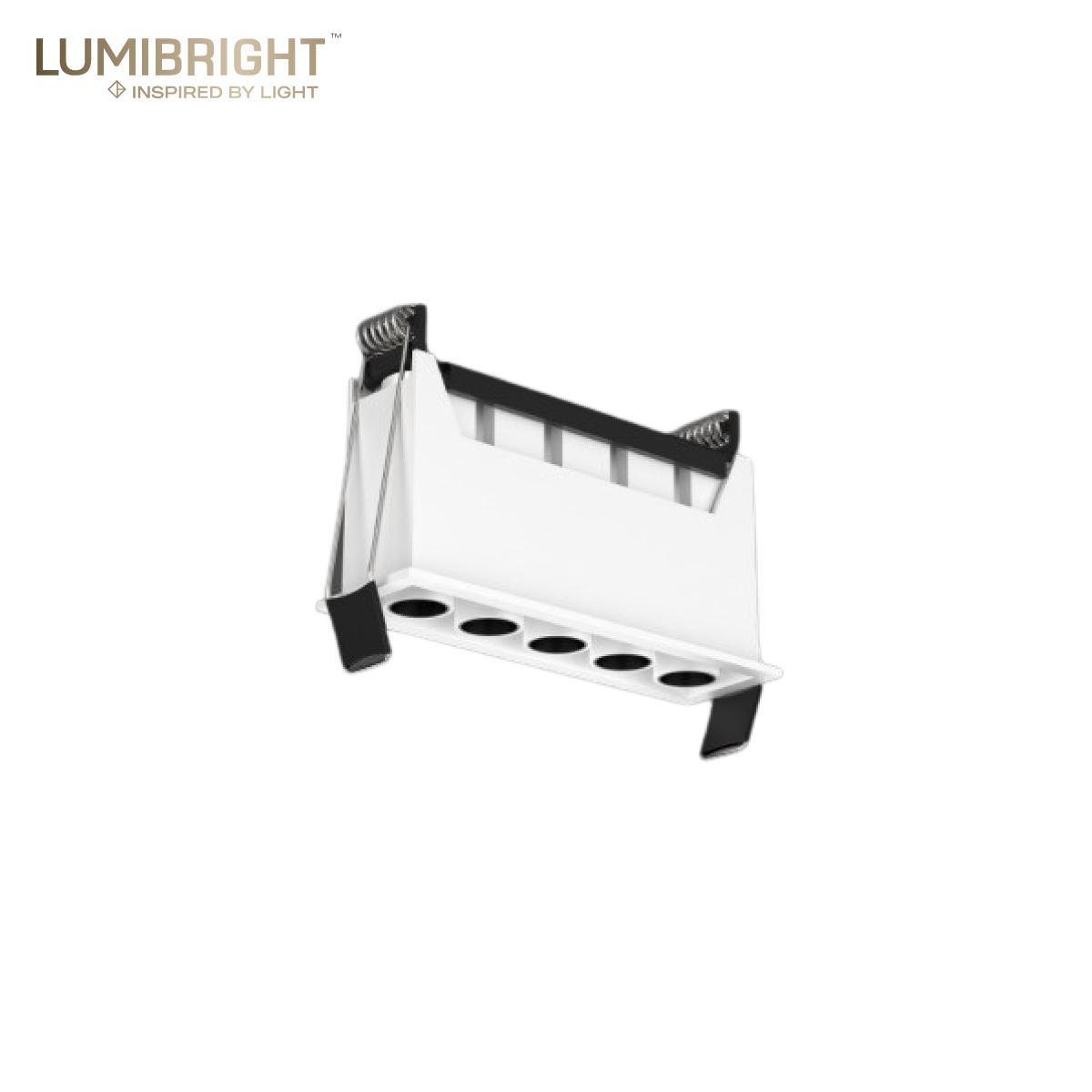

| LBP2011 | Wattage10W | CCT2700-6000K(Tunable) | IPIP20 | DimensionsL111xW32xH66mm | Cut-out104x25mm |
| LBP2012 | WattageNot published | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | DimensionsL211xW32xH66mm | Cut-outNot published |
| LBP2015 | Wattage2X5W | CCT3000K | IPIP20 | DimensionsL147*W45*H50mm | Cut-out139X37mm |
| LBP2016 | Wattage2X10W | CCT3000K | IPIP20 | DimensionsL147*W45*H50mm | Cut-out139X37mm |

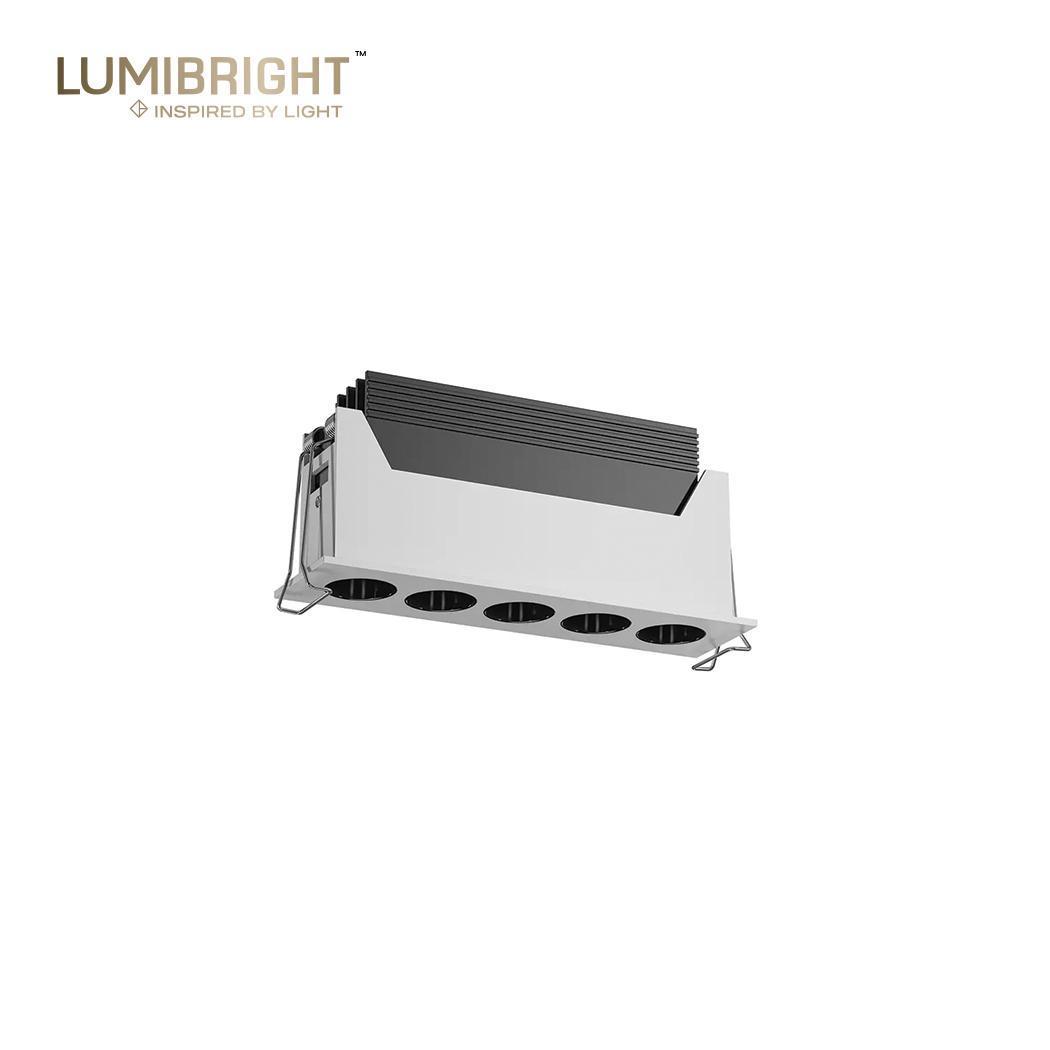

| LBT2102 | WattageNot published | CCT2700K, 3000K, 4000K, 6000K | IPIP20 | Dimensions128x35x55mm | Cut-outNot published |
| LBT2103 | Wattage2x12W | CCT4000K | IPIP20 | Dimensions265x43x48mm | Cut-out262x38mm |
Technical Data
Full Specification
| Dimensions | 34x34x57 mm · 81x34x57mm · 127x34x57mm · 242x34x57mm +18 more |
|---|---|
| Cut-out | 25x25 mm · 73x25mm · 119x25mm · 234x25mm +15 more |
| Power | 2W · 6W · 10W · 20W +2 more |
| Lumen output | 130lm · 390lm · 650lm · 1300lm +1 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 38° · 25° +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +5 more |
| CRI Ra | 90+ · 80 · ≥80 · >80 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 200-240VAC · 24VDC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white · Matt White · Matt Black · black +9 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
FUSION linear spotlight family
FUSION brings multiple linear spotlight formats into one comparison view. Select a model by its aperture, number of light points, optic and required ceiling detail. The family includes different dimensions and colour options, so confirm the selected model rather than applying the family range to every fitting. Request a sample and the model drawing for coordination with the ceiling contractor.
Verified mounting formats
Several models are explicitly recessed linear spotlights. Take the format from the model record rather than the family.
Cut-out comparison
Cut-out and overall size change with the number of light points — compare them per article code.
Model-specific CCT and control
Fixed CCT, tunable white and RGBW behave differently; check the article row and the driver.
Glare accessories
Where honeycomb or lens accessories are supplied for a model, they are listed with that model.
Technical files
Datasheets, drawings and photometric files are issued per article code.
How to compare beam angle, aiming range, glare accessories and model dimensions →
The single family drawing is not a family-wide dimension. Surface and projecting formats are only shown where the model record supports them.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
23 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2105. This family has 23 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2105
34x34x57 mm
Cut-Out
25x25 mm
Specifications
At a Glance
2–20W
Power Range
5 options
Beam: 15°, 24°, 25°, 36°, 38°
5 CCT
2700K, 3000K, 4000K, 5000K, 6500K
RGBW(3000K) / RGBW.830 / TUNABLE WHITE
Colour Options
CRI 80/90
Colour Rendering
IP20
Protection Rating
8 finishes
Body Finish Options
22 sizes
127x34x57mm, 127x34x65mm, 128x35x55mm, 130x80x58mm, 135x51x50mm, 138x97x58mm, 225x50mm, 242x34x57mm, 245x80x58mm, 250x51x50mm, 253x97x58mm, 265x43x48mm, 34x34x57 mm, 34x34x65mm, 81x34x57mm, 81x34x65mm, 84x80x58mm, 89x51x50mm, 92x97x58mm, L111xW32xH66mm, L147*W45*H50mm, L211xW32xH66mm
20 cut-outs
104x25mm, 119x25mm, 120x25mm, 128x44mm, 132x40mm, 139X37mm, 140x57mm, 215x40mm, 234x25mm, 243x44mm, 247x40mm, 255x57mm, 25x25 mm, 25x25mm, 262x38mm, 73x25mm, 82x44mm, 86x40mm, 94x57mm, L204xW25mm
Configure your product
LBE2105
Order code
Listed configurationLBE2105.W.930.PWH.24.DR
25 listed configurations · availability requires confirmation
