Lumi Indoor
JEWEL
Application inspiration · not a project reference
JEWEL is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
JEWEL
JEWEL is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 6 models, including LB3152, LB3229, LB3233, with model-specific specifications and configuration choices. LB3152 specifications include power: 50W; colour temperature: 5000K; IP rating: IP20; dimensions: Ø160x160mm. Compare the JEWEL range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB3152 | Wattage50W | CCT5000K | IPIP20 | DimensionsØ160x160mm | Cut-outØ145mm |
| LB3229 | Wattage28W | CCT4000K | IPIP20 | DimensionsØ130x130mm | Cut-outØ115mm |

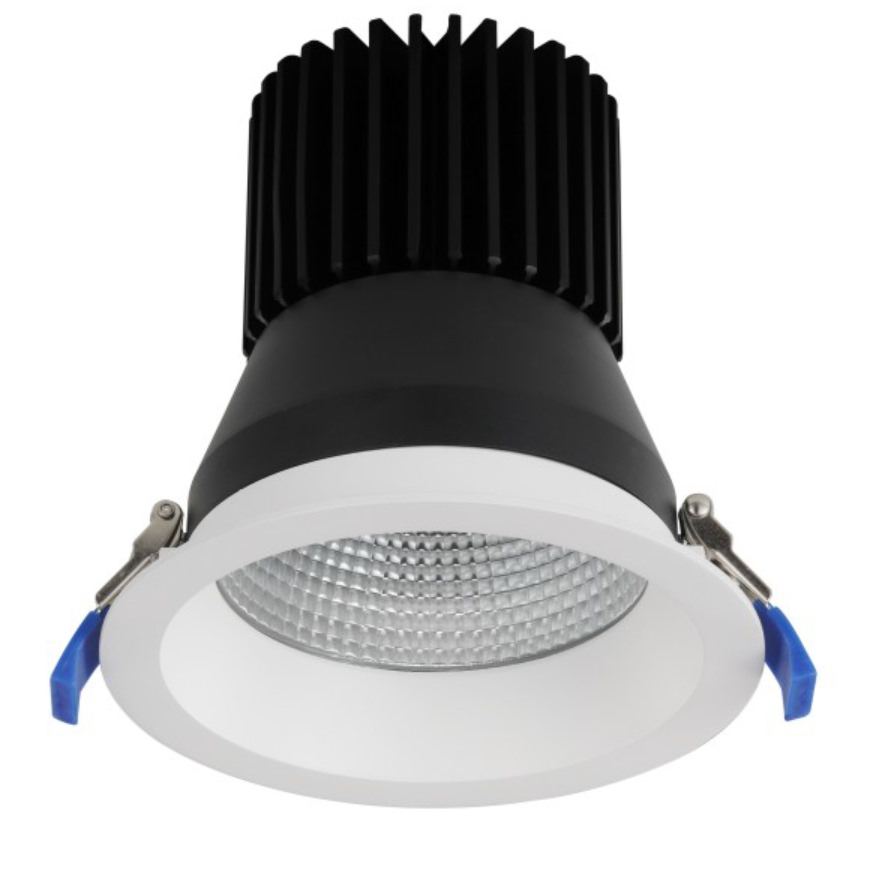

| LB3233 | Wattage42W | CCTWithout Chip | IPIP20 | DimensionsØ160x160mm | Cut-outØ145mm |
| LB3277 | Wattage55W | CCT3000K, 4000K, 5000K | IPIP20 | DimensionsØ185x160mm | Cut-outØ160mm |

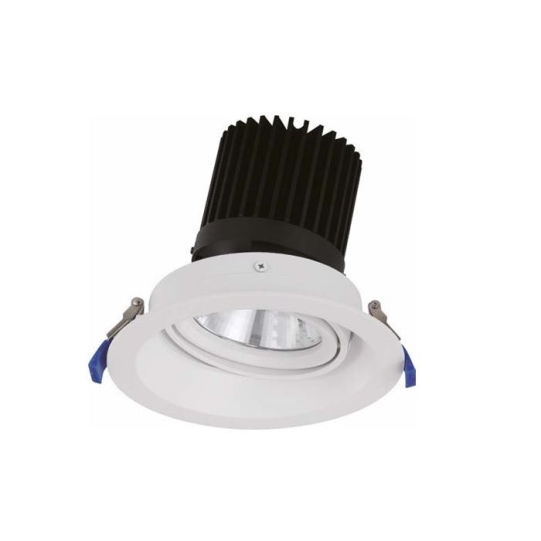

| LB3287 | Wattage42W/50W | CCT4000K | IPIP20 | DimensionsØ185x158mm | Cut-outØ145mm |
| LBT3007 | Wattage50W | CCT5700K | IPIP20 | DimensionsØ160x160mm | Cut-outØ145mm |
Technical Data
Full Specification
| Dimensions | Ø160x160mm · Ø130x130mm · Ø185x160mm · Ø185x158mm |
|---|---|
| Cut-out | Ø145mm · Ø115mm · Ø160mm |
| Power | 42W · 50W |
| Lumen output | 8000lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 45° · 60° +1 more |
| Colour temperature | 3000K · 4000K · 5000K · 6500K +2 more |
| CRI Ra | 80+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current · 42VDC · 48VDC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium Alloy |
| Finish | black · White · plated-black-chrome · white-sand |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB3287. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB3287
Ø185x158mm
Cut-Out
Ø145mm
Specifications
At a Glance
28–55W
Power Range
5 options
Beam: 15°, 24°, 45°, 55°, 60°
6 CCT
3000K, 4000K, 5000K, 5700K, 6000K, 6500K
CRI 80/90
Colour Rendering
IP20
Protection Rating
5 finishes
Body Finish Options
4 sizes
Ø130x130mm, Ø160x160mm, Ø185x158mm, Ø185x160mm
3 cut-outs
Ø115mm, Ø145mm, Ø160mm
Configure your product
LBT3007
Order code
Listed configurationLBT3007.C.857.WWH.55.DR
1 listed configurations · availability requires confirmation
