Lumi Indoor
LOFT
Application inspiration · not a project reference
LOFT is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Down Light
LOFT
LOFT is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 6 article codes under this family, including LBE3000, LBE3001, LBE3002. For LBE3000, published values include power: UP 2W + Down 10W; colour temperature: 2700K/3000K/4000K/5000K; IP rating: IP20; dimensions: Ø113x75mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the LOFT articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

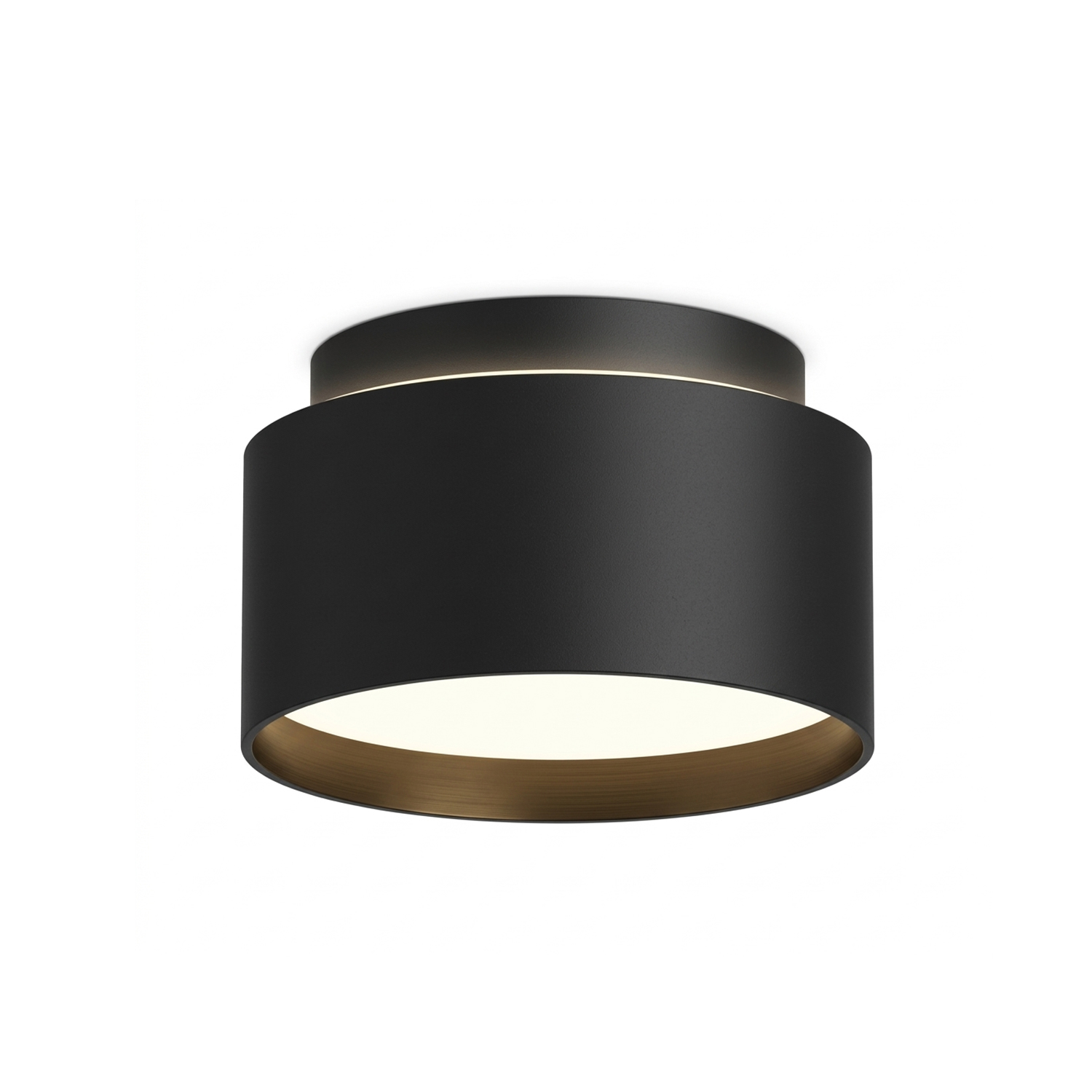

| LBE3000 | WattageUP 2W + Down 10W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ113x75mm | Cut-outNot published |

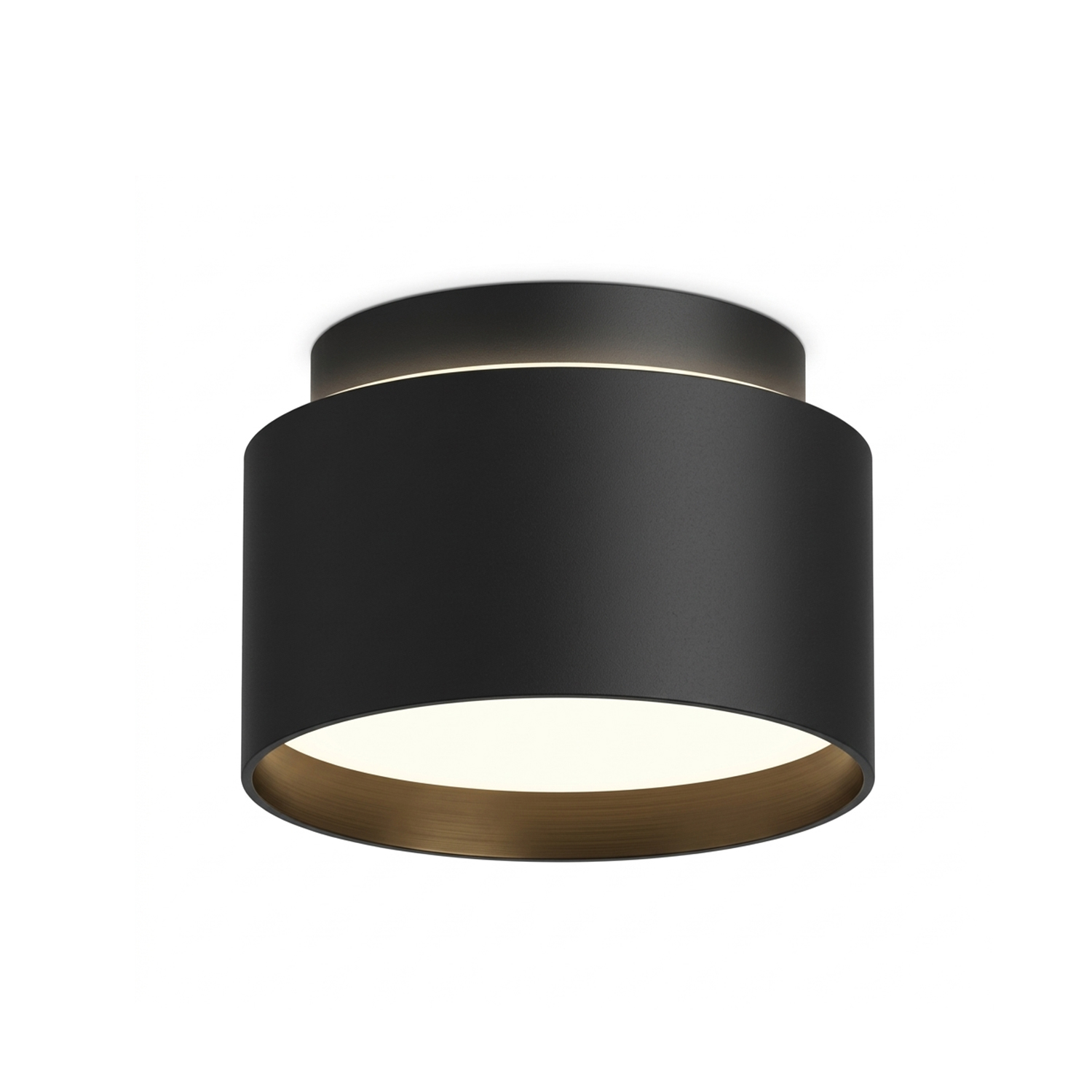

| LBE3001 | WattageUP 2W + Down 16W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ138x75mm | Cut-outNot published |

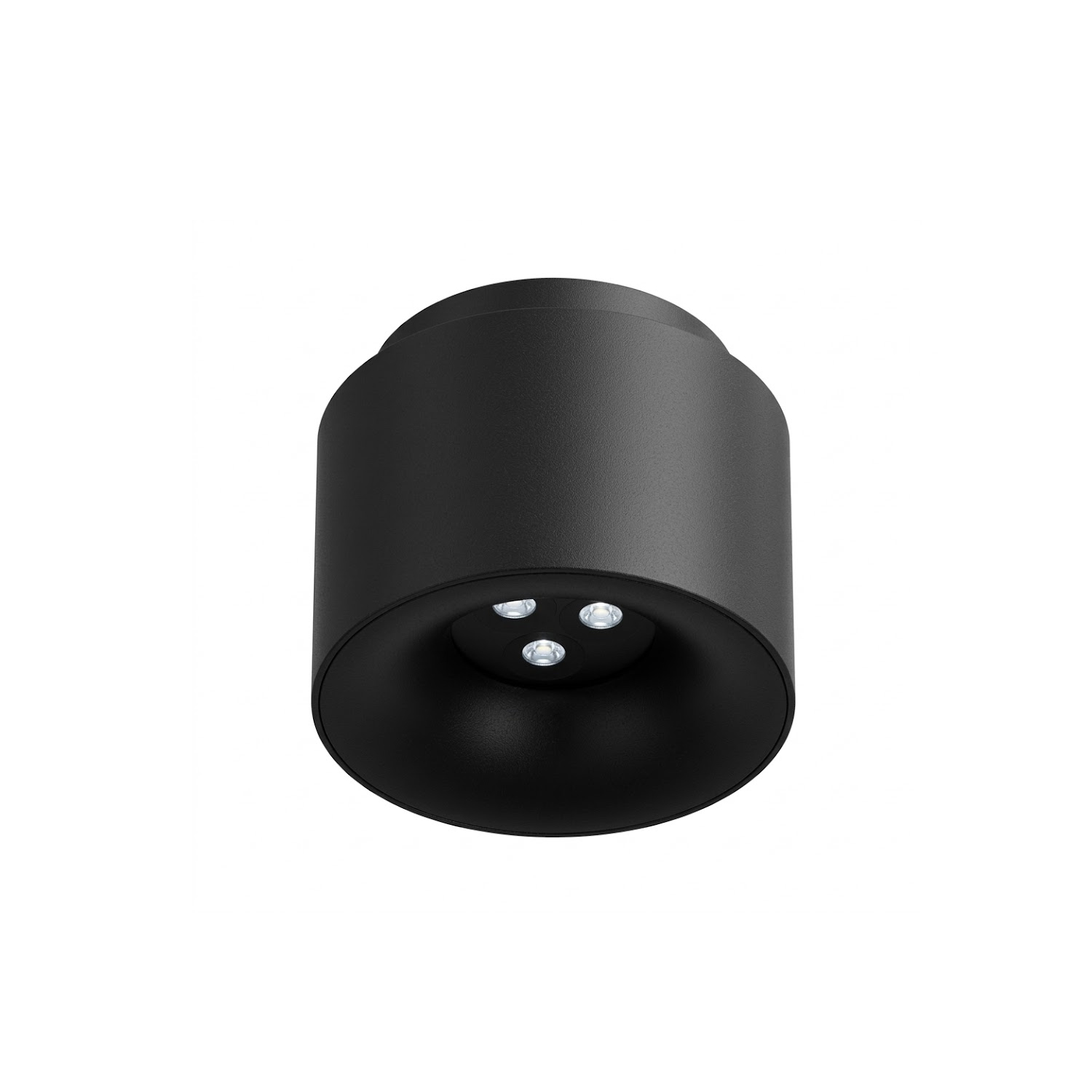

| LBE3002 | WattageUP 3W + Down 7W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ113x90mm | Cut-outNot published |

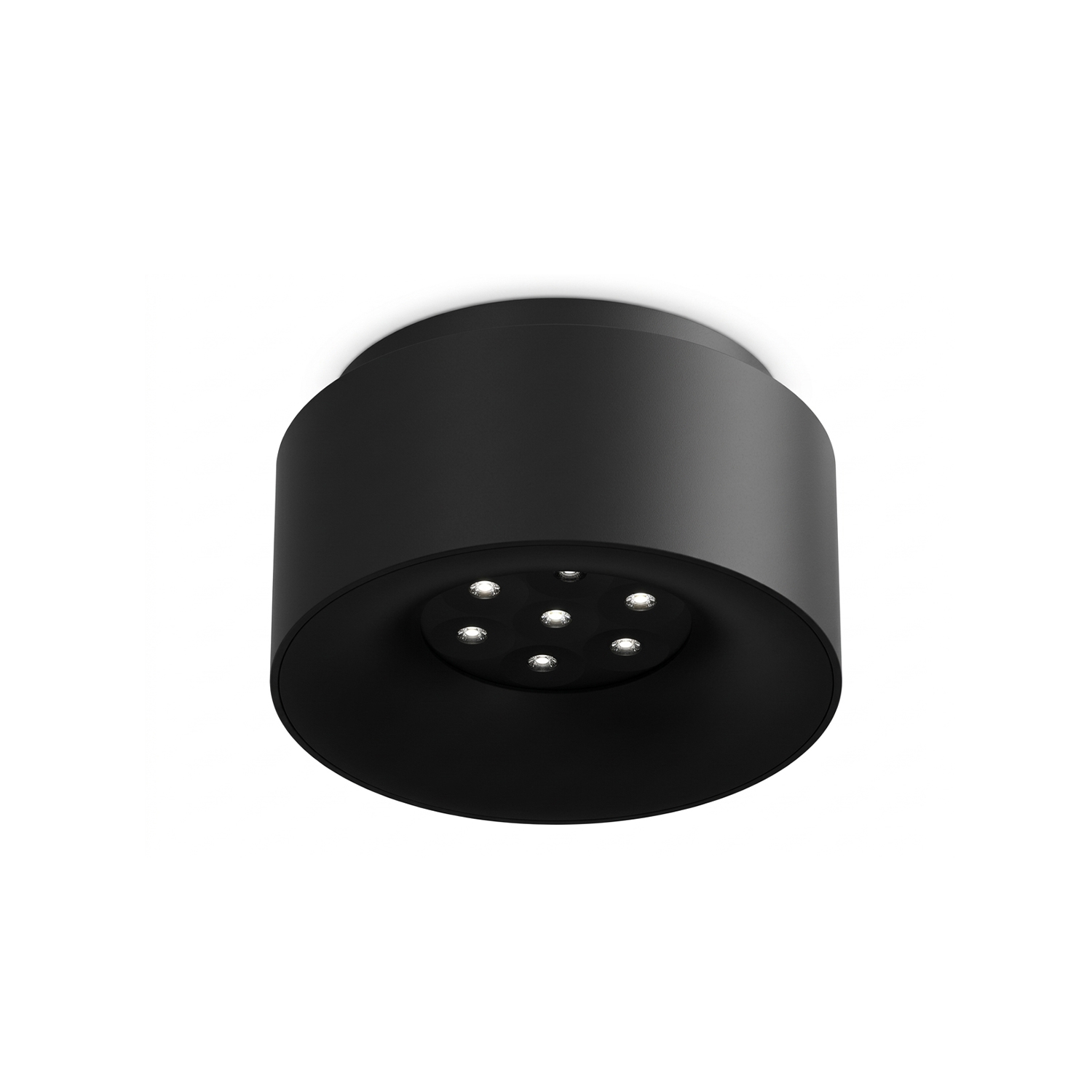

| LBE3003 | WattageUP 3W + Down 15W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ138x90mm | Cut-outNot published |
| LBE3004 | WattageUP 3W + Down 12W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ113x100mm | Cut-outNot published |

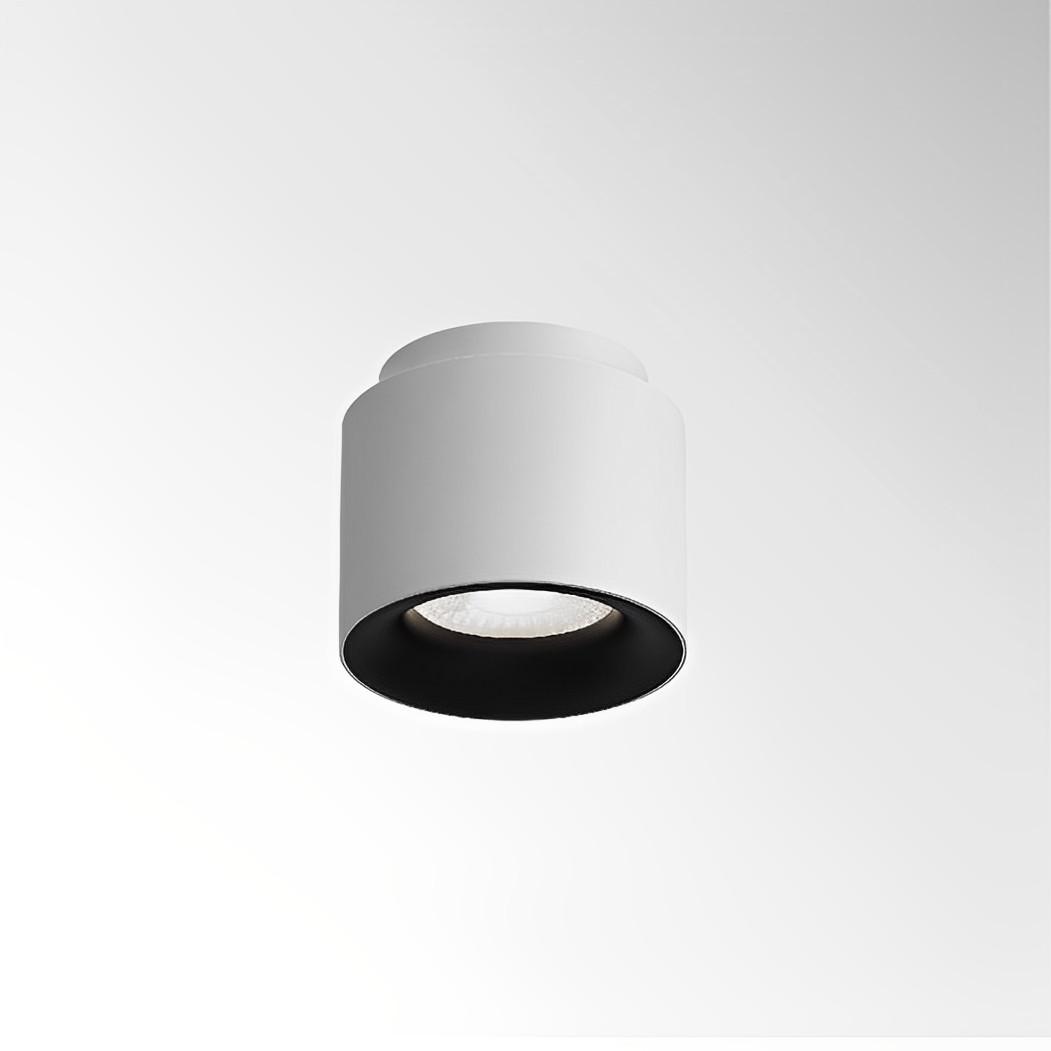

| LBE3005 | WattageUP 3W + Down 20W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ138x105mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø113x100mm · Ø113x75mm · Ø138x75mm · Ø113x90mm +2 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 3W · UP 2W + Down 10W · UP 2W + Down 16W · UP 3W + Down 7W +3 more |
| Lumen output | 1000lm · 1500lm · 380lm · 900lm +2 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 36° · 60° +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI Ra | 80+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Die-casting Aluminium |
| Finish | black · White · white+black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
6 Products
Dimensions
Technical Drawing

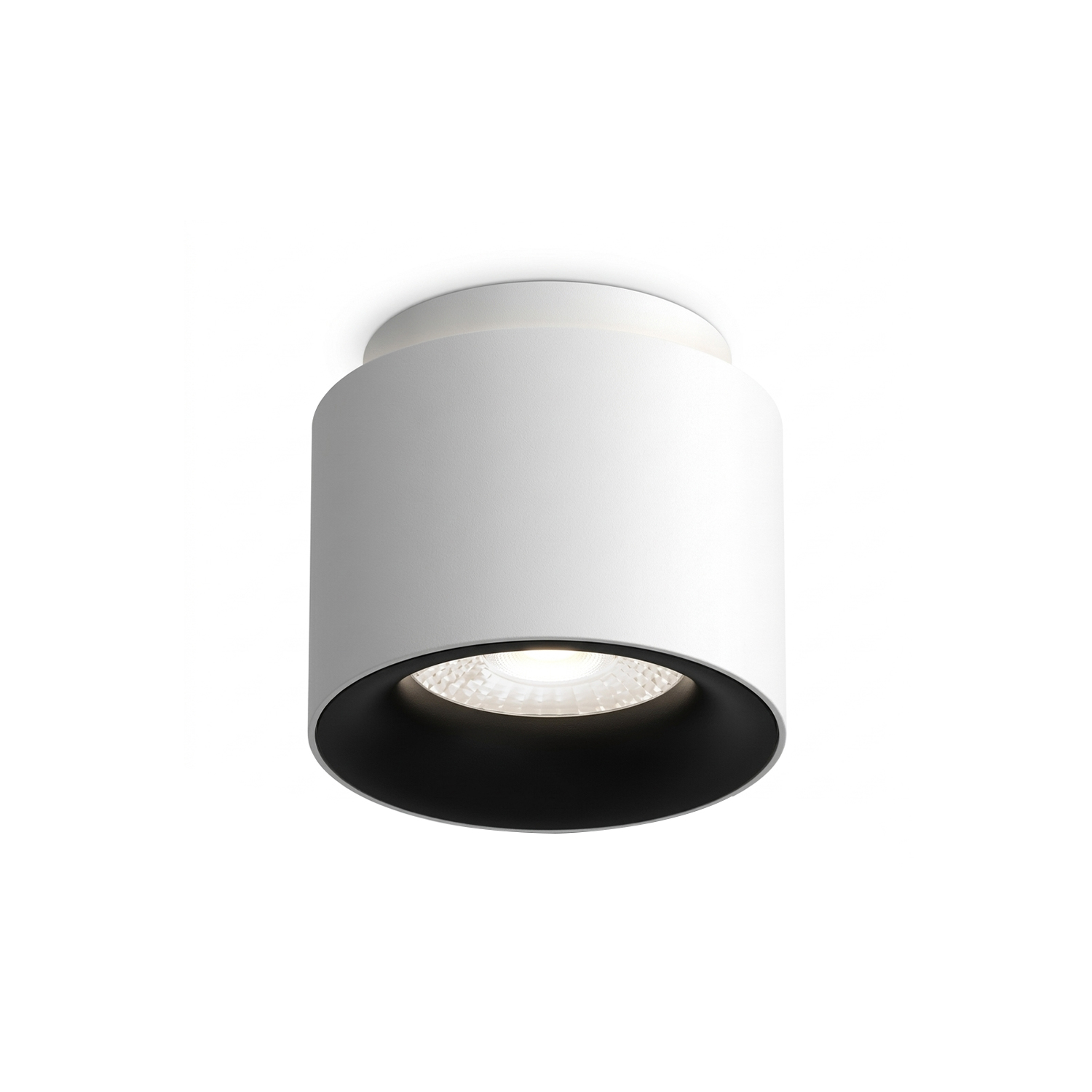

Drawing and sizes shown for model LBE3004. This family has 6 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE3004
Ø113x100mm
Specifications
At a Glance
2–3W
Power Range
3 options
Beam: 15°, 30°, 100°
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 80
Colour Rendering
IP20
Protection Rating
4 finishes
Body Finish Options
6 sizes
Ø113x100mm, Ø113x75mm, Ø113x90mm, Ø138x105mm, Ø138x75mm, Ø138x90mm
Configure your product
LBE3004
Order code
Listed configurationLBE3004.C.850.WBK.15
36 listed configurations · availability requires confirmation
