Gallery interior with ceiling spotlights directed towards framed artwork

Lumi Indoor

LYRA

Application inspiration · not a project reference

LYRA is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.

Spot Light

8 variants·luminaire·ceiling recessed

LYRA is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 3 models, including LBE2043, LBE2044, LBE2045, with model-specific specifications and configuration choices. LBE2043 specifications include power: 8W; colour temperature: 4000K; IP rating: IP20; dimensions: 65x65x63mm. Compare the LYRA range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.

Model specifications

Article	Wattage	CCT	IP	Dimensions	Cut-out
LBE2043	Wattage8W	CCT4000K	IPIP20	Dimensions65x65x63mm	Cut-out57x57mm

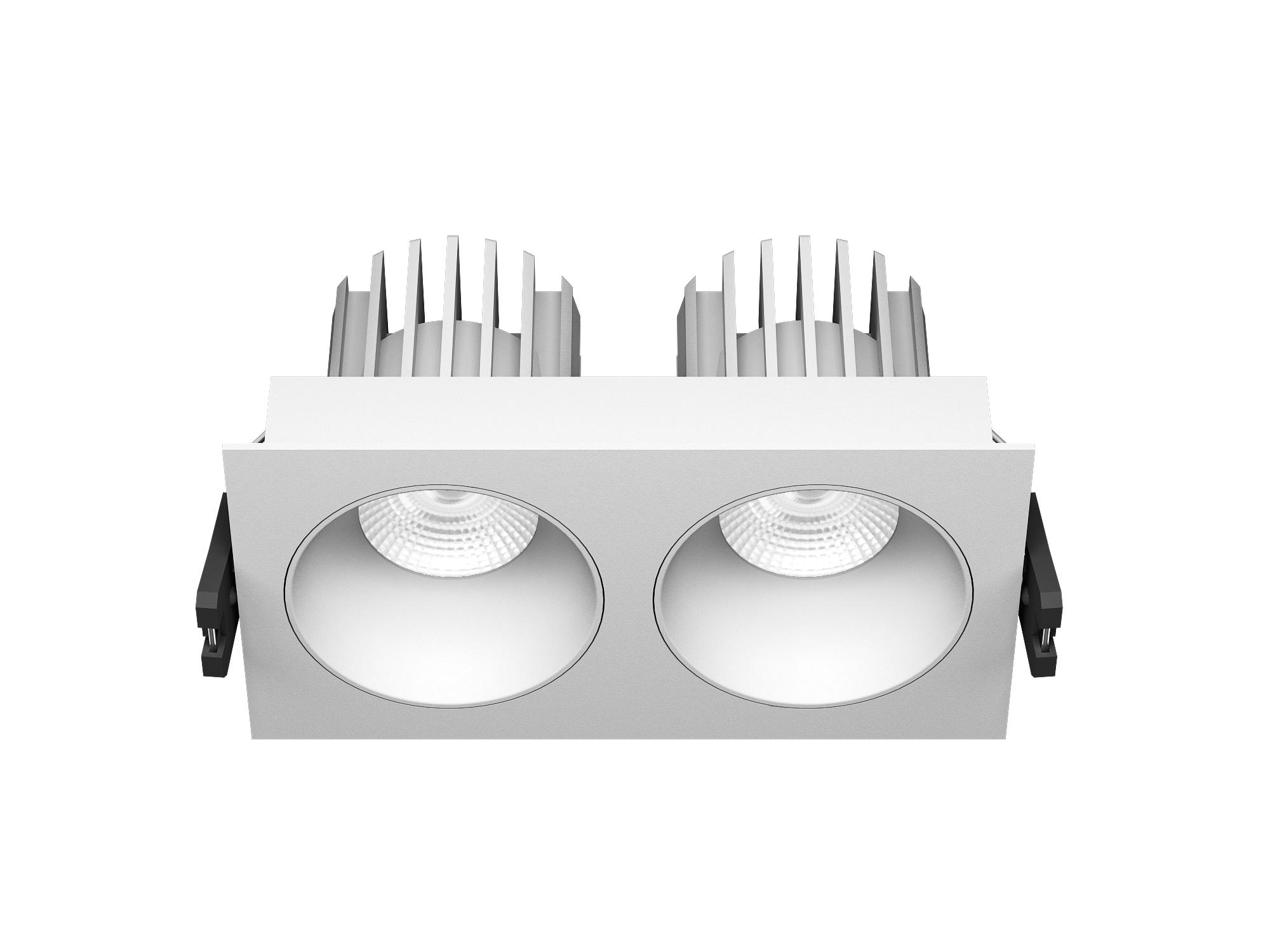

LBE2044	Wattage2x8W	CCT4000K	IPIP20	Dimensions123x65x63mm	Cut-out115x57mm

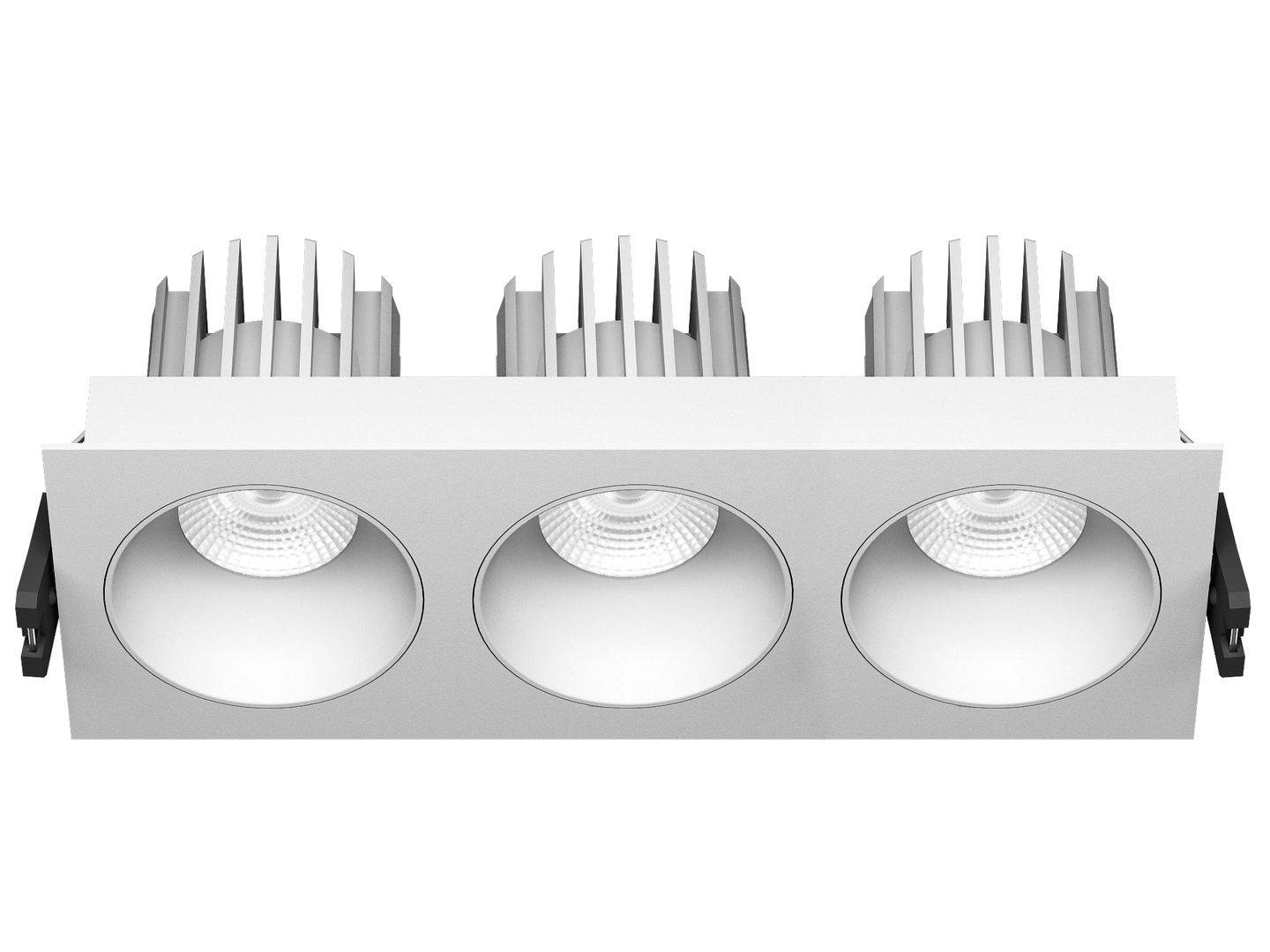

LBE2045	Wattage3x8W	CCT4000K	IPIP20	Dimensions180x65x63mm	Cut-out173x57mm

Product View

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

All Variants (8)

Code	Power	CCT	Beam	CRI	Finish	Size
LBE2045	24W	4000K	36°	90	black-sand	180x65x63mm
LBE2045	24W	4000K	36°	90	white-sand	180x65x63mm
LBE2045	24W	4000K	36°	90	black-sand	180x65x63mm
LBE2045	24W	4000K	36°	90	white-sand	180x65x63mm
LBE2045	24W	4000K	36°	90	black-sand	180x65x63mm
LBE2045	24W	4000K	36°	90	white-sand	180x65x63mm
LBE2045	24W	4000K	36°	90	White	180x65x63mm
LBE2045	24W	4000K	36°	90	White	180x65x63mm

Dimensions

Technical Drawing

Drawing and sizes shown for model LBE2045.

Size — model LBE2045

180x65x63mm

Cut-Out

173x57mm

Technical Data

Full Specification

Dimensions	180x65x63mm
Cut-out	173x57mm
Power	8W · 24W · 3x8W
Lumen output	Not published — technical review required
Efficacy	Not published — technical review required
Optics / beam angle	24° · 36°
Colour temperature	3000K · 4000K · 5000K
CRI Ra	90
R9	Not published — technical review required
TM-30 Rf / Rg	Not published — technical review required
UGR	Not published — technical review required
IP rating	IP20
IK rating	Not published — technical review required
Ambient temperature (Ta)	Not published — technical review required
Driver	Not published — technical review required
Dimming / control	Not published — technical review required
Input voltage	37VDC
Light source	Not published — technical review required
Material	Aluminium
Finish	white-sand · White · black-sand · White With Sand +1 more
Mounting / installation	Not published — technical review required
Net weight	Not published — technical review required
Certification	Not published — technical review required
Lifetime	Not published — technical review required
Warranty	Not published — technical review required
Lead time	Not published — technical review required

10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.

How to compare beam angle, aiming range, glare accessories and model dimensions →

Specifications
