Lumi Indoor
ORACLE
Application inspiration · not a project reference
ORACLE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
ORACLE
ORACLE is a spot light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 17 article codes under this family, including LB2251, LB2252, LB2257. For LB2251, published values include power: 12W; colour temperature: 4000K; IP rating: IP20; dimensions: Ø90x60mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ORACLE articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| LB2251 | Wattage12W | CCT4000K | IPIP20 | DimensionsØ90x60mm | Cut-outØ83mm |

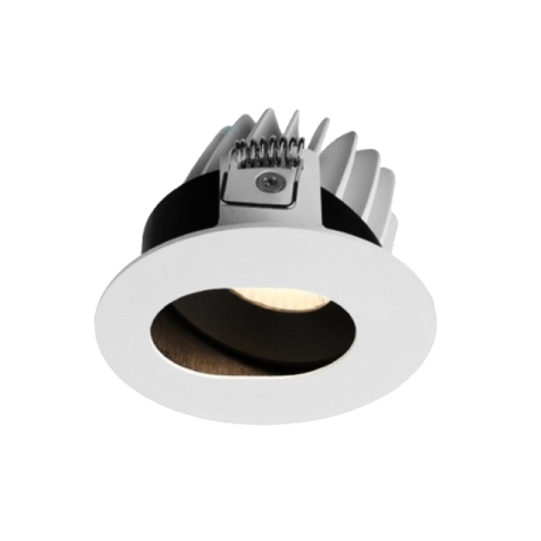

| LB2252 | Wattage12W | CCT2700K | IPIP20 | DimensionsØ90x60mm | Cut-outØ83mm |

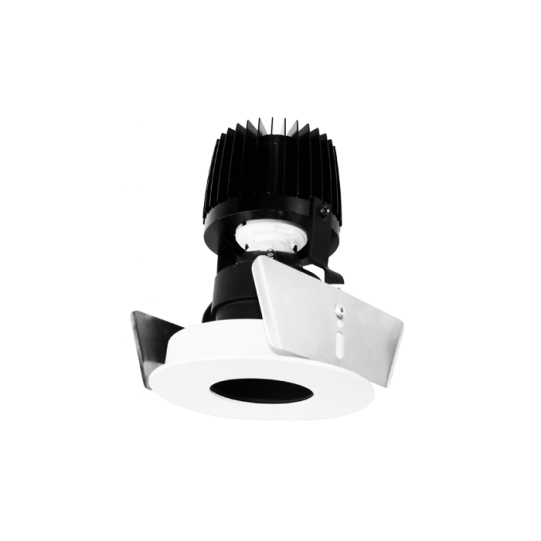

| LB2257 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ90x119mm | Cut-outØ85mm |

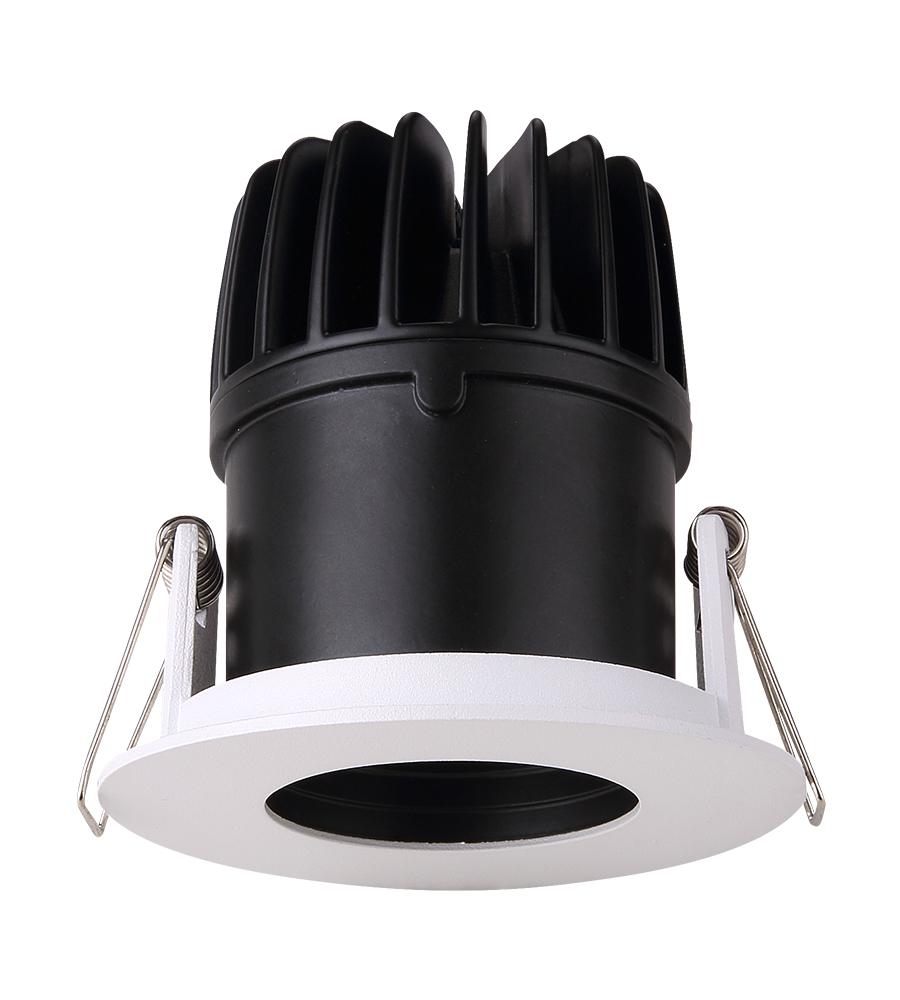

| LB2483 | Wattage12W | CCT6000K | IPIP20 | DimensionsØ90x78mm | Cut-outØ83mm |

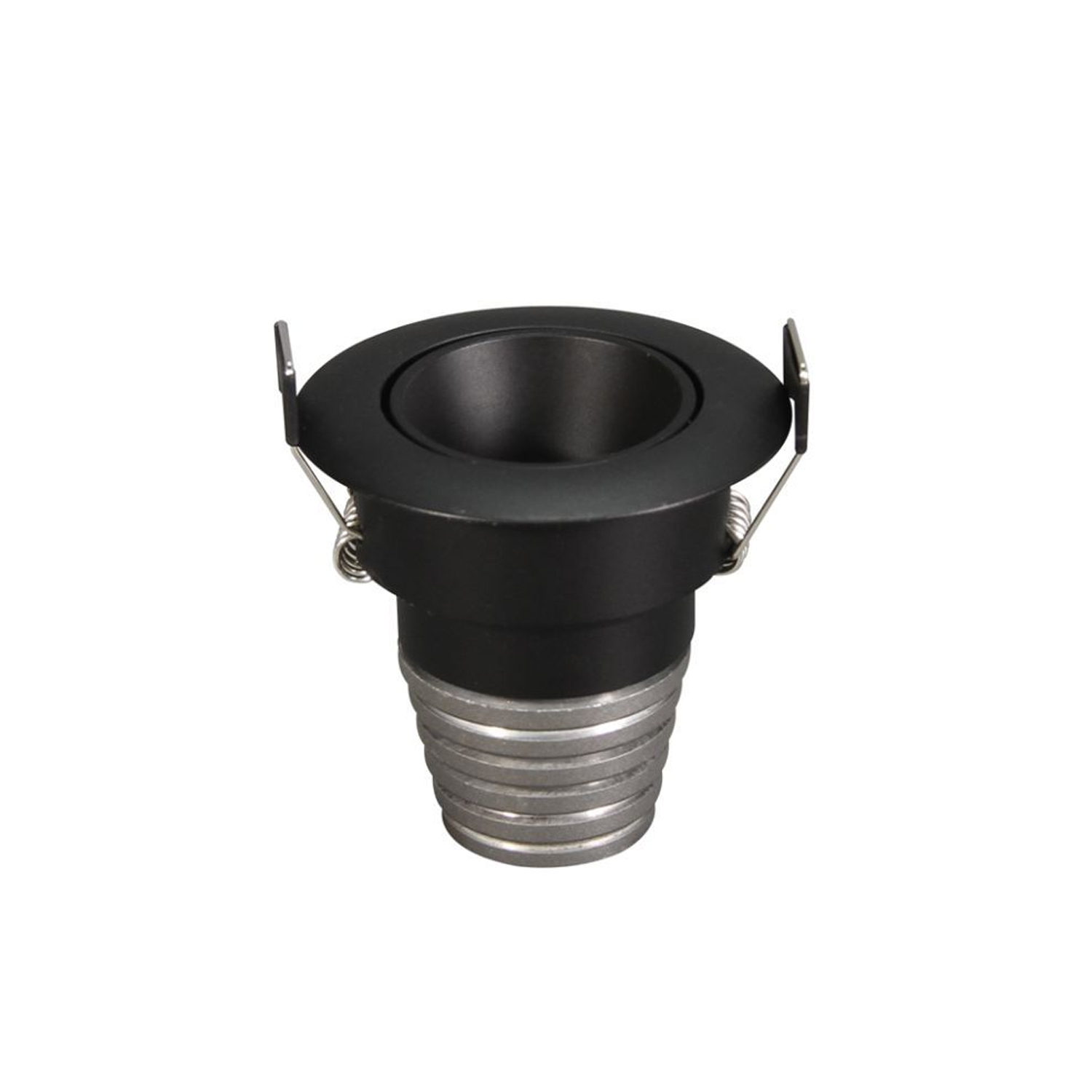

| LB2754 | Wattage12W | CCT6000K | IPIP20 | DimensionsØ52x50mm | Cut-outØ45mm |
| LB2759 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ40x38mm | Cut-outØ32mm |

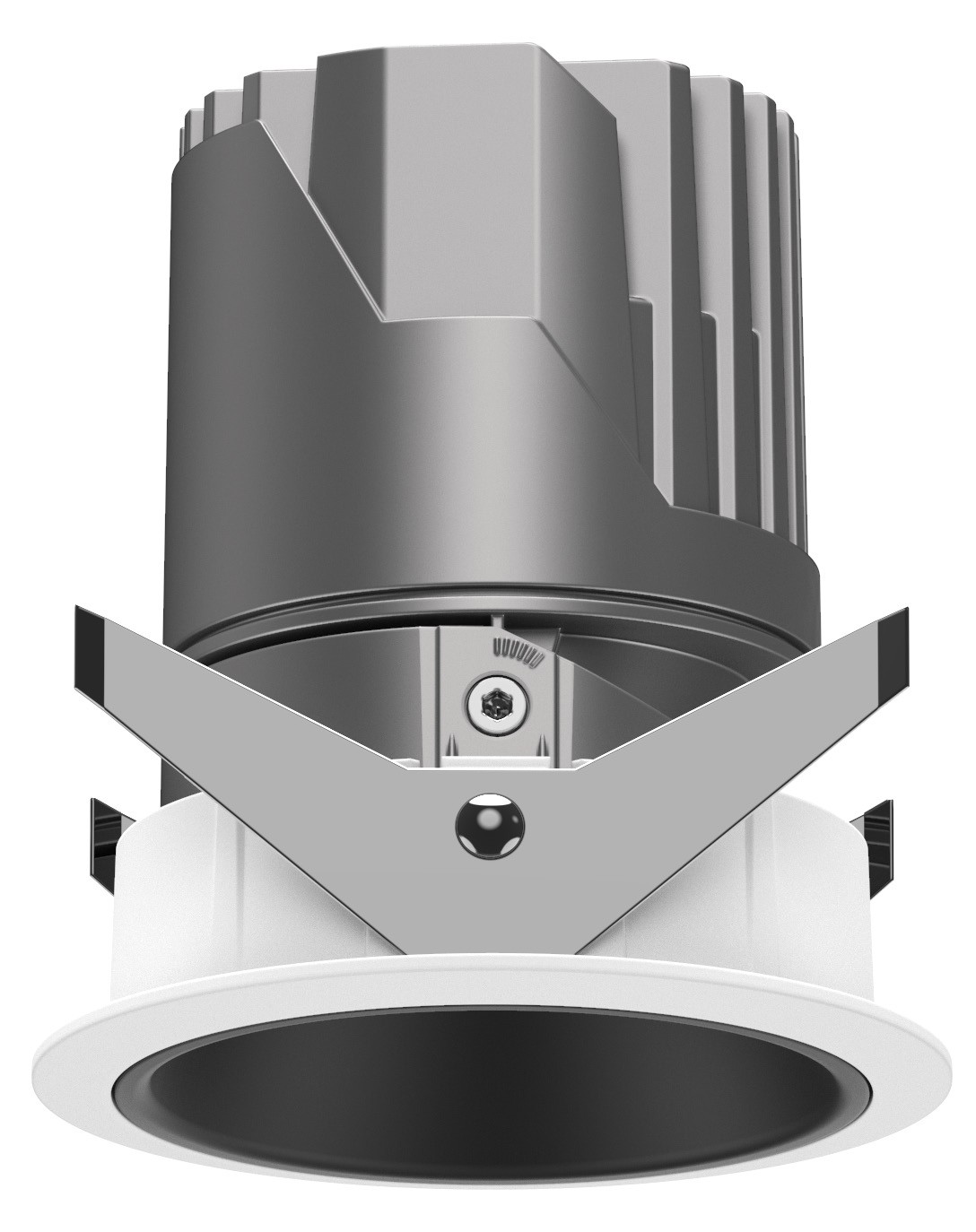

| LB2842 | Wattage20W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ110x110mm | Cut-outØ95mm |
| LB2857 | Wattage7W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ86x94mm | Cut-outØ75mm |

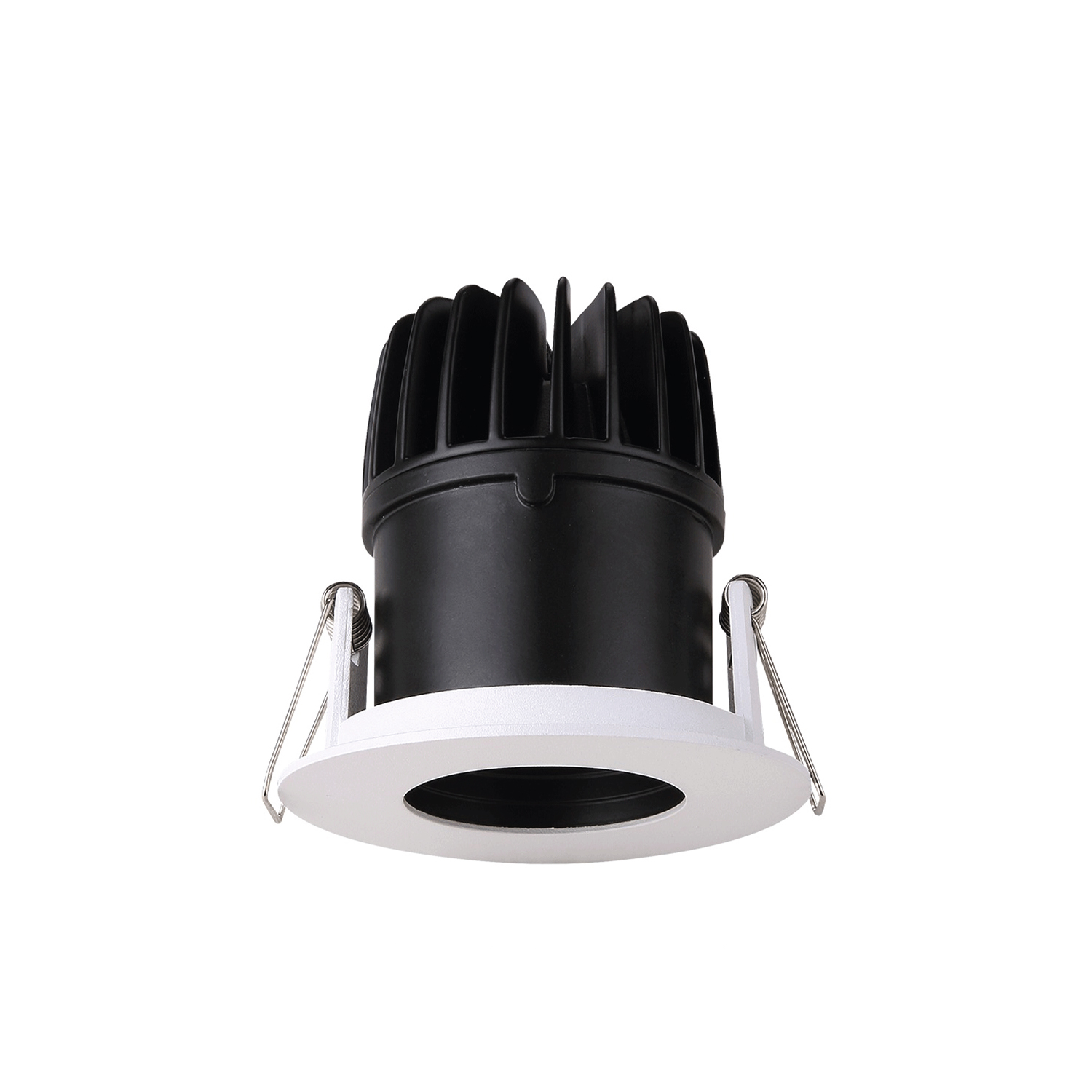

| LB2908 | Wattage10W | CCT2700K | IPIP44 | DimensionsØ90xH86mm | Cut-outØ83mm |

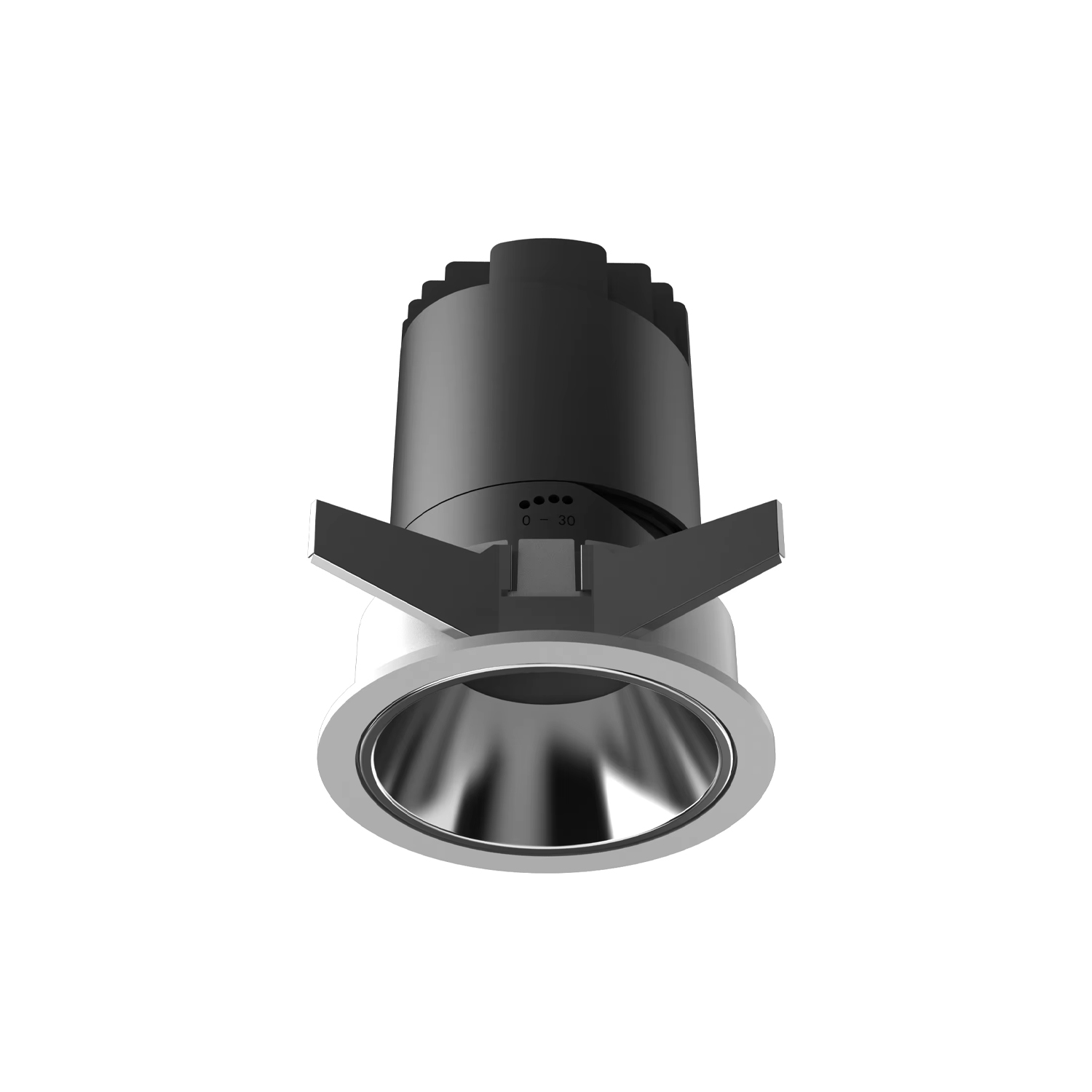

| LB2914 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ86xH95mm | Cut-outØ75mm |

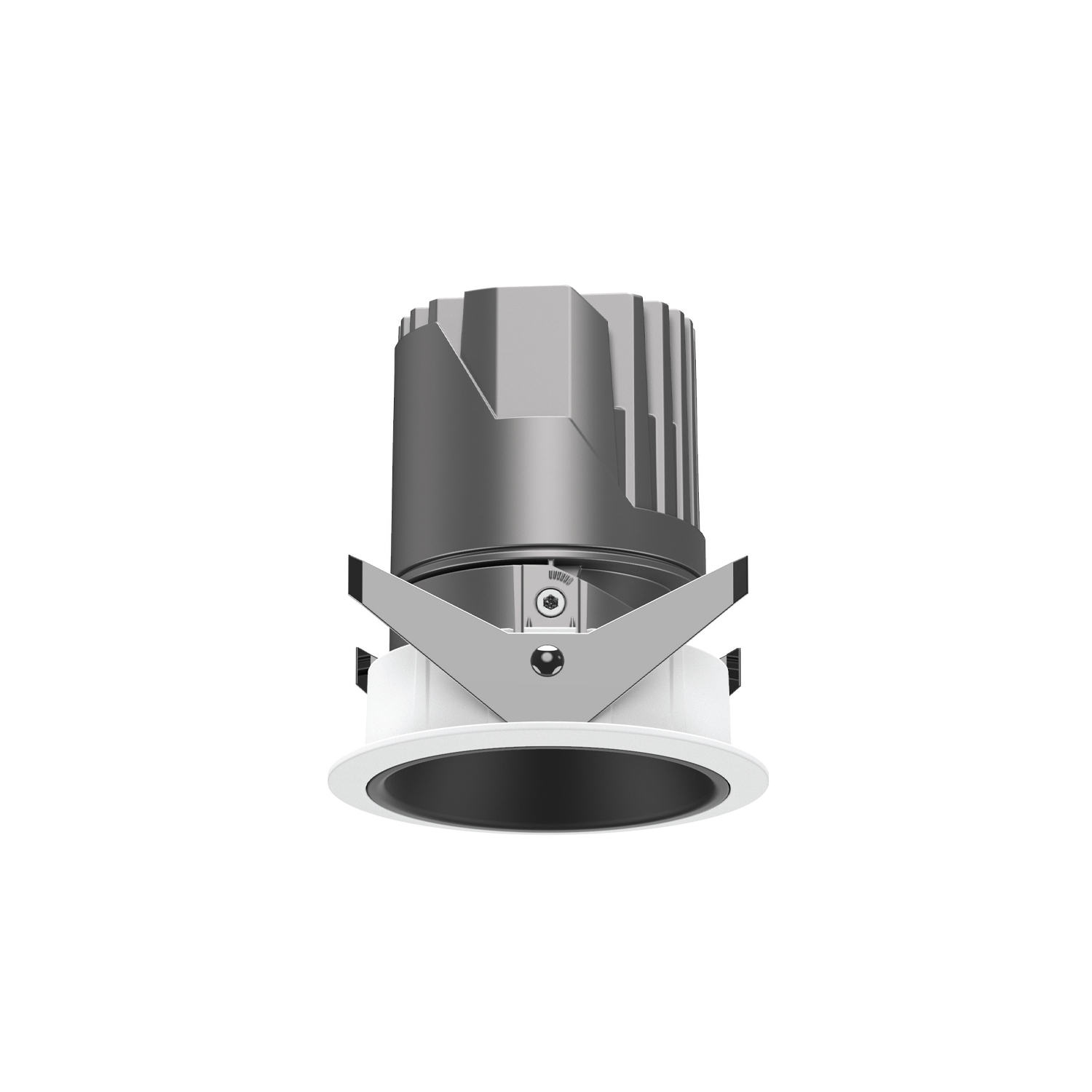

| LB2918 | Wattage7W | CCT3000K | IPIP20 | DimensionsØ65XH75mm | Cut-outØ55mm |

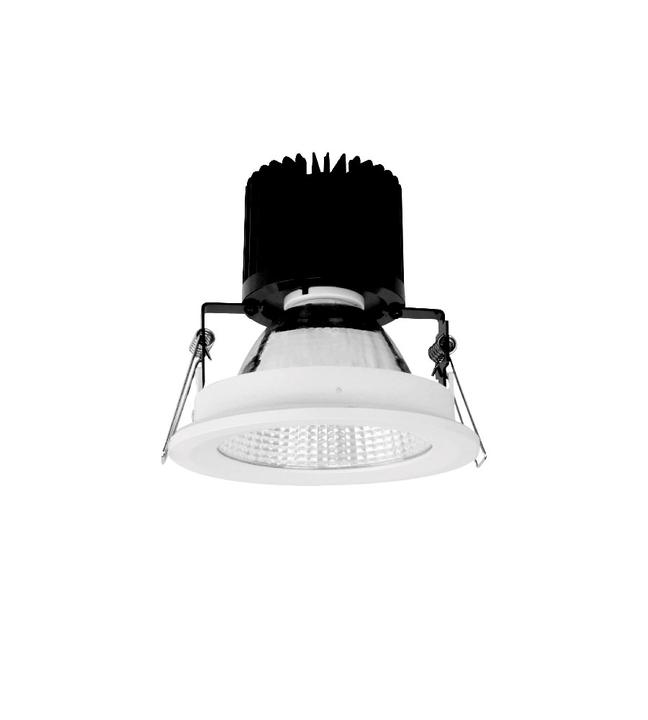

| LB3049 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ139x136mm | Cut-outØ123mm |

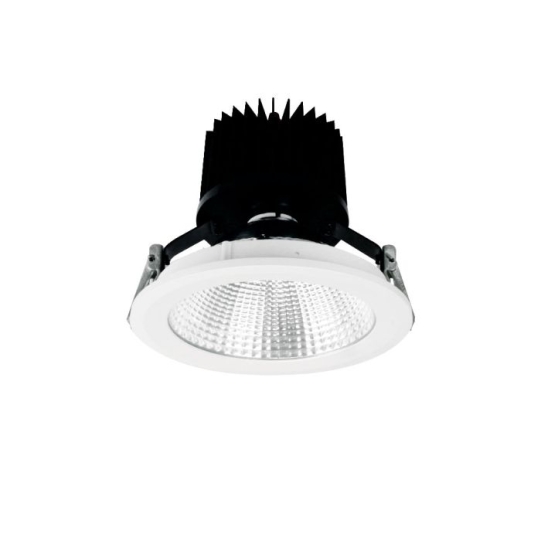

| LB3052 | Wattage12W | CCT5000K | IPIP20 | DimensionsØ184x173mm | Cut-outØ168mm |
| LB3102 | Wattage12W | CCT5000K | IPIP20 | DimensionsØ184x173mm | Cut-outØ168mm |

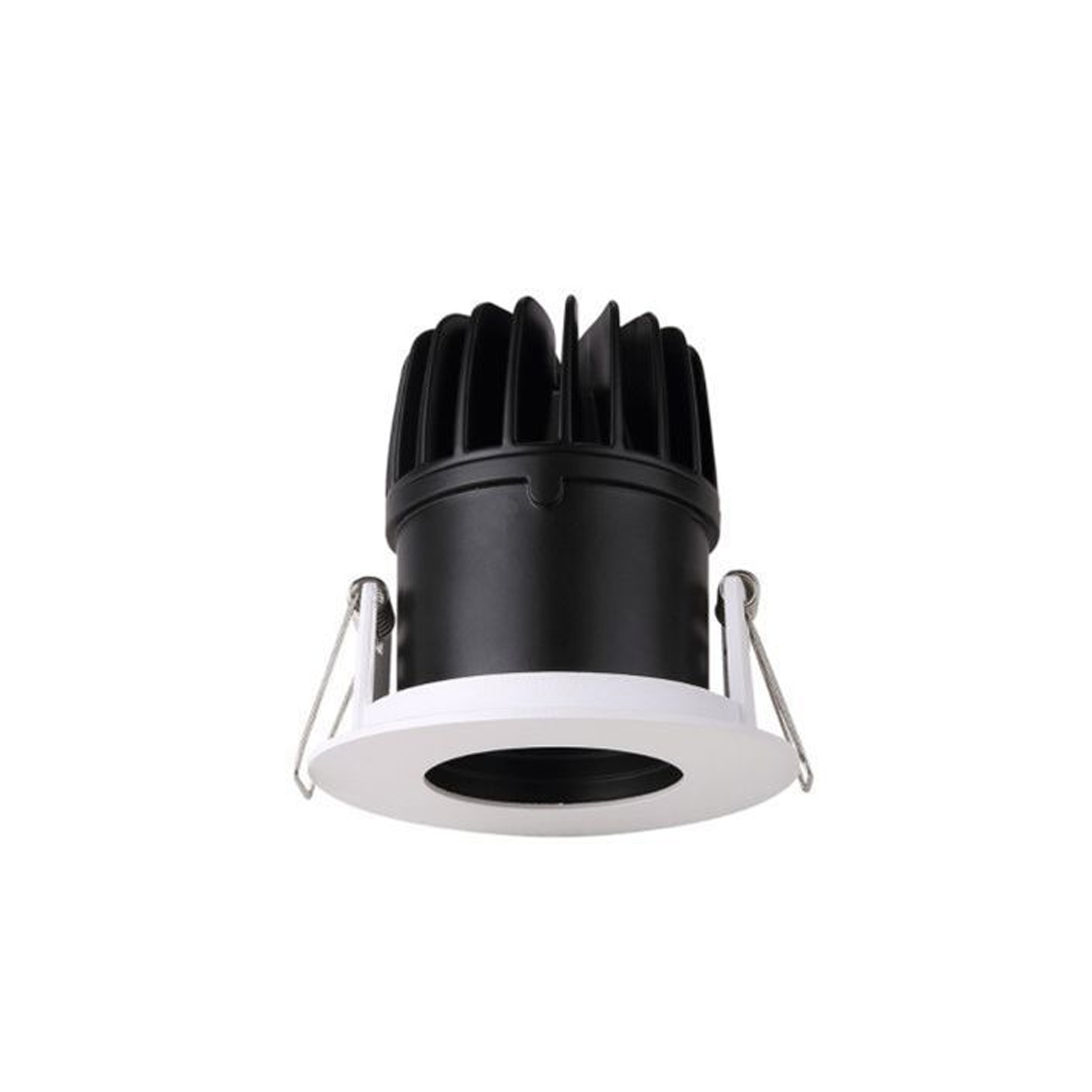

| LBE2161 | Wattage30W | CCT3000K/4000K/5000K | IPIP20 | DimensionsØ132xH145mm | Cut-outØ110-120mm |

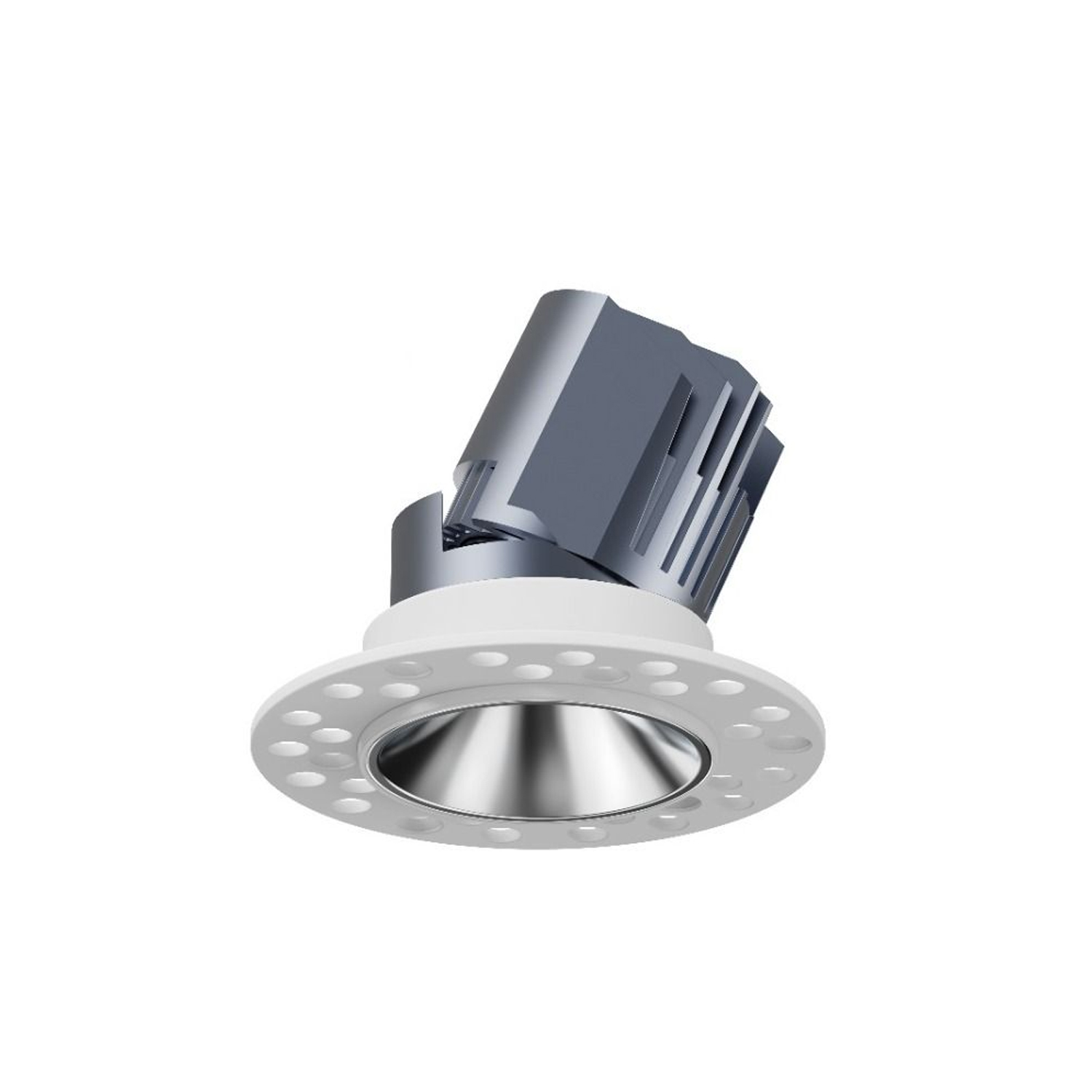

| LBE2164 | Wattage12W | CCT3000K/4000K/6000K | IPIP65 | DimensionsØ108x95mm | Cut-outØ75-80mm |

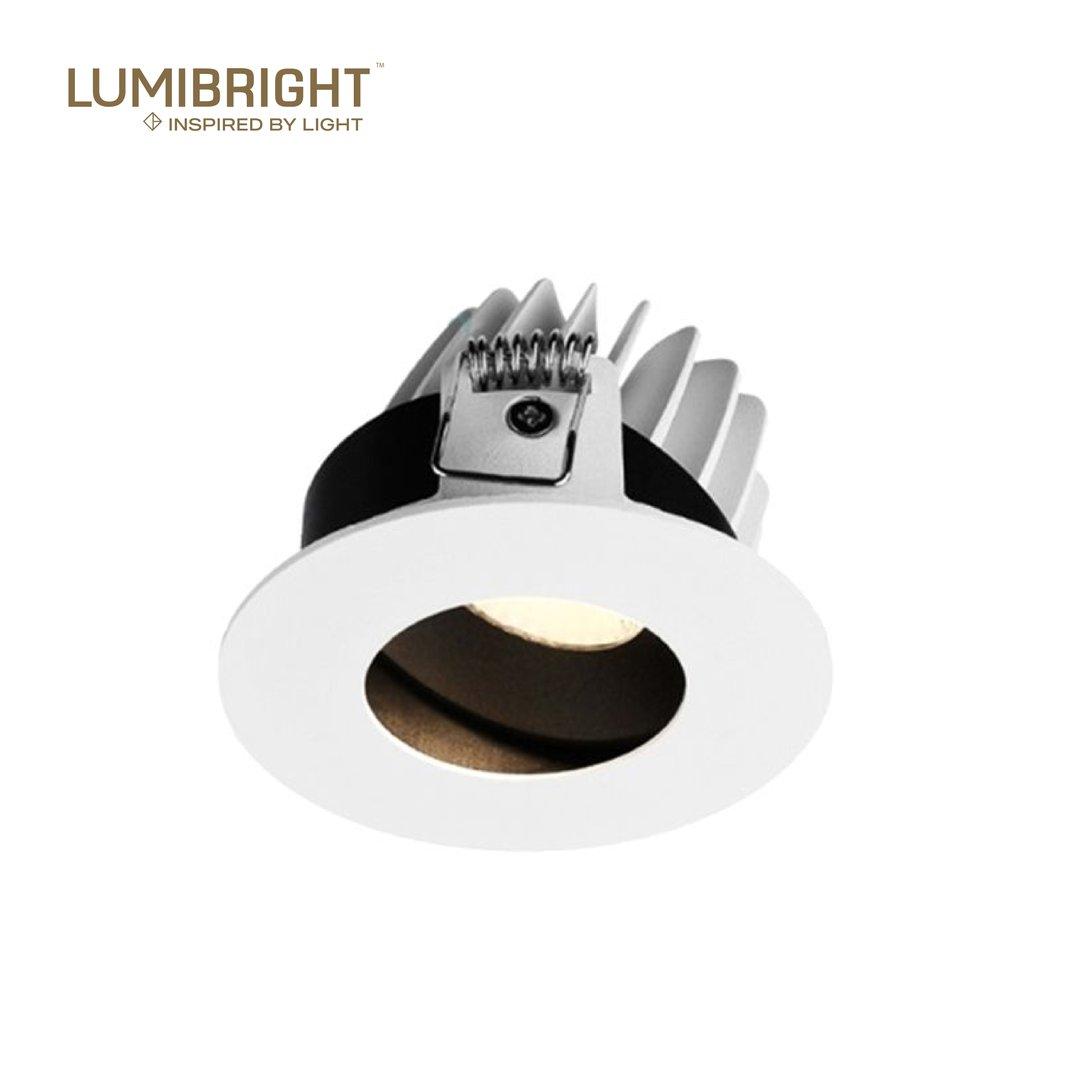

| LBT2045 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ90x60mm | Cut-outØ83mm |
Technical Data
Full Specification
| Dimensions | Ø90x60mm · Ø90x119mm · Ø90x78mm · Ø52x50mm +10 more |
|---|---|
| Cut-out | Ø83mm · Ø85mm · Ø45mm · Ø32mm +7 more |
| Power | 10W · 12W · 20W · 7W +1 more |
| Lumen output | 85LM · 700lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 20° · 24° · 30° +4 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +4 more |
| CRI Ra | CRI 80 · 80 · 90 · >90 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP44 · IP20 · IP54 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | constant-current · 42VDC · 9VDC · 11VDC +2 more |
| Light source | Not published — technical review required |
| Material | Aluminium · Die Casting Aluminium |
| Finish | White · Black · White+Chrome · Matt Black +10 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
17 Products
Dimensions

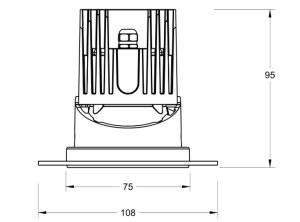

Technical Drawing
Drawing and sizes shown for model LBE2164. This family has 17 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2164
Ø108x95mm
Cut-Out
Ø75-80mm
Specifications
At a Glance
3–51.8W
Power Range
8 options
Beam: 15°, 20°, 24°, 30°, 35°, 36°, 40°, 60°
7 CCT
2700K, 3000K, 4000K, 5000K, 5600K, 6000K, 6500K
CRI 80/90
Colour Rendering
IP20 / IP44 / IP54 / IP65
Protection Rating
9 finishes
Body Finish Options
14 sizes
Ø108x95mm, Ø110x110mm, Ø132xH145mm, Ø139x136mm, Ø184x173mm, Ø40x38mm, Ø52x50mm, Ø65XH75mm, Ø86x94mm, Ø86xH95mm, Ø90x119mm, Ø90x60mm, Ø90x78mm, Ø90xH86mm
11 cut-outs
Ø110-120mm, Ø123mm, Ø168mm, Ø32mm, Ø45mm, Ø55mm, Ø75-80mm, Ø75mm, Ø83mm, Ø85mm, Ø95mm
Configure your product
LB2483
Order code
Listed configurationLB2483.W.930.WWH.40
96 listed configurations · availability requires confirmation
