TIEF
Application inspiration · not a project reference
TIEF is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
TIEF
TIEF is a down light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 10 article codes under this family, including L01237, L01238, L01239. For L01237, published values include power: 12W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP65; dimensions: Φ78x72mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the TIEF articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

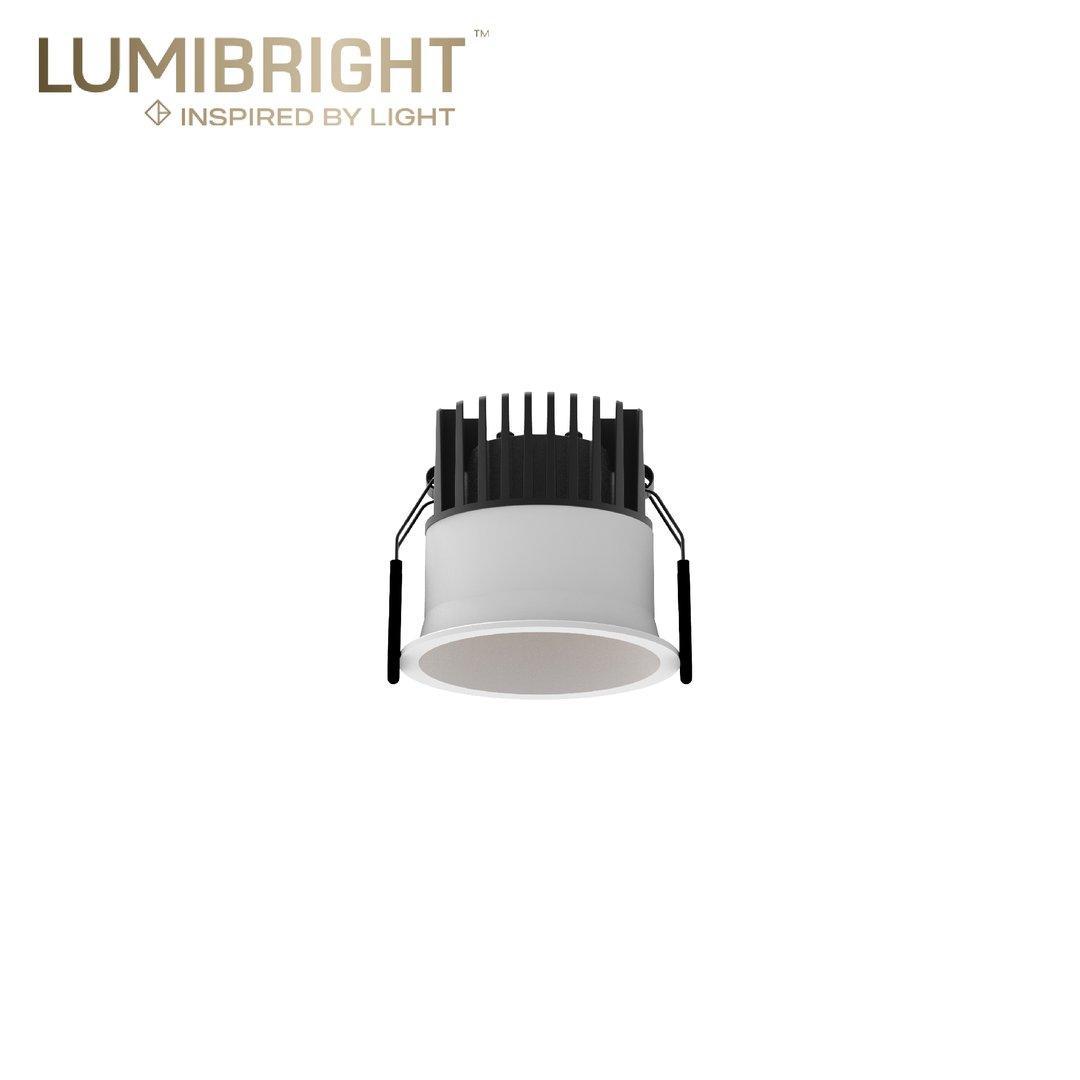

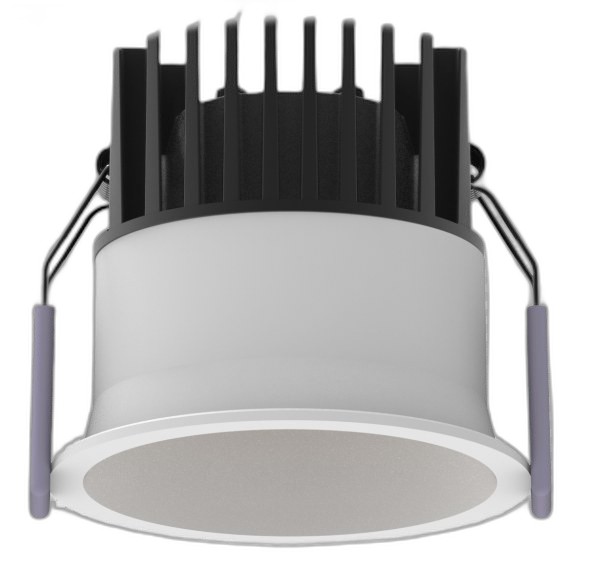

| L01237 | Wattage12W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsΦ78x72mm | Cut-outØ55mm |
| L01238 | Wattage12W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsΦ90x47mm | Cut-outØ55mm |
| L01239 | Wattage12W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ85xH54mm | Cut-outØ55mm |

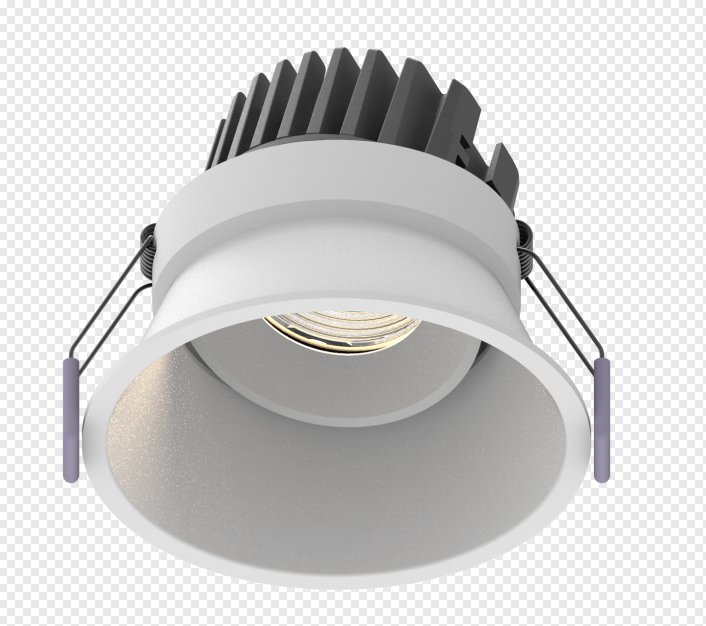

| L01240 | Wattage12W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ105xH82mm | Cut-outØ55mm |

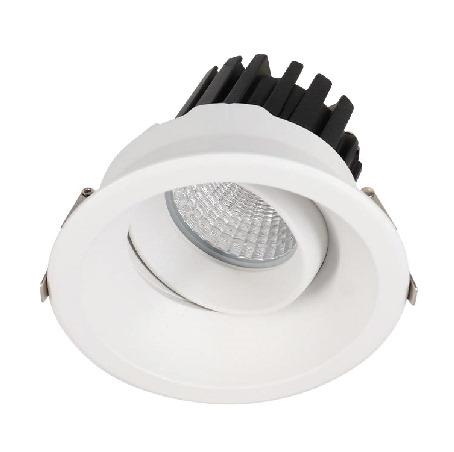

| L01263 | Wattage15W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ110xH98mm | Cut-outØ95mm |
| L01285 | Wattage15W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ85×90mm | Cut-outØ75mm |

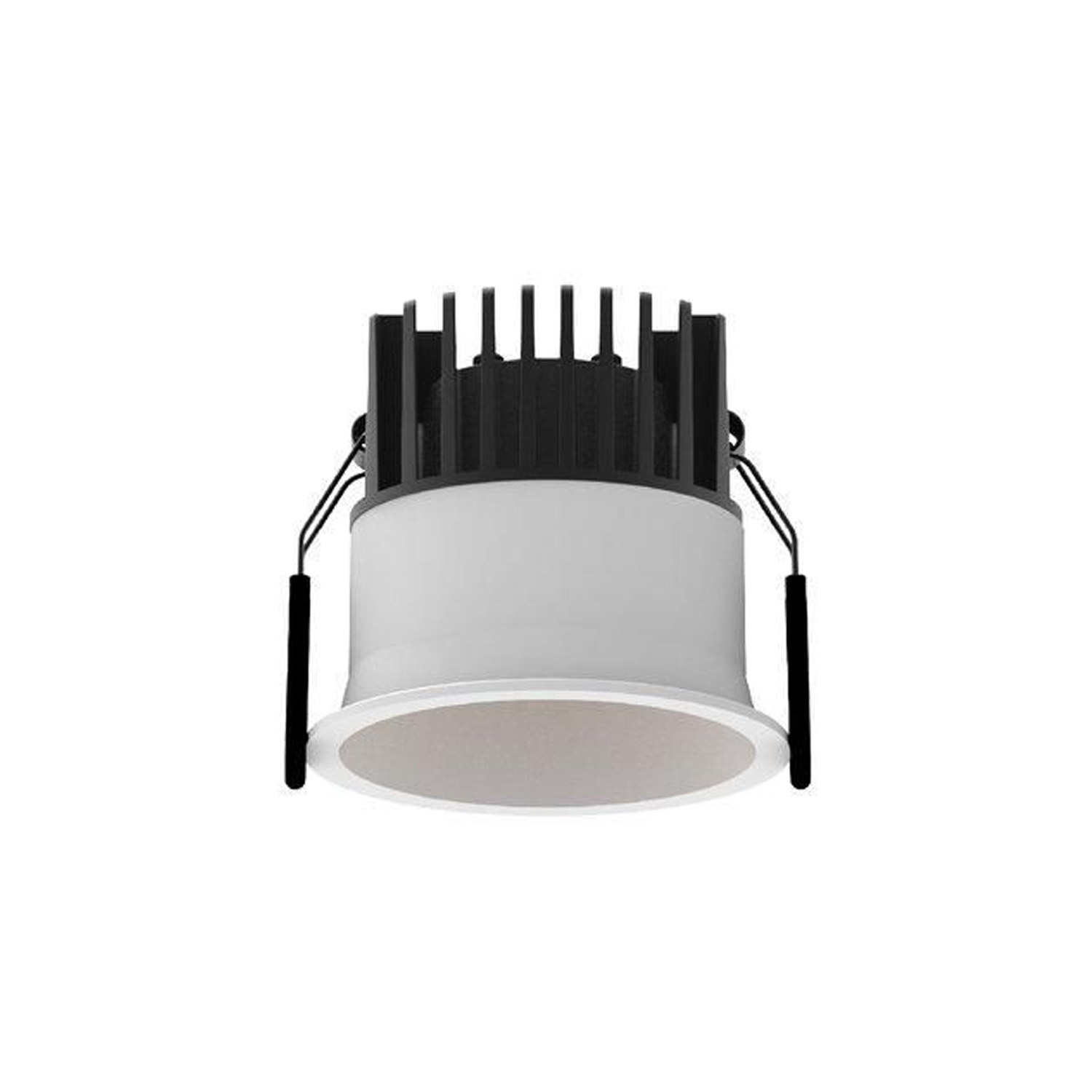

| LBE2143 | Wattage9W | CCT2700K/3000K/4000K/5000K/6000K | IPIP65 | DimensionsØ78xH72mm | Cut-outØ72mm |

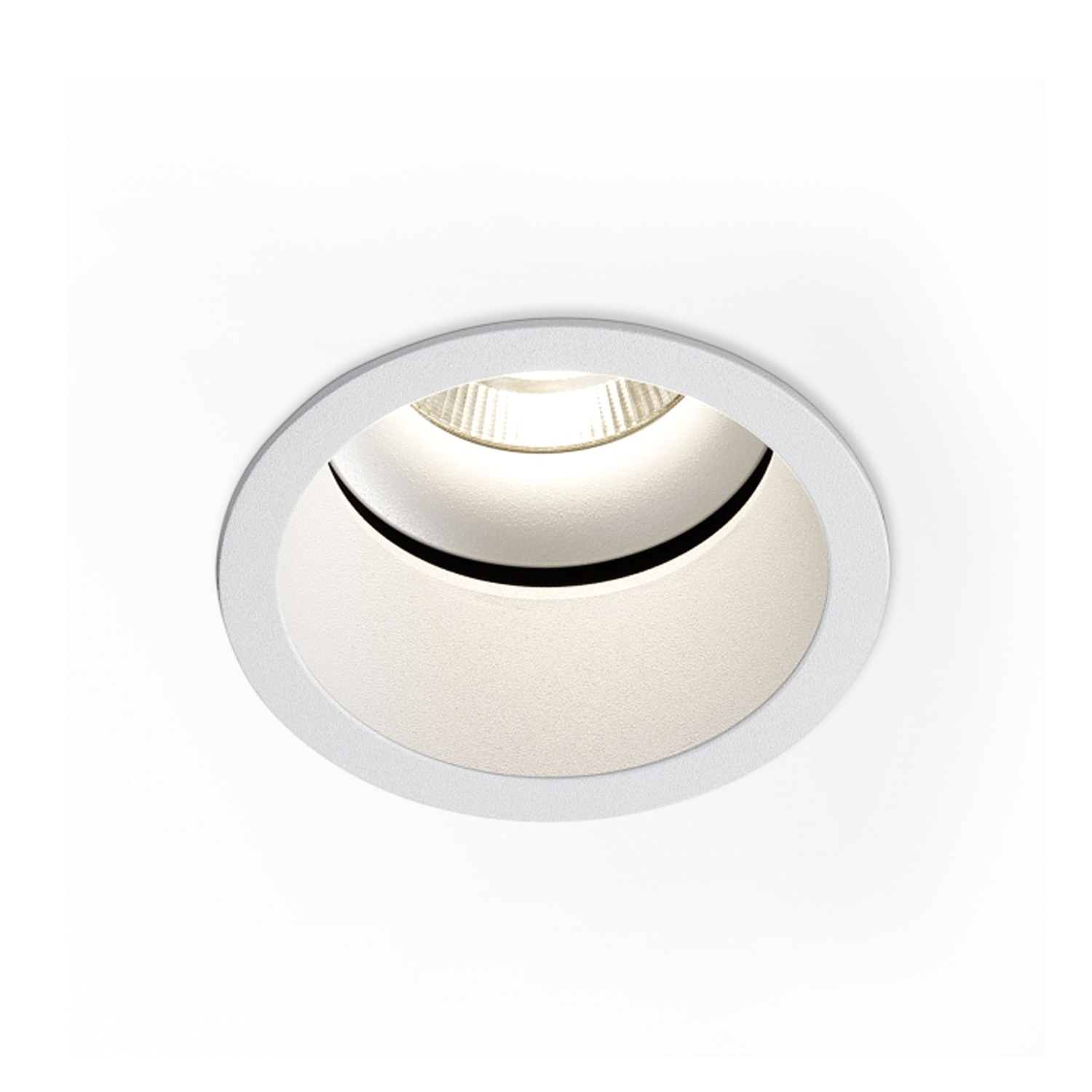

| LBE3008 | Wattage12W | CCT6500K | IPIP20 | DimensionsΦ105x 96mm | Cut-outØ98 mm |
| LBE3009 | Wattage12W | CCT5000K | IPIP20 | DimensionsΦ135x126mm | Cut-outΦ128 mm |

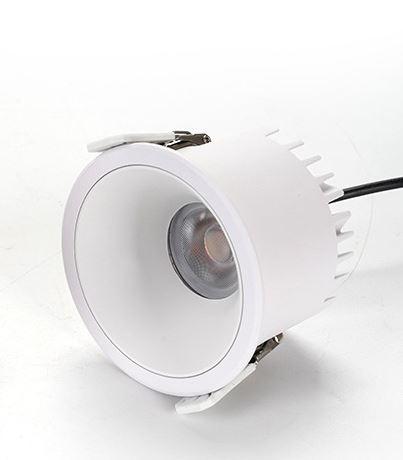

| LBT2095 | Wattage12W | CCT3000K | IPIP65 | DimensionsØ83xH62mm | Cut-outØ75mm |
Technical Data
Full Specification
| Dimensions | Ø78xH72mm · Φ78x72mm · Φ90x47mm · Ø85xH54mm +6 more |
|---|---|
| Cut-out | Ø72mm · Ø55mm · Ø95mm · Ø75mm +2 more |
| Power | 9W · 12W · 15W |
| Lumen output | 100LM · 1350lm · 654lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 25° · 38° +2 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90 · ≥90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 36VDC · 37VDC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white-sand · White · black-sand · White With Sand +4 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
10 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2143. This family has 10 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2143
Ø78xH72mm
Cut-Out
Ø72mm
Specifications
At a Glance
9–30W
Power Range
5 options
Beam: 15°, 24°, 36°, 38°, 60°
6 CCT
2700K, 3000K, 4000K, 5000K, 6000K, 6500K
CRI 90
Colour Rendering
IP20 / IP65
Protection Rating
5 finishes
Body Finish Options
10 sizes
Ø105xH82mm, Ø110xH98mm, Ø78xH72mm, Ø83xH62mm, Ø85xH54mm, Ø85×90mm, Φ105x 96mm, Φ135x126mm, Φ78x72mm, Φ90x47mm
6 cut-outs
Ø55mm, Ø72mm, Ø75mm, Ø95mm, Ø98 mm, Φ128 mm
Configure your product
LBE2143
Order code
Listed configurationLBE2143.W.930.PAW.25.DR
22 listed configurations · availability requires confirmation
