OLIVIA
Application inspiration · not a project reference
OLIVIA is part of Lumi Outdoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Bollard Light
OLIVIA
OLIVIA is a bollard light family within the LUMIBRIGHT Lumi Outdoor collection. Explore 17 models, including LB1522, LB1523, LB1524, with model-specific specifications and configuration choices. LB1522 specifications include power: 6W; colour temperature: 5000K; IP rating: IP54; dimensions: 235x300mm. Compare the OLIVIA range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

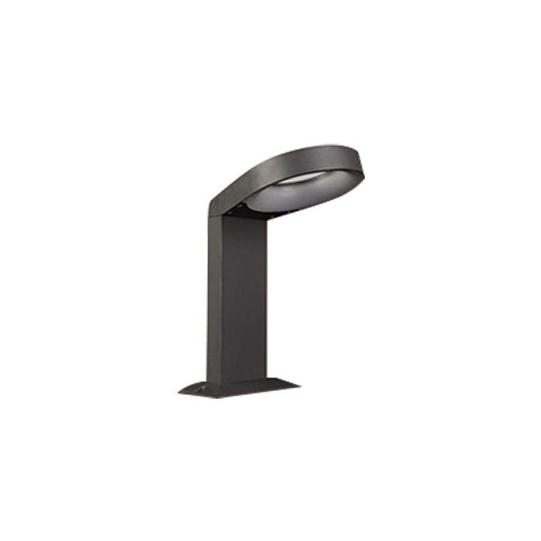

| LB1522 | Wattage6W | CCT5000K | IPIP54 | Dimensions235x300mm | Cut-outNot published |

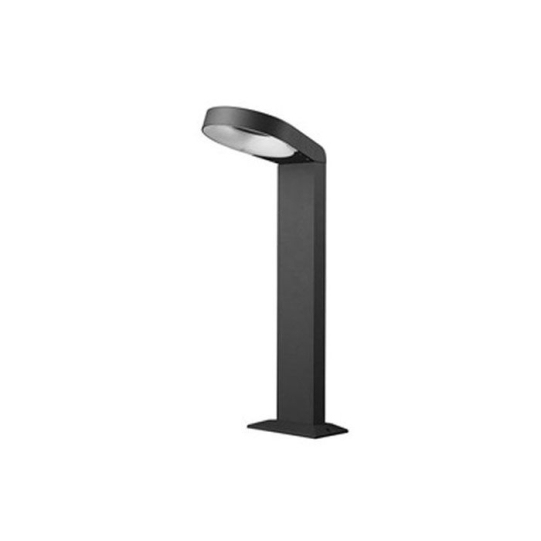

| LB1523 | Wattage6W | CCT4000K | IPIP54 | Dimensions235x500mm | Cut-outNot published |

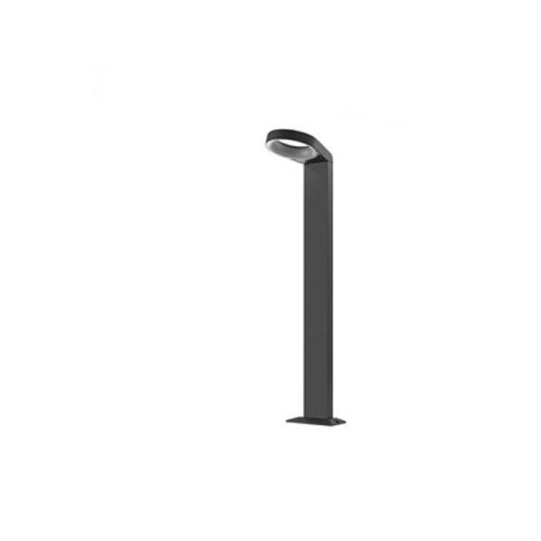

| LB1524 | Wattage6W | CCT5000K | IPIP54 | Dimensions235x800mm | Cut-outNot published |
| LB1865 | WattageNot published | CCT3000K | IPIP65 | Dimensions121x152x300mm | Cut-outNot published |

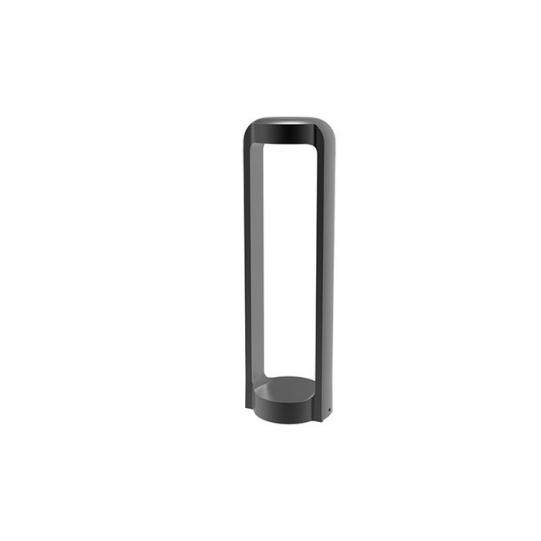

| LB1866 | WattageNot published | CCT3000K | IPNot published | Dimensions121x152x500mm | Cut-outNot published |

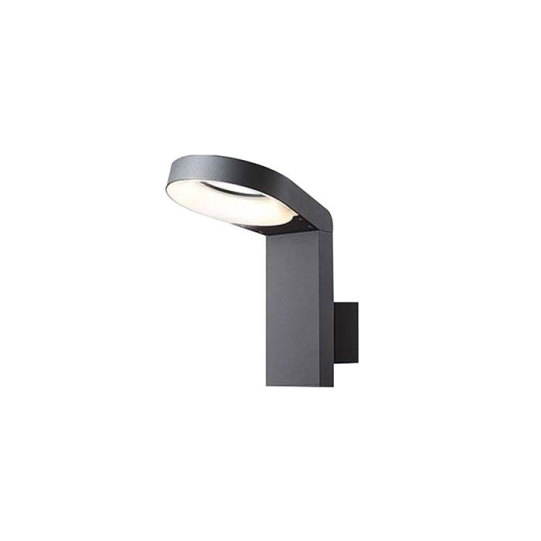

| LB4082 | WattageNot published | CCT3000K | IPIP54 | Dimensions235x250mm | Cut-outNot published |

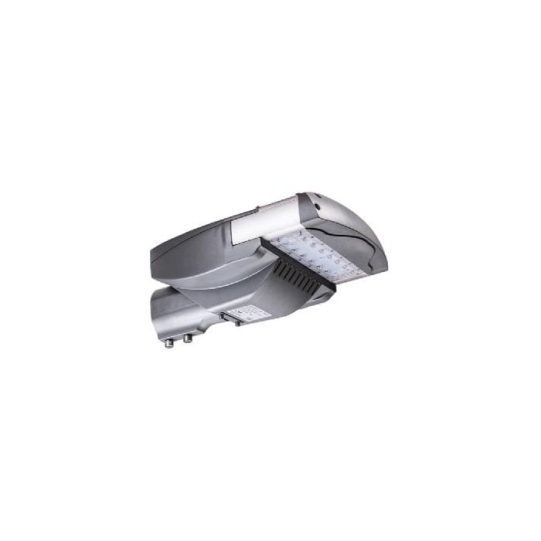

| LB9482 | Wattage40W | CCT4000K | IPIP66 | DimensionsNot published | Cut-outNot published |

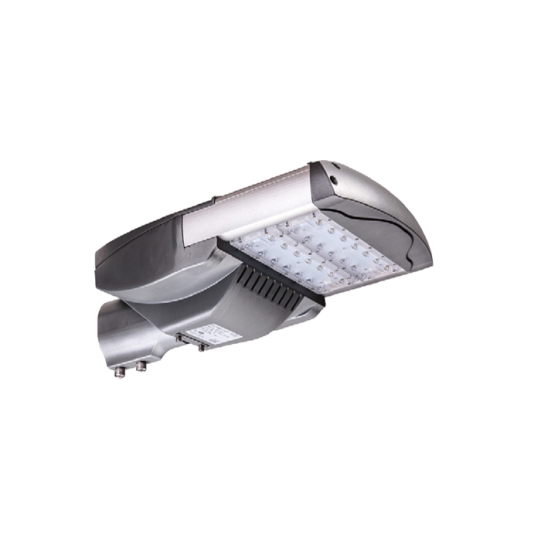

| LB9483 | Wattage65W | CCT3000K, 4000K, 5000K, 5700K | IPIP66 | Dimensions504x316x136mm | Cut-outNot published |
| LB9484 | WattageNot published | CCT4000K | IPNot published | DimensionsNot published | Cut-outNot published |
| LB9485 | Wattage120W | CCT4000K | IPIP66 | Dimensions577x316x136mm | Cut-outNot published |

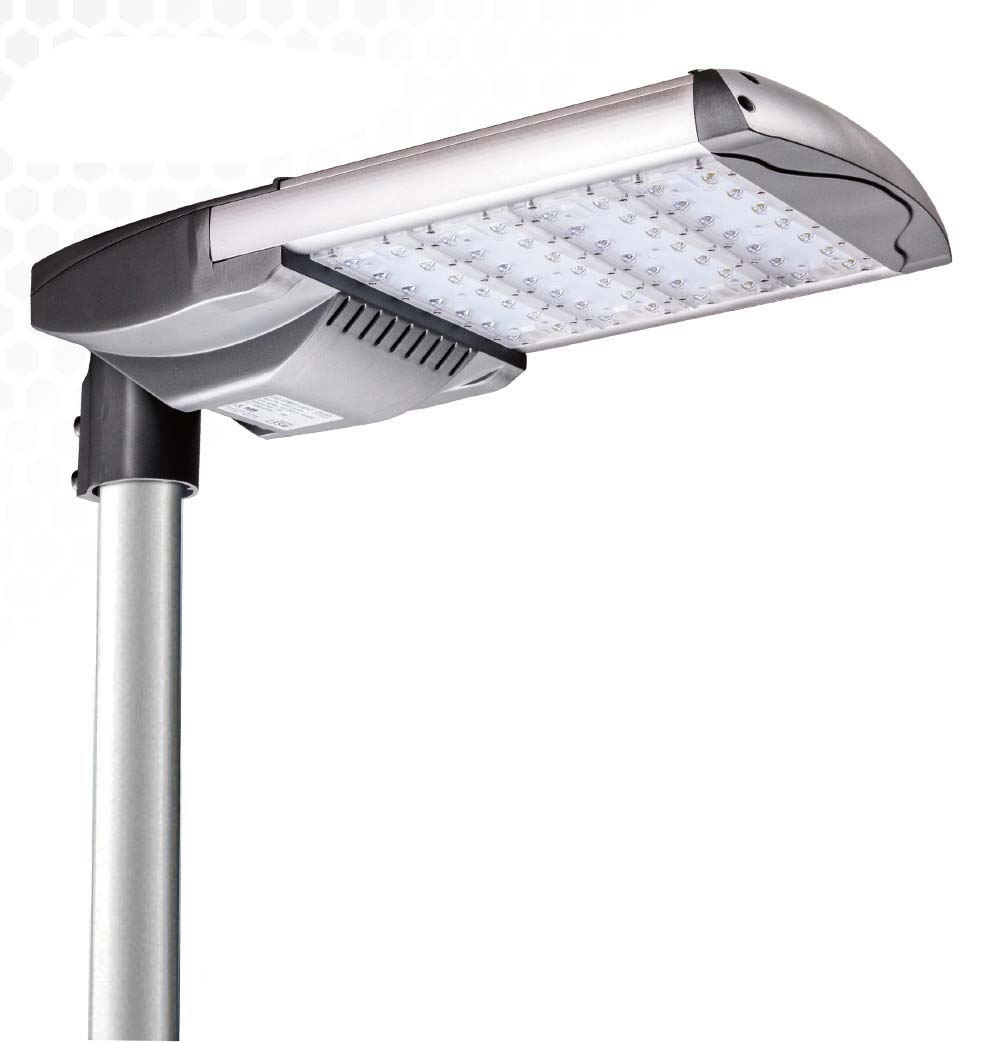

| LB9486 | WattageNot published | CCT5700K | IPNot published | DimensionsNot published | Cut-outNot published |
| LB9487 | Wattage200W | CCT3000K, 4000K, 5000K, 5700K | IPIP66 | Dimensions723x316x136mm | Cut-outNot published |

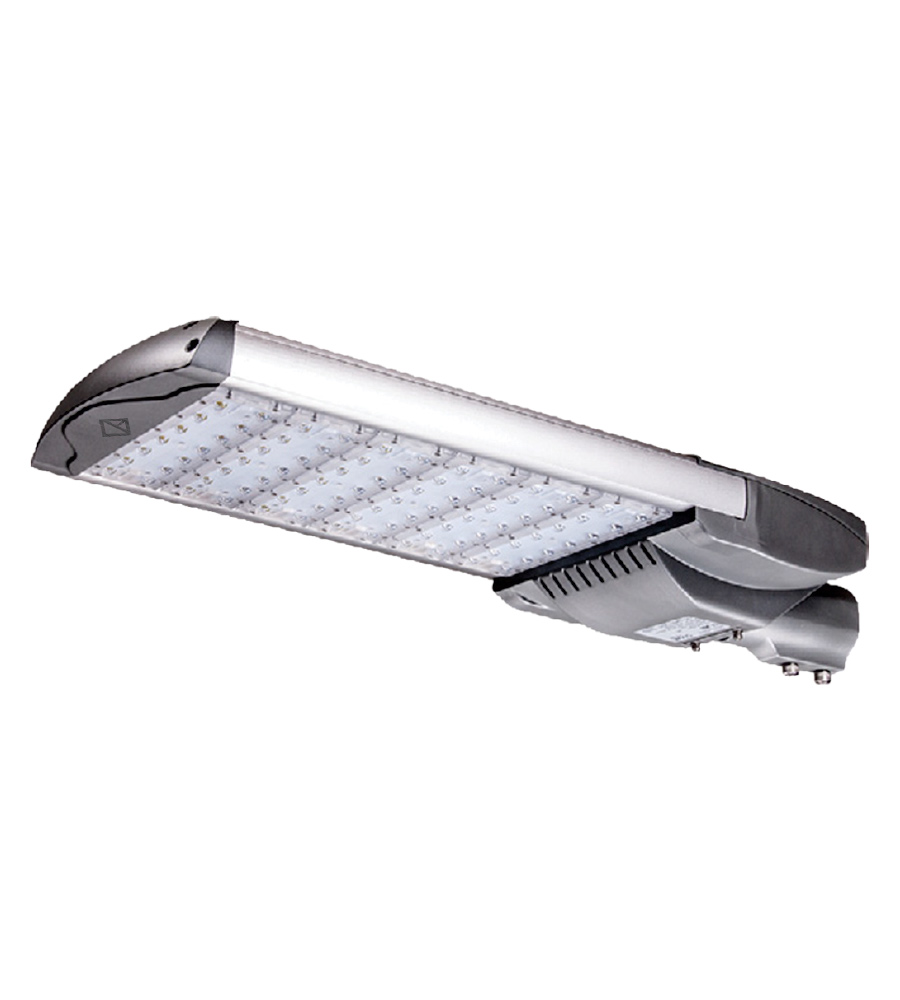

| LB9488 | Wattage240W | CCT5700K | IPNot published | DimensionsNot published | Cut-outNot published |
| LB9489 | Wattage80W | CCT3000K, 4000K, 5000K, 5700K | IPIP66 | Dimensions504x316x136mm | Cut-outNot published |
| LBT1507 | Wattage13W | CCT3000K | IPIP65 | Dimensions121x152x300mm | Cut-outNot published |
| TEMP-LB9485 | Wattage120W | CCT4000K | IPNot published | Dimensions577x316x136mm | Cut-outNot published |
| TEMP-LB9487 | Wattage200W | CCTNot published | IPNot published | Dimensions723x316x136mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | 235x300mm · 235x500mm · 235x800mm · 121x152x300mm +8 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 6W · 80W · 120W · 200W |
| Lumen output | 8800lm · 16800lm · 28000lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | DIFFUSED · 253° · 2° · 3M |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 80 · ≥80 · ≥70 · >70 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP54 · IP65 · IP66 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 100-240VAC · 24VDC |
| Light source | Not published — technical review required |
| Material | Die-Cast Aluminium |
| Finish | black · graphite · grey · grey-sand +10 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | 5 Years |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
17 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB1524. This family has 17 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB1524
235x800mm
Specifications
At a Glance
6–240W
Power Range
3 options
Beam: 2°, 3°, 253°
7 CCT
2700K, 3000K, 4000K, 5000K, 5700K, 6000K, 6500K
CRI 70/80
Colour Rendering
IP54 / IP65 / IP66
Protection Rating
9 finishes
Body Finish Options
13 sizes
121x152x300mm, 121x152x500mm, 235x250mm, 235x300mm, 235x500mm, 235x800mm, 431x316x136mm, 504x316x136mm, 577x316x136mm, 650x316x136mm, 723 x316 x136 mm, 723x316x136m, 723x316x136mm
Configure your product
LB1524
Order code
Listed configurationLB1524.W.830.WBK.D
28 listed configurations · availability requires confirmation
