Spot Light
SPARK
3 variants·luminaire·ceiling recessed

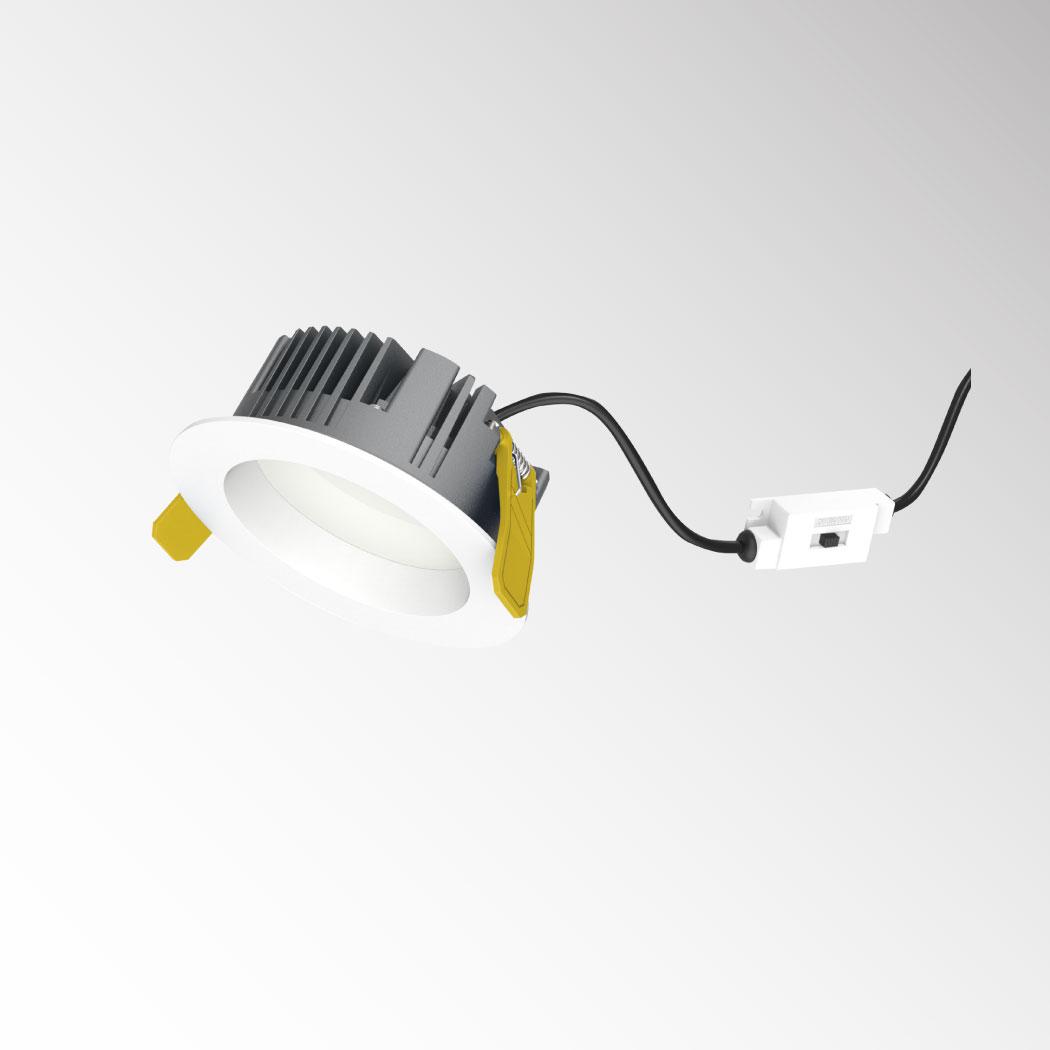

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Colour
Finish
IP Rating
Select attributes to narrow down variants
All Variants (3)
Dimensions
Technical Drawing
Drawing and sizes shown for model LBP2004.
Size — model LBP2004
Ø106xH42mm
Cut-Out
Ø90-95mm
Technical Data
Full Specification
| Dimensions | Ø106xH42mm |
|---|---|
| Cut-out | Ø90-95mm |
| Power | 10W |
| Lumen output | On request |
| Efficacy | 100-105LM/W |
| Optics / beam angle | 90° |
| Colour temperature | 3000K · 4000K · 5000K · Switch |
| CRI / R9 | 90 · 80+/90+ |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 200-240VAC |
| Light source | On request |
| Material | Aluminum |
| Finish | white |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
11 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
10W
Power
90°
Beam Angle
3 CCT
3000K, 4000K, 5000K
Switch
Colour Options
CRI 90
Colour Rendering
IP20
Protection Rating
white
Body Finish
Ø106xH42mm
Dimensions
Ø90-95mm
Cut-Out
