Spot Light
HALCON
HALCON is a spot light family within the LUMIBRIGHT Lumi Indoor collection. Explore 10 models, including LB2833, LB2834, LB2835, with model-specific specifications and configuration choices. LB2833 specifications include power: 10W; colour temperature: 3000K/4000K/6000K; IP rating: IP20; dimensions: Ø80x82mm. Compare the HALCON range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

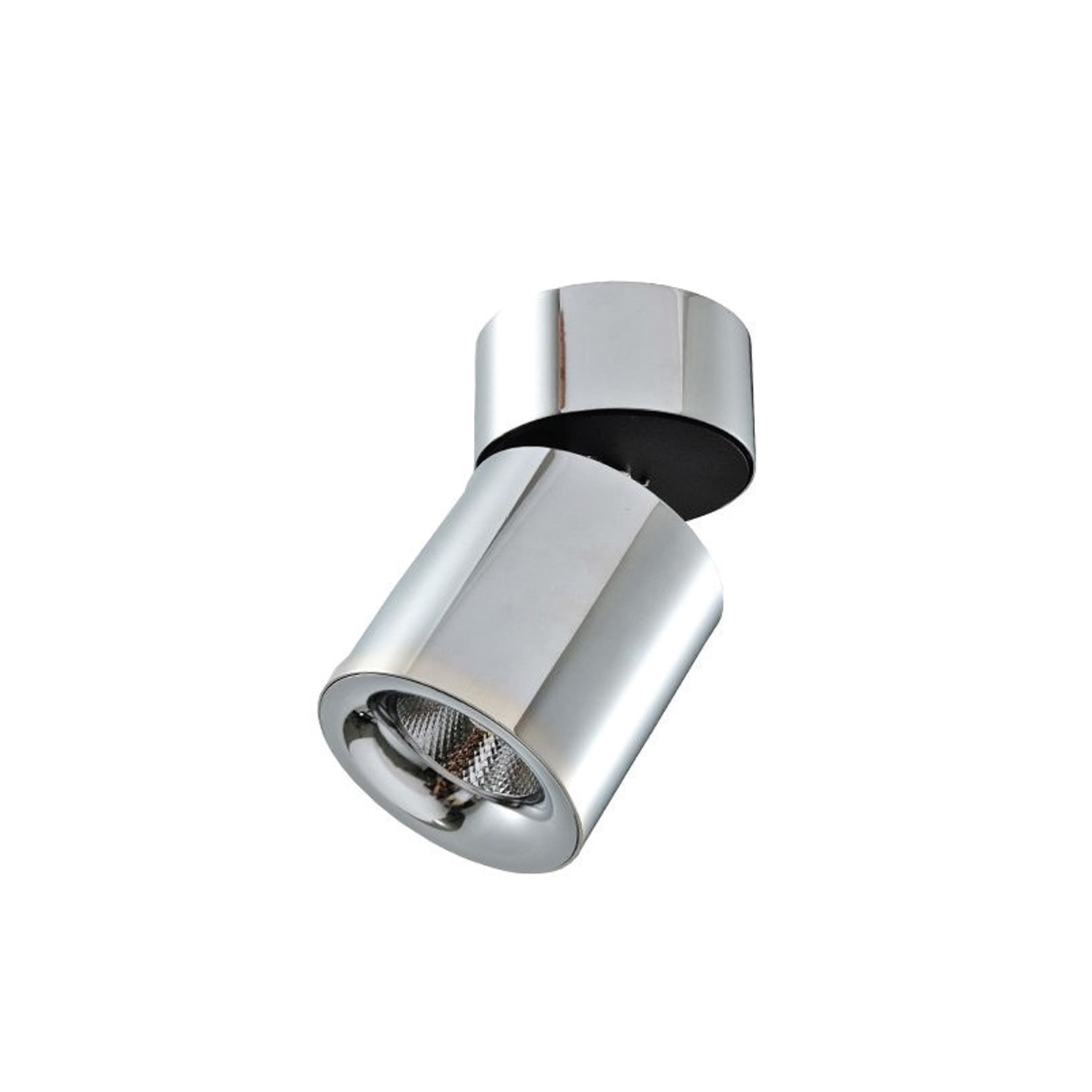

| LB2833 | Wattage10W | CCT3000K/4000K/6000K | IPIP20 | DimensionsØ80x82mm | Cut-outNot published |

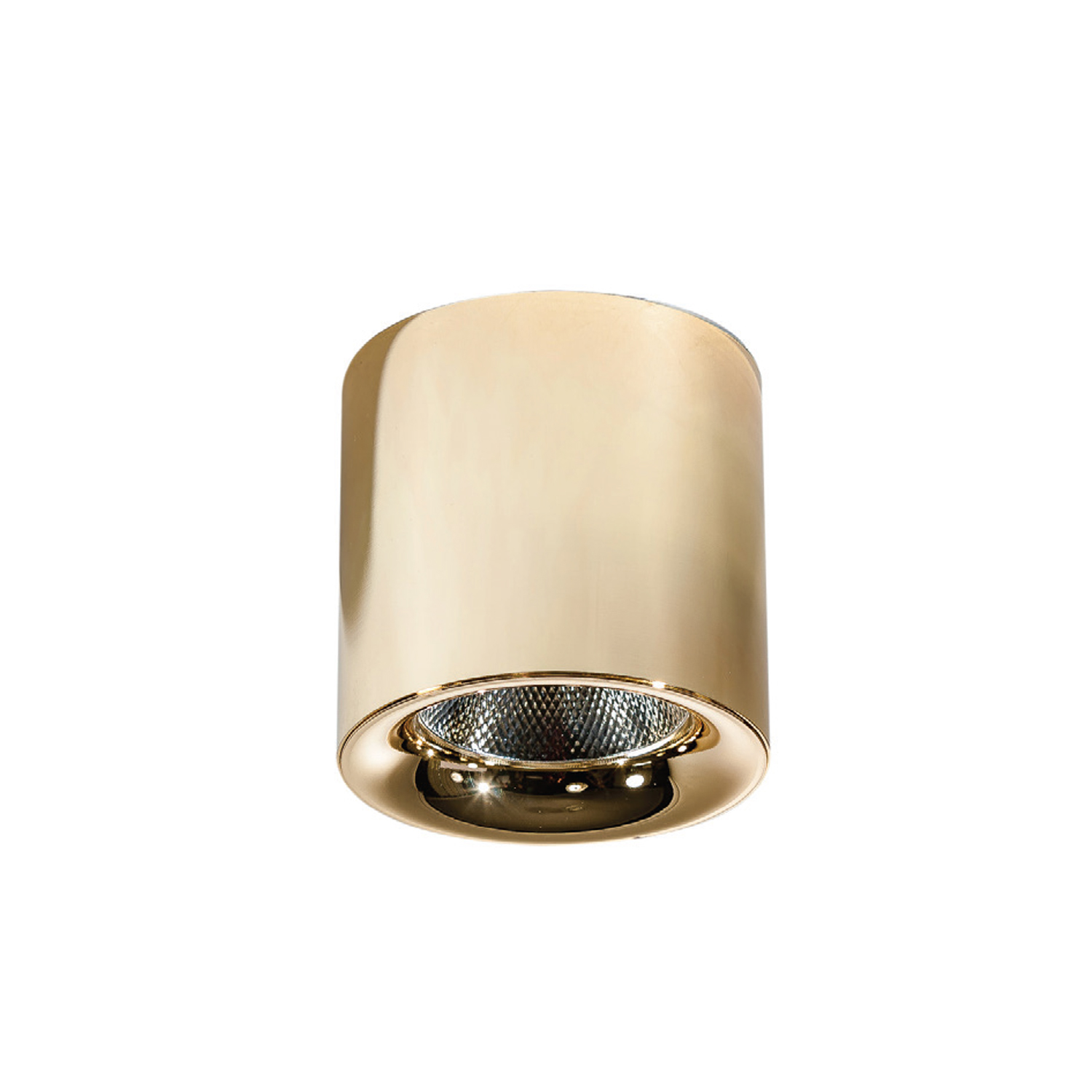

| LB2834 | Wattage10W | CCT3000K/4000K/6000K | IPIP20 | DimensionsØ100x96mm | Cut-outNot published |

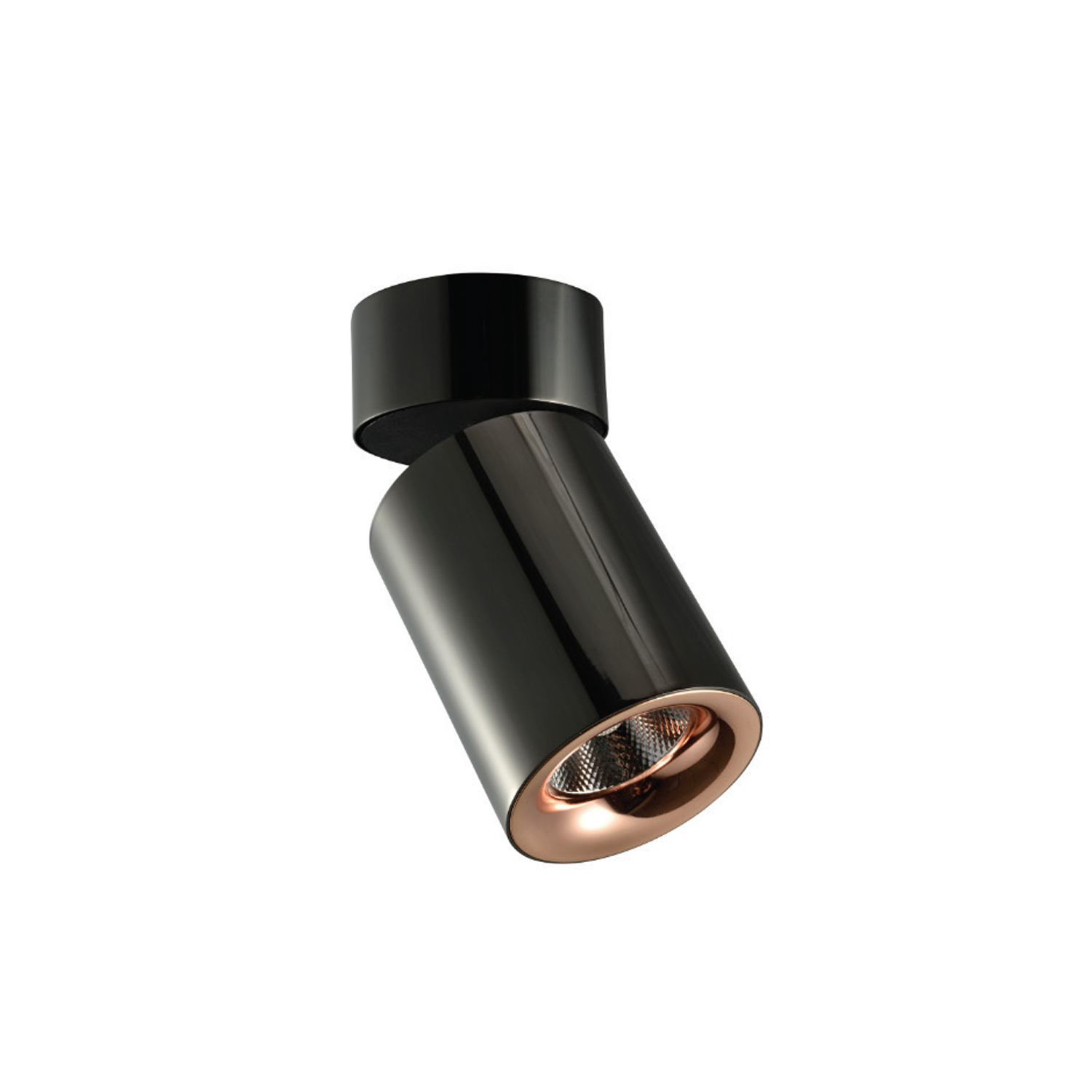

| LB2835 | Wattage10W | CCT3000K/4000K/6000K | IPIP20 | DimensionsØ80x130mm | Cut-outNot published |

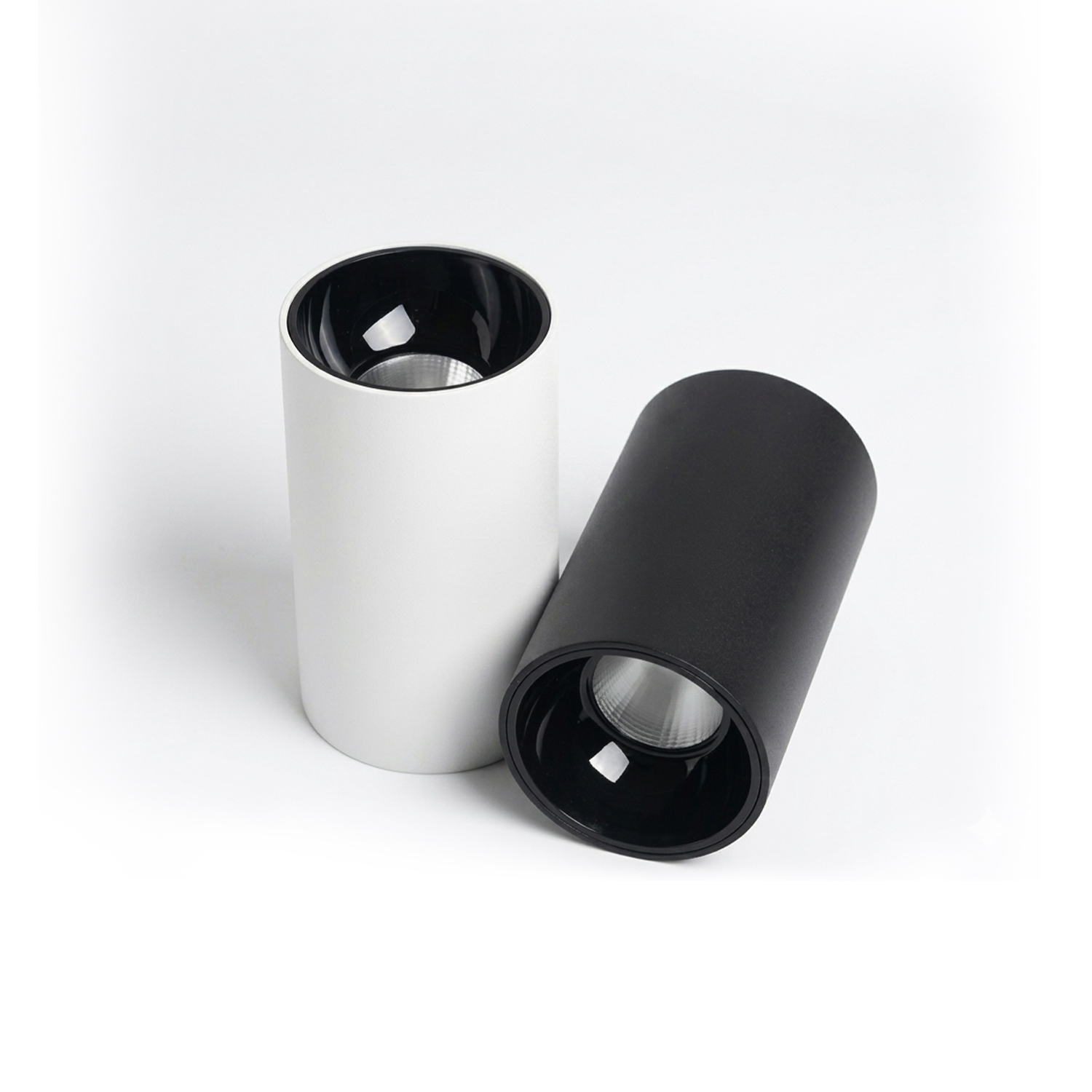

| LB2966 | Wattage7W | CCT3000K | IPIP20 | DimensionsΦ93.5×H95mm | Cut-outNot published |
| LBE2125 | Wattage7W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions60xH100mm | Cut-outNot published |

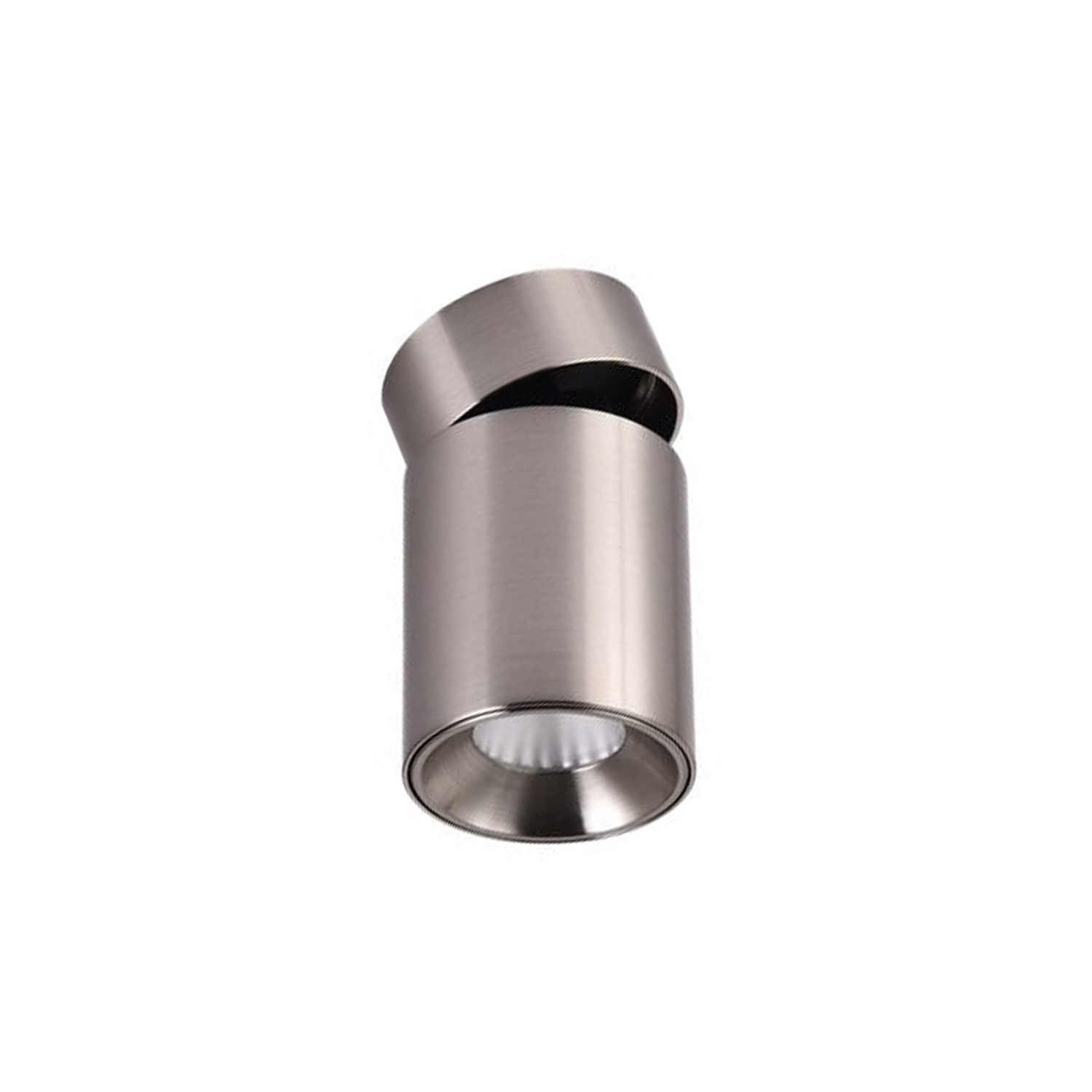

| LBE2126 | Wattage18W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensions70*H135mm | Cut-outNot published |

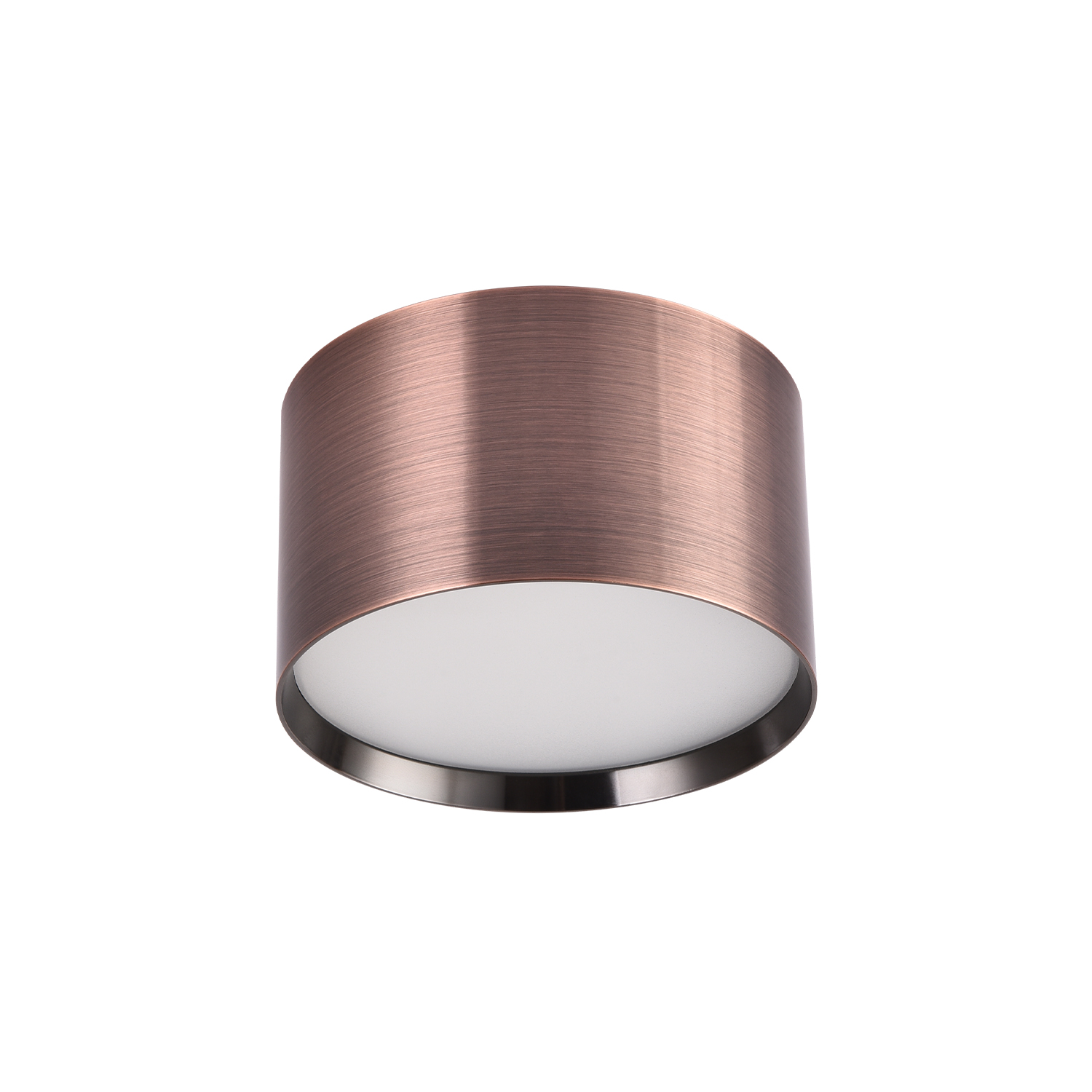

| LBE2127 | Wattage6W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensionsφ75xH75mm | Cut-outNot published |

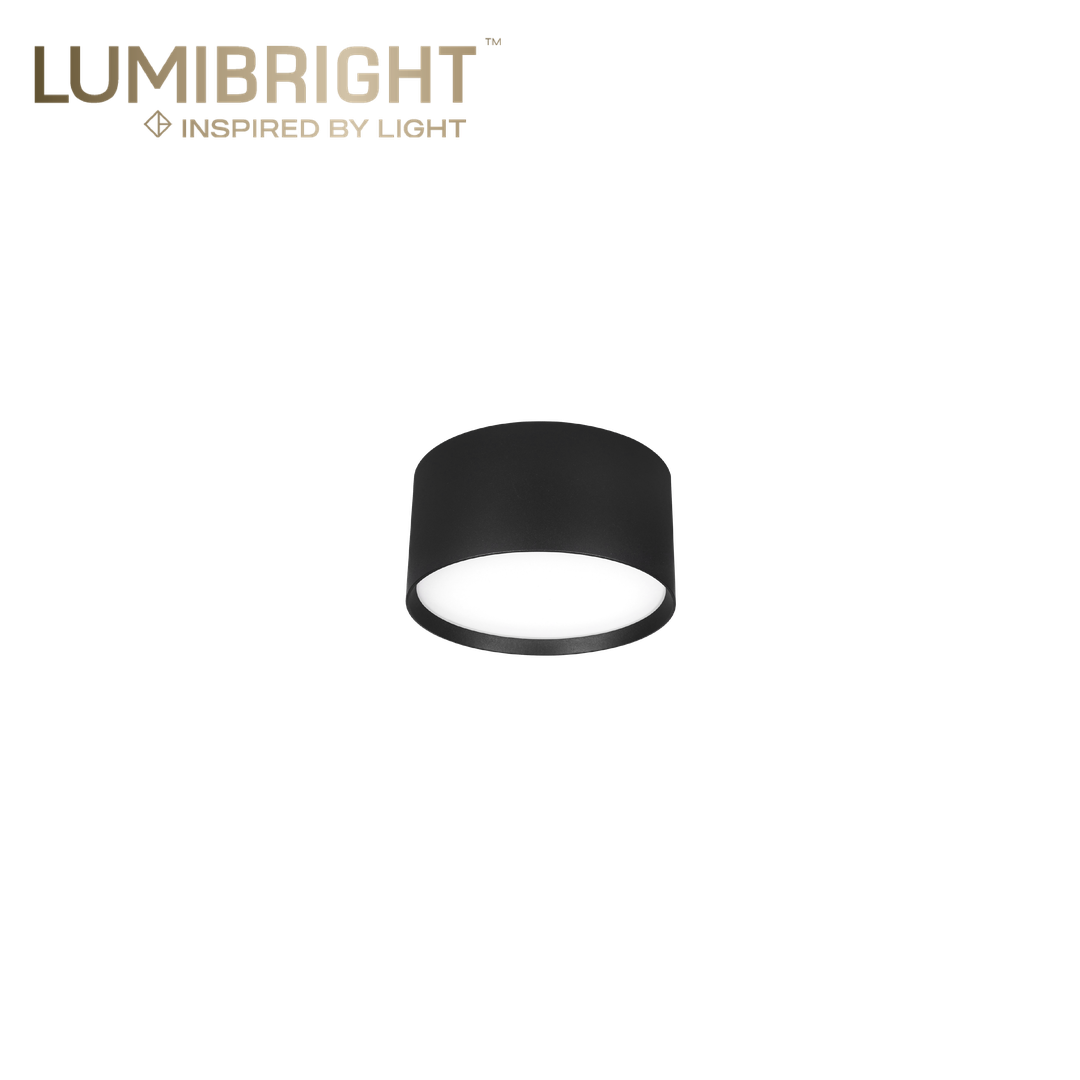

| LBE3012 | Wattage15W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensionsφ110xH75mm | Cut-outNot published |

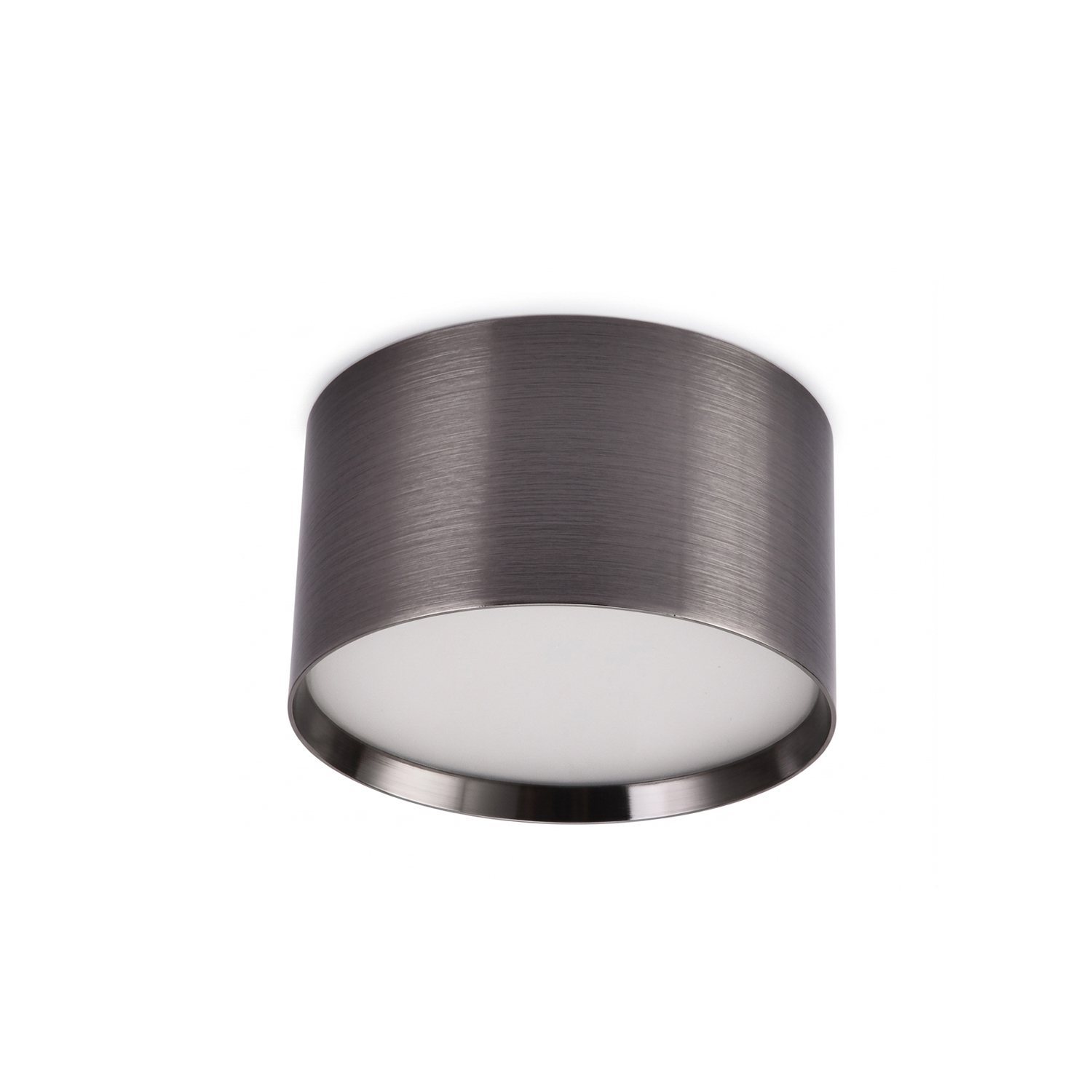

| LBE3013 | Wattage22W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | Dimensionsφ125xH75mm | Cut-outNot published |

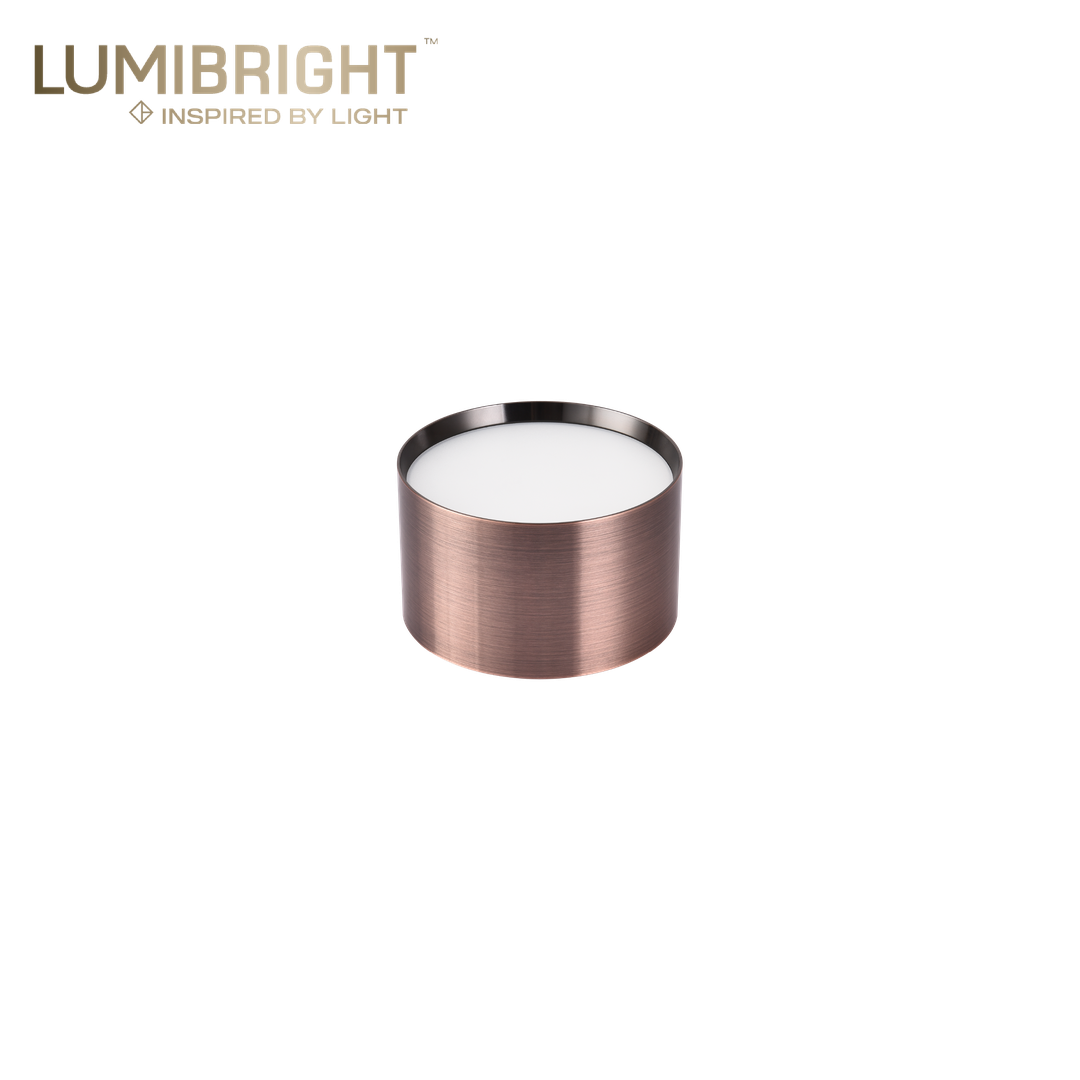

| LBT2090 | Wattage8W | CCT3000K | IPIP65 | DimensionsØ75xH55mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø80x82mm · Ø80xH82mm · Ø100x96mm · Ø80x130mm +7 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 10W · 7W · 18W · 6W +2 more |
| Lumen output | 800lm · 600lm · 500lm · 1400lm +3 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 24° · 36° · 60° · 120° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K +1 more |
| CRI Ra | 80 · >80 · >90 · 70 +1 more |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 85-265VAC · 100-240VAC · 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | mirror-black · White · black · chrome +21 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
10 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2833. This family has 10 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LB2833
Ø80x82mm
Specifications
At a Glance
6–22W
Power Range
4 options
Beam: 24°, 36°, 60°, 120°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 70/80/90
Colour Rendering
IP20 / IP65
Protection Rating
16 finishes
Body Finish Options
11 sizes
60xH100mm, 70*H135mm, Ø100x96mm, Ø75xH55mm, Ø80x130mm, Ø80x82mm, Ø80xH82mm, Φ93.5×H95mm, φ110xH75mm, φ125xH75mm, φ75xH75mm
Configure your product
LB2833
Order code
Listed configurationLB2833.W.830.MBK.24
51 listed configurations · availability requires confirmation
