Application
Outdoor
Landscape illumination creating safe, beautiful spaces

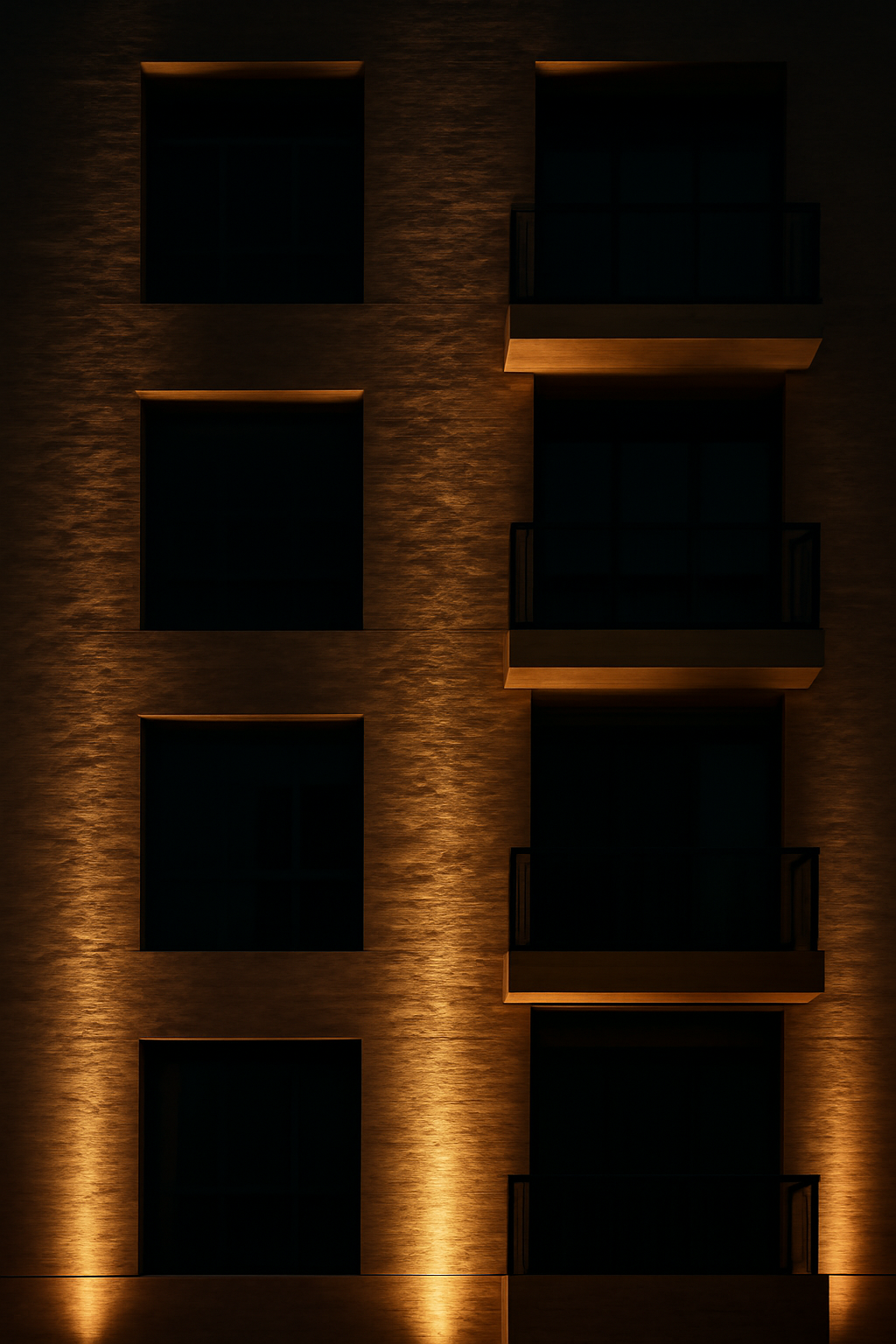

ZONE 01 - FACADE WALL GRAZING
Facade Wall Grazing
Reveal architectural texture and form
Precision wall-grazing optics illuminate stone and concrete textures. Warm 3000K emphasizes material richness at night. Minimal light spill and dark-sky compliance protect the nocturnal environment while creating signature building identity.
- Texture emphasis
- Building identity
- Low light pollution

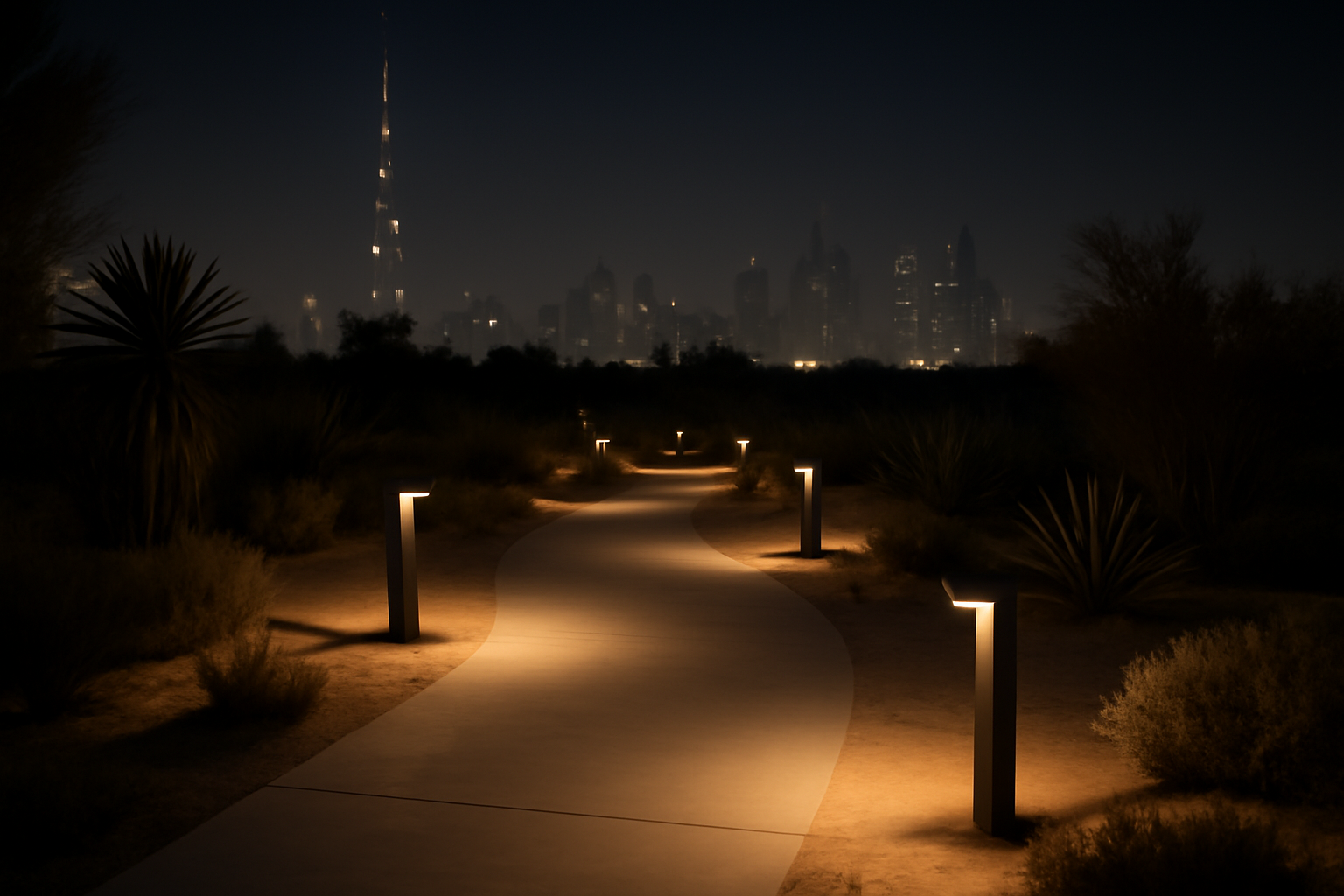

ZONE 02 - PATHWAYS
Pathways
Ensure safe pedestrian navigation
Low-level bollard lighting provides glare-controlled wayfinding. Warm 2700K creates a welcoming, human-scale environment. Desert plants receive subtle uplighting for visual interest without overwhelming the night sky.
- Pedestrian safety
- Welcoming
- Energy efficiency

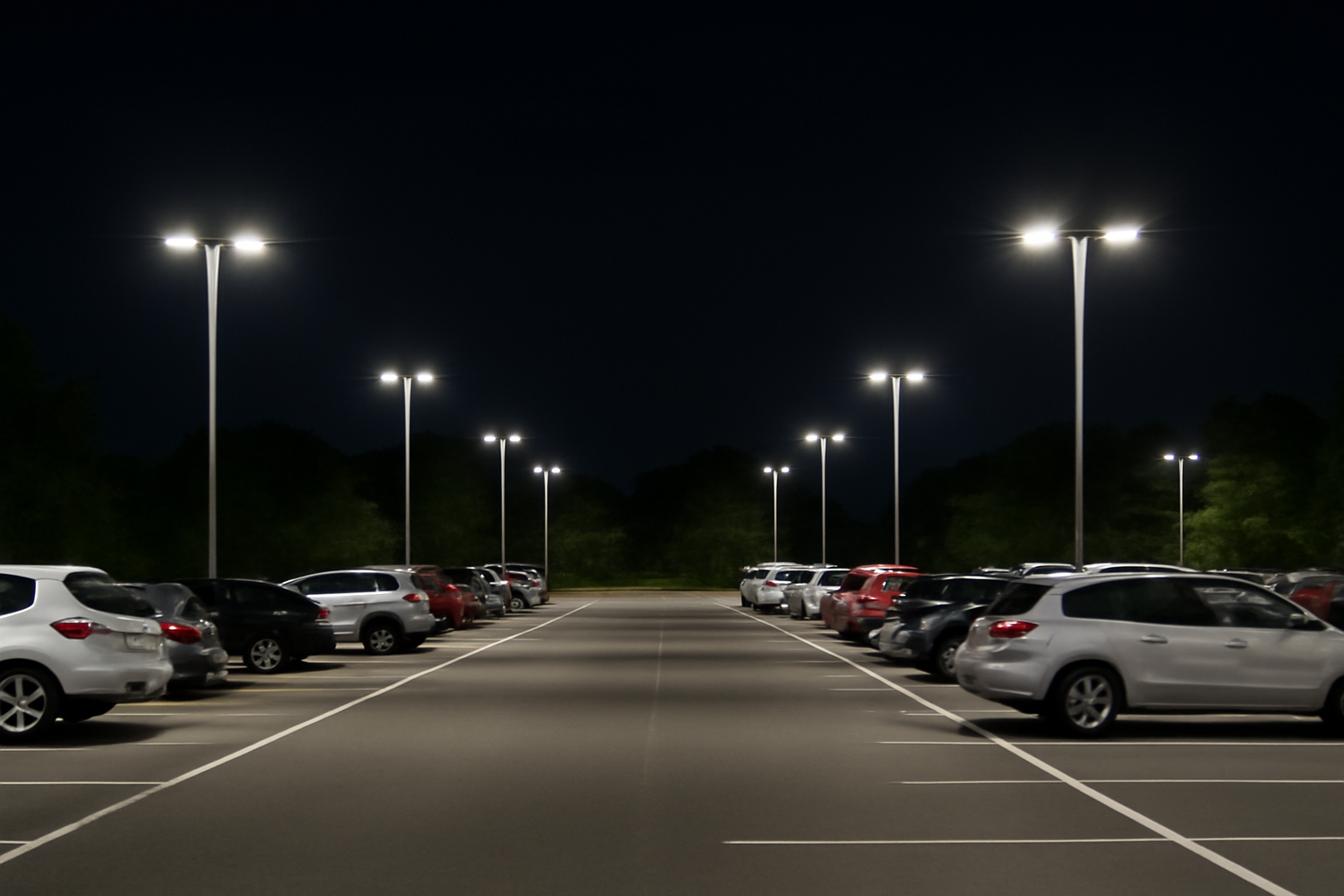

ZONE 03 - PARKING
Parking
Deliver uniform safety illumination
High-uniformity area lighting ensures safe vehicle and pedestrian movement. Neutral 4000K supports visibility and security. Minimal glare and robust construction withstand outdoor conditions.
- Security
- Safety
- Energy management

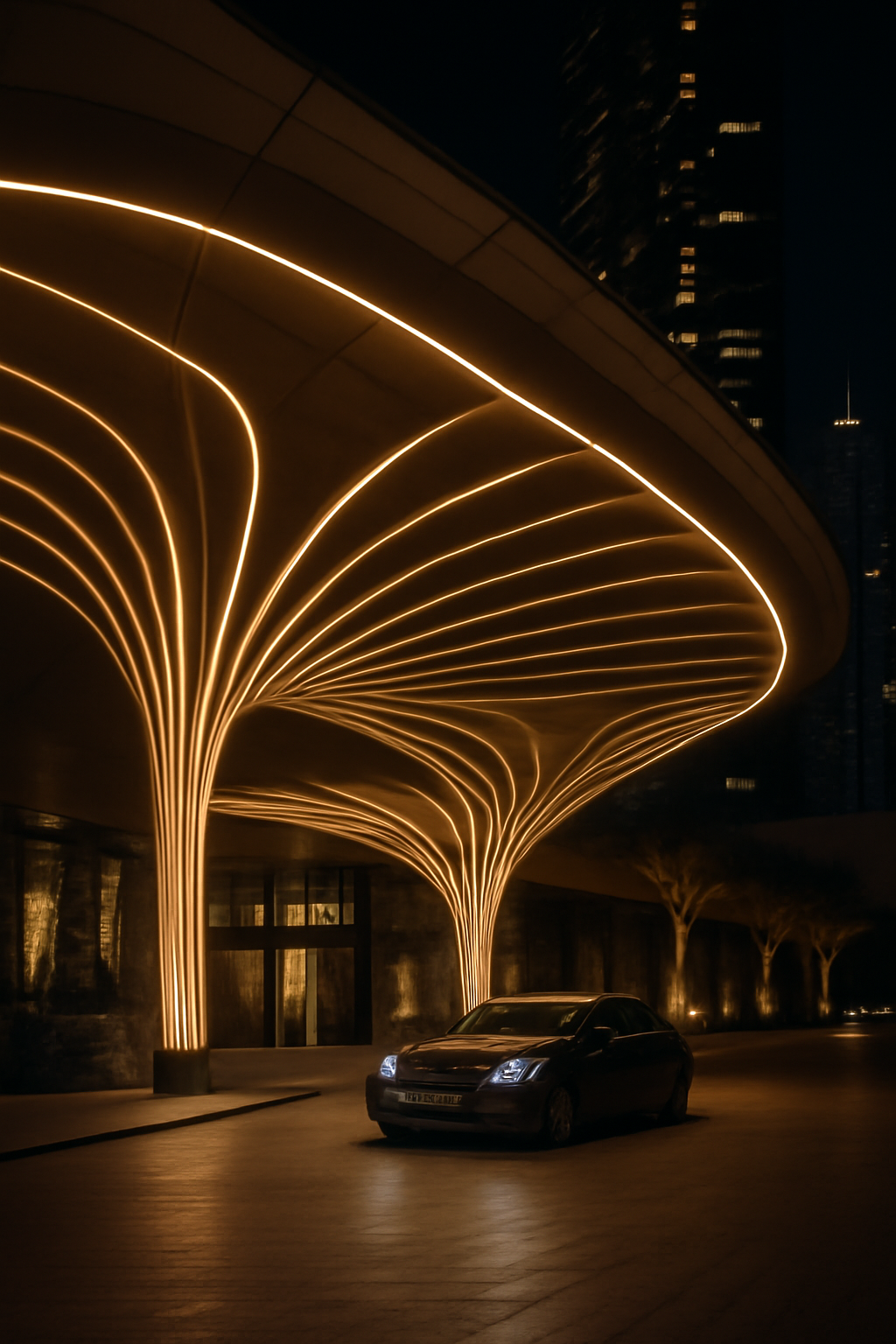

ZONE 04 - CANOPY
Canopy
Create welcoming drop-off zones
Concealed linear luminaires integrated into hotel drop-off canopies provide uniform, glare-free illumination. Warm 3000K creates a welcoming first impression. Recessed mounting preserves clean architectural lines.
- Welcoming arrival
- Safety
- Architectural integration

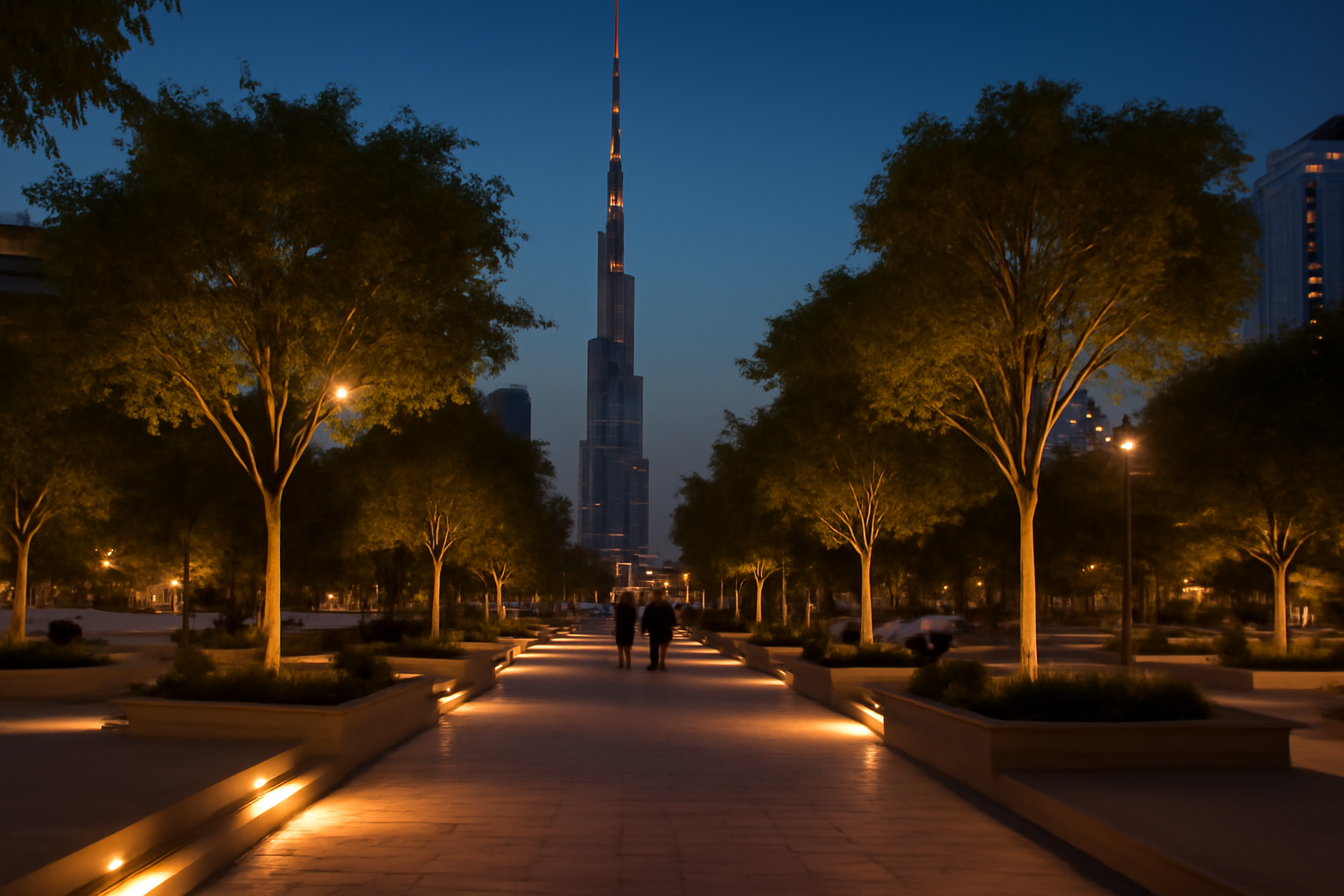

ZONE 05 - PUBLIC PLAZA
Public Plaza
Layer landscape and architectural lighting
Layered outdoor lighting creates depth and drama-step lights define edges, tree uplights add vertical interest, soft ambient glow unifies the space. Warm 3000K creates inviting public spaces after dark.
- Public safety
- Placemaking
- Visual hierarchy
Technical Specifications & Performance
Comprehensive technical data for specification professionals
Photometrics & Performance
Technical lighting performance specifications for specification professionals
Kelvin
Index
Unified Glare Rating
IEEE 1789
Hours
Controls & Interoperability
Compatible with industry-standard lighting control protocols for seamless building integration
Sustainability & Support
Environmental compliance and comprehensive service for UAE projects
Sustainability & Compliance
Environmental responsibility and regulatory compliance for responsible specification
RoHS/REACH
Compliant with EU chemical safety directives
ISO 9001/14001
Quality and environmental management certified
LEED/WELL Aligned
Contributes to green building certification points
EPD Available
Environmental Product Declaration on request
Warranty, supply and project support
Confirm the written warranty eligibility, territory, component coverage and installation conditions for the exact product codes. Local stock, lead times, support scope and response arrangements must be agreed for the project.
Industry Standards & Certifications
LumiBright solutions align with international lighting standards and building certification programs
Technical Documentation Hub
Download complete technical packages for Outdoor lighting specification
IES/LDT Files
Photometric data for lighting calculations
Revit Families
BIM objects for architectural integration
Datasheets & Cut Sheets
Complete product specifications and dimensions
Installation Guides
Technical installation and commissioning instructions
Featured Products for Outdoor
Curated lighting solutions engineered for outdoor environments
Ready to Specify?
Our lighting consultants are available to support your outdoor project with technical guidance, photometric analysis, and specification documents.
Design criteria
Lighting for building façades and architectural features
Façade lighting is an optics and control problem before it is a lumen problem. The brief is usually to reveal a material or a line - stone texture, a colonnade, a parapet - without spilling light into rooms, onto neighbours or into the sky. That means grazing or narrow-beam optics, precise aiming and accessories, ingress and corrosion protection matched to the Gulf climate, and a control layer that can hold a curfew setting.
| Zone | Illuminance | Uniformity | Colour | Glare | CCT |
|---|---|---|---|---|---|
| Grazing stone / textureMount close to the wall (50-150 mm) so the beam rakes the texture. | IlluminanceAim for 20-50 lx on the surface | UniformityDeliberately graded | ColourCRI 80-90 | GlareClose offset, shielded | CCT2700-3000K |
| Wall washing (flat surface)Space fittings at roughly the mounting offset x 1-1.5 for an even wash. | Illuminance30-75 lx on the surface | UniformityUo >= 0.5 visually even | ColourCRI 80-90 | GlareAsymmetric optic | CCT3000K |
| Feature / tree uplightIP67/IP68 in-ground, drained and rated for the load it sits in. | IlluminanceContrast-driven | Uniformity— | ColourCRI 80+ | GlareSnoot or honeycomb, full cut-off | CCT3000K (4000K for foliage) |
| Colour-change / media façadeFix the protocol (DMX/RDM or DALI) and the pixel pitch before selecting the fitting. | IlluminanceProject-specific | Uniformity— | Colour— | GlareAim below sightlines | CCTRGBW |
| Sky glow / obtrusive lightCIE 150 and local authority limits govern spill, glare and curfew hours. | IlluminanceFollow local curfew limits | Uniformity— | Colour— | GlareUpward light ratio as low as the detail allows | CCT2700-3000K |
Illustrative project-brief ranges, not measured model performance or universal code requirements. Confirm the relevant task, standard edition, site conditions and local requirements.
How to specify
Five decisions that set the fitting
- Decide what the light is revealing - texture, plane, edge or silhouette - then choose grazing, washing, narrow-beam or linear optics accordingly.
- Specify IP65 as a minimum, IP66/IP67 where jet-washing or flooding is possible and IP68 for submerged or in-ground positions.
- Check the finish and fixings against the microclimate: coastal salt spray needs marine-grade stainless or a qualified coating system.
- Confirm IK rating and accessory options (snoots, louvres, glare shields) where the public can reach or see the fitting.
- Agree a curfew scene with the client so the scheme meets obtrusive-light limits after a set hour.
Specify from
Candidate families for technical review
618 articles across 12 families
Inground Light
INGROUND
55 articles
Inground Light
GINI
26 articles
Inground Light
LYENG
25 articles
DIKON
20 articles
Wall Light
SIMOR
16 articles
Wall Light
SPUN
16 articles
Wall Light

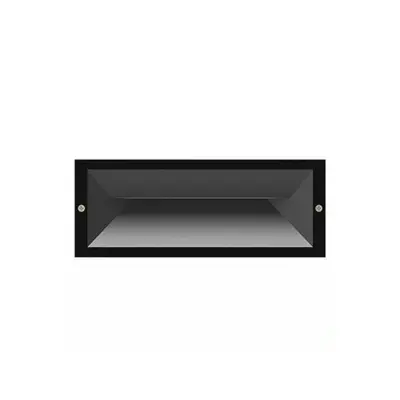

POTRA
15 articles
Wall Light
HELEN
14 articles
Wall Light

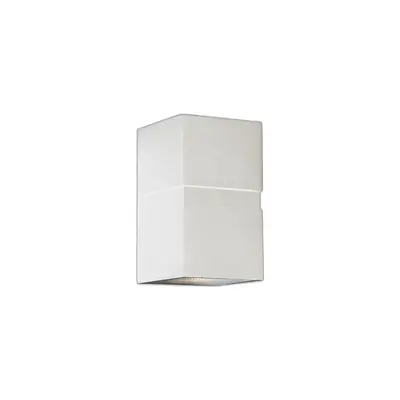

PETAL
13 articles
Industrial Light
PATRONE
13 articles

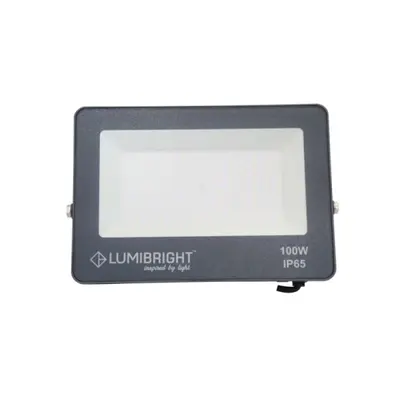

Flood Light
EIDER
12 articles
Inground Light
MILANA
12 articles
Specifier questions
Frequently asked
How far from the wall should a grazing fitting sit?
50 to 150 mm for texture grazing. Further out and the beam flattens; too close and the first 300 mm of wall is over-lit. The detail should also allow for drainage and maintenance access.
What IP rating do in-ground uplights need?
IP67 as a minimum and IP68 where the recess can flood or sit under irrigation. Check the drainage detail as well as the rating - standing water plus heat is what kills in-ground fittings.
Can I use warm white on stone and 4000K on planting?
Yes, and it usually reads well: 2700-3000K keeps limestone and sandstone warm, while 4000K makes foliage look greener. Keep each material consistent.
DMX or DALI for a façade?
DMX/RDM where the scheme is pixel-addressed or colour-changing; DALI-2 where it is static white with scenes and is tied into the building system. Decide before the fitting so the driver matches.
