Ceiling Light
ATRANI
ATRANI is a ceiling light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 16 article codes under this family, including L01195, L01196, L01197. For L01195, published values include power: 8W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP65; dimensions: ø62×H85mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the ATRANI articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

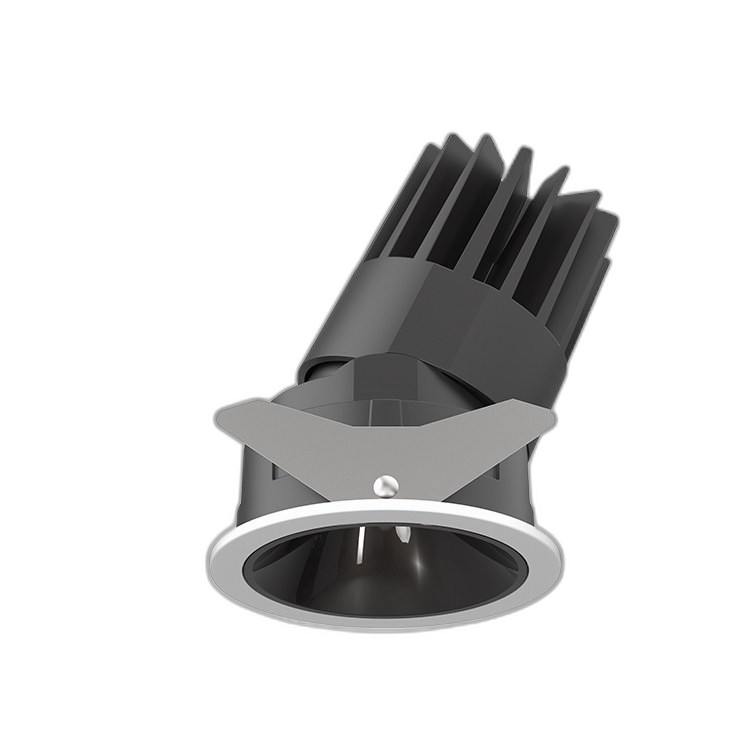

| L01195 | Wattage8W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø62×H85mm | Cut-outØ55mm |
| L01196 | Wattage18W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø84×H110mm | Cut-outØ75mm |
| L01197 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø111×H130mm | Cut-outØ95mm |

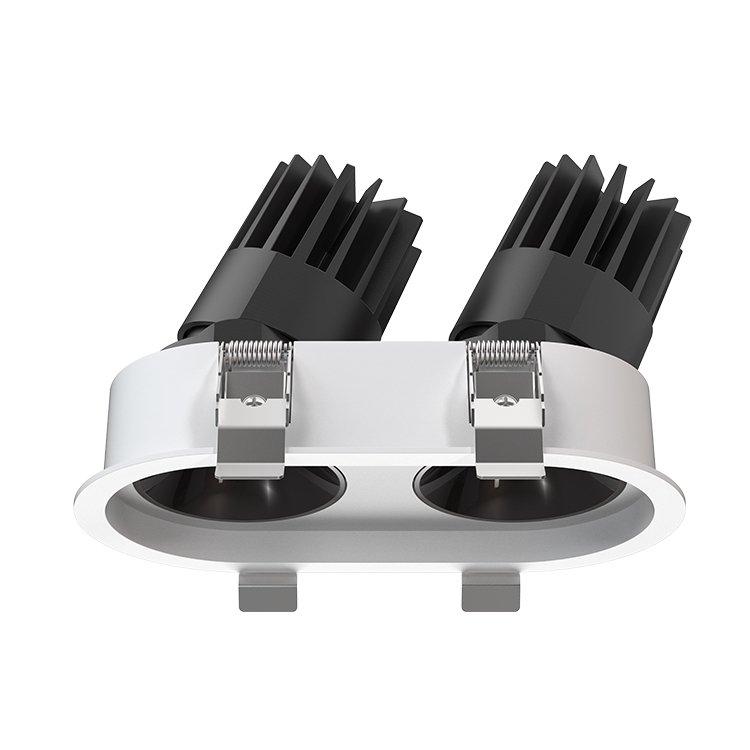

| L01198 | Wattage2×8W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø139×W79×H90mm | Cut-out128xØ65mm |
| L01199 | Wattage2×18W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø194×W104×H121mm | Cut-out180xØ95mm |
| L01200 | Wattage2×25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø239×W125×H142mm | Cut-out225xØ110mm |

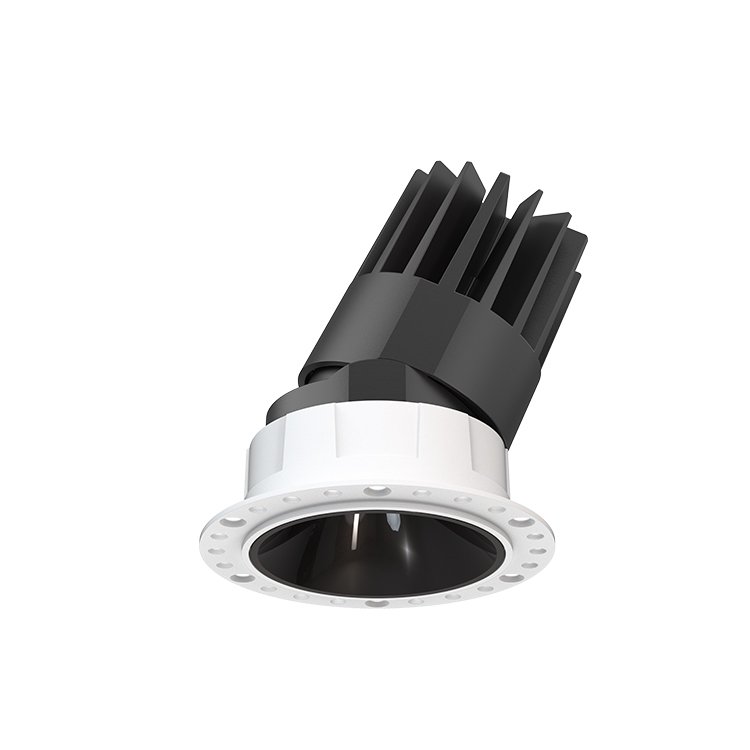

| L01201 | Wattage8W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø75×H85mm | Cut-outØ57mm |
| L01202 | Wattage18W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø72.4×H100.5mm | Cut-outØ77mm |
| L01203 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | Dimensionsø91.5×H121.5mm | Cut-outØ97mm |

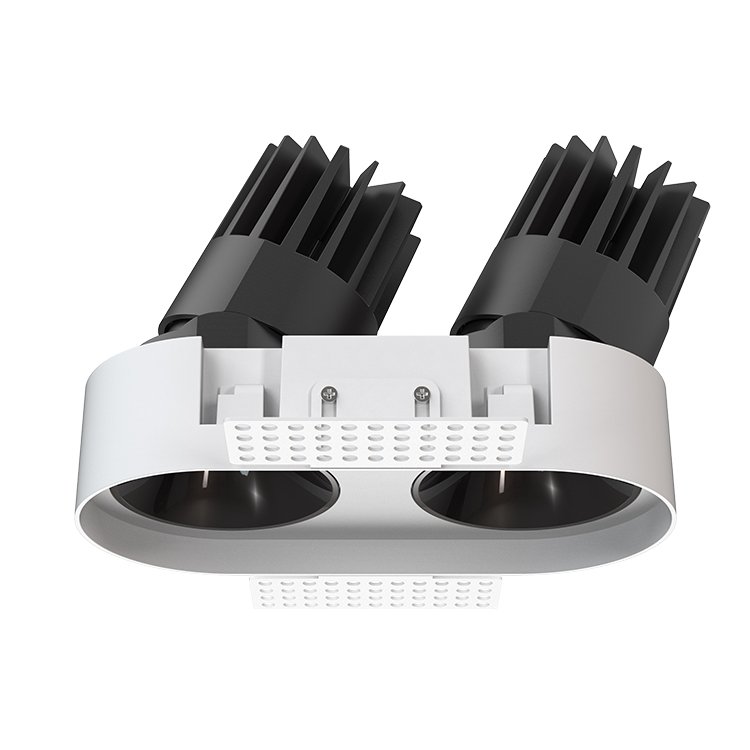

| L01204 | Wattage2×8W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsL126×W65×H90mm | Cut-out128xØ67mm |
| L01205 | Wattage2×18W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsL177×W87×H121mm | Cut-out180xØ90mm |
| L01206 | Wattage2×25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsL222×W108×H142mm | Cut-out225xØ110mm |
| L01267 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ62×H85mm | Cut-outØ55mm |
| L01276 | Wattage12W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ84×H110mm | Cut-outØ75mm |
| L01291 | Wattage20W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ84×H.110mm | Cut-outØ75mm |
| L01293 | Wattage8W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | Dimensionsø75×H90mm | Cut-outØ55mm |
Technical Data
Full Specification
| Dimensions | ø62×H85mm · ø84×H110mm · ø111×H130mm · ø139×W79×H90mm +9 more |
|---|---|
| Cut-out | Ø55mm · Ø75mm · Ø95mm · 128xØ65mm +7 more |
| Power | 2W · 8W · 10W · 12W +6 more |
| Lumen output | 680lm · 1800lm · 1600lm · 2500lm +9 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 8° · 15° · 24° · 38° +1 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +3 more |
| CRI Ra | 90 · 80/90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP65 · IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 36VDC |
| Light source | Not published — technical review required |
| Material | Aluminium DIE-CAST · Aluminium |
| Finish | White · Black · White+Matt White |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
15 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L01195. This family has 15 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L01195
ø62×H85mm
Cut-Out
Ø55mm
Specifications
At a Glance
2–25W
Power Range
3 options
Beam: 8°, 38°, 60°
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 90
Colour Rendering
IP20 / IP65
Protection Rating
1 finishes
Body Finish Options
15 sizes
L126×W65×H90mm, L177×W87×H121mm, L222×W108×H142mm, Ø62×H85mm, Ø84×H.110mm, Ø84×H110mm, ø111×H130mm, ø139×W79×H90mm, ø194×W104×H121mm, ø239×W125×H142mm, ø62×H85mm, ø72.4×H100.5mm, ø75×H85mm, ø84×H110mm, ø91.5×H121.5mm
11 cut-outs
128xØ65mm, 128xØ67mm, 180xØ90mm, 180xØ95mm, 225xØ110mm, Ø55mm, Ø57mm, Ø75mm, Ø77mm, Ø95mm, Ø97mm
Configure your product
L01195
Order code
Listed configurationL01195.965.03.05.60.DR
121 listed configurations · availability requires confirmation
