Track Light
MILIAN
3 variants·luminaire·track mounted
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (3)
Dimensions

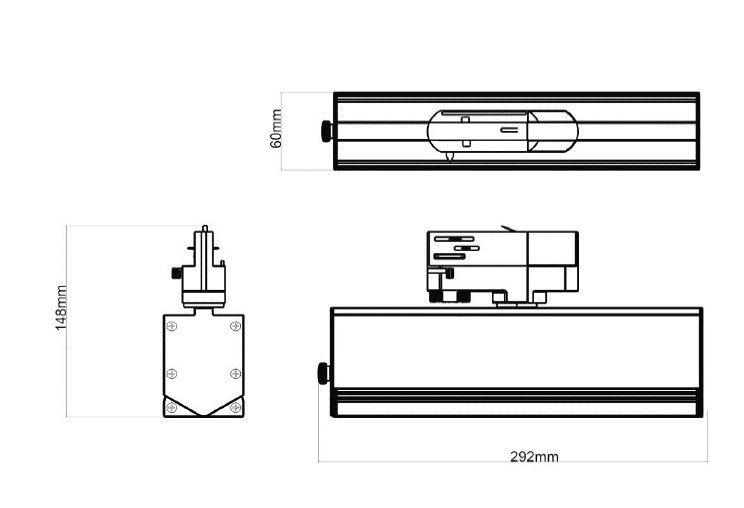

Technical Drawing
Drawing and sizes shown for model LBP1019.
Size — model LBP1019
292x60x148mm
Technical Data
Full Specification
| Dimensions | 292x60x148mm |
|---|---|
| Cut-out | On request |
| Power | 27W |
| Lumen output | 3600LM |
| Efficacy | 133 lm/W |
| Optics / beam angle | 11° · 36° · 60° · 90° +1 more |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI / R9 | 80 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 200-240VAC |
| Light source | On request |
| Material | Aluminum and PC |
| Finish | black-sand · White · BLACK WITH SAND |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
11 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
27W
Power
60°
Beam Angle
3 CCT
3000K, 4000K, 5000K
CRI 80
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
292x60x148mm
Dimensions
