Ceiling Light
CALLEJON
CALLEJON is a ceiling light family within the LUMIBRIGHT Lumi Indoor collection. The current catalogue groups 57 article codes under this family, including L01130, L01131, L01132. For L01130, published values include power: 7W; colour temperature: 2700K/3000K/4000K/6000K/6500K; IP rating: IP44; dimensions: Ø51x66mm. Each article represents its own physical model; dimensions and electrical or optical options must be checked against that exact code. Compare the CALLEJON articles using the specification table and individual model pages before adding them to a lighting schedule. Wattage, colour temperature, protection rating and installation dimensions are catalogue values, not a guarantee that every combination can be ordered. Where a value is not published, request the relevant model documentation rather than assuming it matches another article. Confirm the selected configuration, driver requirements, installation detail and project documentation with the specification team before ordering.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|
| L01130 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ51x66mm | Cut-outØ45mm |

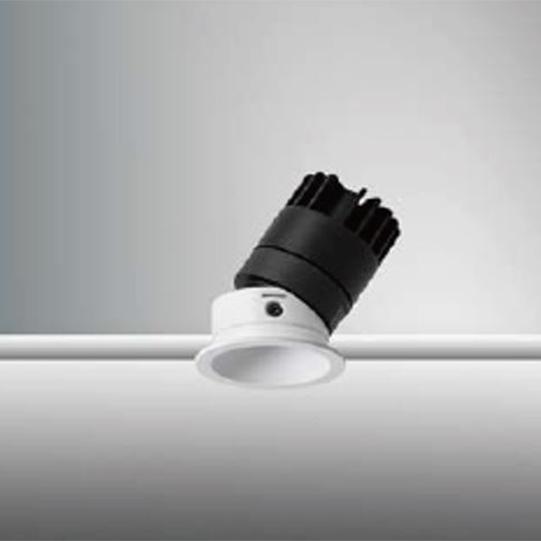

| L01131 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ51x72mm | Cut-outØ45mm |

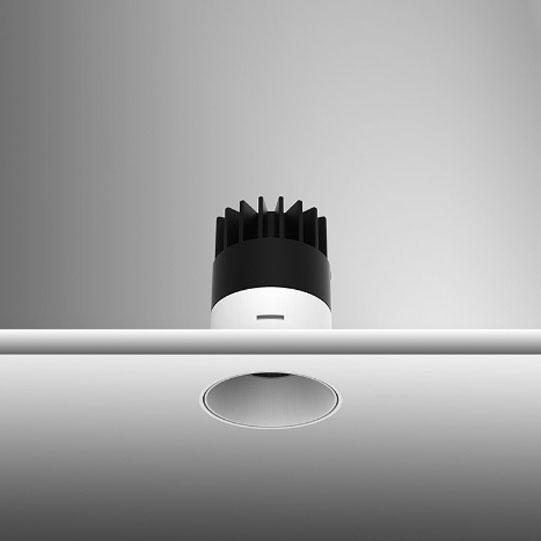

| L01132 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ46x66mm | Cut-outØ54mm |

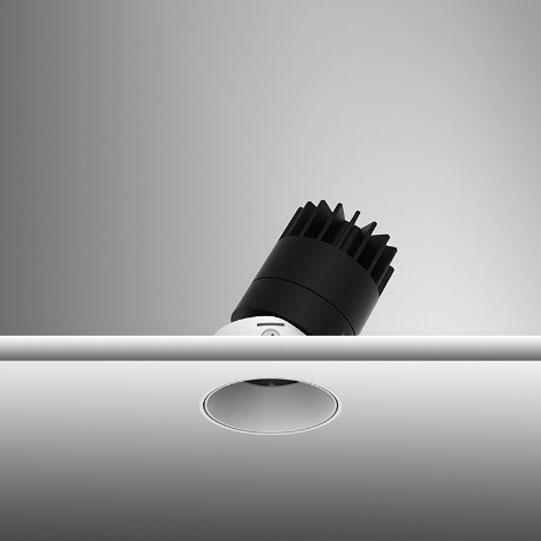

| L01133 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ46x72mm | Cut-outØ54mm |

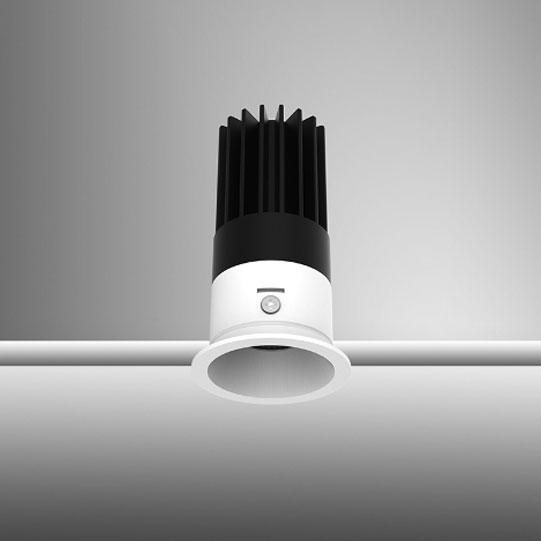

| L01134 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ46x94mm | Cut-outØ45mm |

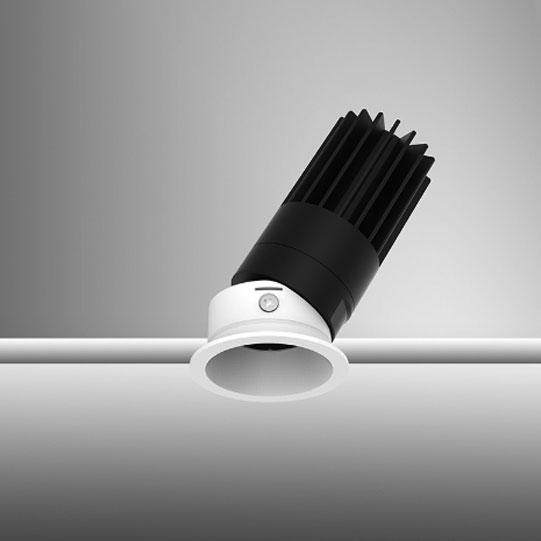

| L01135 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ46x99mm | Cut-outØ45mm |

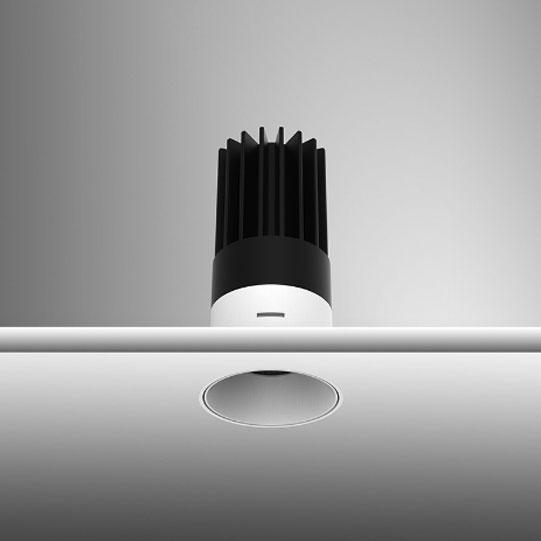

| L01136 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ46x94mm | Cut-outØ54mm |

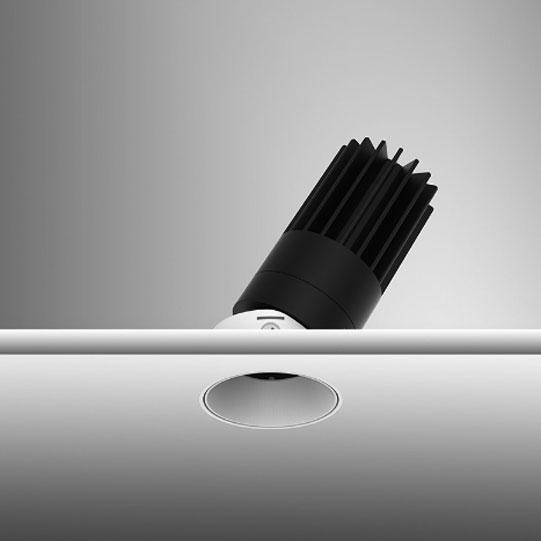

| L01137 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ46x96mm | Cut-outØ54mm |

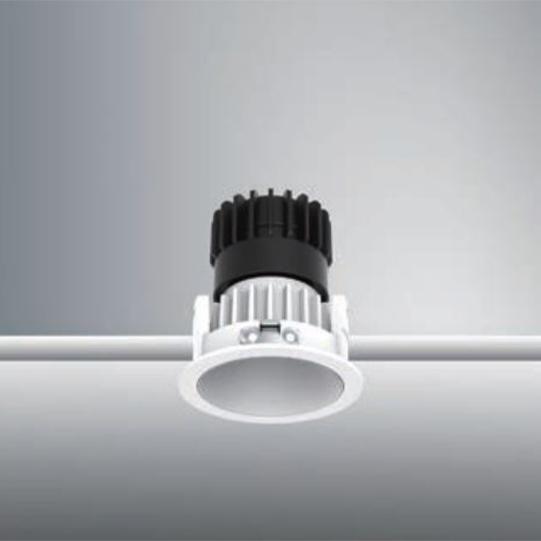

| L01138 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ65x72mm | Cut-outØ60mm |

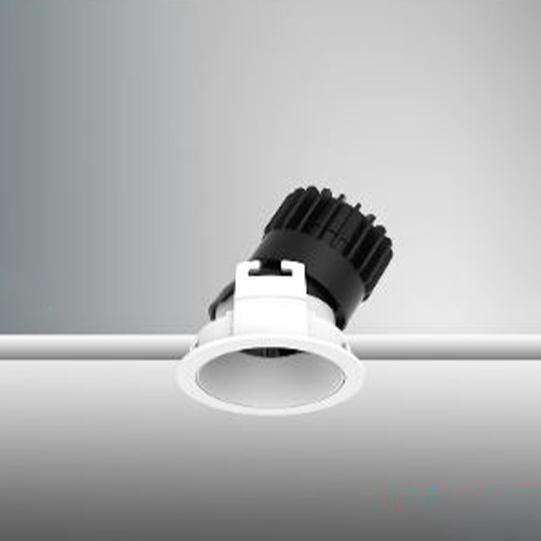

| L01139 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ65x74mm | Cut-outØ60mm |

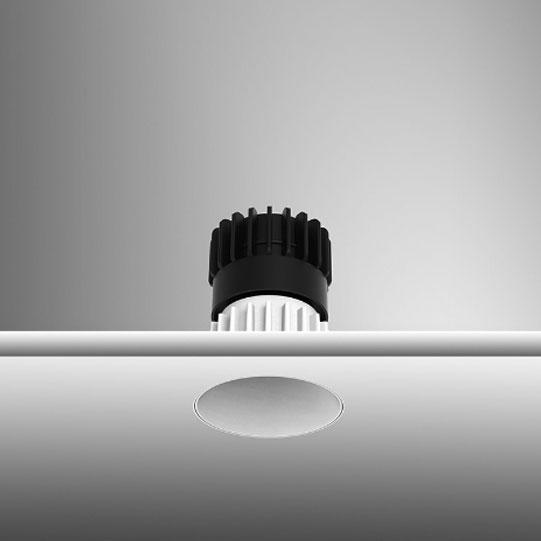

| L01140 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ56x72mm | Cut-outØ60mm |

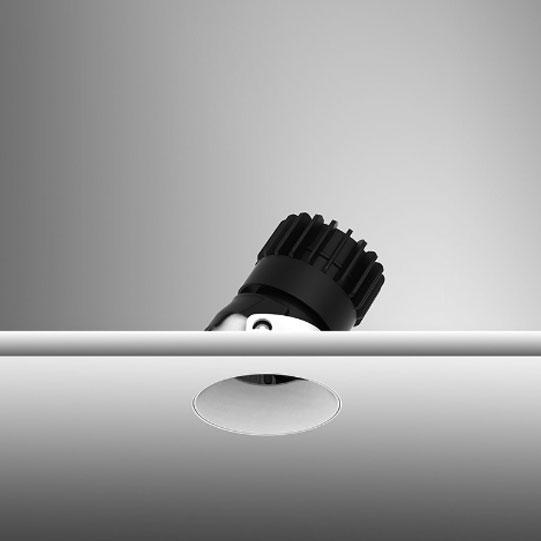

| L01141 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ56x74mm | Cut-outØ60mm |

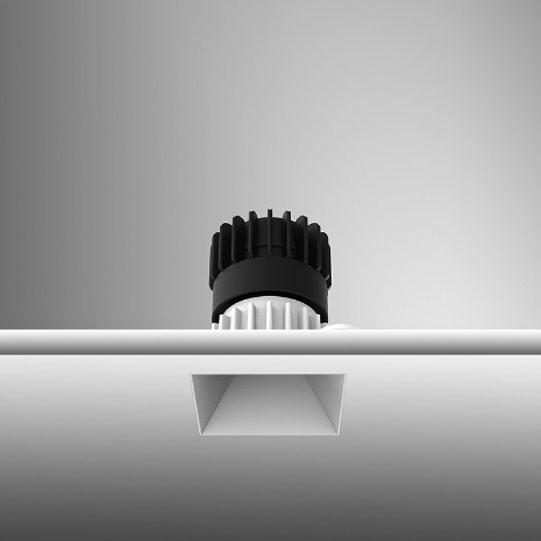

| L01142 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□56x72mm | Cut-out60x60mm |

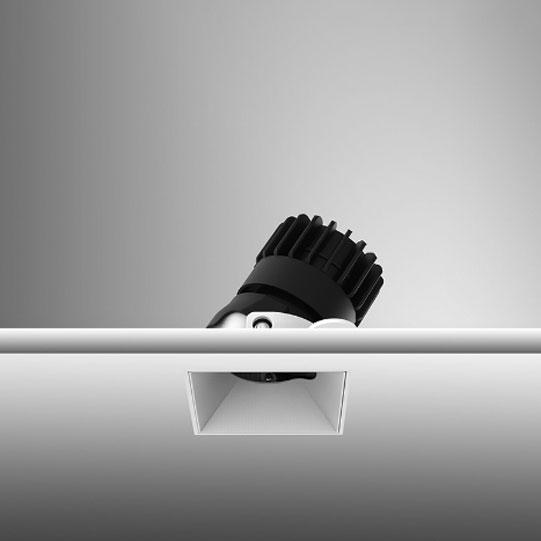

| L01143 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□56x74mm | Cut-out60x60mm |

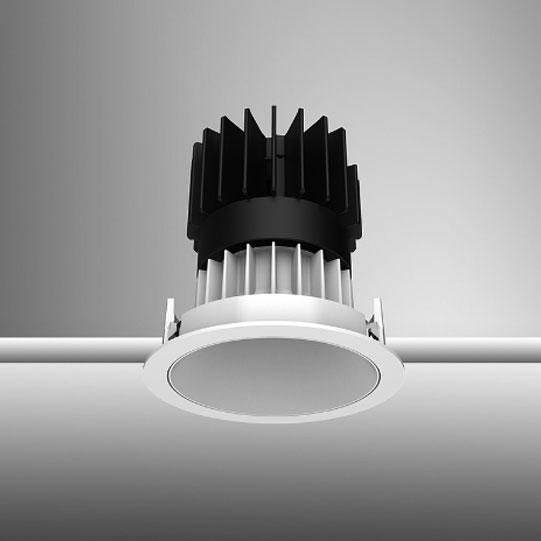

| L01144 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ112x119mm | Cut-outØ100mm |

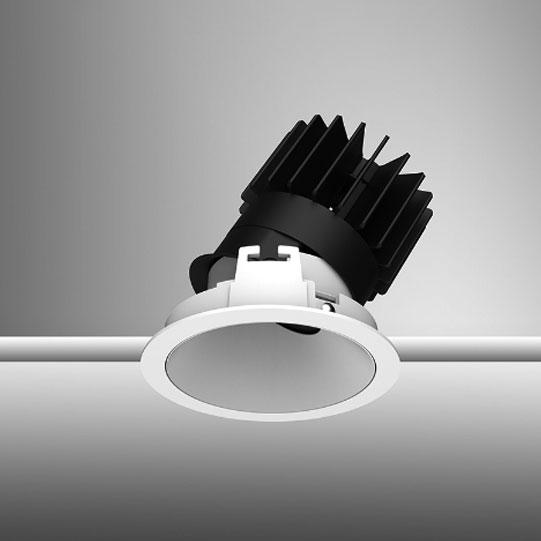

| L01145 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ112x126mm | Cut-outØ100mm |

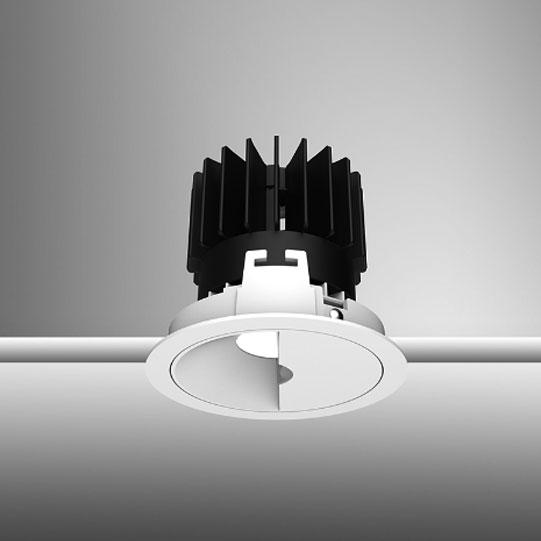

| L01146 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ112x98mm | Cut-outØ100mm |

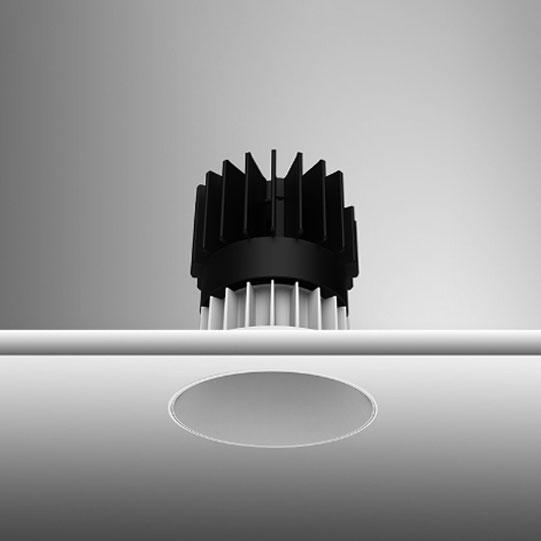

| L01147 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ95x119mm | Cut-outØ100mm |

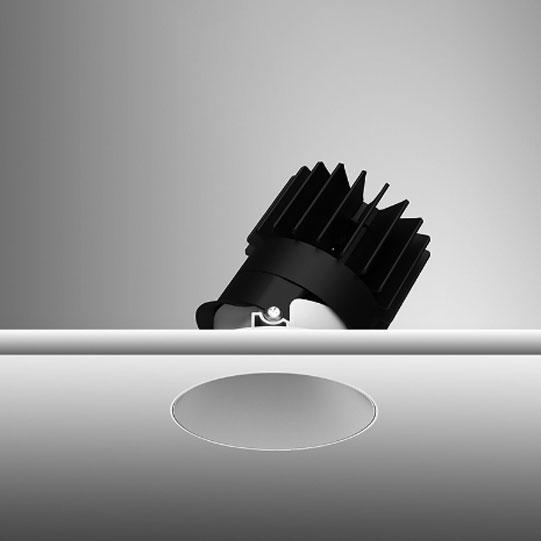

| L01148 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ95x126mm | Cut-outØ100mm |

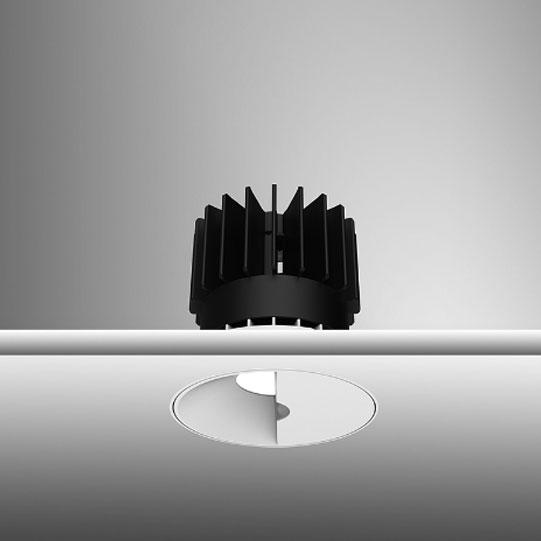

| L01149 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ95x98mm | Cut-outØ100mm |

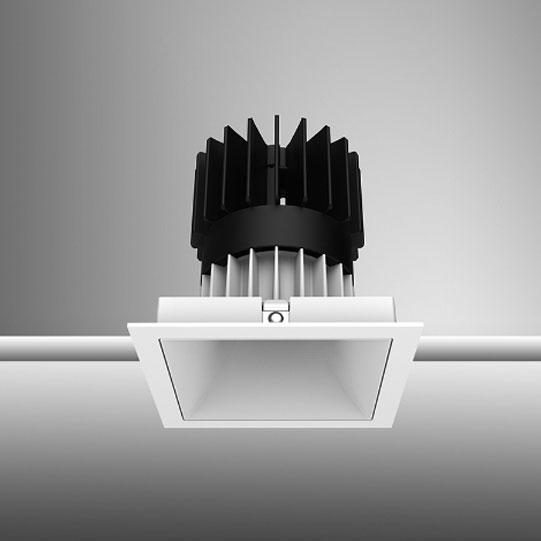

| L01150 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□112x117mm | Cut-out100x100mm |

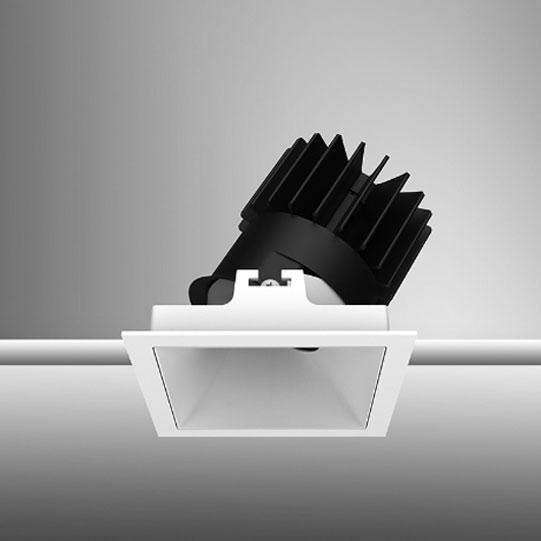

| L01151 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□112x126mm | Cut-out100x100mm |

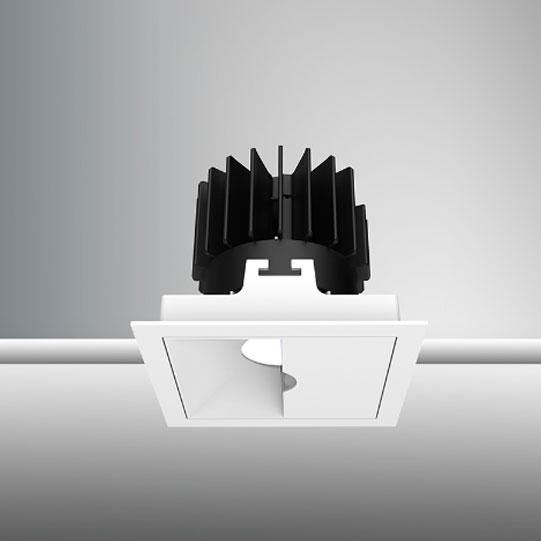

| L01152 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□112x98mm | Cut-out100x100mm |

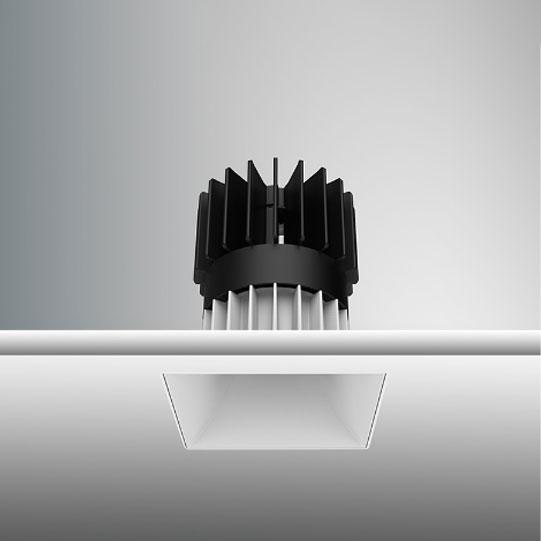

| L01153 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□95x117mm | Cut-out100x100mm |

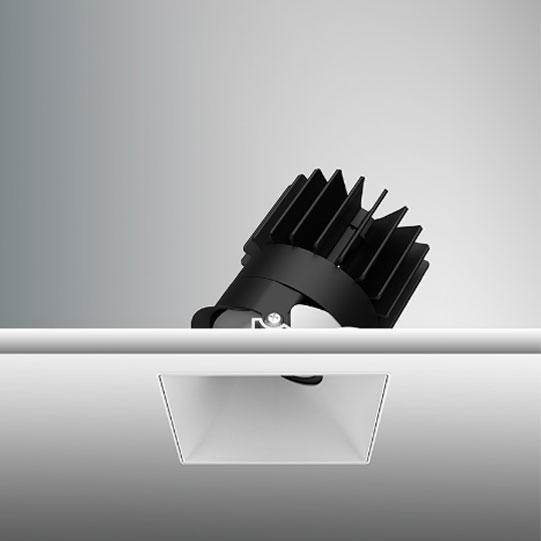

| L01154 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□95x126mm | Cut-out100x100mm |

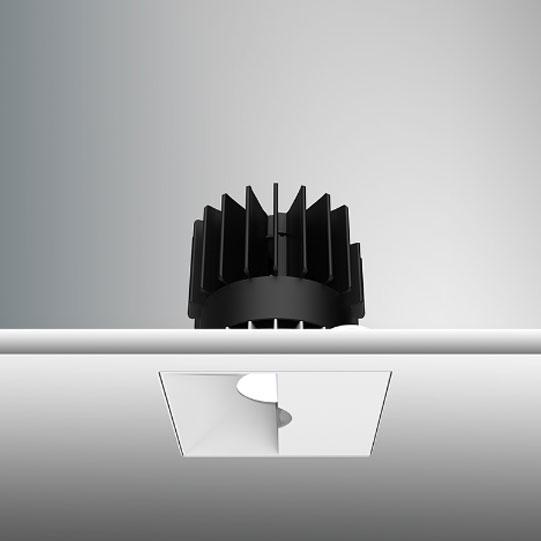

| L01155 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□95x98mm | Cut-out100x100mm |

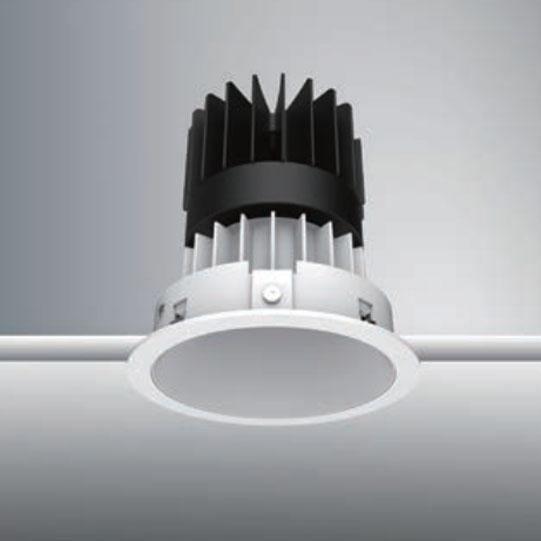

| L01156 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ140x154mm | Cut-outØ128mm |

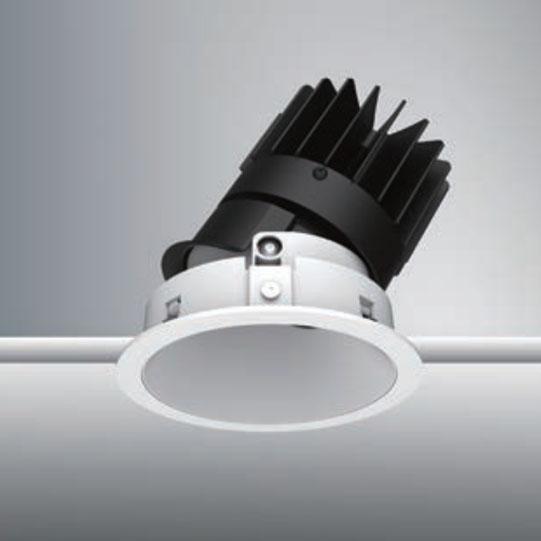

| L01157 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ140x162mm | Cut-outØ128mm |
| L01158 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ121x155mm | Cut-outØ128mm |
| L01159 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ121x162mm | Cut-outØ128mm |
| L01160 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□143x155mm | Cut-out128x128mm |
| L01161 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□143x162mm | Cut-out128x128mm |

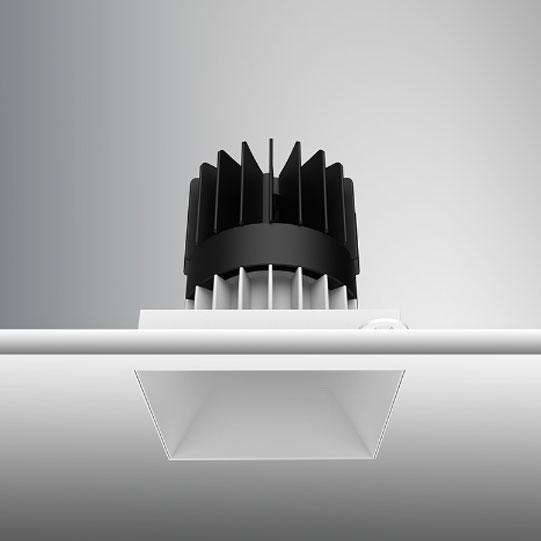

| L01162 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□121x154mm | Cut-out128x128mm |
| L01163 | Wattage32W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | Dimensions□121x162mm | Cut-out128x128mm |
| L01164 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ88x90mm | Cut-outØ80mm |
| L01165 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ88x90mm | Cut-outØ80mm |
| L01166 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ74x90mm | Cut-outØ80mm |
| L01167 | Wattage10W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ74x90mm | Cut-outØ80mm |
| L01168 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ112x102mm | Cut-outØ100mm |
| L01169 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ112x102mm | Cut-outØ100mm |
| L01170 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ95x110mm | Cut-outØ100mm |
| L01171 | Wattage25W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ95x110mm | Cut-outØ100mm |
| L01172 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ76x65mm | Cut-outØ70mm |
| L01173 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ76x67mm | Cut-outØ70mm |
| L01174 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ117x65mm | Cut-outØ85mm |
| L01175 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP20 | DimensionsØ117x67mm | Cut-outØ85mm |
| L01176 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ55x64mm | Cut-outØ48mm |
| L01177 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ55x64mm | Cut-outØ48mm |
| L01178 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ95x64mm | Cut-outØ64mm |
| L01179 | Wattage7W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ95x64mm | Cut-outØ64mm |

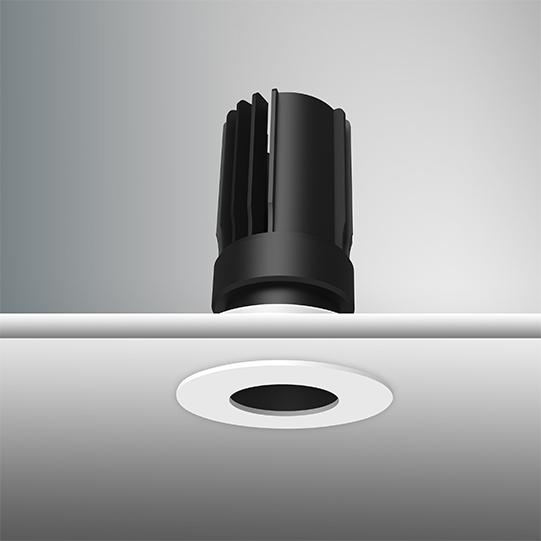

| L01180 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ55x90mm | Cut-outØ48mm |

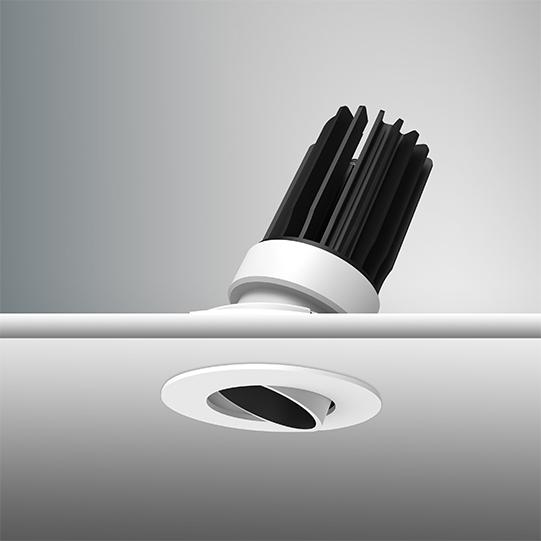

| L01181 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ55x90mm | Cut-outØ48mm |
| L01182 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ95x90mm | Cut-outØ64mm |

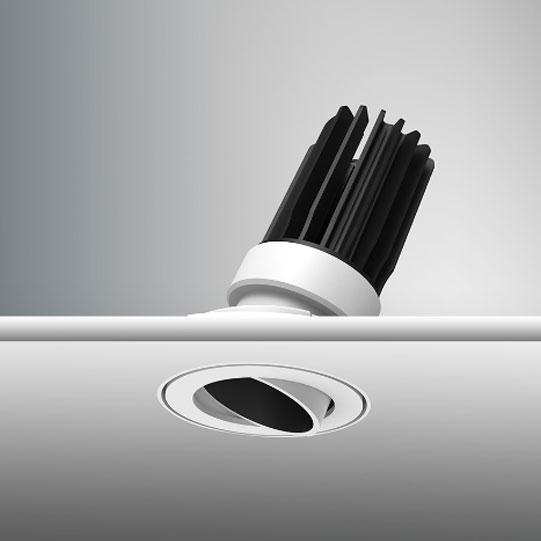

| L01183 | Wattage9W | CCT2700K/3000K/4000K/6000K/6500K | IPIP65 | DimensionsØ95x90mm | Cut-outØ64mm |

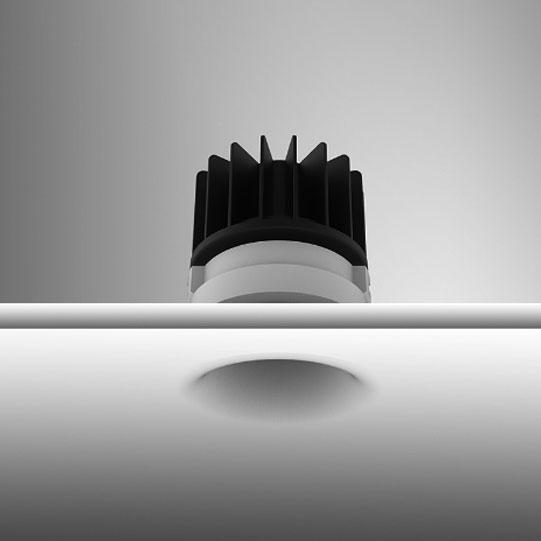

| L01184 | Wattage14W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ89x93mm | Cut-outØ82mm |

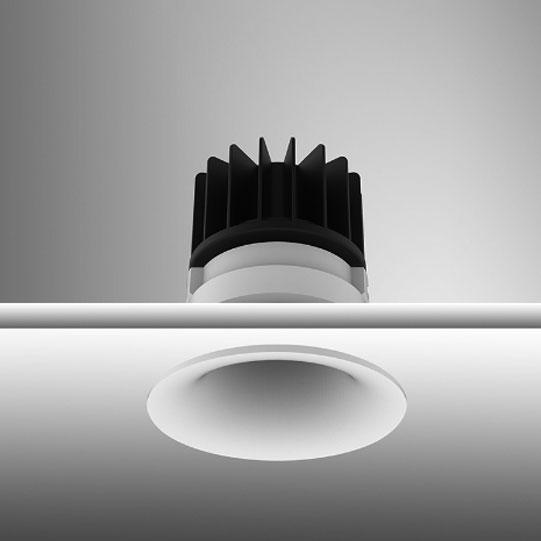

| L01185 | Wattage14W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ86x93mm | Cut-outØ75mm |

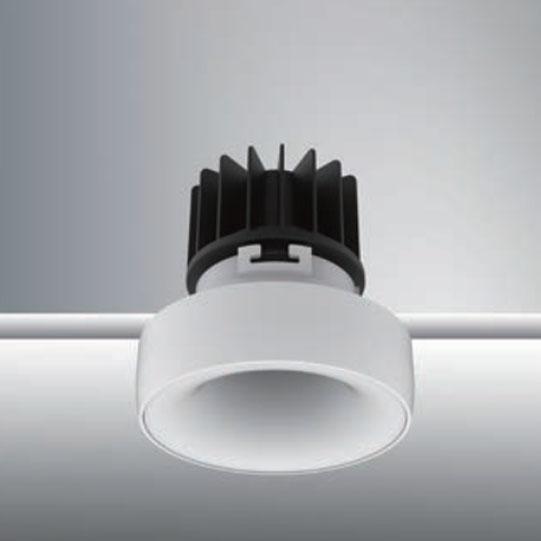

| L01186 | Wattage14W | CCT2700K/3000K/4000K/6000K/6500K | IPIP44 | DimensionsØ93x23x70mm | Cut-outØ75mm |
Technical Data
Full Specification
| Dimensions | Ø51x66mm · Ø51x72mm · Ø46x66mm · Ø46x72mm +44 more |
|---|---|
| Cut-out | Ø45mm · Ø54mm · Ø60mm · 60x60mm +11 more |
| Power | 7W · 9W · 10W · 14W +2 more |
| Lumen output | 547LM · 525LM · 697LM · 642LM +21 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 6° · 10° · 15° · 20° +11 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI Ra | 90+ |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP44 · IP20 · IP65 · IP65/IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | Not published — technical review required |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | White · Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
57 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L01130. This family has 57 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L01130
Ø51x66mm
Cut-Out
Ø45mm
Specifications
At a Glance
7–32W
Power Range
7 options
Beam: 6°, 10°, 15°, 20°, 24°, 30°, 50°
5 CCT
2700K, 3000K, 4000K, 6000K, 6500K
CRI 90
Colour Rendering
IP20 / IP44 / IP65
Protection Rating
1 finishes
Body Finish Options
48 sizes
Ø112x102mm, Ø112x119mm, Ø112x126mm, Ø112x98mm, Ø117x65mm, Ø117x67mm, Ø121x155mm, Ø121x162mm, Ø140x154mm, Ø140x162mm, Ø46x66mm, Ø46x72mm, Ø46x94mm, Ø46x96mm, Ø46x99mm, Ø51x66mm, Ø51x72mm, Ø55x64mm, Ø55x90mm, Ø56x72mm, Ø56x74mm, Ø65x72mm, Ø65x74mm, Ø74x90mm, Ø76x65mm, Ø76x67mm, Ø86x93mm, Ø88x90mm, Ø89x93mm, Ø93x23x70mm, Ø95x110mm, Ø95x119mm, Ø95x126mm, Ø95x64mm, Ø95x90mm, Ø95x98mm, □112x117mm, □112x126mm, □112x98mm, □121x154mm, □121x162mm, □143x155mm, □143x162mm, □56x72mm, □56x74mm, □95x117mm, □95x126mm, □95x98mm
15 cut-outs
100x100mm, 128x128mm, 60x60mm, Ø100mm, Ø128mm, Ø45mm, Ø48mm, Ø54mm, Ø60mm, Ø64mm, Ø70mm, Ø75mm, Ø80mm, Ø82mm, Ø85mm
Configure your product
L01130
Order code
Listed configurationL01130.940.01.50
24 listed configurations · availability requires confirmation
