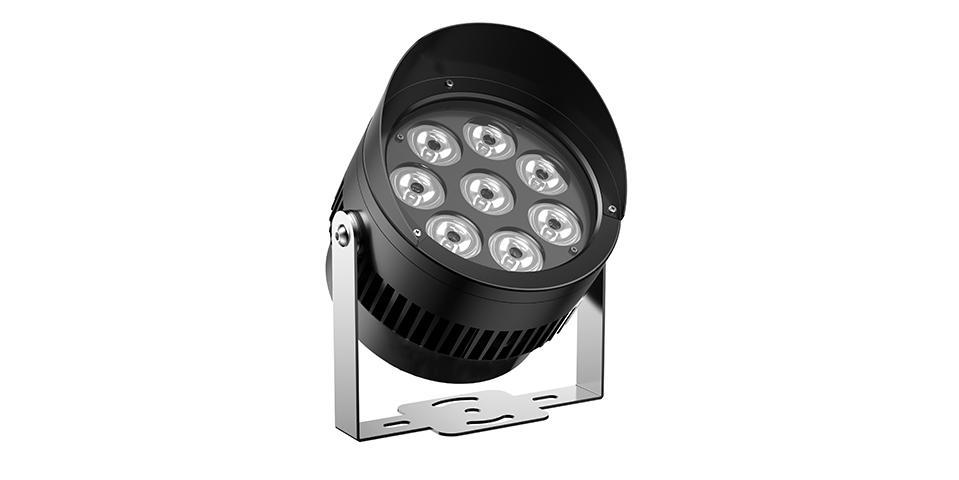

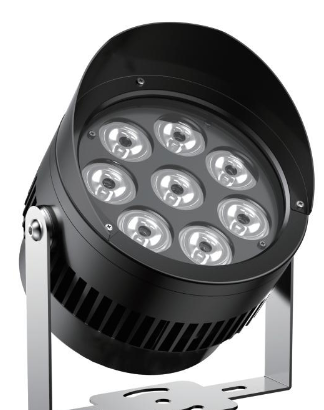

L07116 Projector Light
BASE: L07116BILSTON lighting solution with professional specifications
Specifications at a Glance
54W
Power
85LM/W
Lumen Output
RGB+WARM WHITE
Available Colour Temperatures
CRI No CRI
Colour Rendering Index
IP66
Protection Rating
10° / 20° / 30° / 45° / 60° / 6°
Beam Angle
DC24V
Input
Ø170x217mm
Body Dimensions
Grey
Available Finishes
On/OffDALI1-10V0-10VPhase
Dimming Options
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
6 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L07116.XRGBW.09.60
CCT:
RGB
Power:54W
Lumen:85LM/W
Beam:
60°
Finish:
CRI No CRIIP66Grey
L07116.XRGBW.09.45
CCT:
RGB
Power:54W
Lumen:85LM/W
Beam:
45°
Finish:
CRI No CRIIP66Grey
L07116.XRGBW.09.30
CCT:
RGB
Power:54W
Lumen:85LM/W
Beam:
30°
Finish:
CRI No CRIIP66Grey
L07116.XRGBW.09.20
CCT:
RGB
Power:54W
Lumen:85LM/W
Beam:
20°
Finish:
CRI No CRIIP66Grey
L07116.XRGBW.09.10
CCT:
RGB
Power:54W
Lumen:85LM/W
Beam:
10°
Finish:
CRI No CRIIP66Grey
L07116.XRGBW.09.6
CCT:
RGB
Power:54W
Lumen:85LM/W
Beam:
6°
Finish:
CRI No CRIIP66Grey
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- PROJECTOR LIGHT
- Series:
- BILSTON
- Family:
- BILSTON
- Dimension:
- Ø170x217mm
- Input Voltage:
- DC24V
- Material:
- ALUMINUM DIE-CAST
Applications
Outdoor
Configure your product
L07116
Order code
Listed configurationL07116.XRGBW.09.60
6 listed configurations · availability requires confirmation
