Lumi Indoor
VASTE
Application inspiration · not a project reference
VASTE is part of Lumi Indoor. Coordinate the selected article’s dimensions, installation details and configuration with the project specification; these details can vary between models in the same family.
Spot Light
VASTE
VASTE is a down light family within the LUMIBRIGHT Lumi Indoor collection. Explore 26 models, including L02016, L02017, L02018, with model-specific specifications and configuration choices. L02016 specifications include power: 10W; colour temperature: 2700K/3000K/4000K/5000K; IP rating: IP20; dimensions: Ø80*130mm. Compare the VASTE range by power, colour temperature, protection rating and dimensions using the technical table below. Open an individual model to explore its available finishes and optics, select a listed order code and prepare a specification sheet where configuration data is available. Keep the chosen model reference with your project schedule so the lighting and installation teams can coordinate the same selection. For additional drawings, photometry or project-specific requirements, contact the LUMIBRIGHT specification team with your model code.
Model specifications
| Article | Wattage | CCT | IP | Dimensions | Cut-out |
|---|---|---|---|---|---|

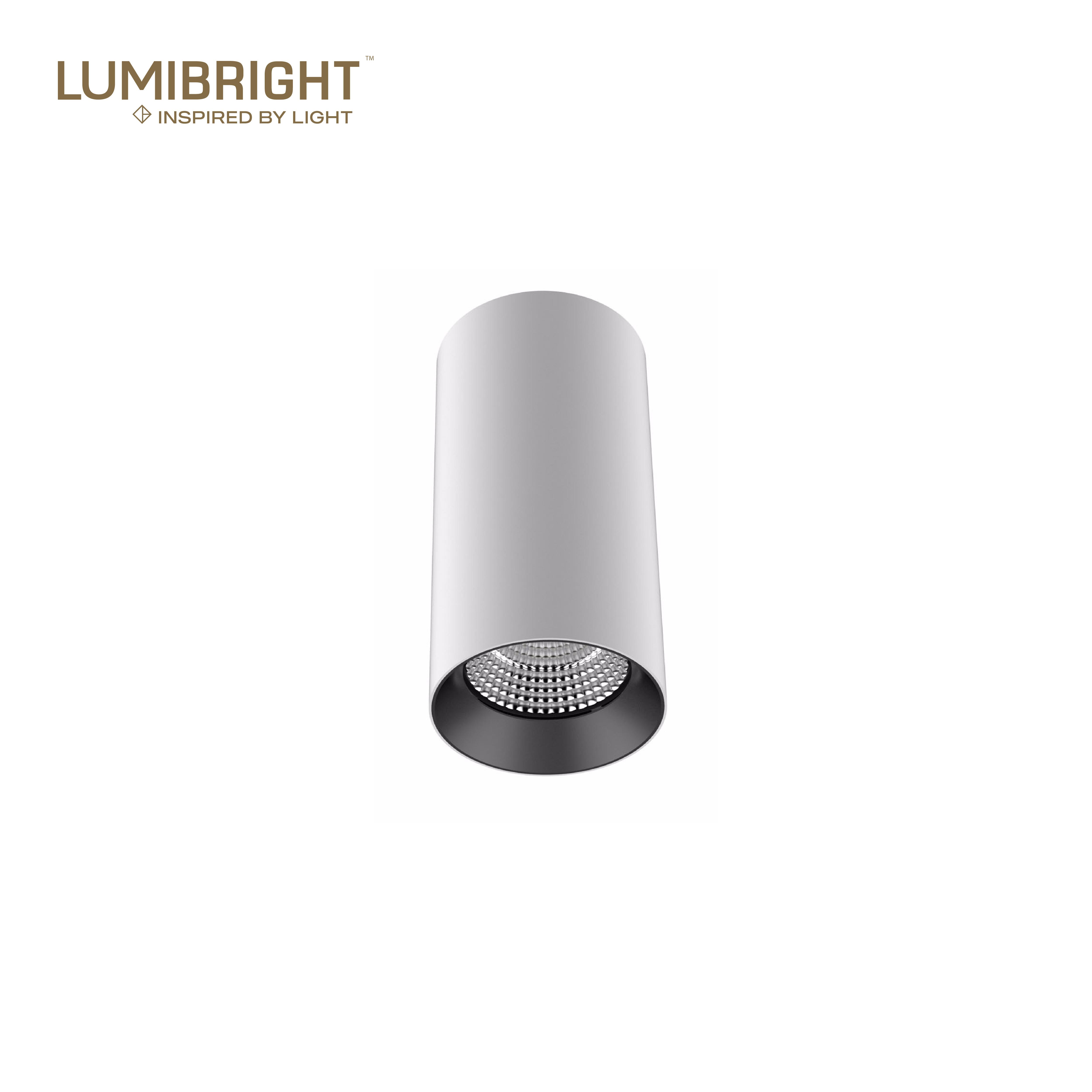

| L02016 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ80*130mm | Cut-outNot published |
| L02017 | Wattage18W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ80*160mm | Cut-outNot published |
| L02018 | Wattage25W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ112.5*160mm | Cut-outNot published |

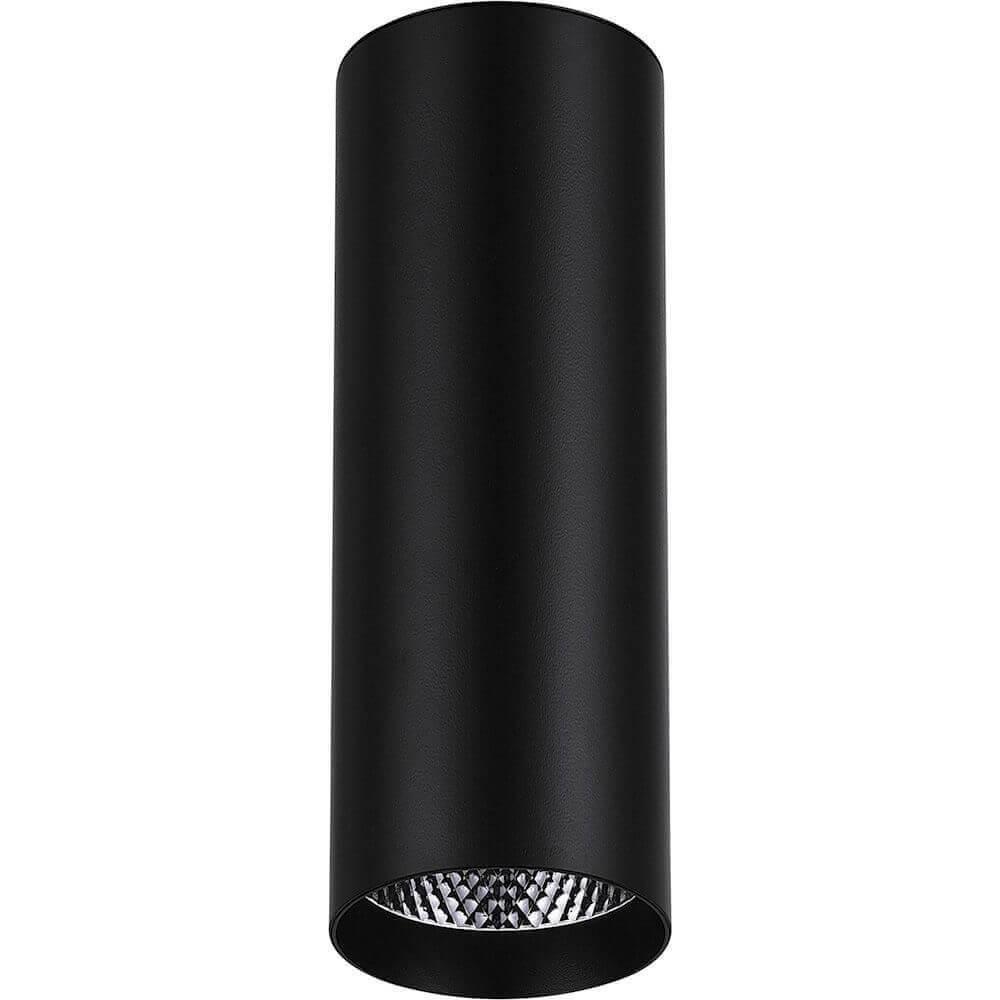

| L02019 | WattageWATTAGE SWITCHABLE/10W/12W/15W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensionsφ65*180 | Cut-outNot published |
| L02020 | WattageWATTAGE SWITCHABLE/15W/20W/25W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensionsφ85*206 | Cut-outNot published |
| L02021 | WattageWATTAGE SWITCHABLE/25W/30W/35W | CCT2700K/3000K/4000K/5000K | IPIP20 | Dimensionsφ100*220 | Cut-outNot published |

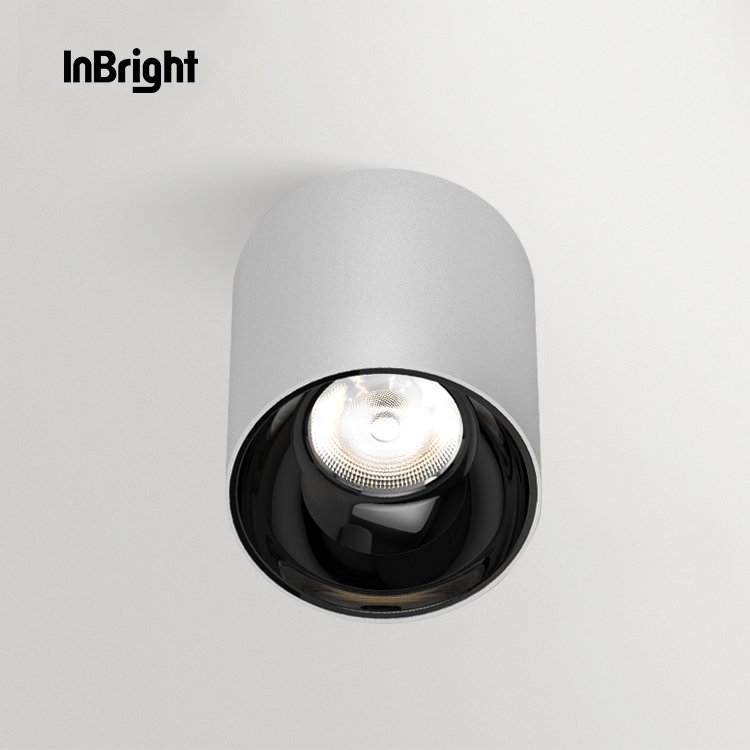

| L02025 | Wattage10W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ75×H.100mm | Cut-outNot published |
| L02026 | Wattage15W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ75×H.152mm | Cut-outNot published |
| L02027 | Wattage15W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ95×H.100mm | Cut-outNot published |
| L02028 | Wattage20W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ95×H.152mm | Cut-outNot published |
| L02029 | Wattage30W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ115×H.152mm | Cut-outNot published |
| L02030 | Wattage40W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ140×H.162mm | Cut-outNot published |
| L02031 | Wattage50W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ170×H.182mm | Cut-outNot published |
| L02032 | Wattage50W | CCT2700K/3000K/4000K/5000K/5700K/6500K | IPIP65 | DimensionsØ205×H.212mm | Cut-outNot published |
| L02049 | Wattage15W | CCT2700K/3000K/4000K/5000K/6000K | IPIP65 | DimensionsØ86x140mm | Cut-outNot published |
| L02050 | Wattage20W | CCT2700K/3000K/4000K/5000K/6000K | IPIP65 | DimensionsØ86x140mm | Cut-outNot published |
| L02051 | Wattage8W | CCT2700K/3000K/4000K/5000K/6000K | IPIP65 | DimensionsØ86x140mm | Cut-outNot published |
| L02052 | Wattage10W | CCT2700K/3000K/4000K/5000K/6000K | IPIP65 | DimensionsØ86x140mm | Cut-outNot published |
| L03000 | Wattage10W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ80*130mm | Cut-outNot published |
| L03001 | Wattage18W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ80*160mm | Cut-outNot published |
| L03002 | Wattage25W | CCT2700K/3000K/4000K/5000K | IPIP20 | DimensionsØ112.5*160mm | Cut-outNot published |

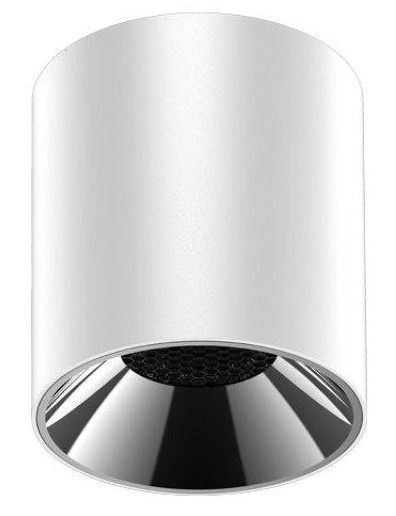

| LB2824 | Wattage12W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ75x95mm | Cut-outNot published |

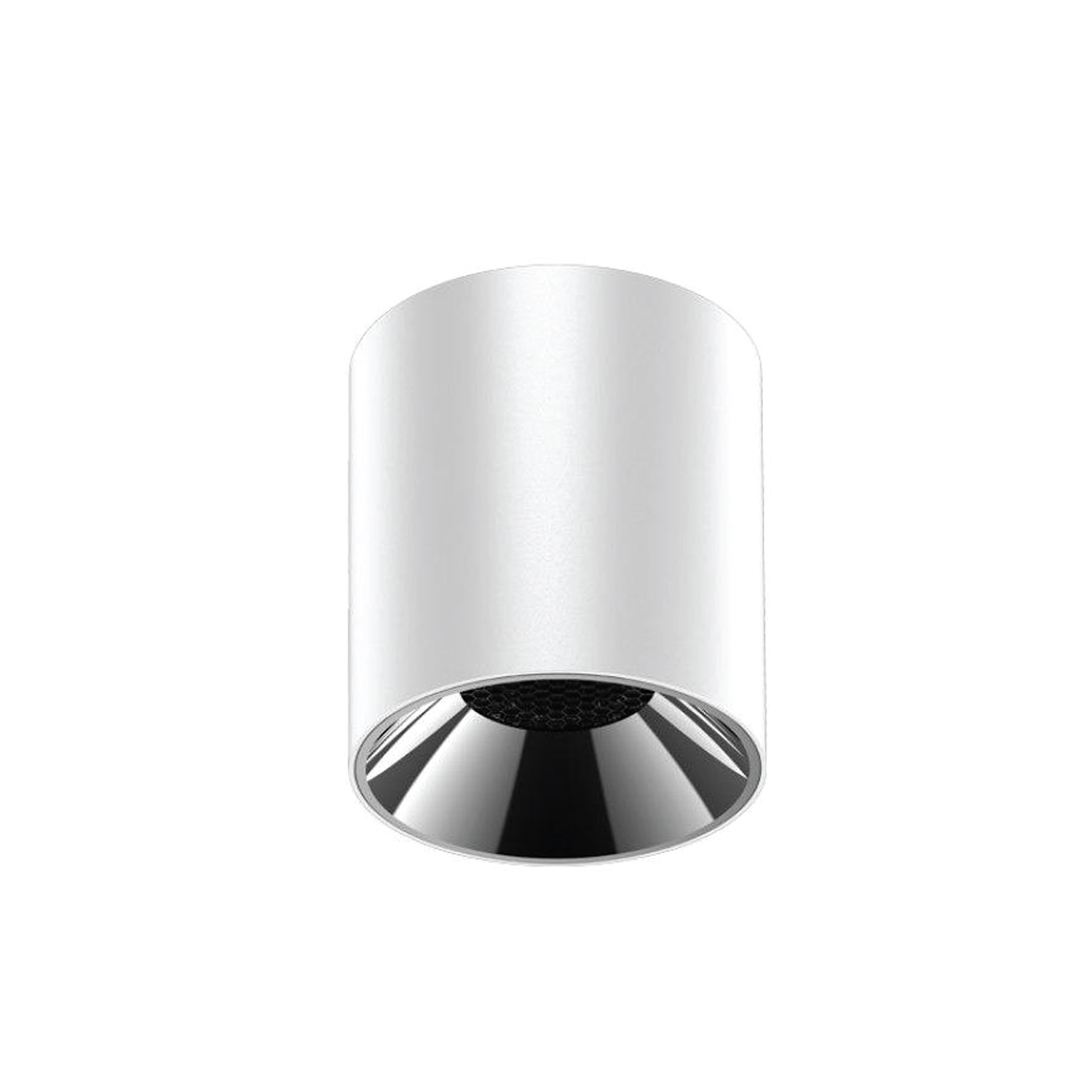

| LB2825 | Wattage20W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ91x112mm | Cut-outNot published |

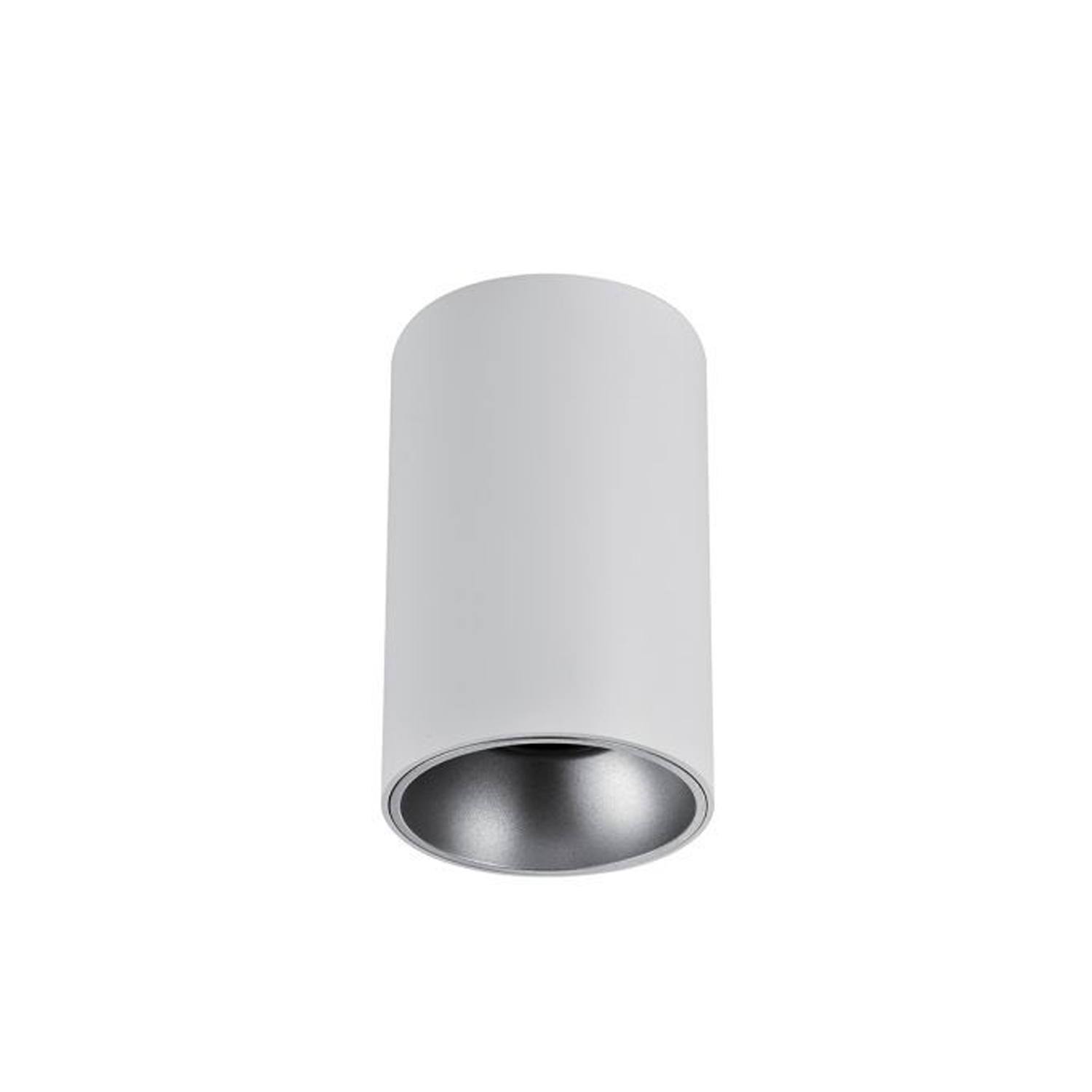

| LB2849 | Wattage15W | CCT2700K/3000K/4000K/5000K/6000K | IPIP65 | DimensionsØ95x100mm | Cut-outNot published |

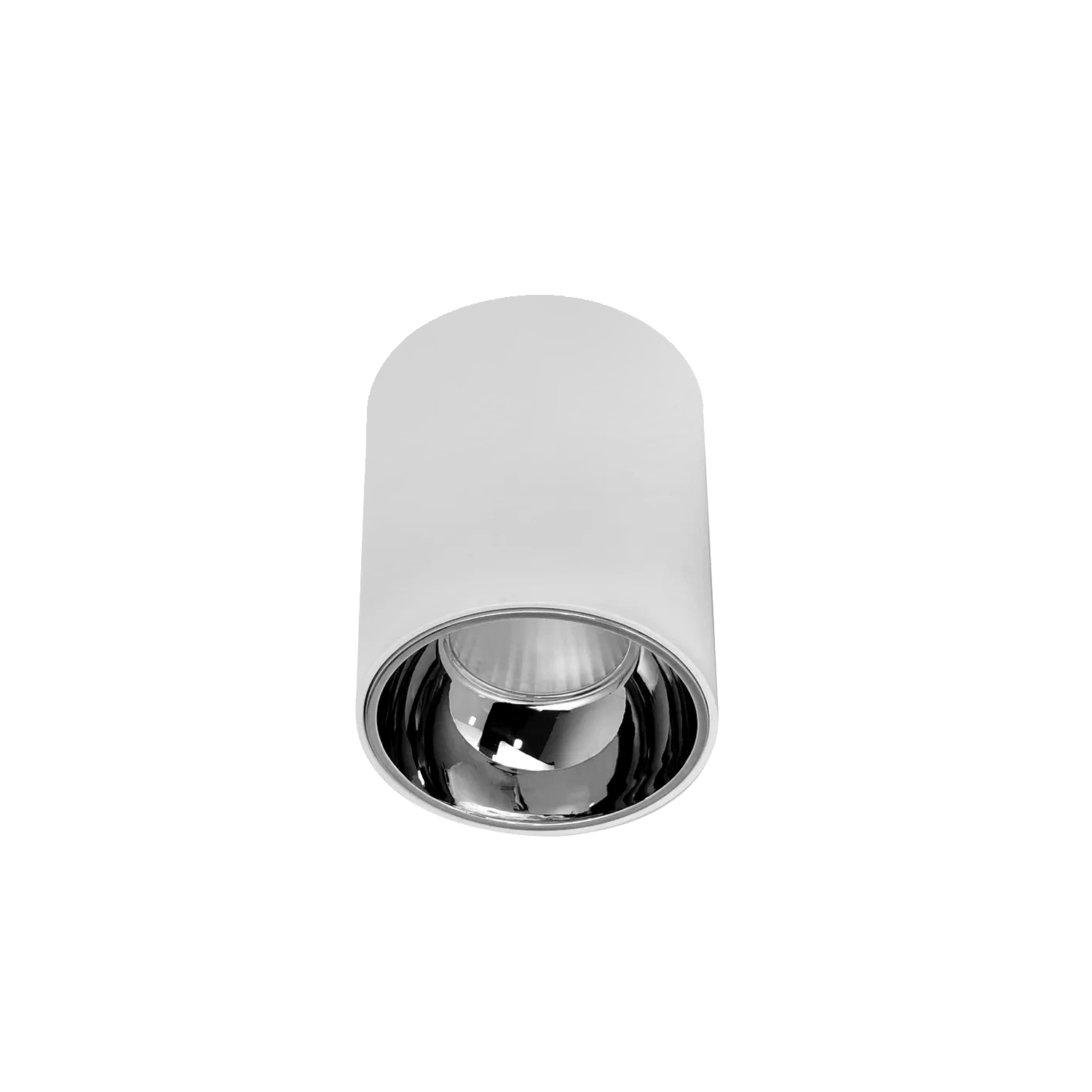

| LB3310 | Wattage30W | CCT2700K/3000K/4000K/5000K/6000K | IPIP20 | DimensionsØ128x137mm | Cut-outNot published |

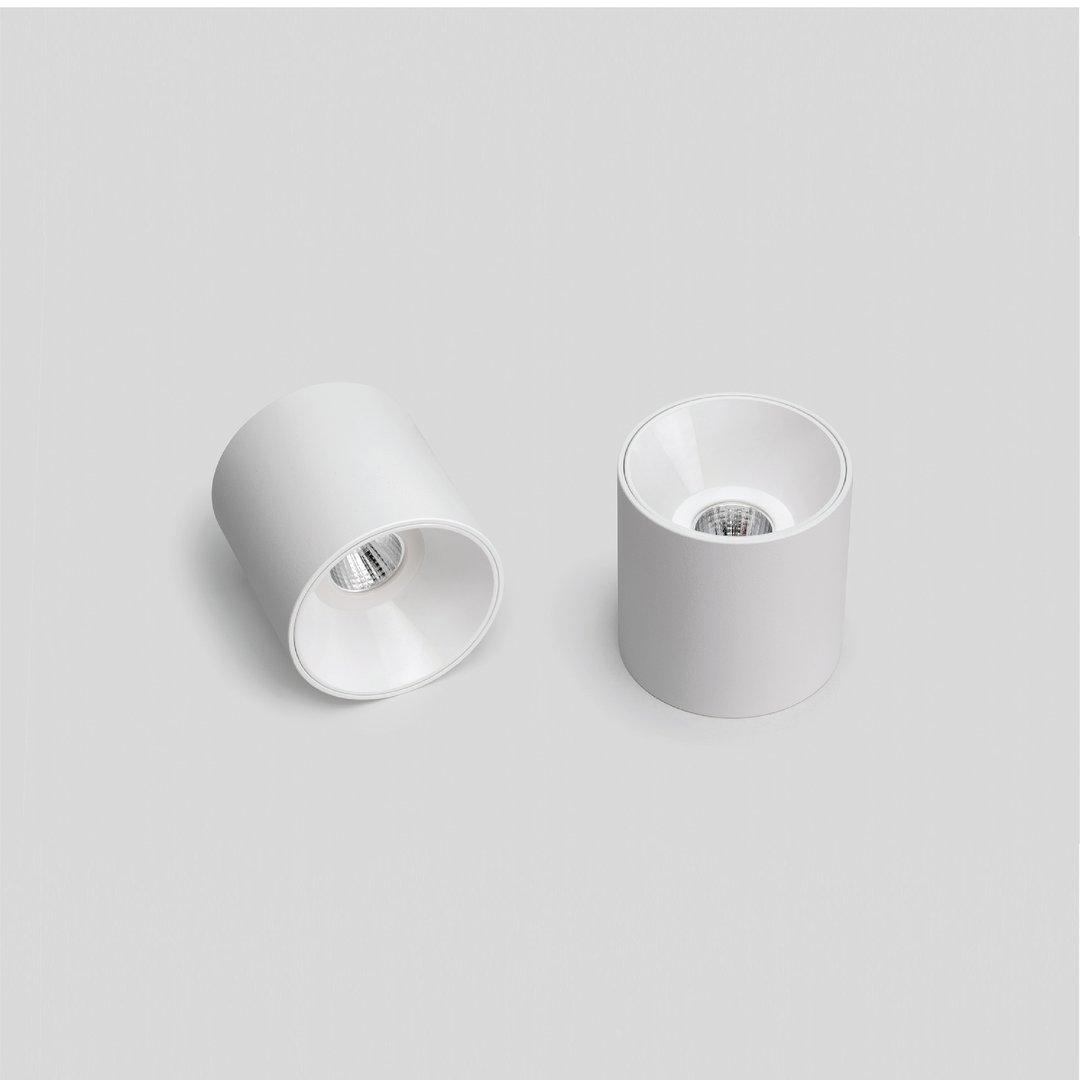

| LBE2168 | Wattage12W | CCT3000K | IPIP20 | DimensionsØ75xH90mm | Cut-outNot published |
Technical Data
Full Specification
| Dimensions | Ø75xH90mm · Ø80*130mm · Ø80*160mm · Ø112.5*160mm +16 more |
|---|---|
| Cut-out | Not published — technical review required |
| Power | 8W · 10W · 12W · 15W +9 more |
| Lumen output | 850-900LM · 1400-1660LM · 2265-2765LM · 740-1750lm +9 more |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 20° · 24° · 36° +3 more |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +4 more |
| CRI Ra | 90 · 80/90 · >90 · >80 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 · IP65 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC · 100-240VAC · 200-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium · Aluminium DIE-CAST |
| Finish | white+matt-white · White · Black · Matt Black +8 more |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
10 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Configuration
Select Specification
Select attributes to narrow down variants
Product Lines
26 Products
Dimensions
Technical Drawing
Drawing and sizes shown for model L02026. This family has 26 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model L02026
Ø75×H.152mm
Specifications
At a Glance
8–50W
Power Range
5 options
Beam: 15°, 20°, 24°, 36°, 38°
7 CCT
2700K, 3000K, 4000K, 5000K, 5700K, 6000K, 6500K
Switch
Colour Options
CRI 80/90
Colour Rendering
IP20 / IP65
Protection Rating
5 finishes
Body Finish Options
20 sizes
Ø112.5*160mm, Ø115×H.152mm, Ø128x137mm, Ø140×H.162mm, Ø170×H.182mm, Ø205×H.212mm, Ø75x95mm, Ø75xH90mm, Ø75×H.100mm, Ø75×H.152mm, Ø80*130mm, Ø80*160mm, Ø86x140mm, Ø91x112mm, Ø95x100mm, Ø95×H.100mm, Ø95×H.152mm, φ100*220, φ65*180, φ85*206
Configure your product
L02026
Order code
Listed configurationL02026.930.04.06.40
52 listed configurations · availability requires confirmation
